Grundfos Unilift AP12 Manuale utente

Unilift AP12, AP35, AP50

Control box

GRUNDFOS INSTRUCTIONS

Installation and operating instructions

Unilift AP12, AP35, AP50

Control box

Installation and operating instructions 4

Montage- und Betriebsanleitung 6

Notice d'installation et d'entretien 8

Istruzioni di installazione e funzionamento 10

Instrucciones de instalación y funcionamiento 12

Instruções de instalação e funcionamento 14

Οδηγίες εγκατάστασης και λειτουργίας 16

Installatie- en bedieningsinstructies 18

Monterings- och driftsinstruktion 20

Asennus- ja käyttöohjeet 22

Monterings- og driftsinstruktion 24

Instrukcja montażu i eksploatacji 26

Руководство по монтажу иэксплуатации 28

Szerelési és üzemeltetési utasítás 31

Navodilo za montažo in obratovanje 33

Montažne i pogonske upute 35

Uputstvo za montažu i upotrebu 37

Instrucţiuni de instalare şi utilizare 39

Упътване за монтаж иексплоатация 41

Montážní a provozní návod 43

Návod na montáž a prevádzku 45

Montaj ve kullanım kılavuzu 47

UNILIFT AP, APB and APG Control box

Installation and operating instructions

UNILIFT APG

Installation and operating instructions

(all available languages)

http://net.grundfos.com/qr/i/92662011

UNILIFT AP12,AP35,AP50

Installation and operating instructions

(all available languages)

http://net.grundfos.com/qr/i/96011045

UNILIFT AP35B, AP50B

Installation and operating instructions

(all available languages)

http://net.grundfos.com/qr/i/96004693

GRUNDFOS INSTRUCTIONS

UNILIFT AP, APB and APG Control box

English (GB)

Installation and operating instructions ..................................5

Български (BG)

Упътване за монтаж и експлоатация.................................10

Čeština (CZ)

Montážní a provozní návod ........................................15

Deutsch (DE)

Montage- und Betriebsanleitung .....................................20

Dansk (DK)

Monterings- og driftsinstruktion ......................................25

Eesti (EE)

Paigaldus- ja kasutusjuhend........................................30

Español (ES)

Instrucciones de instalación y funcionamiento............................35

Suomi (FI)

Asennus- ja käyttöohjeet ..........................................40

Français (FR)

Notice d'installation et de fonctionnement...............................45

Ελληνικά (GR)

Οδηγίες εγκατάστασης και λειτουργίας.................................50

Hrvatski (HR)

Montažne i pogonske upute ........................................55

Magyar (HU)

Telepítési és üzemeltetési utasítás ...................................60

Italiano (IT)

Istruzioni di installazione e funzionamento ..............................65

Lietuviškai (LT)

Įrengimo ir naudojimo instrukcija .....................................70

Latviešu (LV)

Uzstādīšanas un ekspluatācijas instrukcija ..............................75

Nederlands (NL)

Installatie- en bedieningsinstructies ...................................80

Polski (PL)

Instrukcja montażu i eksploatacji.....................................85

Table of contents

Português (PT)

Instruções de instalação e funcionamento ..............................90

Română (RO)

Instrucţiuni de instalare şi utilizare....................................95

Srpski (RS)

Uputstvo za instalaciju i rad .......................................100

Svenska (SE)

Monterings- och driftsinstruktion ....................................105

Slovensko (SI)

Navodila za montažo in obratovanje .................................110

Slovenčina (SK)

Návod na montáž a prevádzku .....................................115

Türkçe (TR)

Montaj ve kullanım kılavuzu .......................................120

Українська (UA)

Інструкції з монтажу та експлуатації ................................127

中文 (CN)

安装和使用说明书 ..............................................132

Bahasa Indonesia (ID)

Petunjuk pengoperasian dan pemasangan.............................137

Macedonian (MK)

Упатства за монтирање и ракување ................................142

(AR) ةيبرعلا

    .............................................147

4UNILIFT AP, APB and APG Control box

Table of contents

English (GB) Installation and operating instructions

Original installation and operating instructions

Table of contents

1. General information ............. 5

1.1 Hazard statements .............. 5

1.2 Notes ..................... 5

2. Product introduction ............ 6

2.1 Product description .............. 6

2.2 Intended use ................. 6

3. Installation requirements .......... 6

4. Electrical connection ............ 6

4.1 Wiring diagram ................ 7

5. Startup of the product............ 8

5.1 Starting and stopping the pump ....... 8

5.2 Resetting the thermal relay .......... 8

6. Control functions .............. 8

6.1 Operating panel ................ 8

7. Technical data ................ 8

8. Maintenance ................. 8

9. Service .................... 8

10. Disposing of the product .......... 9

1. General information

This appliance can be used by children

aged from 8 years and above and persons

with reduced physical, sensory or mental

capabilities or lack of experience and

knowledge if they have been given super-

vision or instruction concerning use of the

appliance in a safe way and understand

the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not

be made by children without supervision.

Read this document before you install the

product. Installation and operation must

comply with local regulations and accepted

codes of good practice.

1.1 Hazard statements

The symbols and hazard statements below may

appear in Grundfos installation and operating

instructions, safety instructions and service

instructions.

DANGER

Indicates a hazardous situation which, if

not avoided, will result in death or serious

personal injury.

WARNING

Indicates a hazardous situation which, if

not avoided, could result in death or seri-

ous personal injury.

CAUTION

Indicates a hazardous situation which, if

not avoided, could result in minor or mod-

erate personal injury.

The hazard statements are structured in the following

way:

SIGNAL WORD

Description of the hazard

Consequence of ignoring the warning

• Action to avoid the hazard.

1.2 Notes

The symbols and notes below may appear in

Grundfos installation and operating instructions,

safety instructions and service instructions.

A blue or grey circle with a white graphical

symbol indicates that an action must be

taken.

A red or grey circle with a diagonal bar,

possibly with a black graphical symbol, in-

dicates that an action must not be taken or

must be stopped.

If these instructions are not observed, it

may result in malfunction or damage to the

equipment.

Tips and advice that make the work easier.

English (GB)

2. Product introduction

2.1 Product description

The control box consists of cables and a cabinet

containing various parts which allow control of the

connected pump.

TM030284

Pos. Description

1 Mains cable

2 Indicator light, operation

3 Push-button, Start

4 Push-button, Stop/Reset

5 Float switch

6Motor cable*

7 Nameplate

*There are three types of cable:

1) UNILIFT AP12, AP35 and AP50

2) UNILIFT AP35B and AP50B

3) UNILIFT APG.

2.2 Intended use

The control box is designed for the protection and

start/stop of the following three-phase pump types:

• UNILIFT AP12

• UNILIFT AP35

• UNILIFT AP50

• UNILIFT AP35B

• UNILIFT AP50B

• UNILIFT APG.

3. Installation requirements

For adjustment of the float switch, see the installation

and operating instructions for the pump.

4. Electrical connection

WARNING

Electric shock

Death or serious personal injury

‐Switch off the power supply before you

start any work on the product.Make

sure that the power supply cannot be

switched on accidentally.

WARNING

Electric shock

Death or serious personal injury

‐The installation must be fitted with a re-

sidual-current device (RCD) with a trip-

ping current less than 30 mA.

WARNING

Electric shock

Death or serious personal injury

‐Make sure that the power supply plug

delivered with the product is in compli-

ance with local regulations.

‐The plug must have the same protec-

tive earth (PE) connection system as

the power outlet. If not, use a suitable

adapter if allowed by local regulations.

WARNING

Electric shock

Death or serious personal injury

‐Power cables without a plug must be

connected to a supply disconnecting

device incorporated in the fixed wiring

according to the local wiring rules.

CAUTION

Electric shock

Minor or moderate personal injury

‐Check that the mains voltage and fre-

quency stated on the pump nameplate

correspond to the electricity supply on

which it will be used.

The control box must be connected to an

external main switch. If the pump is not in-

stalled close to the main switch, this must

be of a lockable type.

English (GB)

TM011267

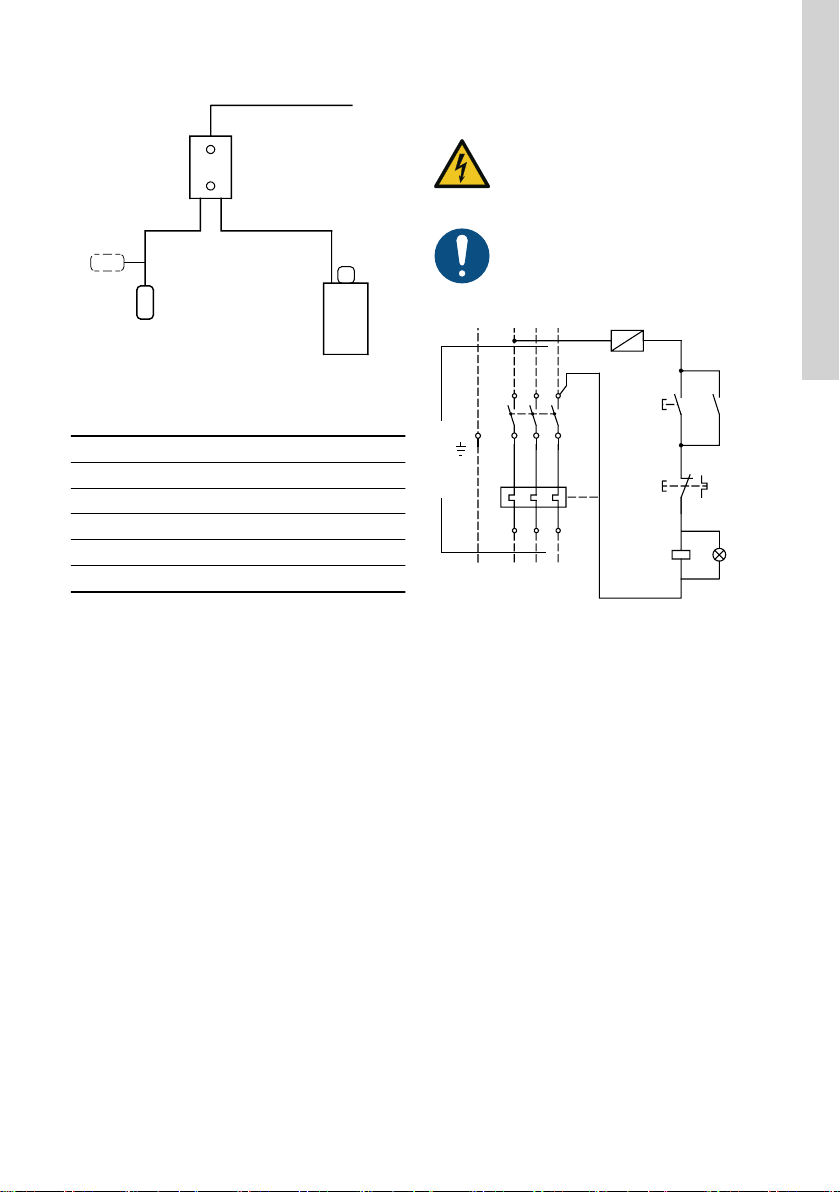

Block diagram for level control

Pos. Description

A Power supply

B Control box

C Pump

D Level switch open

E Level switch closed

4.1 Wiring diagram

WARNING

Electric shock

Death or serious personal injury

‐Switch off the power supply before you

start any work on the product.

The user or the installer is responsible for

correct earthing and protection according

to local regulations.

PE L1 L2 L3

135

2 4 6

T1 T2 T3

L1 L2 L3

T1 T2 T3

KM1

O/R

KM1

KM 1/5

TM030287

Diagram for UNILIFT AP, APB control box

English (GB)

Altri manuali per Unilift AP12

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Grundfos Unità di controllo

Grundfos

Grundfos CU 100 Manuale utente

Grundfos

Grundfos MIXIT Manuale utente

Grundfos

Grundfos PM TWIN Manuale utente

Grundfos

Grundfos CIM 500 Manuale utente

Grundfos

Grundfos CIM 2XX Manuale utente

Grundfos

Grundfos CIM 100 Manuale utente

Grundfos

Grundfos UP-ZV Series Guida rapida

Grundfos

Grundfos PC Tool CU 300 Manuale utente

Grundfos

Grundfos DIT-IR Manuale utente

Grundfos

Grundfos CIM 500 Manuale utente

Grundfos

Grundfos Vaccuperm VGS -141 Manuale utente

Grundfos

Grundfos CU 241 Manuale utente

Grundfos

Grundfos CIM 500 Manuale utente

Grundfos

Grundfos SM 113 Manuale utente

Grundfos

Grundfos MAGNA 2000 Series Manuale utente

Grundfos

Grundfos ALPHA1 B Manuale utente

Grundfos

Grundfos CIM 1 Series Manuale utente

Grundfos

Grundfos PM 1 Manuale utente

Grundfos

Grundfos CMB-SP Booster PM2 Manuale utente

Grundfos

Grundfos CIM 280-EU GIC Gen2 Manuale utente

Grundfos

Grundfos CIM 500 Ethernet for PROFINET IO Manuale utente

Grundfos

Grundfos CIM 260 Manuale utente

Grundfos

Grundfos MP 204 Manuale utente

Grundfos

Grundfos IO 112 Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
