Haier HAFRSJ64MC Manuale utente

HAIER

HAFRSJ64MC

ENGLISH

Instruction Manual For Induction Hob

ITALIANO

Manuale di istruzioni per piano di cottura ad induzione

POLSKI

Instrukcja obsługi płyty indukcyjnej

FRANÇAIS

Manuel d’utilisation de la table de cuisson à induction

ESPAÑOL

Manual de instrucciones de la encimera de inducción

DEUTSCH

Bedienungsanleitung für Induktionskochfeld

Návod na obsluhu indukčnej varnej dosky SLOVENČINANávod k obsluze indukční varné desky ČEŠTINAManual de instruções para placa de indução PORTUGUÊSРъководство за употреба на индукционен плот БЪЛГАРСКИ

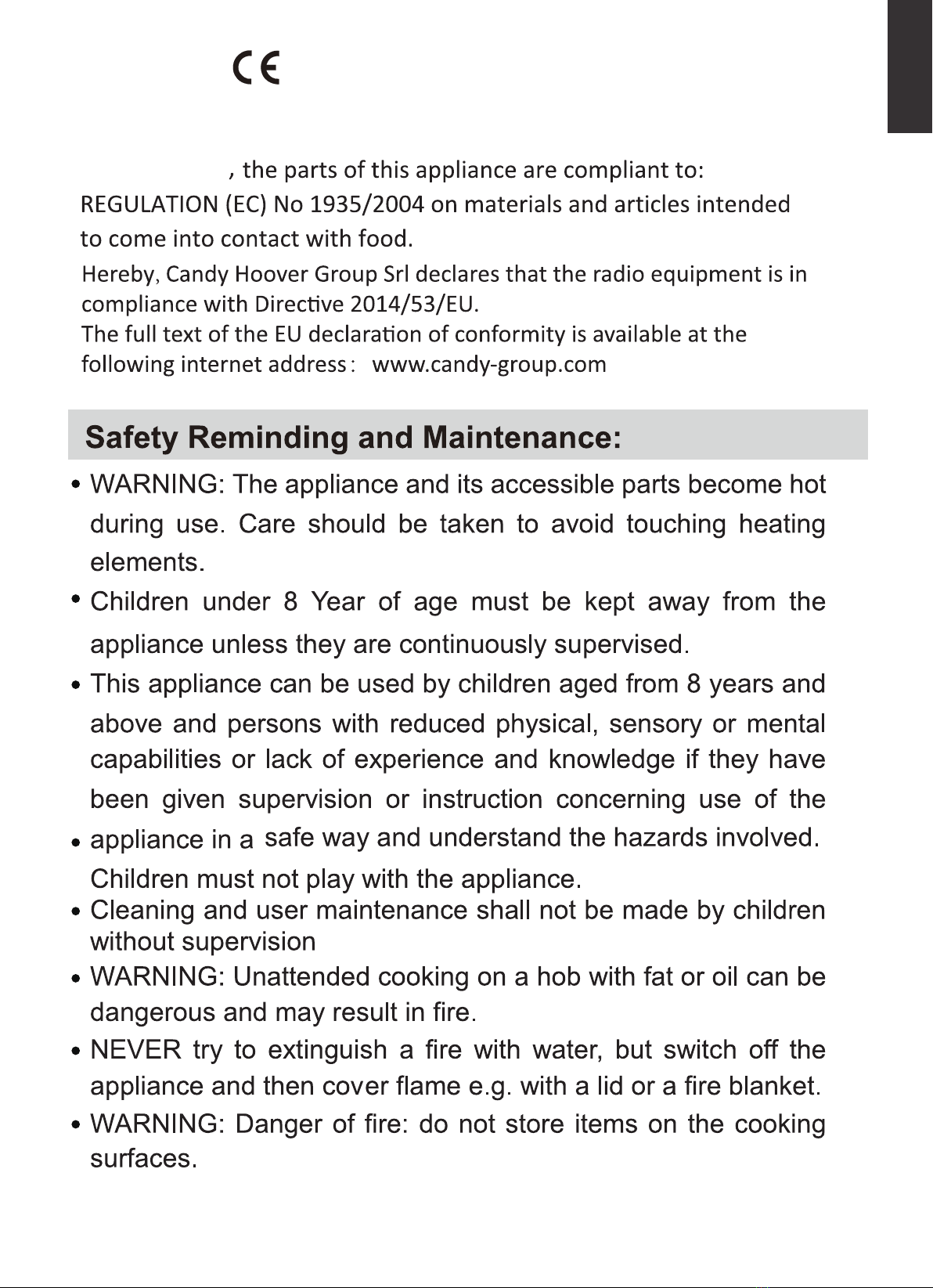

By placing CE mark on this product, we are conﬁrming com-

pliance to all relevant European safety, health and environmental

requirements which are applicable in legisla�on for this product.

As applicable

EN-2

ENGLISH

EN-3

EN-4

ENGLISH

Haier

EN-5

1. Max. 2000/3000 W zone

2. Max. 2000/3000 W zone

3. Max. 1800/2300 W zone

4. Max. 1800/2300 W zone

5. Max. 3000/4000 W zone

6. Glass plate

7. Control panel

1. Heating zone power controls

2. "Cook with me Function control"

3. Timer control

4. Flexible Area control

6. ON/OFF control

Keylock.5

456

EN-6

ENGLISH

Touch Controls

•The controls respond to touch, so you don’t need to apply any pressure.

•Use the ball of your finger, not its tip.

•You will hear a beep each time a touch is registered.

•Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them.

Even a thin film of water may make the controls difficult to operate.

Choosing the right Cookware

• Only use cookware with a base suitable for induction cooking.

Lookfor the induction symbol on the packaging or on the bottom

of the pan.

• You can check whether yourcookware is suitable by carrying out a magnet test.

Move a magnettowards the base of the pan. If it is attracted,the pan is suitable

for induction.

• If you do not have a magnet:

1. Put some water in the pan you want tocheck.

2. If does notflash in the display and the water is heating, the pan is suitable.

• Cookware made from the following materials is not suitable: pure stainless steel, aluminium or copper

without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.

Do not use cookware with jagged edges or a curved base.

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone.

Use pans whose diameter is as large as the graphic of the zone selected. Using a pot a slightly wider energy will be

used at its maximum efficiency. If you use smaller pot efficiency could be less than expected. Pot less than 140 mm

could be undetected by the hob. Always centre your pan on the cooking zone.

Always lift pans off the Induction hob – do not slide, or they may scratch the glass.

EN-7

How to use

Start cooking

Touch the ON/OFF control for three seconds. After power on, the

buzzer beeps once, all displays show “–” or “– –”, indicating that the

induction hob has entered the state of standby mode.

Place a suitable pan on the cooking zone that you wish to use.

• Make sure the bottom of the pan and the surface of the cooking

zone are clean and dry.

Touching the heating zone slider control , and a indicator next to the

key will flash.

Select a heat setting by touching the slider control

• If you don’t choose a heat setting within 1 minute, the Induction

hob will automatically switch off. You will need to start again at step 1.

• You can modify the heat setting at any time during cooking.

If the display flashes alternately with the heat setting

This means that:

• you have not placed a pan on the correct cooking zone or,

• the pan you’re using is not suitable for induction cooking or,

• the pan is too small or not properly centered on the cooking zone.

EN-8

ENGLISH

No heating takes place unless there is a suitable pan on the cooking zone.

The฀display฀will฀automatically฀disappear฀after฀1฀minute฀if฀no฀suitable฀pan฀is฀placed฀on฀it.power up

power down

Finish cooking

Touching the heating zone selection control that you wish to

switch off.

the display shows “0”.

Turn the whole cooktop off by touching the ON/OFF control.

Beware of hot surfaces

H will show which cooking zone is hot to touch. It will

disappear when the surface has cooled down to a safe

temperature. It can also be used as an energy saving function

if you want to heat further pans, use the hotplate that is still

hot.

Using the Boost function

Activate the boost function

Touching the heating zone slider control

Touching the slider to “B”. Make sure the display shows “b”.

Cancel the Boost function

Touching the heating zone slider control that you wish to cancel

the boost function.

the display shows “0”.

Turn the cooking zone off by touching the slider to “ 0 ”. Make sure

Turn the cooking zone off by touching the slider to “0”. Make sure

EN-9
