Haier HB-21T Manuale utente

• Please read this User Manual carefully before use.

• Please keep this User Manual in a safe place.

• Your refrigerator could be slightly different from that

illustrated herein with respect to appearance, color

or painting.

Table of Contents

Before Use

Features --------------------------------------------------

Names of Parts --------------------------------------

Safety Precautions ---------------------------------

Location --------------------------------------------------

Removing & Replacing Door --------------------

Preparation ----------------------------------------

Initial Use -----------------------------------------------

Functions -------------------------------------------

2-3

4-6

8-10

11-13

15-18

Defrosting • Cleaning • Vacation

Defrosting • Cleaning--------------------------------25

Vacation --------------------------------------------26-27

Instructions for Freezer Compartment

About Freezer Compartment------------------22-23

Storing Food in Freezer Compartment----------24

Instructions for Refrigerator Compartment

About Refrigerator Compartment-------------19-20

Storing Food in Refrigerator Compartment-----21

Useful Tips----------------------------------------------22

Troubleshooting • After-sale Services

Troubleshooting-----------------------------------28-29

After-sale Services-------------------------------30-31

Technical Data• Circuit Diagram • Packing List

Technical Data• Circuit Diagram • Packing List ---32-33

Home Refrigerator

Model:HB21T

HB21TNN

HRB-702MP/S

HRB-702F/SS

FeaturesFeatures

①Ice making

Abuilt-in semi-automatic icemaker will produce ready-to-use ice cubes based on your

preference.

②Chill compartment

The chill compartment at the bottom of the refrigerator compartment is intended for

storage of delicatessen within the temperature range from -2°C to +3°C.

③Slide-out shelf for easy food access

The refrigerator compartment is equipped with slide-out shelves for easy loading and

unloading. The shelves can be removed when the door is in the right-angle position.

④Artificial Intelligent (AI) design

The optimum refrigeration performance is secured based on the inner temperature and

the

ambient temperature without manual intervention.

⑤Super slim, super large and super luxurious

Compact dimensions, large capacity, spacious refrigerator compartment and freezer

compartment, supreme internal and external design

⑥CFC-free and frost-free deep freezing enabled by efficient air cooling system

⑦Air Curtain technology

The air curtain located at the front end of the refrigerator compartment is intended to

provide

the desired food storage by preventing invasion of warm air and facilitating equal

distribution

of cooled air.

⑧Cooling before defrosting to prevent thawing

Apre-cooling process will be activated based on the inner temperature measured to

avoid

the adverse impact of temperature rise on food stored in the refrigerator.

⑨Optimized refrigeration performance and long service life of compressor enabled by

efficient

condenser unit and fan motor

⑩Door-open alarm, touch button and large-screen LCD display

Vitamin C technology for fresh food storage

The Vitamin C technology effectively keeps the food fresh for a longer period of time

while

eliminating the unpleasant odor.

Smooth and effortless drawer slideway

１１

１２

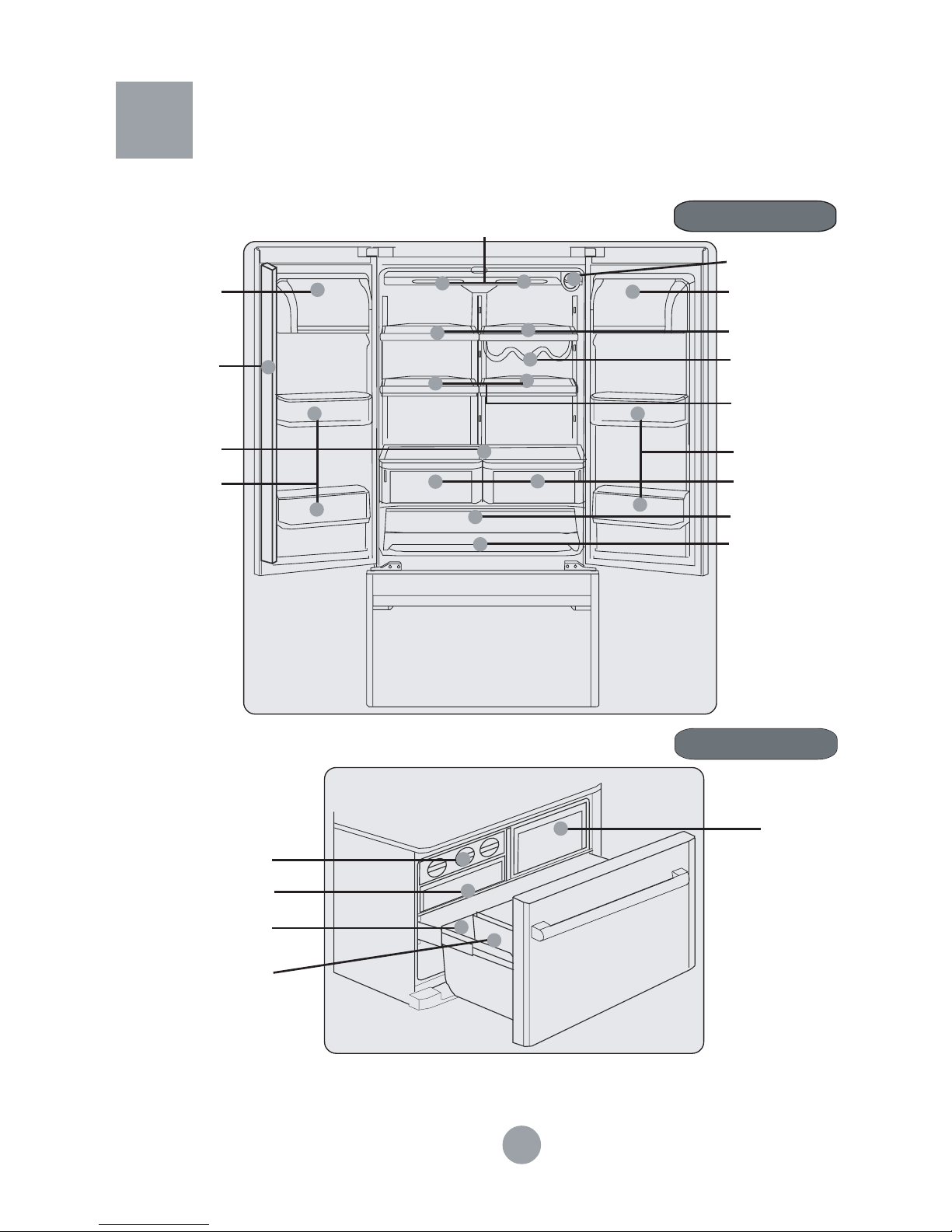

Names of parts

Refrigerador light

Dairy bin

Vertical beam

Cover of crisper

Gallon bin

Refrigerator compartment

Vitamin C Drawer

Shelf

Wine shelf

Movable board

Crisper

Chill compartment

Front cover of

chill compartment

Dairy bin

Gallon bin

Freezer compartment

Icecream bin

Semi-automatic

icemaker

Ice storage bin

Freezer drawer

Partition wall of

freezer drawer

Dear Customer

Thank you for purchasing Haier product.

Haier product is of supreme quality and superior performance. Please read these instructions and following the

procedures described herein.

You are enjoying the International Star Service from Haier. For any question you may have, please make your

request for service by contacting our service centers at the telephone numbers or address specified in the Letter

of Warranty.

Haier - Sincere forever!

NOTE: The product specifications are subject to change from time to time due to product improvement

without further notice.

Names of parts

Safety PrecautionsSafety Precautions

Power supply: AC 220V-240V/50HZ

If the voltage fluctuates violently (beyond

187~242V), it is necessary to use a voltage

stabilizer of 750W or above to prevent startup

failure, damaged control board or compressor,

or unusual noise.

The appliance must be plugged into a

dedicated outlet that is securely grounded.

The power cord of this appliance is fitted with the

three-prong plug (grounded) that complies with the

standard three-prong outlet (grounded). Never cut

off or remove the third prong. The refrigerator

should be located so that the plug is accessible.

WARNING! The plug should be securely connected to

the socket or otherwise fire hazard may arise.

Be careful not to damage the power cord.

Always pull at the plug other than the cord itself to

disconnect the appliance from the outlet.

Route the power cord in a way to eliminate the

risk of damage caused by the weight of refrigerator or

reading.

Be careful not to damage the power cord when

moving the appliance away from the wall.

When the power cord is damaged

The use of cracked cord or worn plug is strictly

prohibited. If the power cord is damaged, it should

be replaced in an authorized service center.

When there is a gas leakage

Shut off the gas valve.

Open the doors and windows for ventilation.

Do not plug or unplug the refrigerator or other

electric appliances.

Always remember to unplug the appliance

in the following cases:

Unplug the appliance before cleaning and

reparation.

Unplug the appliance before replacing the old

light bulb to prevent electric shock.

220V-240V~

50HZ

Safety PrecautionsSafety Precautions

Never store inflammable or explosive items and

strong corrosive acids or alkalis in the appliance.

Mousse / Spraying agent / Gas/ Acid / Alkali

Vaccine / Strain / Chemicals

To prevent risk of fire, keep the appliance away

from gasoline or any other inflammables.

This appliance is a household refrigerator, which is

produced in accordance with the specification of

national standard. It is intended for food storage

only, not for storage of blood, medicine and

biological products.

Children are not allowed to play with the door or

the bottle racks. Serious injury may occur.Do not

The internal surface of freezer compartment is

very cold when the appliance is running. Do not

touch the surface especially when hands are wet.

To prevent risk of electromagnetic interference or

other accidents, do not place any patch panel,

voltage stabilizer and microwave oven on top of

the refrigerator or use any electric appliance

(unless recommended by the manufacturer)

inside the refrigerator.

walk on the door or the cabinet when loading

and unloading the refrigerator.

Safety PrecautionsSafety Precautions

Hold the door handle when opening and closing

the doorThe gap between the doors and the gap

between the doors and the cabinet are very

small. Make sure figures do not get stuck.

Always keep children away when a door is

opened or closed.

Do not splash water onto the refrigerator. Keep

off places of high humidity that may have

adverse effect on the electric insulation

performance.

No dismantlement or modification can be

made without authorization. Damage to

refrigeration system is strictly prohibited.

Reparation must be carried out by authorized

personnel.

Bottled beer or beverage should not be stored

in the freezer compartment – risk of explosion.

Unplug the appliance in the event of power

interruption or cleaning. The appliance can be

plugged again only after an interval of at least

5 minutes to prevent damage to the compres-

sor caused by frequent startups.

Please remove the door, door seal and

shelves before disposal of the old appliance

and put them away in a safe place to prevent

children from being entrapped.

LocationLocation

Levelling

The appliance should stand firmly on solid

floor. To support it, use firm and solid pads that

are inflammable. Never use the packaging

materials for supporting. Level the appliance

with the adjustable legs whenever necessary.

Turn clockwise to raise the refrigerator, and

anticlockwise to lower it.

10cm

minimum

clearance

above

Distance

10cm minimum

clearance at

rear

10cm

minimum

clearance at

both sides

Removing & Replacing DoorRemoving & Replacing Door

NOTE

To avoid injury, property loss or damage to the refrigerator, make sure to remove all food

from door racks and then remove bottle bin(s), unplug the refrigerator and shut off water

supply before removing and replacing a door.

To avoid injury or property loss, remove or replace the door with the help of 2 persons or

more. The following instructions should be observed.

Removing and replacing the right door of refrigerator compartment

①Unscrew the upper right hinge cover by

means of screwdriver and then remove

the hinge cover.

②Unscrew the upper right hinge by means of

hexagonal screwdriver and then remove the hinge.

③Remove the door and place it in a proper

position.

④Remove the middle hinge if necessary.

⑤Replace the door in a reverse sequence of

removal.

NOTE

Be careful to prevent the door from falling onto you when lifting the

door from the hinge.

Removing & Replacing DoorRemoving & Replacing Door

Removing and replacing the left door of refrigerator compartment

①Unscrew the upper left hinge cover by

means of screwdriver and then remove the

hinge cover.

②Unscrew the upper left hinge by means of

hexagonal screwdriver and then remove the

hinge.

③Remove the door and place it in a proper

position. ④Remove the middle hinge if necessary.

⑤Replace the door in a reverse sequence

of removal.

NOTE

Be careful to prevent the door from falling onto you when lifting the

door from the hinge.

Removing & Replacing Freezer Drawer

①Pull out the freezer drawer entirely and

remove it from the refrigerator.

②Replace the freezer drawer in a reversal

sequence to removal.

Altri manuali per HB-21T

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Haier Frigorifero

Haier

Haier HRZ-98AA Manuale utente

Haier

Haier HBW5719E Guida all'installazione

Haier

Haier HRF516YS Manuale utente

Haier

Haier HNSEW02 Manuale utente

Haier

Haier JR-NF305AR Manuale utente

Haier

Haier JR-NF170B Manuale utente

Haier

Haier HRF-628AF6 Manuale utente

Haier

Haier HBM315WH1 Manuale utente

Haier

Haier HRF-222 Manuale operativo e di manutenzione

Haier

Haier HSR3918FI Series Manuale utente

Haier

Haier HTE21W Manuale utente

Haier

Haier HSW08 - 02-02 Manuale utente

Haier

Haier HRF-288K Series Manuale utente

Haier

Haier HSBS582AS Manuale utente

Haier

Haier HYC-68 Manuale utente

Haier

Haier Cube 83 Manuale utente

Haier

Haier HR-120 Guida rapida

Haier

Haier HR-138A Manuale utente

Haier

Haier HSB03 - 2.7 cu. Ft Istruzioni per il montaggio

Haier

Haier ESRN045B Istruzioni per il montaggio

Haier

Haier HSR3918FI Series Manuale utente

Haier

Haier Cube 90 Series Manuale utente

Haier

Haier HF-248 Manuale elenco delle parti

Haier

Haier HRF-510MG Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
