Haier HRF 216 Manuale utente

4Fast Cooling Fan

For Fast fast cooling and to avoid moisture in Refrigerator

compartment fan is installed

To Avoid smell in refrigerator compartment Deodorization

Accelerant is installed.

8-11

18-19

20-22

24-27

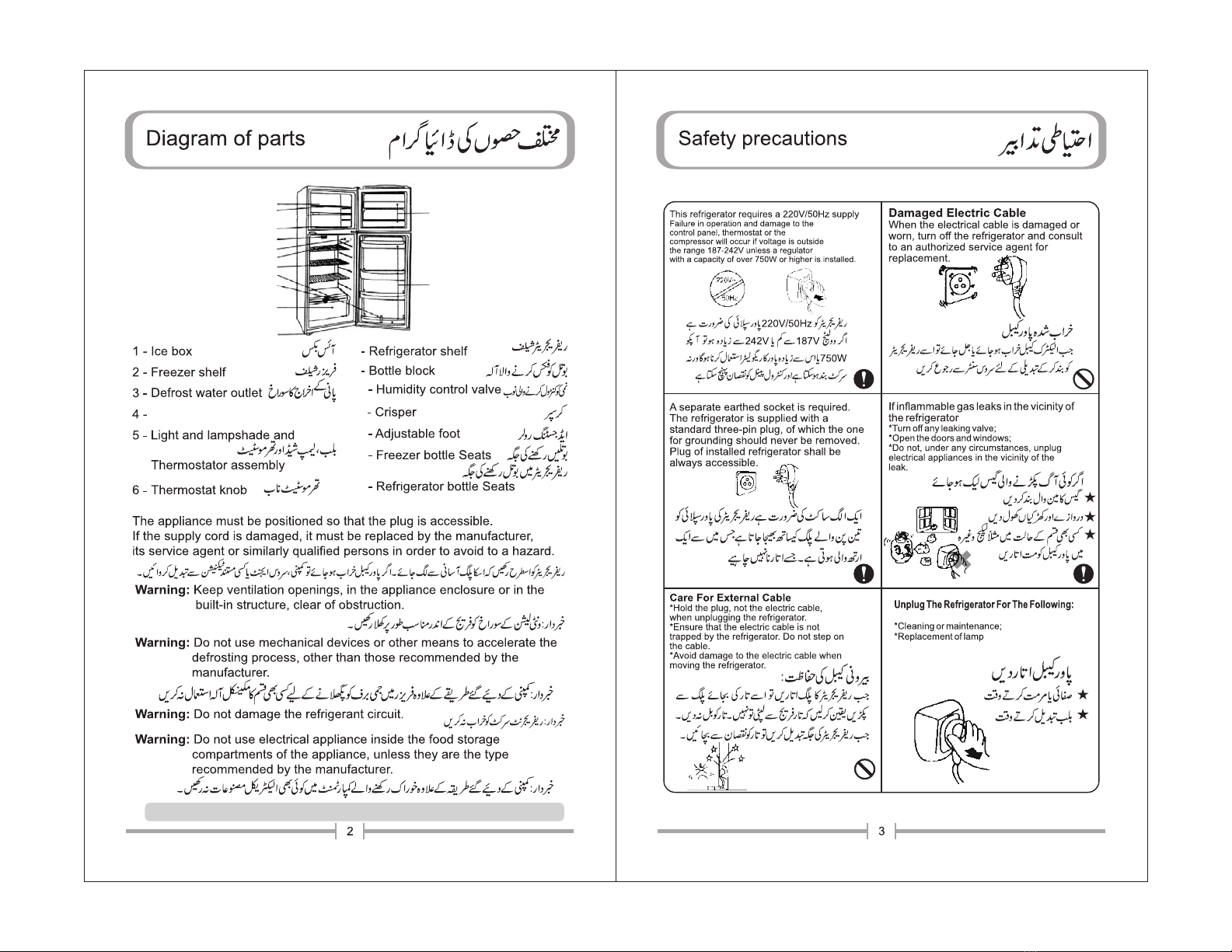

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

(11)

(12)

(13)

Deodorizer/Fan (As per packing list)

Note: Given parts/diagrams will be change subjected to Refrigerator Model.

LockFuzzy

Func. Set

O3S

Power Cool Power Frz

Temp.Set

Temp.Zone

Frz-Temp Display Zone

Cool- Temp Display Zone

Temp. Zone

Temp Display Zone

Temp. Set

Power-Cool

Power.Frz

Fuzzy

Lock

Fune. Set

OK/3S

Lock

Function How to do Indication

Unlock

Temperature Zone

Temperature

adjustment

Power Cool

function

Power Freezer

function

Fuzzy Function

Press K for 3 second

1. Unlock

2. Press C

1. Unlock

2. Lock B positively

3. Press E

1. Unlock

2. Press J to active F

start blinking

3. Press K to ensure F

remain ON

1. Unlock

2. Press J to active G

start blinking

3. Press K to ensure G

remain ON

1. Unlock

2. Press J to active H

start blinking

3. Press K to ensure H

remain ON

Buzzer sound and I will ON

Buzzer sound and I will OFF

If A is lock then D shows the

temperature of Freezer.

If B is locked then D shows the

temperature of Ref.

After pressing E a digital will appear

on it between 1 to 7, and each press

will increase 1 digit After 7, cycle

will again start from 1.

After pressing J, F will start blinking

and then pressing K will make the

blinking light stable which means

power cool function is enabled. To

exit from it, press J to activated F

and then press K to disable it.

After pressing J, G will start blinking

and then pressing K will make the

blinking light stable which means

power freezer function is enabled.

To exit from it. press J to activated

G and then press K to disable it

After pressing J, H will start blinking

and then pressing K will make the

blinking light stable which means

Fuzzy Function is enabled. In this

mode refrigerator will adjust its

temperature in accordance with

environment temperature, and any

other funtion will not be enable

To exit from the Fuzzy Function

press J to activate H and then

press K to disable it.

10 11

A) Filament Bulb/Lamp and replacement

Lamp: 200V, 15W

Lamp holder: E14 (lamps exceeding 15W

must not be allowed)

When replacing the lamp,

1. Unplug to disconnect the power

2. Remove the food shelf in front of the lamp.

3. Insert a flat tool into the slot Push upward to

remove the lampshade.

4. Remove the lamp by turning anti-clockwise and

install a new lamp by lamp by turning it clockwise.

5. Properly install the lampshade after ensuring

that all legs on the cover are placed into the holes

on the lamp holder.

B) LED Lamp and replacement

Lamp: 220V, 1.5W (1 Unit Assembly)

When replacing the LED,

1. Unplug to disconnect the power

2. Remove the food shelf in front of/below the

lamp.

3. Insert a flat tool into the slot Push upward to

remove the lampshade.

4. Disconnect the LED Thimbles and pull out the

LED from slot.

5. Install a new LED and fit in slot and connect the

thimbles again.

6. Properly install the lampshade after

ensuring that all legs on the cover are

placed into the holes on the lamp holder.

* For top mounted LED lamp, same method will

be followed.

Note: CSD technician should follow (A) or (B) according to unit, LED lamp / Filament Lamp Should be haier recommended.

1312

The refrigerator is for

short term food storage of

daily consumption

Freezing storage

compartment

Long-term storage of food

As the freezer storage temperature is very low, fresh

food can be stored in the freezer compartment for a

long time. Food requiring long-term storage can be

stored in the frozen food compartment. Follow the

instructions on the package for storage period.

Attention should be paid to the storage information

printed on the food packing.

Storage period is subject to the detailed information on the food

packing, property of the food for storage and special requirements.

Food

Stay Best (Month)Maximum (Month)

Meat

Lean Fish

Cakes, breads

Icecream

1514

Freezing storage

precautions

Food should be stored in accordance with

any information printed on the packing.

Do not load excessive quantity of fresh food

in the freezer compartment.

Quantity of the food in storage shall comply

with the cooling capacity of the refrigerator.
