Haier HRF-349NAA Manuale utente

(1) Four temperature zones

Four temperature zones for satisfaction of varied storage needs

(2) 0°C zone

Temperature ranges between -2°C and +3°C for storage of fresh and uncooked

food with an ideal outcome of nutrient contents preservation.

(3) -7°C storage

Food stored in the wide-temp zone (-7°C) requires no preservice defrosting and

additional labor on processing but well keeps the nutrient value.

(4) Automatic temperature control

In Fuzzy mode, the appliance adjusts inside temperature automatically according

to variation of ambient temperature conditions for an optimized cooling

performance.

(5) Over temp alarm

The alarm function is activated when temperature exceeds the set temperature

value.

(6) Holiday mode

The appliance keeps operation but consumes the least energy while ensuring

that no unwanted odor in refrigerator and remaining food in good condition.

(7) Fresh food basket

The basket is designed for storage of fresh vegetables in an extended period.

(8) Deodorizer

The deodorizer incorporates advanced biological sterilization technology to

exterminate most bacteria and bacillus and remove bad odors in the air.

(9) VFD flashing display

Application of vacuum fluorescence technology for display of the refrigerator

operation status.

(10) 007 mode

The wide temp zone can be set for super freeze 007 mode for nutrient value

preservation.

(11) Ice cube tray

An ice cube tray is installed inside the freezer door to avoid odor contact.

(12) Touch control

The appliance uses a touch control panel with sensitive performance and elegant

design.

Primary features

Technical data in this manual may vary from that of the refrigerator you have just

purchased due to technical improvement.

Parts and features

Lights

Food shelf

Crisper

0°C zone

Wide temp drawer

Freezer drawer

Power plug

Bottle holder cover

Short bottle holder

Small bottle holder cover

Small bottle holder

Vegetable basket

Deodorizer

Large bottle holder

Ice cube box

Wine rack

Warning: The plug should be accessible after the appliance positioned.

If the supply cord is damaged, it must be replaced by the manufacture or its

service agent or a similary qualified person in order to avoid a hazard.

Warning: The appliance is not intended for use by young children or infirm persons without

supervision.

Warning: Young children should be supervised to ensure that they do not play with the

appliance.

Warning: Keep ventilation openings in the appliance enclosure or in the built-in structure;

clear of obstruction.

Warning: Do not use mechanical devices or other means to accelerate the defrosting

process, other than those recommended by the manufaturer.

Warning: Do not damage the refrigerant circuit (applicable only for appliances with

refrigeration circuits which are accessible to the user).

Warning: Do not use electrical appliances indide the food storage compartments, unless

they are of the type recommended by the manufacturer.

Safety precautions

This refrigerator requires a 220-240V

/50Hz supply

Failure in operation and damage to the

control panel, thermostat or the

compressor will occur if voltage is outside

the range 187-242V unless a regulator

with a capacity of over 750W or higher is

installed.

A separate earthed socket is required.

Care for external cable

* Hold the plug, not the electric cable,

when unplugging the appliance.

* Ensure that the electric cable is not

trapped by the appliance.

* Do not step on the cable. Avoid damage

to the electric cable when moving the

appliance.

Damaged electric cable

When the electrical cable is damaged or

worn, turn off the appliance and consult to

an authorized service agent for

replacement.

If inflammable gas leaks in the vicinity

of the appliance

* Turn off any leaking valve;

* Open the doors and windows;

* Do not, under any circumstances,

unplug electrical appliances in the vicinity

of the leak.

Unplug the appliance for the following:

* Cleaning or maintenance;

* Replacement of lamp

Never store inflammable, explosive or

corrosive materials in the appliance.

This appliance should only be used for

household purpose and cannot be used

for storage of blood, pharmaceuticals and

microbiological products.

Do not install the appliance near gasoline

or other inflammable articles.

Don't place electrical plugs, regulators or

microwaves on top of the appliance. Don't

use electric appliances (Except those

allowed by manufacturer) inside the

appliance.

Do not swing on or apply excessive

pressure to the appliance door.

Don't place heavy or unstable articles or

water containers on top of the appliance.

Mousse Spray Gas Acid Alkali

Vaccine

Chemical Agent

Bacterin

Safety precautions

Remove the appliance door and door seal

if the appliance is discarded to prevent

accidental entrapment in the appliance.

Do not touch inside surface of freezer

compartment in operation, especially with

wet hands as hands may freeze onto the

surface.

Do not spray or splash the appliance

when cleaning the appliance, nor place

the appliance in a damp area.

Disassembly, renovation or cooling

system maintenance of appliance must be

authorized.

Unplug the appliance in the event of a

power interruption or during cleaning.

Allow at least 5 minutes lapse before

restarting the appliance.

Never store bottled beer or beverages in

the freezer compartment.

Safety precautions

Location

The appliance should be placed on a flat and solid surface. If the appliance is placed on

a plinth, flat, strong and fire-resistant materials must be used. The front black foot of the

appliance can be adjusted clockwise or anti-clockwise to lift or lower the appliance if it is

placed on an uneven surface.

Adjustable Foot

The appliance shall be placed away from

heat sources or direct sunlight.

The appliance should be placed in a well-

ventilated area, and a space of 10cm or

more should be allowed around the

appliance.

Never place the appliance near to a water

source. Clean and dry any water splashes

and stains with soft cloth.

Never operate the appliance in low

ambient temperature (below 5°C) or

outdoors.

Clockwise Anti-clockwise

Space

>10cm

Preparation

Unpacking

Remove all packing materials.

Check attached accessories

and materials.

Check if all accessories specified in the

Packing List are available. Contact the

local distributor if shortage is found.

Ensure that the appliance is

properly located.

(See section “Location”)

Clean the appliance before

using.

(See section “Cleaning”)

Time lapse before power supply

Connect the appliance to power source at

least 30 minutes after the appliance is sited

and cleaned.

Operation

Manual

Warranty

Certificate

Caution: After unpacking, write down the model and manufacture number of

the appliance on the Warranty Certificate which will be required if technical

services are applied for.

Operation

Connection to power supply

When the appliance is connected to a power supply, the Fuzzy mode is set,

icon of the mode goes on, and temperature in wide temp and freezer zones

are displayed, default time is 12:00 and icon of freezer coruscates.

Setting of operation mode

Either of the following operation modes can be selected.

(1) Fuzzy mode: If no special requirement is intended, it is recommended that fuzzy mode

be used. Hold Fuzzy button pressed for 3 seconds until the icon appears. The appliance

is then operational automatically. (Refer to section “Functions”).

(2) Manual mode: In lock-off mode, press temperature button for temperature adjustment.

(See section “Functions”)

Suggestion

Regardless of irrespective fluctuations in ambient

temperature, selection of the Fuzzy Operation Mode

will guarantee the most efficient and energy-saving

operation of the appliance.

Loading the appliance with food

Load the appliance with food when the over temp

alarm icon disappears, indicating that the set

temperature of the appliance compartments has

been reached.

Caution: Some time is required before reset temperature is reached. The

length of this period depends on the extent of the temperature change,

ambient temperature, frequency of door opening and amount of food in

storage.

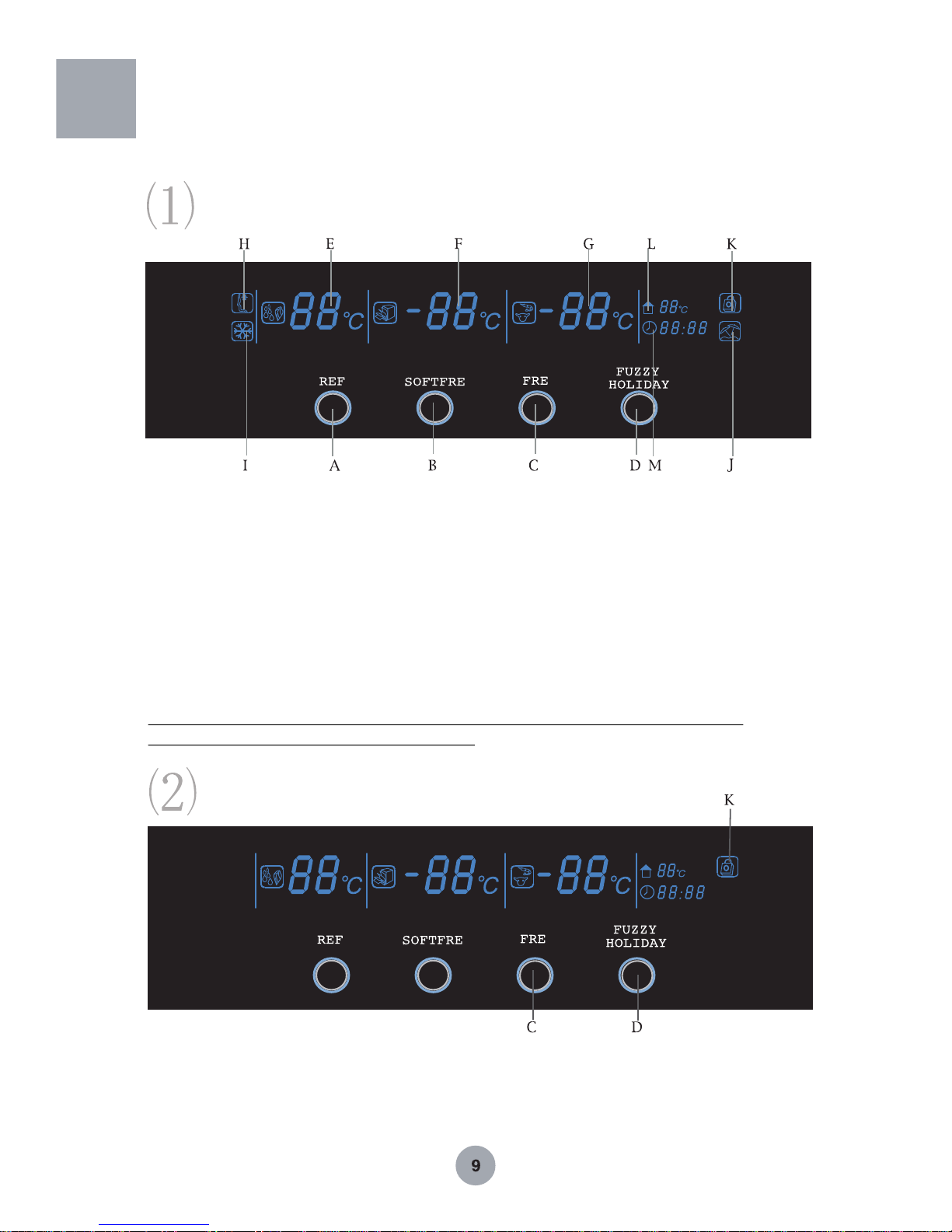

Functions

A. Refrigerator/(pressed for 3 seconds in lock-on mode) Refrigerator ON/OFF

B. Wide temp zone / (pressed for 3 seconds in lock-on mode) wide temp zone ON/OFF/

pressed for 3 seconds, 007 super freeze mode ON/OFF

C. Freezer / (pressed for 3 seconds in lock-on mode) super freeze

D. Fuzzy mode / (pressed for 3 seconds in lock-on mode) holiday mode

C+D Lock-on and Lock-off E. Refrigerator average temperature display

F. Wide temp zone average temperature display

G. Freezer average temperature display H. Fuzzy mode icon

I. Super freeze mode icon J. Holiday mode icon

K. Lock-on mode icon L. Ambient temperature display icon M. Clock icon

Note: These block English letters in front of the phrases above listed will be used

hereinafter to represent the phrases thereof.

Control panel

Lock-on and lock-off mode

In lock-off mode, if button C and button D are held pressed simultaneously, icon K appears;

In lock-on mode, if button C and button D are pressed simultaneously, icon K disappears

and lock-on mode is inactivated and the following modes can be adjusted.
