Refrigerator/Freezer Combi

User's Guide

Thank you very much for choosing to purchase a Haier-brand refrigerator.

This User's Guide will help you properly install and operate your newly acquired

appliance.

For future reference, please write down the model and serial number in the spaces

provided below.

You can retrieve that information from the product label attached to the inside of

the refrigerator.

Model number:

Serial number:

Date of purchase:

*=blank WW HS SS

HRF-660S

HSBS582AS

HRF-663DTA2*

HRF-663DTB2*

HRF-663DSA2*

HRF-663DSB2*

HRF-660SAA

HSBS582AW

Before operation

Notes on the refrigerator compartment

Notes on the freezer compartment

Defrosting Cleaning Inoperation

Troubleshooting & Customer Service

Components ....................................................................................1

Precautions...................................................................................2-4

Preparations..................................................................................5-6

Door removal................................................................................7-8

Setting up the Refrigerator/Freezer Combi .....................................9

Start-up..........................................................................................10

Digital display operation ..........................................................11-13

Refrigerator compartment........................................................14-16

Notes on refrigeration ...................................................................17

Tips on refrigeration ......................................................................18

Freezer compartment.....................................................................19

Notes on freezing ..........................................................................20

Defrosting......................................................................................21

Cleaning ........................................................................................21

Inoperation ...............................................................................22-23

Troubleshooting .......................................................................24-25

Customer service ......................................................................26-27

Contents

Before start-up, be sure to read the User's Guide.

Keep the User's Guide in a safe place.

Components

Freezer

Light

Shelves

Bottle rack

Freezer drawers

Refrigerator

compartment

Veggie drawer cover

Note

The power plug must remain accessible after setting up the appliance.

Should the refrigerant circuit have been damaged, keep away all sources of fire or sparks and

thoroughly air the room.

Do not use any mechanical or artificial devices or any tools other than those recommended by the

maker in order to accelerate the defrosting process.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or

similarly qualified persons in order to avoid a hazard.

Check the appliance for damages sustained during transportation. Do not connect the appliance if

it is damaged. In case of damage, contact your supplier.

Make sure that no part of the refrigerant circuit is damaged when transporting and setting up the

appliance.

This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

To prevent damage to the appliance, its ventilation openings must not be covered or blocked.

Do not operate any electrical devices inside the food storage area, unless instructed to do so by

the maker.

Our company continually thrives towards improving all models and versions. For that

reason, we hope that you can accept our right to change their appearance, equipment or

operation.

Shelves

Bottle cover

Light

Bottle rack

Veggie drawer

Ice tray

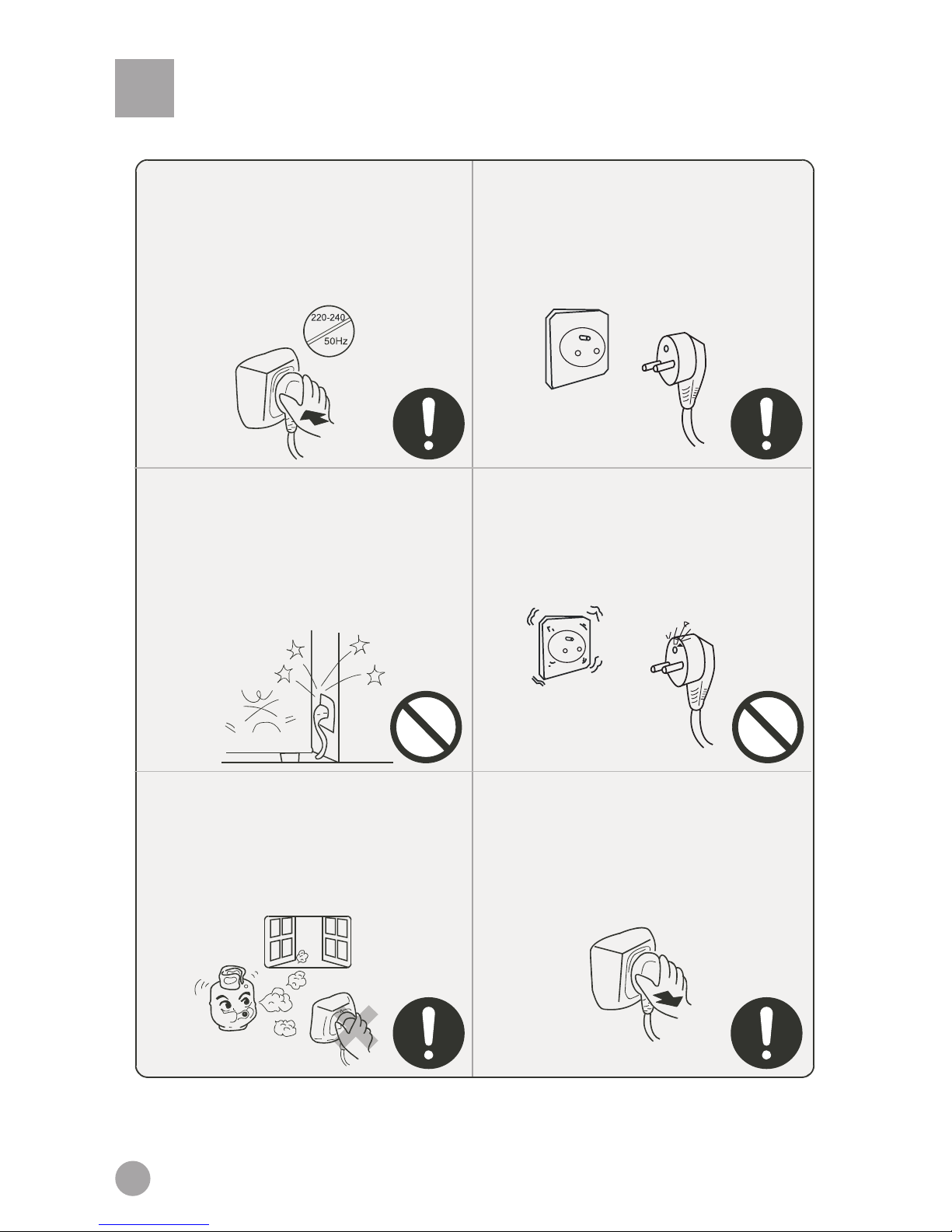

Precautions

This appliance requires a 220-240V/50Hz power

supply.

If the voltage is outside of the 187-242V range,

malfunctions and damages of the controls,

thermostat or compressor may result, unless a

regulator of at least 750W was installed.

A dedicated grounded outlet is required. The

appliance is equipped with a standard

shockproof plug, whose grounding should not be

disabled. The power plug of the appliance

should always be accessible.

Do not damage the power cord.

*Never pull the plug out by the cord; always

grab and pull the plug

*Do not place the power cord under the

appliance or walk on it.

*Be sure not to damage the power cord when

moving the appliance away from the wall.

If the power cord is damaged or the plug cracked

or worn, the power cord must be replaced with a

matching one, available from the maker or their

customer service. The power cord may only be

replaced by the maker, their customer service or

an equally qualified person.

In the case of a gas or other flammable leak:

*Close the valve.

*Open the doors and windows.

*Do not pull out or insert the power cord of the

appliance.

Pull out the power plug:

*Before cleaning or repair

*When replacing a burned-out bulb

Precautions

Never place flammable, explosive or corrosive

materials in the refrigerator.

This appliance is intended strictly for storing

and freezing foods. It is not suitable for storing

such things as vaccines, bacteria or chemical

samples, which have demanding temperature

requirements.

Do not store fuel and other flammable products

near this appliance.

Do not put microwave ovens, voltage

regulators or power strips on this appliance. Do

not operate electrical devices and such inside

the refrigerator (except if instructed to do so by

the maker).

To avoid injuries, do not let children climb on

or hang from the appliance door.

Once the appliance has been started up, do not

touch the inside of the freezer compartment

with wet hands, otherwise they may get stuck

on the surface.

Precautions

To avoid injury, keep fingers away from the

door crack when opening or closing the doors.

Keep children away from the appliance doors

being opened and closed.

Do not pour water onto the appliance or set it up

in wet areas.

Refrigerators may only be repaired or altered by

professionals. Improper repair may cause

considerable damage. Please contact your dealer

or our customer service should your appliance

require repair or modification.

Keep bottles and tins out of the freezer. They

could burst when the content freezes.

Pull out the power plug in the case of a power

outage, repair or cleaning.

When disposing of the appliance, remove the

door or door seal and shelves to prevent playing

children from locking themselves in and putting

their lives at risk.

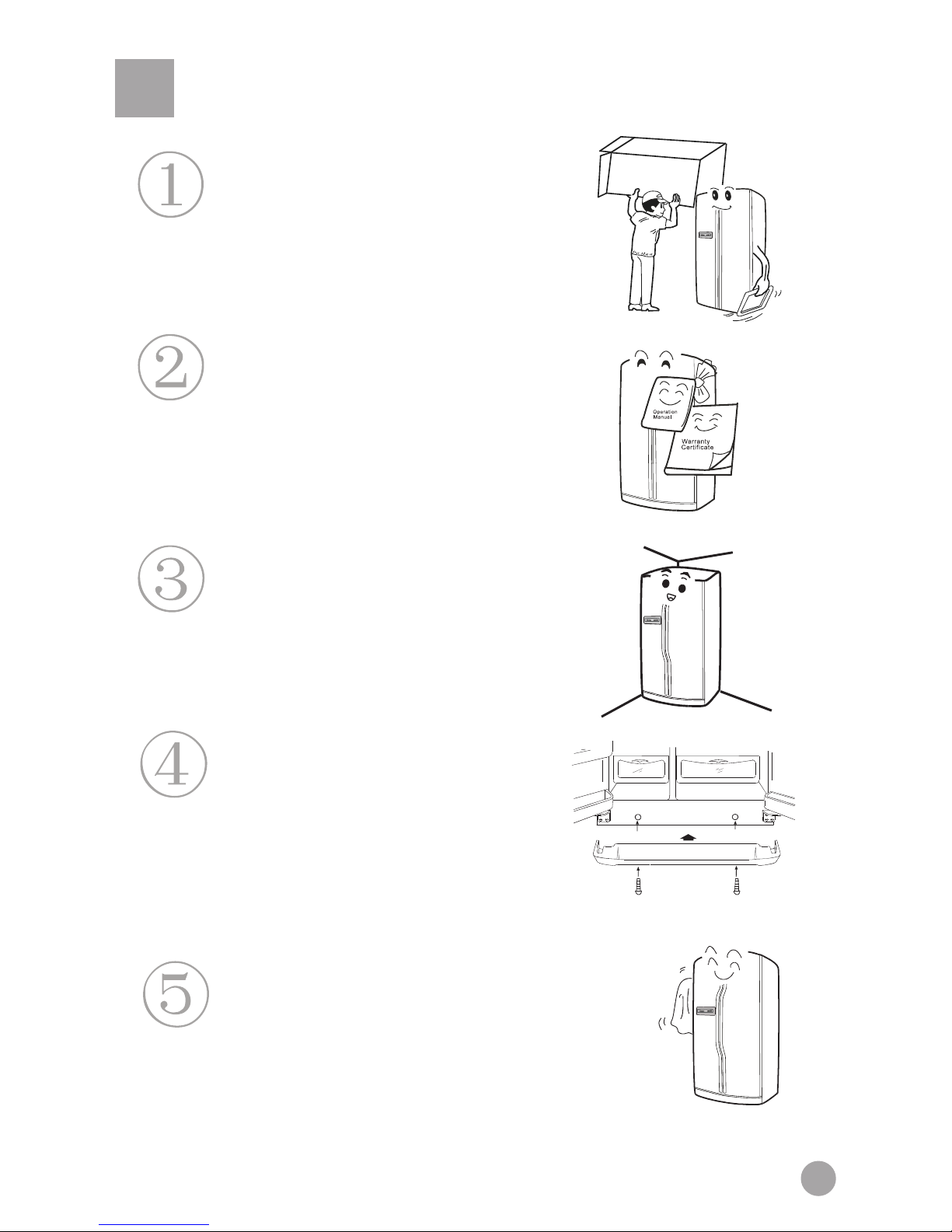

Preparations

Unpacking

Remove the entire packing material,

including the foam underlay and pieces of

tape used to hold accessories in place.

Separating and counting the

included accessories.

Check the items in the box against the

packing list.

In case of a mismatch, please contact

your supplier.

Setting up the appliance in a suitable

area.

(Details under “Setting up”.)

Attaching the toe moulding

Open the refrigerator and freezer

doors, remove the moulding from

the refrigerator compartment, and

then affix it as shown in the

illustration.

Cleaning interior

It is recommended to clean the interior before

starting up the appliance. (Details under

“Cleaning”.)

Preparations

Standing still

After cleaning, let the appliance stand still for at

least six hours before turning it on to start it up.

Attention:

Please do not disassemble the door handle. Any modifications must be done by a

qualified technician.

Door removal

Removing the door

If your house door is too narrow, remove the refrigerator door and carry the

refrigerator in narrow side first.

Remove the toe moulding.

Toe moulding

Remove the freezer compartment door.

1) Unscrew the hinge covers. Disconnect

all wires except for the grounding wire.

2) Remove the screws from the upper

hinge following the direction as indicated

by Arrow (1). Then remove the upper

hinge following the direction as indicated

by Arrow (2).

3) Lift the freezer compartment door to

remove it.

Hinge cover

Wires

Upper

(hinge)

Grounding wire

Upper hinge

Screw

Lower

hinge

Door removal

Remove the refrigerator

compartment door.

1)Loosen the hinge cover bolts, and then

remove the cover.

3)Lift the refrigerator compartment door to

remove it.

2) Remove the screws from the upper hinge

following the direction as indicated by

Arrow (1). Then remove the upper hinge

following the direction as indicated by

Arrow (2).

Wires

Upper hinge

Screw

Lower hinge

Slide the refrigerator through the

door opening.

Slide the refrigerator through the door

opening as shown in the illustration.

Reinstall the door.

Bring the doors in the house, and then

reinstall them by reversing the removal steps.
