Haier WM6002A Manuale utente

WM6002A

Names of the parts.............the 2nd cover

Safety precautions .............................................1

Installation and adjustment .........................3

Install the water inlet hose............5

Preparation before washing ...............7

Put in the laundries .............................8

Put in the detergent ............................9

Use the operation buttons ...................10

Close the top lid .................................14

Finish washing ...................................14

Disposal after washing .........................15

Trouble shooting..............................16

Packing list.....................................17

Specification................the back cover

CONTENTS

Before using

Using process

Please read this manual carefully before using.

Retain it for future reference.

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

The manufacturer will not take responsibility for those

risks occurred from not obeying this manual.

User's manual

Computerized Full-auto

Washing Machine

TWO DRIVE

TWO 50% CONSUMPTION SAVER

Contents marked with that symbol are related to the safety of the product and the personal

safety of the users. Please operate in strict conformity to the contents.

Contents marked with that symbol are actions forbidden to perform. Performing of those

action may result in damage of the machine or influence the personal safety of the users.

Accessories

Meaning and description of the symbols

Before Using

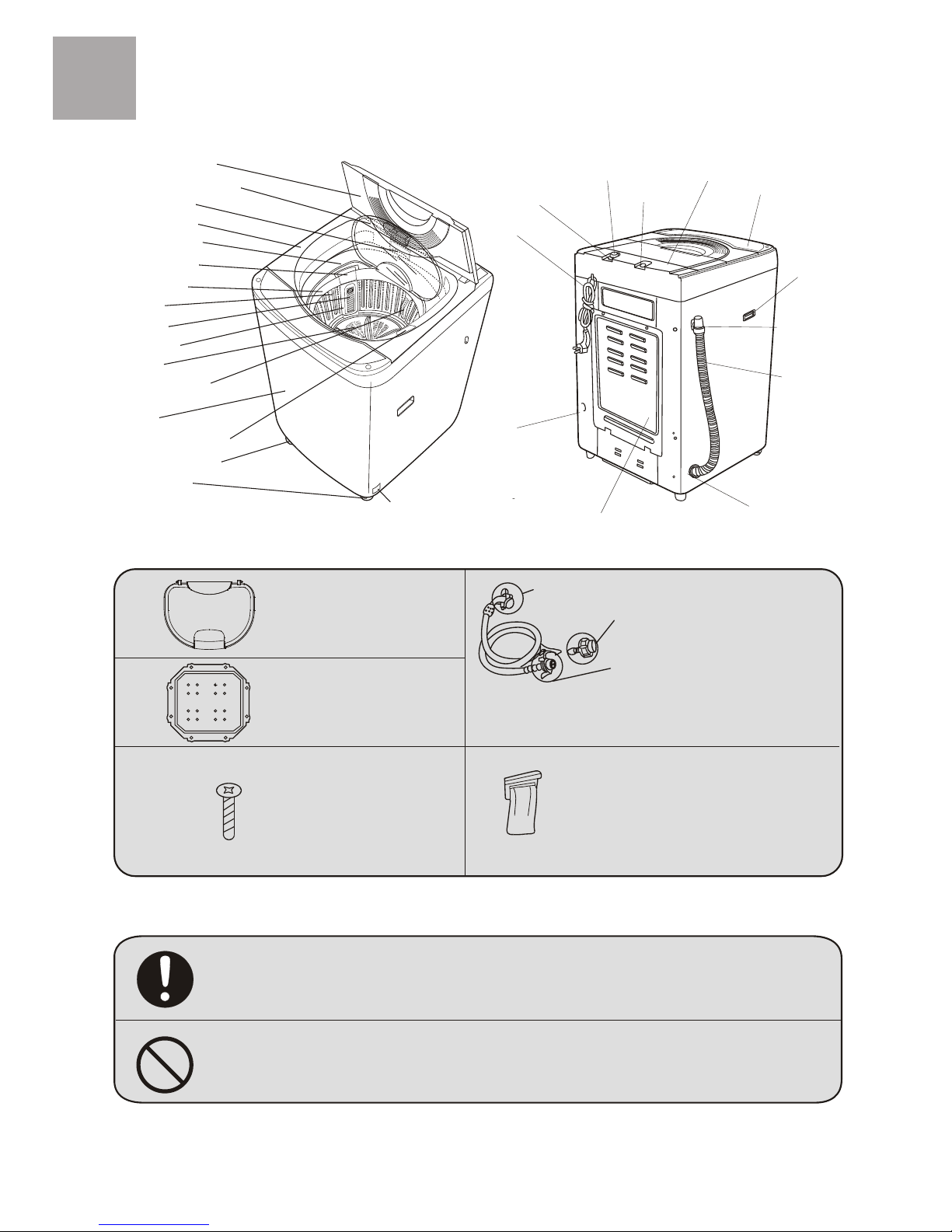

Names of the parts

water inlet valve

water absorption

cushion

rear faceplate

round cover

power cord

front control board

cabinet handle

drain hose hang-

ing hole

drain hose

standby screws

and nut for earth-

ing wire

back cover drain hose jacket

one piece

Bottom plate (1 piece)

Water inlet hose (1 piece)

Water inlet hose joint (1 piece)

Fastening screws

ST4X16-A (8 pieces)

the end connecting to the washing machine

jointer connecting the water

inlet hose and the water faucet

the end connecting to the water

Inner cover (1piece)

inlet hose jointer

Lint filter (1 piece)

Control pannel

Outer tub cover

Lint filter fixing

Balance ring

Inner tub

Filter cover

Attachment block

(3 pieces)

Cabinet

Liquid whitener inlet

Fixed leg

Adjustable leg

Detergent box

Top lid component

Inner cover component

(3 pieces)

Pulsator

Lint filter

Adjustable leg film

The ventilation

holes at the bottom

Before Using

Safety precautions

In case the washing machine is installed on ground

with carpet, be careful not to block the ventilation hole

with carpet.

Do not put the machine at damp place like the

bathroom. Never wash it with water. Do not

put wet laundries on the control panel coating.

Do not let the machine share one receptacle with other

electric appliances. If the power plug is damaged, or

the plugging into the receptacle is loose, do not use

the plug any more.

Do not wash water-proof laundry like the raincoat,

bikecovers, down textiles etc. To avoid abnormal

vibrations in spinning and damages to the laundries.

Do not bend, stretch, twist, bind the power cord by force, or reformit.

Do not press or clamp it with heavy items. If the power cord and power

plug are bad, or the receptacle is loose, be sure to have it replaced by

the technicians of our special shop or our agent,or the after-sales service

department to avoid any risk.Keep the prong of the power plug clean.If

dust is found on the power plug, please wipe it off with dry cloth.

In normal usage of the washing machine, the power

plug shall be ready to be pulled or plugged with hand.

Be sure to pull the plug off and close the water faucet

when occurring power failure,delivering the machine,

setting the machine idle or cleaning the machine,Do

not plug or pull the power plug with wet hand.

earth

Do not use water with temperature higher than 50

Please plug the plug on special 220-240V AC receptacle.

Be sure to use three phase power receptacle.Ensure

the earthing prong of the power receptacle is earth-

ed reliably.Use leakage protector if possible.

Do not put hand into the rotating tub.It is dangerous

even if the rotation speed is slow. Take special care of

the children. Keep children away from the washing

machine to avoid them climbing on.

Do not decompose, repair or alter the machine by

yourself.

Do not put any hot or heavy items (such as the

kettle with hot water) on the washing machine.

Do not wash laundry with volatile materials

(such as thinner, petrol etc.).

Keep the machine away from direct sunlight and

heat source like the heater.

The handicapped or children without care shall not

use the machine.

Please keep the lint filter in good condition, and

install it to proper position during washing. If the

lint filter is lost or damaged,please contact the local

after-sales service department of our company.

Benzene

Before Using

Safety precautions

To protect your laundries and washing machine,

please take out all of the coins, buttons, sand, hairpins

and other foreign materials before washing.

Please check if the water faucet is open, and if the

connection of the water inlet pipe is proper.

It is suggested to use foamless washing powder.

Dismantle Install

The washing machine away from wall should be overrun 20mm.The largest allowable slope of the shank base of

the machine is 2 .The slanting or rough ground will result in unstable running or stoppage of the machine.

Please adjust it with following methods:

Confirm it's horizontal:

Hang the lead line to check if it is

horizontal.

Adjust the adjustable leg:

Install the bottom plate

Adjust the Installation position

Screw

Back

Front

bottom plate

Soft object

FastenLoosen

High Low

the adjustable nut

the adjustable foot

Please install and adjust the machine according to the requirement of the mannual.

It is very important to your security and correct operating the machine.

Before Using

Installation and adjustment

1 .To twist the adjustable leg, please first lift up the

side of the leg slightly, loosen the adjustable nut,

and twist the leg.

2 .After adjustment, fastenthe nut.

After opening the package, please lean the washing

machine gently down on soft items (like towel cloth,

blanket, etc.). Installthe bottom plate to the bottom of

the machine with eight screws by a cross screwdriver,

then lift the machine up gently. (See to the figure)

1.Open the top lid of the washing machine.

2.Put the inner cover component on the outer tub cover, aiming

the inner cover shaft to the installation hole of the corresponding

outer tub cover shaft groove.

3.Firstly insert the inner cover shaft of one side into the correspon

-ding outer tub cover shaft groove, then push the another inner

cover shaft into the corresponding outer tub cover shaft groove.

Please install to designated position to guarantee there are no

dropping or abnormal sound in opening and closing of the inner

cover, and the operation shall be smooth. Do not dismount the

inner cover component after washing.

4.Install the lint filter in the balance ring.(See to the right figure)

Inner cover

Inner cover shaft

Outer tube cover

Install the lint filter

Install the inner cover and lint filter

The drainage shall be smooth with the drain hose.

The height of the drain hose shall be less than

10cm, or the drainage will not be smooth, and cost

such long time that the machine may stop at mid

way.

Do not step on or press the drain hose.

If extra drain hose is needed, please make separate

purchase. The inner diameter of the extra hose shall

not less than 30mm, and the length shall not exceed

1.5m.

If the extra hose is too long,cut

it either at A or at B point.

<10cm

> 30mm

<1.5m

If the drain hose is too long, cut it at mid point. To make

smooth drainage, cut the front end of the hose slantingly.

Useage the drain hose

Before Using

How to change the direction of the drain hose

1. Dismount the back cover of the washing machine.

2. Put down the drain hose. Take off the drain hose

frame. As indicated in Figure 1, put the drain hose

into the cabinet. Then put one hand into the cabinet

to nip the claw of the drain hose bushing to release

the claw from original position. Take off the drain

hose bushing with the other hand. (As indicated in

Figure 2 and 3).

3. Dismount the protecting cover of the drain

outlet at the other side ( method the same as

the drain hose bushing). Install the drain hose

bushing as per indicatedin Figure 4.

4. Extend the drain hose from the other side.

Fix the drain hose onto the cabinet with the

drain hose rack. (As indicatedin Figure 5)

Attention: To guarantee the proper installation, it is suggested to have the direction changing of drain

hose performed by the after-sales service technicians of our company.

drain hose frame

drain hose

Fig

re 1

••••• • • •• ••• •••••••••

Fi gur e 2

hose bushing claw

cabinet

inner

dr ai n hose bushing

t ake off

Figure 3

drain protecting cover

drain hose bushing

Fi gur e 4 Fi gur e 5

drain hose bushing

Fi gur e 6

Push

The exit end face of the faucet

Confirm the water faucet

Connection between the water inlet hose jointer and the water faucet

water faucet, suitable water faucet, not suitable

It is required that the front end shall be longer than 10mm.

The exit end face of the faucet shall be flat and smooth. If not please file it to avoid leakage.

2 Loosen the screw till the water faucet can be accessed. Put the jointer of the water inlet hose on the faucet.

See to Figure 2. (If the faucet is too large and the jointer can not be set on the water faucet, please loosen

the four screws and take out the bushing in the jointer. The front end of the faucet must be smooth,

otherwise it may leak water. See to Figure 3.)

1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the

water inlet hose component. See to Figure 1.

3.Fasten the four screws evenly. See to Figure 4.

About 4mm before twisting

remark: Before installation, the threading is 4mm above the upper surface of the nut.

After installation, the threading is 2mm above the upper surface of the nut..(see to figure 6)

About less than 2mm after twisting

water inlet hose jointer

Screw knife

Screw

Bushing

Sign plate

Screw nut

water inlet hose

Figure 1

Figure 4

Figure 2

Figure 5

Figure 3

Figure 6

Slider

Lock lever

Before Using

Install the water inlet hose

4 Take off the sign plate. Twist the fastening nut as per the indication of the figure

to seal up the exit end face of the faucet. See to Figure 5.

Use the newwater inlet hoseprovided with themachine to connectto the waterfaucet.Old hose sets

should not bereused.

Connection between the water inlet hose and the washer

Dismantle the water inlet hose

Connection between the jointer of the water inlet hose

and the water inlet hose

Check the connection between the jointer of the water inlet hose

and the water faucet

1.Do not take off the water absorption cushion. Please check if the

cushion is dropped or damaged before each usage. If it happens

please contact our after-sale department immediately.

1.Swing the hose gently to confirm if it is fastened stable.

2.After installation, open the faucet to check if it leaks.

3.Do not bend the hose with overstrain.

1.Push down the slider. Insert the water inlet hose into the jointer.

2 Hang the lock lever to the jointer. Release the slider till a click

sound is heard.

Locking level

Slider

water absorption

cushion.

nut of thewater

inlet hose

the jointer of the

water inlet hose

Slider

Locking lever

jointer of the

water inlet valve

1. Close the water faucet.

2. Press the locking lever. Push down the slider. Then pull of the water inlet

hose.

If the machine is used frequently, the jointer of the water inlet hose can be

kept

on the faucet to prevent damaging the fixing screw.

Before Using

2 Put the nut of the water inlet hose on the valve jointer.

3 Fasten the nut. Swing it gently to confirm if it's suitable.

4.Before each usage please check if the connection

between the jointer of the water inlet hose and the

water faucet, and the installation of the water inlet

hose are firm, so as to prevent dropping from

improper installation position.

Using process

1 Preparation before washing

Confirm if there's

special requirement

for the laundries.

Clear the pocket.

Take out the coins ,

sand,hairpins etc.

Fasten the buttons

and zippers.

When the pulsator is

running ,the buttons of

the laundries may cause

noise. For the sake of

discretion ,please put

the laundries with

buttons into other

laundries.

Preparation before washing

The quantity of the

laundries shall not

exceed the rated

value. The big

laundries like the

jeans shall be put

in loosely.

Pay attention to followings before washing the laundries

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put down the drain hose.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries with unfast color from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like mud or dust. For the parts with heavy soil,

please apply detergent in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn it over before putting in.

f. Do not put those laundries polluted by chemicals directly into the washing machine.

g. For those small laundries and those may get twisting or worn, and woolen/fur laundries, please put them into

mesh bag for washing.

Reference weight of the laundries:

working suit up,down

jeans about 800g

The capacity of washing of the machine refer to the

largest weight of the standard laundries under dry

condition that can be washed in one time. Laundries

quantity in one washing cycle shall be lower

than the rated capacity. The largest capacity of

this machine is 6.0kg.

The thickness ,size , type of the cloth will influence the

actual washing capacity. It is suitable to put in

reasonable amount of laundries and the laundries can

be turned round in washing for one time washing.

Do not select above"4" water level for laundries less

than 1.0kg ,so as to avoid splashing of water.

shirt jacket

single bed sheet

socking

underpants

undershirt

pajamas

blanket

cotton,about 900g

cotton,about

300g

cotton,about

800g

cotton,about 600g

blending,about 50g

cotton,about 70g

cotton,about 180g

about 200g

Using process

2 Put in the laundries

cotton,about 1120g

coat with blended

cloth (about 800g)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Haier Rondella

Haier

Haier HWM30-22P Manuale utente

Haier

Haier HWM100-0523S Manuale utente

Haier

Haier XPB70-113S Manuale utente

Haier

Haier HWM110VA Manuale utente

Haier

Haier HWM65-113S Manuale utente

Haier

Haier HK1007TME Manuale utente

Haier

Haier HL806TX Manuale utente

Haier

Haier HWM110-9188 Manuale utente

Haier

Haier HTW70-M1217 Manuale utente

Haier

Haier HW-E1470TVE Manuale utente

Haier

Haier HWM55-918P Manuale utente

Haier

Haier HWM120-B1678S8 Manuale utente

Haier

Haier HWM45-10B Manuale utente

Haier

Haier HWM80-27S Manuale utente

$Haier JW-K50B\JW-K50C Manuale utente$

Haier

Haier JW-K50B\JW-K50C Manuale utente

Haier

Haier HW80-B1486 Manuale utente

Haier

Haier HW-F1481 ME Manuale utente

Haier

Haier HWD 105-B14959S8U1 Manuale utente

Haier

Haier XPB50-23BS Manuale utente

Haier

Haier HW60-1201S Manuale utente

Haier

Haier XQBM22-C Manuale utente

Haier

Haier HLP23E - Electronic Touch Pulsator Ing Portable Washing... Manuale utente

Haier

Haier HW-C1260TVE-E Manuale utente

Haier

Haier HMS1260TVE Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
