Contents

Before using

Using process

User's Manual

Fully-auto Washing Machine

XQBM20-E

Please read this manual carefully before using.

Retain it for reference

Please check if the power receptable is earthed

reliably before usage to guarantee your safety.

The manufacturer is not responsible for any

risks occurred owing to disobey these

stipulations.

Meaning and description of the symbols

Ê¹ÓÃÖ®Ç°Ê¹ÓÃÖ®Ç°

Before Using

Names of the parts

the end connecting

to the water inlet

hose jointer

the end connecting to

the washing machine

Warning sign

Forbidding sign

Contents marked with that symbol

are related to the safety of the

product and the personal safety

of the users. Please operate in

strictconformity to the contents,

otherwise it may cause damage

of the machine or injure the

personal safety of the user.

Contents marked with that symbol

are actions forbidden to perform.

Performing of those actions may

result in damage of the machine

or injure the personal safety of

the user.

Accessories

Adjustable foot

bottom plate

(one)

water inlet hose

(one)

ST4X16

tapping screws

(8 purchase)

Power line

Drain Hose

Handle

Back cover Fixed Foot(3 Pcs)

Water level knob

Water inlet valve

Water absorption

gasket

Top lid

Control panel

seat

lint filter

Inner tub

Pulsator

Cabinet

Cabinet,lower

Control panel filmControl panel film

Lint filter

(one)

Before Using

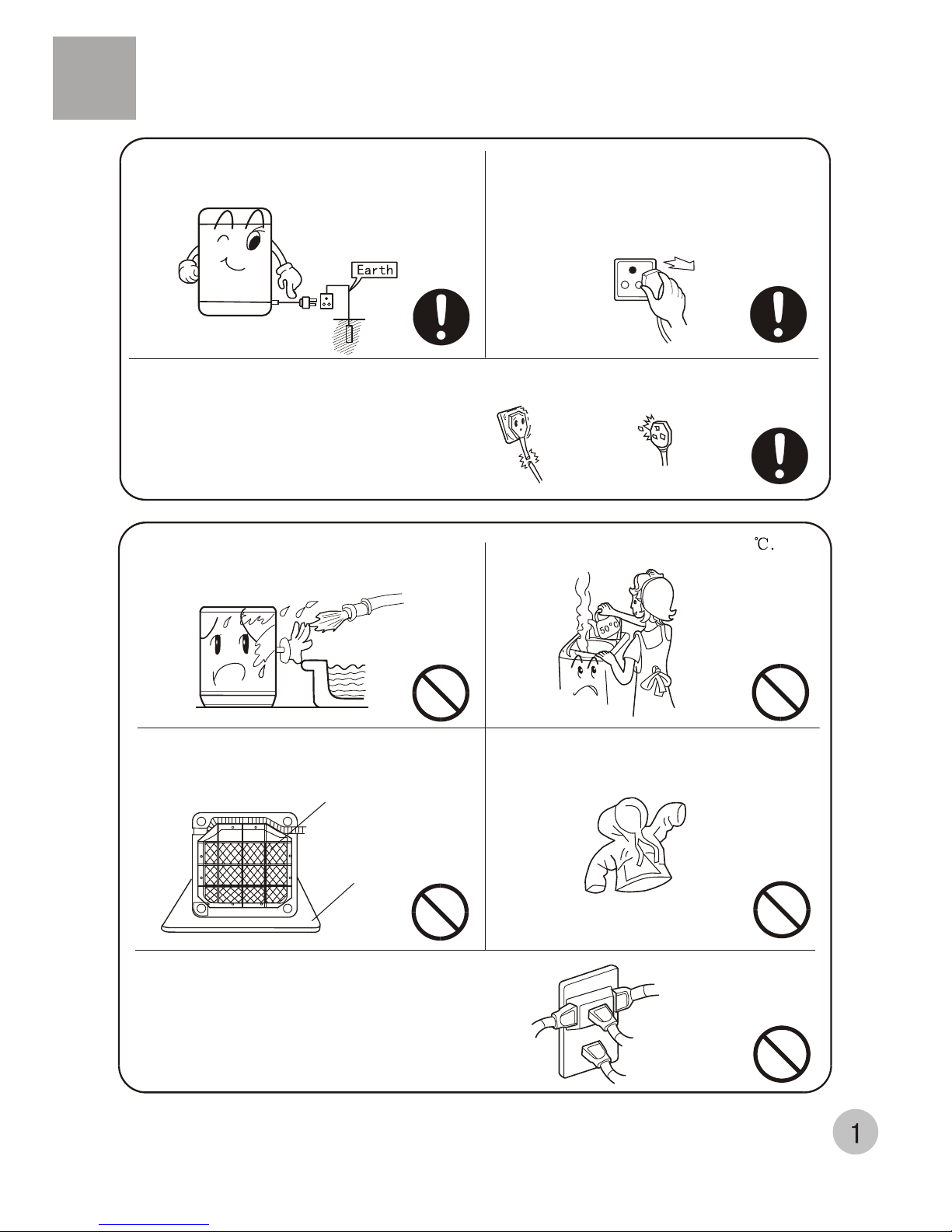

Safety precautions

If the power line is bad, to avoid risk it is required to have it replaced by the technicians

of our special shop or our agent or the after-sale service department. Keep the pin of

the power plug clean.

Do not put the machine at damp place like

the bathroom. Never wash it with water.

Do not use water hotter than 50

In case the washing machine is installed

on ground with carpet, do not block the

ventilation hole with carpet.

soft items

The ventilation holes

at the bottom

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Be sure to earth the earthing wire reliably. When the machine is normally using, please

put the power plug at the location easily to

be inserted and extracted by hand. Be sure

to pull the plug off when there'spower failure,

or the machine is being moved, cleaned or

when it is idle.

Do not decompose, repair or alter the

machine by yourself.

Do not put any hot or heavy items (such

as the kettle with hot water ) on the

washing machine.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.)

The handicapped or children without

care shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the heater.

Before Using

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Petrol

Thinner

Safety precautions

To prevent your laundries and washing

machine from damage,be sure to take out

all of the foreign materials from your pocket,

such as coins,buttons,sand or hair pins etc.

Before washing,please check if the water

tap is open,and if the water inlet pipe is

connected properly.

It is suggested to use low-foaming washing

powder.

Please keep the lint filter in good condition,

and install it to proper position. If the lint

filter is lost or damaged, please contact

the local after-sales service department of

our company.

Before Using

Please install and adjust the machine according to the requirement of the manual. It is

very important to your security and correct operating the machine.

The largest allowed slope of the shank base of the machine is 2 . The slanting or

rough ground will result in unstable running or stoppage of the machine. Please

adjust it with following methods:

Confirm it's horizontal:

Adjust the adjustable foot:

Hang the lead line to confirm if it is horizontal.

After you open the package, please lean

the washing machine gently down on soft

items ( like the towel cloth, blanket, etc. ).

Install the bottom plate to the bottom of

the machine with the eight screws by

a cross screwdriver, then lift the machine

up gently. See to the figure:

Adjust the installation position

soft items

Bottom plate Screw

Loosen Fasten

High Low

adjustable nut

adjustable foot

Back

Front

1.To twist the adjustable foot, please first

lift up the side of the foot slightly, loosen

the adjustable nut, and twist the foot.

2.Fasten the nut after adjustment.

Installation and adjustment

1.Lean the machine down gently with the front

surface facing the ground. Loosen the eight

screws by a cross screwdriver.

3.Extend the drain hose from the left side. Push the

drain hose into the groove with hands.

4.Install the bottom plate (as per indicated before),

then lift the machine up gently.

2.Pull out the drain hose from the groove at the

right side.

Back

Front

Bottom plate

Soft item

Use groove at

this side after

direction changing

Page 3

Push the drain hose

into the groove with

hands at this point

Before Using

How to change the direction of the drain hose

Usage of the drain hose

1.The height of the drain hose shall be

less than 10cm, or the drainage will not

be smooth, and cost such long time that

the machine may stop at mid way.

2.Do not trample or press the drain hose.

If the drain hose is too long, cut it at mid

point. To make smooth drainage, cut the

front end of the hose slantingly.

4.If extra drain hose is needed, please

make separate purchase. The inner

diameter of the extra hose shall not

less than 26mm, and the length shall

not exceed 1.5m.

If the extra hose is too long, cut it

either at Aor at B point.

The drain hose shall drain smoothly

Before Using

Install the water inlet hose

Confirm the water faucet

Note:

1. Insert a new flat washer into the end of the inlet hoses. Firmly put the

washers in the coupling.

You may have to use pliers to tighten the coupling. Do not over tighten

because you may cause damage to the valve.

2. Connect the water inlet hose to the water taps.

3. Connect the other ends to their respective washer inlets located at the

rear of the washer.

Water absorption cushion

Nut of the water inlet hose

Jointer of the water inlet valve

4. Check connection between the adapter of water inlet pipe and water faucet.

1)Slightly move water pipe to check whether is secured.

2)Except for the device,open water faucet to check water leakage.

3)Test and ensure that the connecting matter is indeed normal,then can use

normally.

4)Don't fold water pipe improperly.

5)Check connection between adapter of water inlet pipe and water faucet

before using to avoid water drip due to improper usage of the device.

Confirm if

there's special

requirment for

the laundries.

Clear the pocket.

Take out the

coins , sand,

hairpins etc.

Fasten the

buttons and

zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion,please

put the laundries

with buttons into

other laundries.

Preparation before washing

1.Connect the water inlet hose and open

the water tap .

2.Confirm that the washing machine is

earthed reliably . Then insert the power

plug into the receptacle. Do not connect

the earth terminal to the gas pipe and

tap water pipe.

3.Put down the drain hose.

The quantity of

the laundries

shall not exceed

the rated value.

The big laundries

like the jeans

shall be put in

loosely.

Using process

1 Preparation before washing

Pay attention to followings before washing the laundries

a.Please check if the laundries are applicable for washing.

b.Separate those not colorfast from other laundries.

c.For laundries not waterabsorbing,please put them into water with hands.

d.For laundries with much soil,please remove the soil first.You can add detergent on the

part with serious soil directly.It is much easier to remove the soil by that mean.

e.For laundries likely to get lint ball or with long fiber,please first turn the inside out before

putting them into the water.

f.Do not put the laundries polluted with chemicals directly into the washing machine.

g.For those small laundries ,laundries likely to be twisted or worn,and woolen laundries,

please put them into mesh bag before wasing.

Reference weight of the laundries:

working suit up,down

jeans about 800g

The capacity of washing and spinning of the

machine refer to the largest weight of the standard

laundries under dry condition that can be washed

or spinned in one time. One time washing quantity

shall be lower than the rated capacity. The largest

capacity of this machine is 2.0kg.

The thickness, size, type of the cloth will influence

the actual washing capacity. It is suitable for one

time washing to put in reasonable amount of

laundries and the laundries can be turned round in

washing.

Do not select "High" water level for laundries small

than 0.5kg, so as to avoid splashing of water.

To wash thin laundries like the stocking, silk etc.,

please first put them into washing mesh bag (which

can be purchased separately) before wash.

shirt jacket

single bed sheet

Socks

underpants

undershirt

pajamas

blanket

cotton,about 900g

cotton,about

300g

cotton,about

800g

cotton,about 600g

blending,about 50g

cotton,about 70g

cotton,about 180g

Using process

2 Put in the laundries

cotton,about 1120g

blending coat

(about 800g)

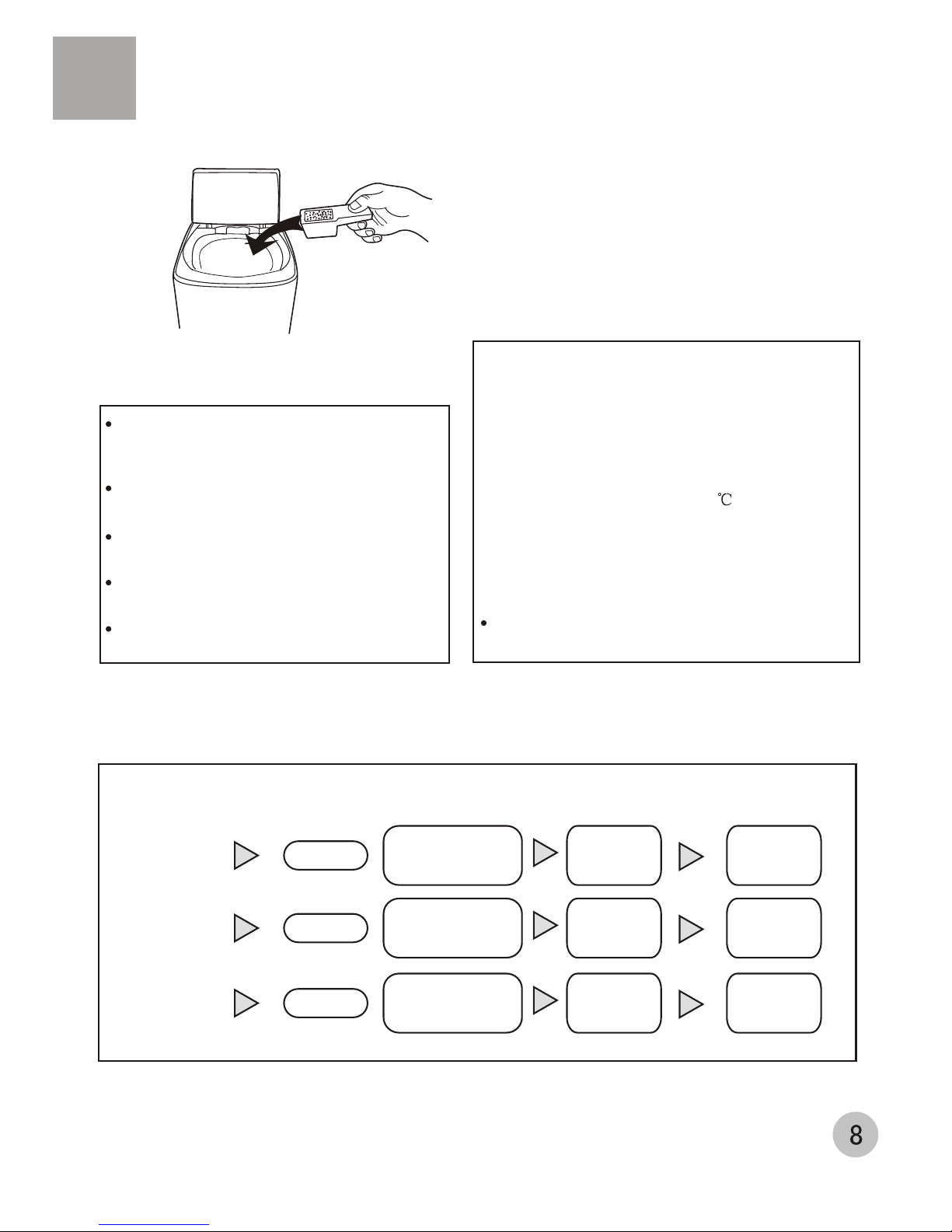

Laundries

Quantity(kg) Water level Water quantity

Concentrated powder,

add 25g in each

30L water

2.0-1.0

1.0-0.5

Below0.5

High

Middle

Low

About 30L

About 22L

About 12L

About 40g

About 30g

About 16g

About 25g

About 18g

About 10g

How to use the washing powder

How to use the whitener

Inlet the water to desired level, dilute the

whitener with container, and pour it into the

tub slowly.

Laundries with colors or patterns are more prone

to loose color. Do not use whitener on them.

The whitener should not be made to contact

the laundries directly.

The usage and use level of the whitener

please refer to the User's manual of it.

For the whitener in powder, first dissolve it

then use.

Direct dissolved in the machine

1. Inlet some water.

2. Add the powder. Run for 3 minutes to

dissolve it fully.

3. Put in the laundries. Select suitable

water level.

The instant dissolving of the washing powder:

1. Prepare warm water at 30 in a container.

2. Add the powder while stirring so as to fully

dissolve it.

3. Put in the powder with right quantity accord-

ing to the laundry ,water quantity and water

level.

The above method is only applicable in

manual selection of the water level.

Selection of the water level,water quantity and the quantity of the

washing powder

Add the detergent

Common powder,

add 40g in each

30L water

Using process

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Haier Rondella

Haier

Haier HWM65-7288P Manuale utente

Haier

Haier LMDR8124PBAB0 Manuale utente

Haier

Haier XPB72-276S Manuale utente

Haier

Haier HA600T Manuale utente

Haier

Haier HWM26-10A Manuale utente

Haier

Haier HWM55-918P Manuale utente

Haier

Haier HWM80-35 Manuale utente

Haier

Haier HW80-B14266A-EC Manuale utente

Haier

Haier HWM60-20B Manuale utente

Haier

Haier HN800TX Guida utente

Haier

Haier HWM80-27S Manuale utente

Haier

Haier HW1210A Manuale utente

Haier

Haier HW80-B1486 Manuale utente

Haier

Haier HW-C1470TVE ME-U Manuale utente

Haier

Haier HW80-1403D Manuale utente

Haier

Haier QFQ100 Manuale utente

Haier

Haier HW90-BP14959 Manuale utente

Haier

Haier RWT350AW Manuale utente

Haier

Haier WD55dHSHAT Manuale utente

Haier

Haier HDWM800TX Manuale utente

Haier

Haier HW90-BP14636 Manuale utente

Haier

Haier HWD 105-B14959S8U1 Manuale utente

Haier

Haier HW90-B14636 Manuale utente

Haier

Haier HWM110-9188 Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
