HAMPTON BAY Ansley Manuale utente

Ansley

52 in Ceiling Fan

Owner’s Manual

Ansley

Ventilador de Techo de 1,32 m

Manual del Propietario

761 512

52” Ansley

Ceiling Fan by Hampton Bay

Date Purchased

Store Purchased

UL Model No.

Serial No.

Vendor No.

UPC

Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

Table of Contents

Safety Rules . . . . . . . . . . . . . . . . . . . . 1

Unpacking Your Fan . . . . . . . . . . . . . . 2

Installing Your Fan . . . . . . . . . . . . . . . 3

Operating Your Transmitter . . . . . . . . . 11

Care of Your Fan . . . . . . . . . . . . . . . . 13

Troubleshooting . . . . . . . . . . . . . . . . . 13

Specifications . . . . . . . . . . . . . . . . . . 14

Warranty Information . . . . . . . . . . . . 15

761-512

11289

792145352792

Safety Rules - Read and Save These Instructions

To reduce the risk of electric shock, insure electricity has been turned off

at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical Code

“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation

should be performed by a qualified licensed electrician.

WARNING: To reduce the risk of electrical shock or fire, do not use this

fan with any solid-state fan speed control device. It will permanently

damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the screws

provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds, Use only UL

Listed outlet boxes marked “FOR FAN SUPPORT.”

The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge of the blades to the floor.

Avoid placing objects in path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades. A dry

dust cloth or lightly dampened cloth will be suitable for most cleaning.

After making electrical connections, spliced conductors should be turned

upward and pushed carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the equipment-grounding

conductor on one side of the outlet box and ungrounded conductor on the

other side of the outlet box.

All set screws must be checked and retightened where necessary before

installation.

10.

11.

WARNING

TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN

INSTALLING THE BRACKETS, BALANCING THE BLADES OR

CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –

BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET

BOX.

Unpacking Your Fan

Unpack your fan and check the contents. You should have the following items:

Set of blades (5)

Canopy assembly

Standard downrod assembly

Minimum-length downrod (for close to

ceiling mounting only)

Arrow style decorative downrod

3a.

3b.

Coupling cover (for close to ceiling

mounting)

Fan motor assembly

Glass housing

Glass housing plate

Blade arms (5)

Decorative plate with nut

Decorative cover

15 Watt candelabra bulbs (6)

Transmitter+holder+2 mounting screws

12V MN21/A23 battery

10.

11.

12.

13.

Blade Attachment Hardware

(16 Screws with Fiber Washers)

Electrical Hardware

(3 Plastic Wire Nuts)

Balance Kit

WARNING

DO NOT INSTALL OR USE FAN IF ANY

PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-877-898-1881.

Installing Your Fan

Figures 1~3 are examples of different ways to

mount the outlet box.

If there isn't an existing UL listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 35 lbs). Do not use plastic outlet boxes.

Tools Required

Mounting Options

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OULET BOX MARKED ACCEPT-

ABLE FOR FAN SUPPORT AND USE THE

MOUNTING SCREWS PROVIDED WITH THE

OULET BOX. OUTLET BOX COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURE

MAY NOT BE ACCEPTABLE FOR FAN SUPPORT

AND MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Outlet Box

Figure 2

Figure 1

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling. The maximum angle

allowable is 24°. If the canopy touches downrod,

remove the decorative canopy bottom cover and

turn the canopy 180°before attaching the canopy

to the mounting plate.

To hang your fan where there is an existing fixture

but no ceiling joist, you may need an installation

hanger bar as shown in Figure 4 (available at any

Home Depot store).

Ceiling

Mounting

Plate

Provide Strong

Support

Recessed

Outlet Box

Figure 3

Figure 4

Phillips screwdriver, straight slot screwdriver, step

ladder and wire cutters.

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly.

NOTE: Your fan comes with a 13" downrod

attached to the hanging ball to use with the arrow

style decorative downrod (See Fig. 6). In addition,

you have been provided with a 4-1/2" downrod to

use on lower ceilings without decorative arrow

downrod cover. ( See Fig. 6A)

Installing the fan with the arrow style

decorative downrod (with 13" downrod)

(Recommend min. 9 ft. ceiling height).

Follow the Figure 6 and continue on section titled

"Hanging the Fan" for installation.

Hanging the Fan

CHANGING THE DOWNROD

WARNING

FAILURE TO PROPERLY INSTALL COTTER PIN

AS NOTED IN STEP 5 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Tighten two set screws at top of the fan motor

collar firmly and evenly. (Fig. 6)

Remove the decorative canopy bottom cover

from the canopy by turning the cover clockwise.

(Figure 5)

Remove the mounting bracket from the canopy

by loosening the two screws on the bottom of

the mounting bracket a half turn from the screw

head and turning the canopy clockwise.

(Figure 5)

Remove the clevis pin, cotter pin and set

screws from the top of the motor assembly.

(Figure 6)

Route wires exiting from the top of the fan

motor through the coupling cover, canopy

cover, canopy and then through the ball/

downrod. (Figure 6)

Align the holes at the bottom of the downrod

with the holes in the coupling on top of the

motor housing (Figure 6). Carefully insert the

clevis pin through the holes in the collar and

downrod. Be careful not to jam the clevis pin

against the wiring inside the downrod. Insert

the cotter pin through the hole near the end of

the clevis pin until it snaps into its locked

position, as noted in the circle inset of Fig. 6.

Figure 5

Figure 6

Ceiling

Mounting

Bracket

Ceiling Canopy

Canopy Bottom

Cover

Motor Collar

Canopy Bottom

Cover

Ball/Downrod

Assembly

Ceiling Canopy

Tighten Screw

Firmly

Motor Wires

Arrow Style

Decorative

Downrod

With 13" Downrod

Pin in Locked

Positioon

Cotter Pin

Clevis Pin

Installing the fan without arrow style

decorative downrod (with 4-1/2"

downrod) (Recommend min. 8.25 ft ceiling

height).

Remove the hanger ball from the 13" downrod

by loosening the set screw at the top of the

downrod which holds the hanger ball to the

downrod.

Slide the hanger ball down the downrod and

remove the support pin.

Reinstall the ball to the 4-1/2" downrod.

Remove the clevis pin, cotter pin and set

screws from the top of the motor assembly.

Route wires exiting from the motor collar

through the collar cover, canopy cover, canopy

and then through the ball/downrod (Fig. 6A).

Follow the steps 5 & 6 in section titled

"Hanging the Fan" for installation.

Figure 6A

Motor Wires

Ball/Downrod

Assembly

Ceiling Canopy

Canopy Bottom

Cover

Pin in Locked

Positioon

Motor Collar

Cover

Tighten Screw

Firmly

With 4 1/2" Downrod

Pass the 120-volt supply wires through the

center hole in the ceiling mounting bracket as

shown in Figure 7.

Install the ceiling mounting bracket on the

outlet box with the screws and washers

provided with your outlet box (Figure 7).

Security tighten the two mounting screws.

Carefully lift the fan assembly up to the ceiling

mounting bracket and seat the hanger ball in the

mounting bracket socket. Make sure the tab on

the mounting bracket socket is properly seated

in the groove in the hanger ball (Figure 8). This

will help to balance the ceiling fan.

Installing Fan to

the Electrical Box

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR OTHER PERSONAL INJURY. MOUNT

FAN ONLY TO AN OUTLET BOX OR SUPPORTING

SYSTEM MARKED ACCEPTABLE FOR FAN

SUPPORT AND USE THE MOUNTING SCREWS

PROVIDED WITH THE OUTLET BOX.

Cotter Pin

Clevis Pin

Figure 7

UL Listed Outlet Box

Ceiling Mounting

Bracket

120V

Wires

Mounting

Screws (Supplied

with Electrical Box)

Tab

Figure 8

Groove

Tab

WARNING

THE TAB IN THE RING MUST REST IN THE

GROOVE OF THE HANGER BALL AS FIGURE 8.

FAILURE TO PROPERLY SEAT THE TAB IN

THE GROOVE COULD CAUSE DAMAGE TO

WIRING.

Making the Electrical

Connections

WARNING

TO AVOID POSSIBLE ELECTRICAL SHOCK, BE

SURE ELECTRICITY IS TURNED OFF AT THE

MAIN FUSE BOX BEFORE WIRING.

If you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

Follow the steps below to connect the fan to your

household wiring. Use the wire nuts supplied with

your fan. Secure the wire nuts with electrical tape.

Make sure there are no loose strands or

connections.

Connect the fan supply (black) wire to the

black household supply wire as shown in

Figure 9.

Connect the neutral fan (white) wire to the

white neutral household wire.

Connect the fan ground wire (green) to the

household ground wire.

After connecting the wires, spread them apart

so that the green and white wires are on one

side of the outlet box and the black wires are on

the other side.

Turn the wire nut connections upward and

push the wiring into the outlet box.

SUPPLY CIRCUIT

Figure 9

Ground

Conductor

Outlet Box

Green Ground

Lead

GREEN

Ground to

Downrod

BLACKBLACK

WHITEWHITE

CAUTION

DO NOT USE WITH WALL LIGHT DIMMER

SWITCH.

WARNING

MAKE SURE THE TAB ON THE HANGER

BRACKET PROPERLY SITS IN THE GROOVE IN

THE HANGER BALL BEFORE ATTACHING

THE CANOPY TO THE BRACKET BY TURNING

THE HOUSING UNTIL IT DROPS INTO PLACE.

Tuck connections neatly into ceiling outlet

box.

Slide the canopy up to ceiling and over the 2

screws on the mounting bracket. Rotate canopy

clockwise. Next, while holding the canopy

with one hand, slide the canopy cover over the

screws and rotate clockwise until tight. Note:

Adjust the canopy screws as necessary until the

canopy and canopy cover are snug. (Fig. 10)

Finishing the Fan

Installation

Outlet box

Ceiling

Mounting

Bracket Screws

Canopy

Bottom

Cover

Figure 10

Installing the Light Bulbs

& Glass Shade

Install 6 x15W (Max.) bulbs (provided).

Remove 1 of the 3 screws from the motor

housing, loosen the other 2 screws (Do not

remove). (Figure 11)

Place the glass housing plate onto glass

housing as figure 11.

Raise and hold the glass housing assembly

close to the motor housing, place the glass

housing plate key holes over the 2 screws

previously loosened from the motor housing,

turn the glass housing plate until it locks in the

place of the narrow section of the key

holes. Secure the glass housing assembly by

tightening the 2 screws loosened and the one

removed previously. (Fig. 11)

Figure 11

Screws

Glass Housing

Plate

Motor Housing

Bulbs

Glass Housing

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY,

DO NOT BEND THE BLADE ARMS WHILE

INSTALLING, BALANCING THE BLADES, OR

CLEANING THE FAN. DO NO INSERT FOREIGN

OBJECTS BETWEEN ROTATING FAN BLADES.

Figure 12

Blade

Blade Arm

Screws with

Fiber Washers

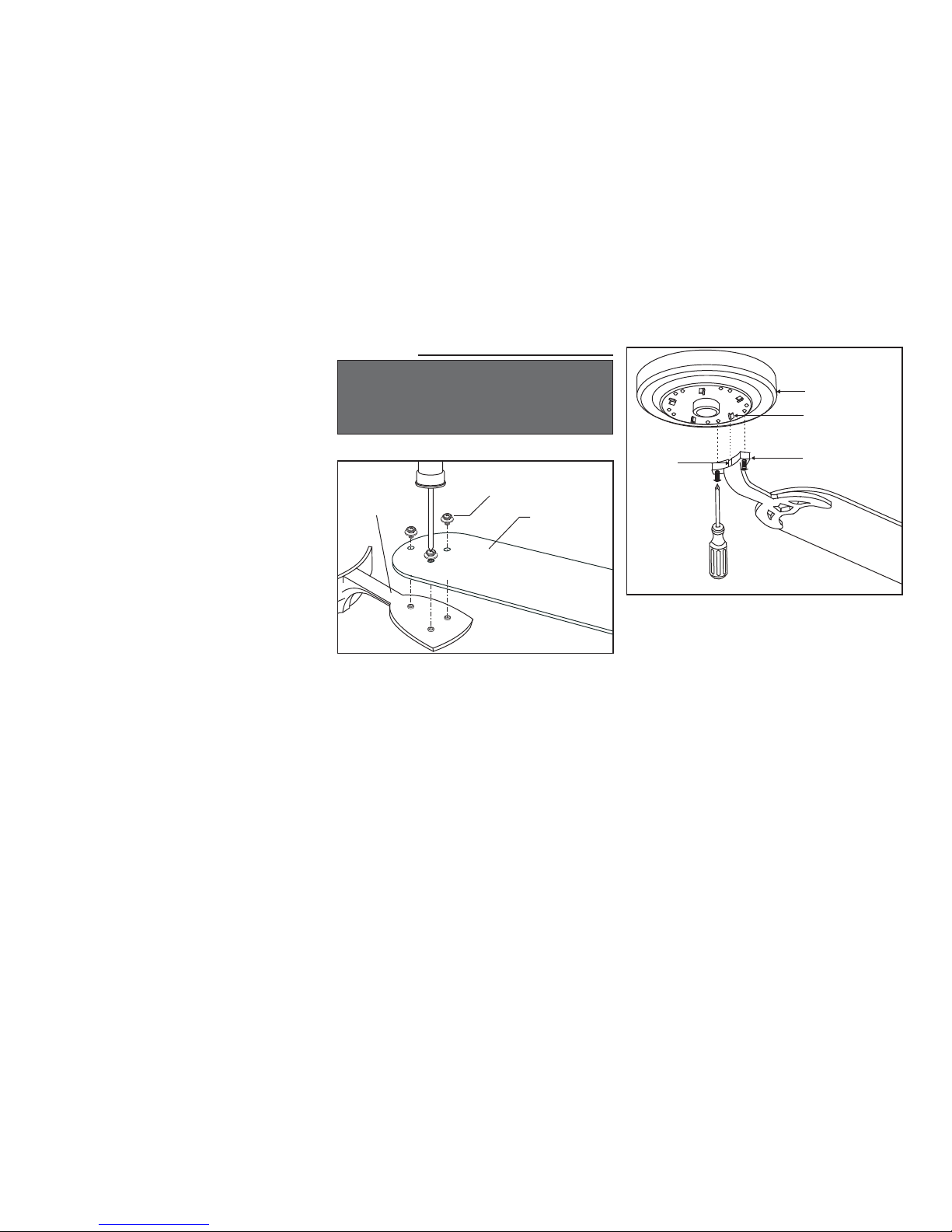

Attaching the Fan Blades

Attach blades to blade arms using three screws

with fiber washers (Fig. 12). Start a screw into

the blade arm, do not tighten. Repeat for the 2

remaining screws and washers.

Tighten each screw securely starting with the

center screw. Make sure the blade is straight.

Repeat steps for the remaining blades.

Fasten the blade assemblies to the motor

housing by lining up the slots of the blade arms

with the tabs on the motor housing, then

tighten the two screws and washers already

installed in the blade arms (Fig. 13).

Figure 13

Motor

Blade arm

Slot

Tab

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HAMPTON BAY Fan

HAMPTON BAY

HAMPTON BAY COSTA MESA Manuale utente

HAMPTON BAY

HAMPTON BAY SINCLAIR AL958-TB Manuale utente

HAMPTON BAY

HAMPTON BAY 53701101 Manuale utente

HAMPTON BAY

HAMPTON BAY 409-952 Manuale utente

HAMPTON BAY

HAMPTON BAY SOUTHWIND 52371 Manuale utente

HAMPTON BAY

HAMPTON BAY HOLLY SPRINGS 57281 Manuale utente

HAMPTON BAY

HAMPTON BAY BPT12-13D Manuale utente

HAMPTON BAY

HAMPTON BAY SIDLOW 52151 Manuale utente

HAMPTON BAY

HAMPTON BAY 9100 Manuale utente

HAMPTON BAY

HAMPTON BAY 1002 275 335 Manuale utente

HAMPTON BAY

HAMPTON BAY Altura Manuale utente

HAMPTON BAY

HAMPTON BAY PALM BEACH II 59299 Manuale utente

HAMPTON BAY

HAMPTON BAY GAZEBO III YG988-BN Manuale utente

HAMPTON BAY

HAMPTON BAY CF556A-H26 Manuale utente

HAMPTON BAY

HAMPTON BAY AG510-BN Manuale utente

HAMPTON BAY

HAMPTON BAY Dawson 581 645 Manuale utente

HAMPTON BAY

HAMPTON BAY Beverley II 325-475 Manuale utente

HAMPTON BAY

HAMPTON BAY Middleton 42 inch Manuale utente

HAMPTON BAY

HAMPTON BAY WELLSTON EF200B-44 Manuale utente

HAMPTON BAY

HAMPTON BAY 69156 Manuale utente

HAMPTON BAY

HAMPTON BAY Farmington Manuale utente

HAMPTON BAY

HAMPTON BAY ZANDRA 92380 Manuale utente

HAMPTON BAY

HAMPTON BAY SENZE 24816-021 Manuale utente

HAMPTON BAY

HAMPTON BAY LK-52PN Manuale utente

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
