Cherokee

Safety Rules - Read and Save These Instructions

WARNING

To reduce the risk of electric shock, insure electricity has been

turned off at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70-1999” and local electrical codes. Electrical

installation should be performed by a qualified licensed

electrician.

WARNING: To reduce the risk of electrical shock or fire, do not

use this fan with any solid-state fan speed control device. It will

permanently damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the

screws provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds. Use only

UL Listed outlet boxes marked “FOR FAN SUPPORT”.

The fan must be mounted with a minimum of 7 feet clearance from

the trailing edge of the blades to the floor.

Avoid placing objects in path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades.

A dry dust cloth or lightly dampened cloth will be suitable for most

cleaning.

After making electrical connections, spliced conductors should be

turned upward and pushed carefully up into outlet box. The wires

should be spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the outlet box and

ungrounded conductor on the other side of the outlet box.

All set screws must be checked and retightened where necessary

before installation.

10.

11.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN

INSTALLING THE BRACKETS, BALANCING THE BLADES OR

CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –

BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET

BOX.

56 Cherokee

Ceiling Fan by Hampton Bay

Date Purchased

Store Purchased

ETL

Model No.

Serial No.

Vendor No.

UPC

Table of Contents

Safety Rules . . . . . . . . . . . . . . . . . . . . 1

Unpacking Y

our

Fan . . . . . . . . . . . . . . 2

Installing Y

our

Fan . . . . . . . . . . . . . . . 3

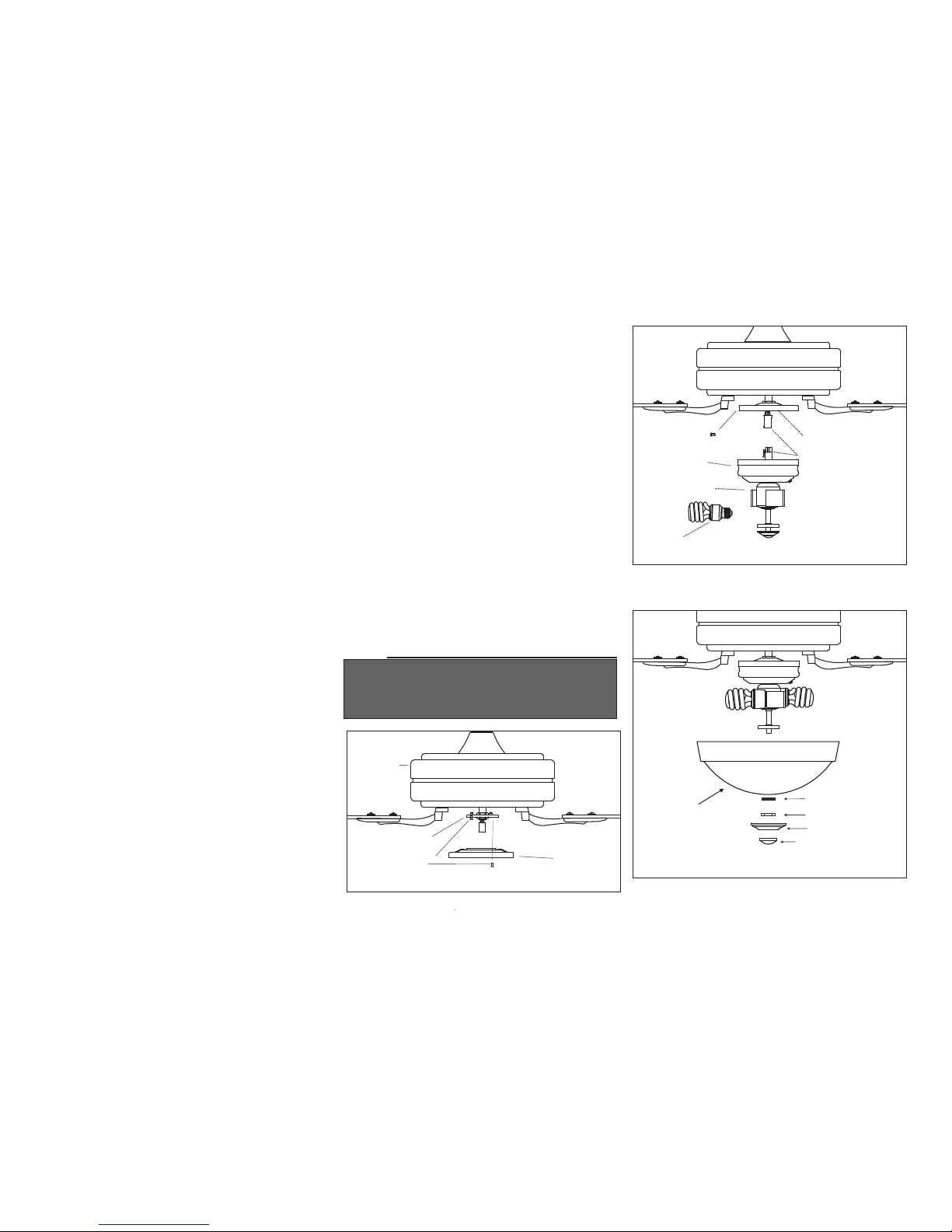

Installing the Light Kit. . . . . . . . . . . . . 8

Care of Y

our

Fan . . . . . . . . . . . . . . . . 10

Troubleshooting . . . . . . . . . . . . . . . . . 10

Specifications . . . . . . . . . . . . . . . . . . 11

Warranty Information . . . . . . . . . . . . 12

82598

Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

845952000223

565 332

10. Light kit (1)

11. CFL (2)

12. Glass shade (1)

13. Transmitter (1)

14. Receiver (1)

2. Hanger bracket (1)

3. Canopy (1)

4. Canopy cover (1)

5. Downrod assembly (1)

6. Coupling cover (1)

7. Fan motor assembly ( 1 )

8. Switch box cover (1)

9. Blade holders ( 5 )

Fan blades (5)

WARNING

DO NOT INSTALL OR USE FAN

IF ANY PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-877-262-7511

15. Loose parts bag containing:

a . Blade attachment hardware (16 screws

and rubber washers)

b. Set of blade holder hardware (1 screw)

c. Balancing kit (1)

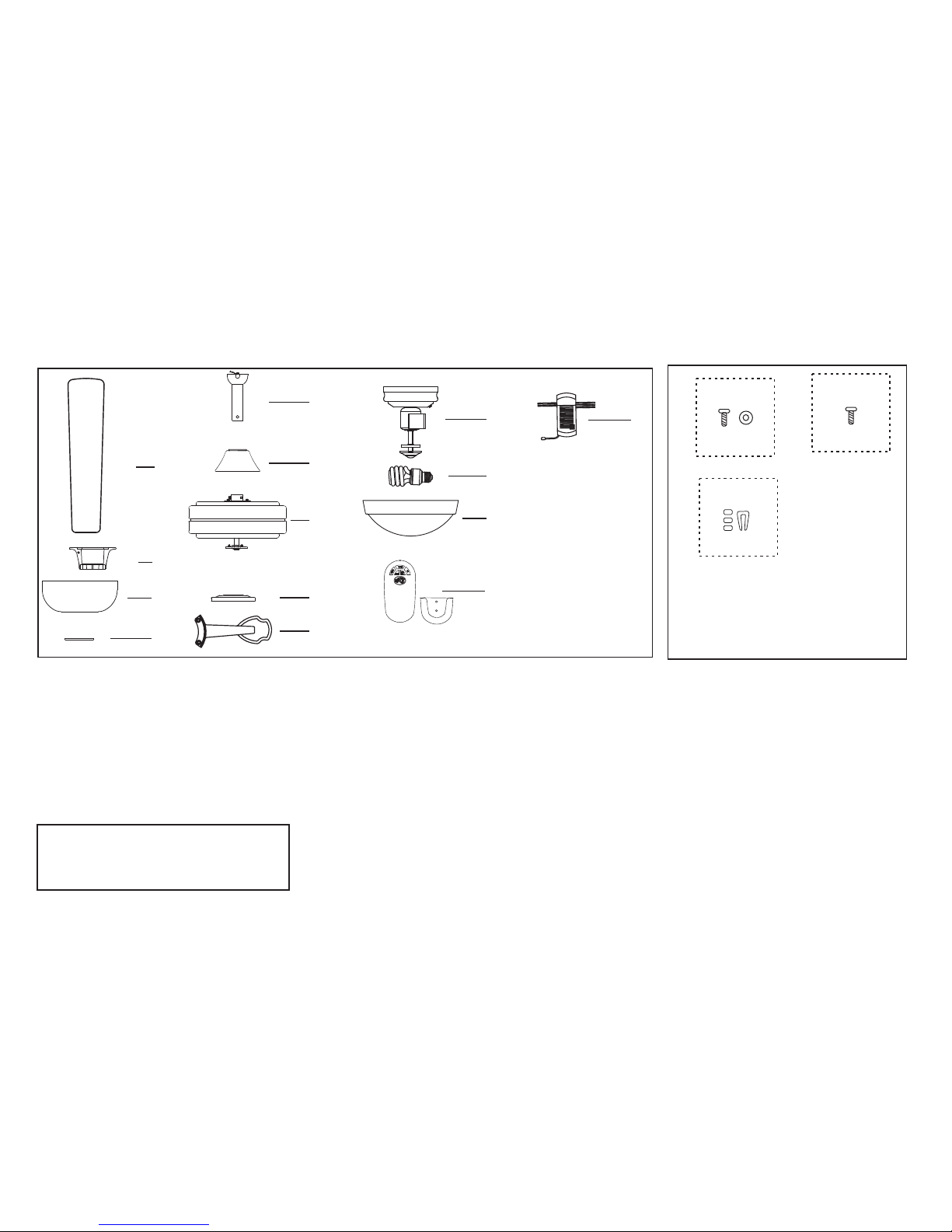

Unpack your fan and check the contents. You should have the following items:

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:

712

Installing Your Fan

WARNING

Outlet Box

Figure 2

Figure 1

Ceiling

Mounting

Plate

Provide Strong

Support

Recessed

Outlet Box

Figure 3

Figure 4

Tools Required

Mounting Options

Phillips screwdriver, straight slot

screwdriver, step ladder and wire cutters.

If there isn't an existing UL listed mounting

box, then read the following instructions.

Disconnect the power by removing fuses or

turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 35 lbs). Do

not use plastic outlet boxes.

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OULET BOX MARKED ACCEPT-

AB L E F OR FA N S U P P O RT AN D U SE T HE

MOUNTING SCREWS PROVIDED WITH THE

OULET BOX. OUTLET BOX COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURE MAY

NOT BE ACCEPTABLE FOR FAN SUPPORT AND

MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Figures 1~3 are examples of different ways to

mount the outlet box.

Note: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling. The

maximum angle allowable is 18°. If the

canopy touches downrod, remove the

decorative canopy bottom cover and turn the

canopy 180° before attaching the canopy to

the mounting plate.

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4

(available at any Home Depot store).

Motor Collar

Hitch Pin

Lead Wires

Ball/downrod

Assembly

Ceiling

Canopy

Lock Pin

Couping cover

Tighten

Screws

Firmly

Canopy cover

Hanging the Fan

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly:

3. Remove hanger ball from downrod assembly

by loosening set screw, removing the cross pin,

and sliding ball off rod. (Figure 7)

4. Carefully feed fan wires up through the

downrod. (Figure 8) Thread the rod into the

coupling. Next, line up holes and replace lock

pin and hitch pin. Tighten set screws.

5. Slip coupling cover, canopy cover and

canopy onto downrod. (Figure 9) Carefully

reinstall hanger ball onto downrod, make sure

that cross pin is in correct position, set screws

are tighten and wires are not twisted.

Secure the hanger bracket to the ceiling

outlet box with the screws and washers

provided with your outlet box. (Figure 5)

2. Remove the hitch pin and lock pin from

the downrod assembly. Loosen the two set

screws from the motor assembly. (Figure

6. Now lift motor assembly into position and place

hanger ball into hanger bracket. Rotate until the

check groove

should not rotate

if this is done correctly.

drops into the registration slot and

seats firmly. (Figure 10) Downrod

Figure 6

Downrod

Supply

wires

Figure 8 Figure 10

Registration

slot

Figure 5

Cross pin

Hanger

ball

Downrod

Figure 7

Outlet box

Hanger bracket

Hitch

pin Lock

Set

screws

Figure 9

Figure 12

Receiver

Mounting

bracket

Figure 11

Code switch

Rubber

cover

Making the Electrical

Connections

WARNING: To avoid possible electrical

shock, be sure electricity is turned off at the

main fuse box before wiring.

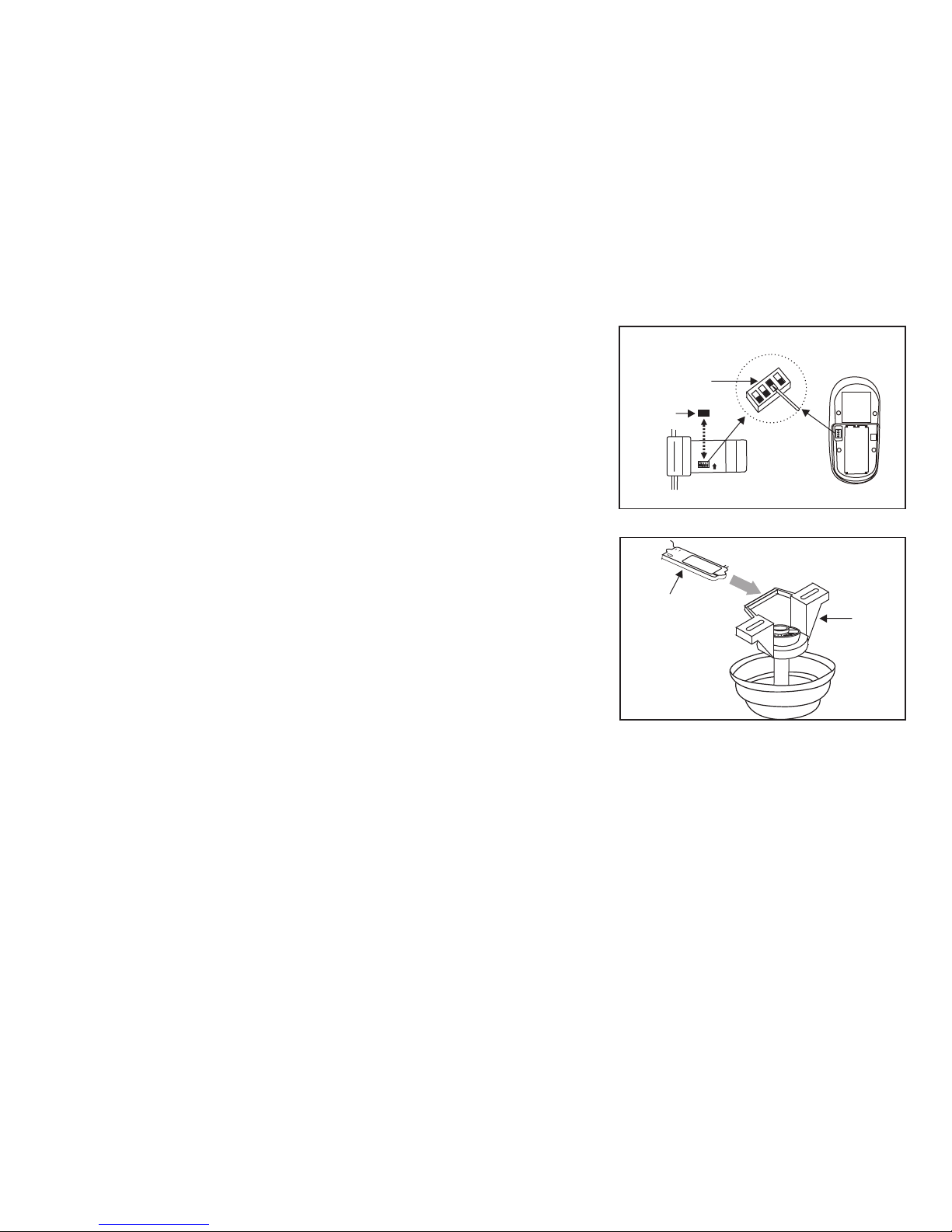

NOTE: This remote control unit is equipped

with 16 code combinations to prevent

possible interference from or to other

remote units. The frequency switches on

your receiver and transmitter have been

preset at the factory. Please recheck to

make sure the switches on transmitter and

receiver are set to the same position, any

combination of settings will operate the fan

as long as the transmitter and receiver are

set to the same position. (Figure 11)

1. Insert the receiver into the mounting

bracket with the flat side of the receiver

facing the ceiling. (Figure 12)

2 . M o t o r t o R e c e i v e r E l e c t r i c a l

Connections: Connect the black wire

from the fan to black wire marked "TO

MOTOR L".

Connect the white wire from the fan to

thewhite wire marked "TO MOTOR N" from

the receiver. Connect the blue wire from

the fan to the blue wire marked "For Light"

f r o m t he r e c e i ve r. S ec ur e t he w i r e

connections with the plastic wire nuts

provided. (Figure 13)

3. Receiver to House Supply Wires

Electrical Connections: Connect the black

(hot) wire from the ceiling to the black wire

marked "AC in L" from the receiver.

Connect the white (neutral) wire from the

ceiling to the white wire marked "AC in N"

f r o m t h e R e ce iv er. S e cu re t h e w ir e

connections with the plastic wire nuts

provided. (Figure 13)

4 . If your outlet box has a ground wire

( g r e e n o r b a r e c o p p e r ) c o n n e c t i t

to the fan ground wires; otherwise connect

the hanging bracket ground wire to the

m o u nti n g b ra cke t . S ecu r ed th e w ir e

connection with a plastic nut provided.

After connecting the wires spread them

apart so that the green and white wires are

on one side of the outlet box and black and

blue wires are on the other side.

Carefully tuck the wire connections up

into the outlet box. (Figure 13)

Finishing the Installation

1. Tuck connections neatly into ceiling outlet box.

2. Remove one screw from the hanger bracket and

loosen the other screw approximately 1/4″.

3.A lign the canopy up to ceiling and over the

loosened screw. Place the canopy into key hole and

rotate canopy clockwise. (Figure 14)

4. Secure the canopy by using previous removed

screw.

5. Place the canopy over the canopy and rotate

canopy cover clockwise until locked into right

position.(Figure 14)

MAKE SURE TAB AT BOTTOM OF HANGER

BRACKET IS PROPERLY SEATED IN GROOVE OF

HANGER BALL BEFORE

ATTACHING CANOPY TO BRACKET. FAILURE

TO PROPERLY SEAT TAB IN GROOVE COULD CAUSE

DAMAGE TO ELECTRICAL WIRING.

Figure 14

Outlet box

Mounting

bracket

Canopy

Screw

Canopy

cover

Ball Cover

Screw

WARNING

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITE

BLACK

BLUE

GREEN

Figure 13

The following procedure should correct most

fan wobble issues. Check after each step.

1. Check that all blades and blade bracket

screws are secure.

2. Most fan wobble problems are caused

when blade levels are unequal. Check this

level by selecting a point on the ceiling above

the tip of one of the blades. Measure this

distance as shown in Figure 17. Rotate the fan

until th e ne xt blade is po sitioned for

measurement. Repeat for each blade. The

distance should be equal within 1/8".

If all blade levels are not equal, you can

adjust the blade level with the following

procedure.

3. Use the enclosed Blade Balancing Kit if the

blade wobble is still noticeable. (Please refer

to the introduction provide in the blade

balancing kit, which is individually packed.)

4. If the blade wobble is still noticeable,

interchanging two adjacent (side by side)

blades can redistribute the weight and

possibly result in smoother operation.

Touching

ceiling

Figure 17

Figure 16

Motor housing

Blade Bracket

Screw

A t t a c h i n g t h e F a n

Blades

1.A ttach the blades to the blade brackets

using three screws and fiber washer as

shown in Figure 15. Start a screw into the

blade bracket, do not tighten. Repeat for

the 2 remaining screws and washers.

2. Tighten each screw securely starting

with the center screw. Make sure the blade

is straight.

3. Remove the screws from the bottom

motor housing before fastening the blade

assemblies to the bottom motor housing.

4. Fasten the blade assemblies to motor

housing by tightening two previous

removed screws from the motor housing.

(Figure 16)

Blade

bracket

Blade

Screws

Figure 15

Fiber

Washer

5. Carefully push all wires back into the

switch box, then install the light kit

assembly onto the switch box cover with the

3 screws previously removed. Be sure to

tighten all screws. (Figure 19)

Install 2×13W CFL (included).

7. Remove the rubber washer, metal nut,

metal cap and finial from the light kit

assembly. Place glass shade over the light kit

stem, secure with the rubber washer, metal

nut , m e t a l c a p a n d f i n ia l p r e vi o u s ly

removed. Do not over tighten.

6. .

(Figure 20)

8. Restore power and your light kit is ready

for operations.

housing

screw

Figure 18

housing

screw

connection

plug

light kit

switch box

CFL

Figure 19

Mounting

ring Switch

cover

Switch box cover

Figure 20

Finial

Metal Cap

Metal Nut

Rubber Washer

Glass shade

LIGHT BULB HAVE NO WARRANTY, CAN BE

P U R C H A S E D AT L O C A L L I GH T B UL B

SPECIALTY STORE OR FROM OUR SERVICE

CENTER.

NOTE

Installing the Light Kit

CAUTION　To Reduce The Risk Of Electric

Shock, Disconnect The Electrical Supply

Circuit To The Fan Before Installing Light

Kit.

REMEMBER The fan blades must already

be attached to the fan.

Your fan and light kit though pre-wired have

been disassembled at the factory to ease in

shipping. Please follow these steps to

complete the installation of your fan and

light. TO REDUCE THE RISK OF FIRE

D O N O T E X C E E D M A X I M U M

WATTAGE RATING.

1. Remove 1 of 3 screws on the mounting ring

and loosen other 2 screws. (Do not remove)

2. Tuck connections neatly into light kit.

Place the key holes on the switch cover over

the 2 screws previously loosened from the

mounting ring, turn switch cover until it locks

in place at the narrow section of the key holes.

Secure by tightening the 2 screws previously

loosened and the one previously removed.

(Figure 18 )

3. Remove one of 3 screws on compartment box.

(Figure 19)

4. While holding the light kit assembly under

your fan, snap together the wire connection

plugs. (Figure 19)

Indice

Altri manuali HAMPTON BAY Fan

HAMPTON BAY

HAMPTON BAY Andross Manuale utente

HAMPTON BAY

HAMPTON BAY ST. DAVID 51344 Manuale utente

HAMPTON BAY

HAMPTON BAY Asbury Plus Manuale utente

HAMPTON BAY

HAMPTON BAY 420-420 Manuale utente

HAMPTON BAY

HAMPTON BAY AK376-MBK Manuale utente

HAMPTON BAY

HAMPTON BAY SAN MARINO 91153 Manuale utente

HAMPTON BAY

HAMPTON BAY SAUTERNE AL975-BN Manuale utente

HAMPTON BAY

HAMPTON BAY STONERIDGE 51823 Manuale utente

HAMPTON BAY

HAMPTON BAY BELVOY AK330-BN Manuale utente

HAMPTON BAY

HAMPTON BAY ROANOKE YG216-MWH Manuale utente

HAMPTON BAY

HAMPTON BAY RDB9144-WH Manuale utente

HAMPTON BAY

HAMPTON BAY CLARKSTON CF544H-PEH Manuale utente

HAMPTON BAY

HAMPTON BAY Clarkston Manuale utente

HAMPTON BAY

HAMPTON BAY MIDILI 91100 Manuale utente

HAMPTON BAY

HAMPTON BAY Carrison 499 461 Manuale utente

HAMPTON BAY

HAMPTON BAY FS40-21MA Manuale utente

HAMPTON BAY

HAMPTON BAY WELLTON 60 AM588A-BN Manuale utente

HAMPTON BAY

HAMPTON BAY TIPTON II 52 INCH Manuale utente

HAMPTON BAY

HAMPTON BAY 855975 Manuale utente

HAMPTON BAY

HAMPTON BAY SCENIC 92302 Manuale utente

HAMPTON BAY

HAMPTON BAY PALM BEACH II 59299 Manuale utente

HAMPTON BAY

HAMPTON BAY ALTURA 68-INCH CEILING FAN Manuale utente

HAMPTON BAY

HAMPTON BAY Brookhurst 549-742 Manuale utente

HAMPTON BAY

HAMPTON BAY Lodge 285 313 Manuale utente

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
