HAMPTON BAY Parker Ridge Manuale utente

Parker Ridge

44 in Ceiling Fan

Owner’s Manual

Parker Ridge

Ventilador de Techo de 1,12 m

Manual del Propietario

288 272

Parker Ridge by Hampton Bay

44” Parker Ridge

Ceiling Fan by Hampton Bay

Date Purchased

Store Purchased

UL Model No.

Serial No.

Vendor No.

UPC

Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

Table of Contents

Safety Rules . . . . . . . . . . . . . . . . . . . . 1

Unpacking Your Fan . . . . . . . . . . . . . . 2

Installing Your Fan . . . . . . . . . . . . . . . 3

Installing the Light Kit . . . . . . . . . . . 8

Operating Your Transmitter . . . . . . . . . . 9

Care of Your Fan . . . . . . . . . . . . . . . . 11

Troubleshooting . . . . . . . . . . . . . . . . . 11

Specifications . . . . . . . . . . . . . . . . . . 12

Warranty Information . . . . . . . . . . . . 13

288-272

718212240250

219054

Safety Rules - Read and Save These Instructions

To reduce the risk of electric shock, insure electricity has been turned off

at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical Code

“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation

should be performed by a qualified licensed electrician.

WARNING: To reduce the risk of electrical shock or fire, do not use this

fan with any solid-state fan speed control device. It will permanently

damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the screws

provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds. Use only UL

Listed outlet boxes marked “FOR FAN SUPPORT”.

The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge of the blades to the floor.

Avoid placing objects in path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades. A dry

dust cloth or lightly dampened cloth will be suitable for most cleaning.

After making electrical connections, spliced conductors should be turned

upward and pushed carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the equipment-grounding

conductor on one side of the outlet box and ungrounded conductor on the

other side of the outlet box.

All set screws must be checked and retightened where necessary before

installation.

10.

11.

WARNING

TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN

INSTALLING THE BRACKETS, BALANCING THE BLADES OR

CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –

BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET

BOX.

WARNING

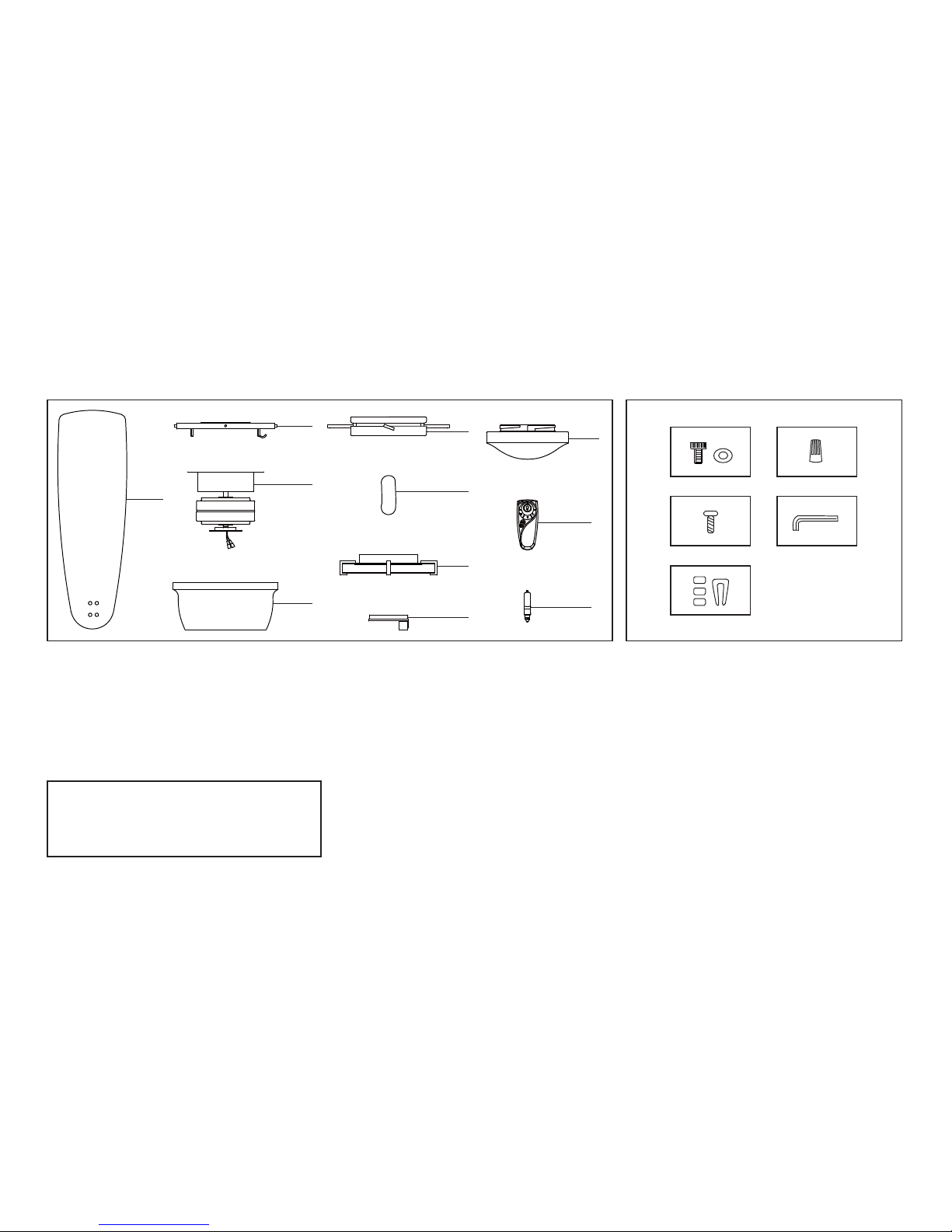

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:

Set of blades (4)

Mounting bracket

Fan motor assembly

Motor housing

Blade holder plate

Blade medallions (8)

Mounting plate

Light plate

Glass shade

Transmitter+holder+2 mounting screws

100W Halogen bulb

10.

Blade Attachment Hardware

3/16"×9mm Allen Screws (17PCs.)

Rubber Washers (17PCs.)

Electrical Hardware

Plastic Wire Nuts (3PCs.)

Blade Holder Plate Hardware

1/4"×1/2" Screws (11PCs.)

Allen wrench

Balancing Kit

WARNING

DO NOT INSTALL OR USE FAN IF ANY

PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-800-527-0998.

Figure 2

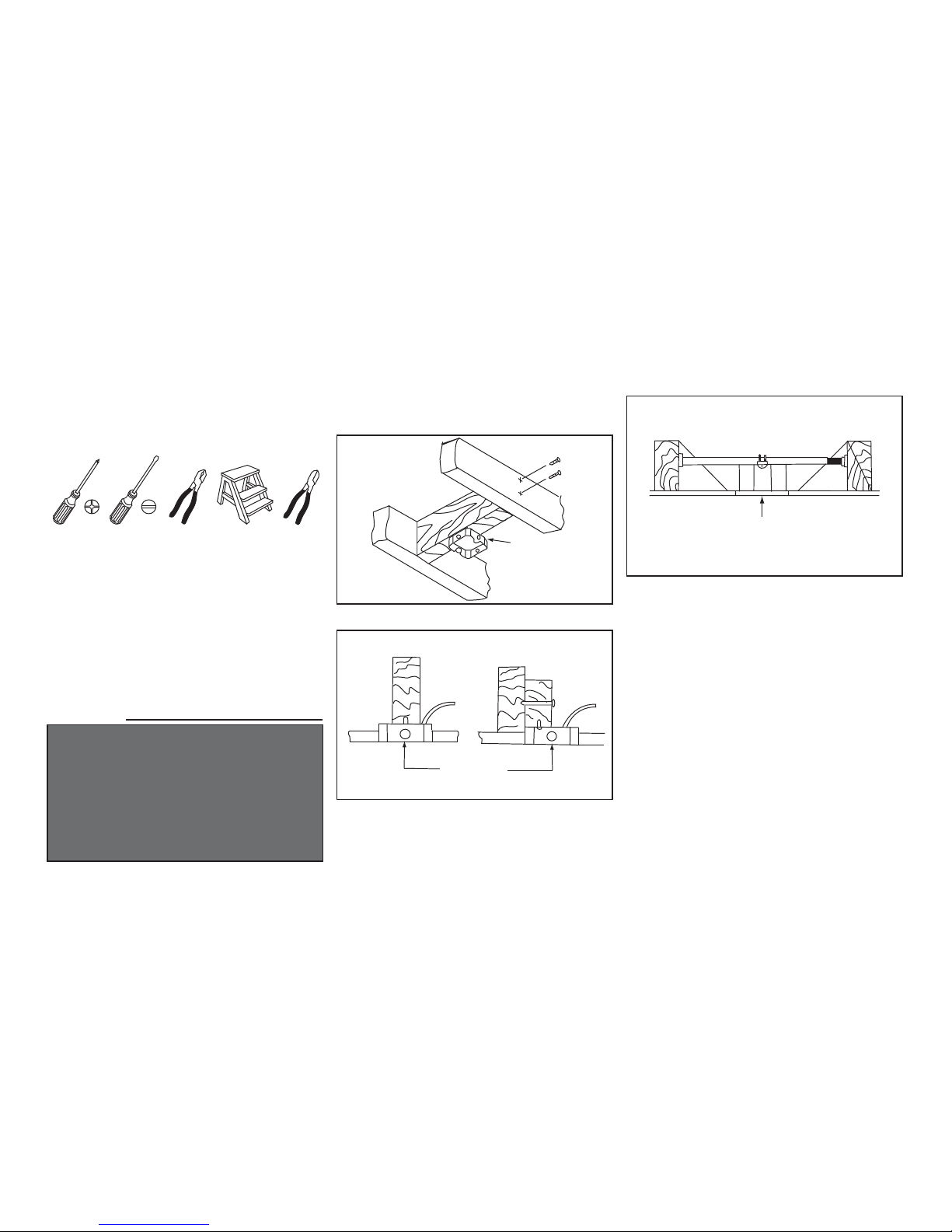

Figures 1 and 2 are examples of different ways to

mount the outlet box.

Outlet Box

Figure 1

Outlet Box

Installing Your Fan

If there isn't an existing UL listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 35 lbs). Do not use plastic outlet boxes.

Tools Required

Mounting Options

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OULET BOX MARKED ACCEPT-

ABLE FOR FAN SUPPORT AND USE THE

MOUNTING SCREWS PROVIDED WITH THE

OULET BOX. OUTLET BOX COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURE

MAY NOT BE ACCEPTABLE FOR FAN SUPPORT

AND MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

To hang your fan where there is an existing fixture

but no ceiling joist, you may need an installation

hanger bar as shown in Figure 3 (available at any

Home Depot retailer).

Figure 3

Outlet Box

Phillips screwdriver, straight slot screwdriver,

adjustable wrench, step ladder, and wire cutters.

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly.

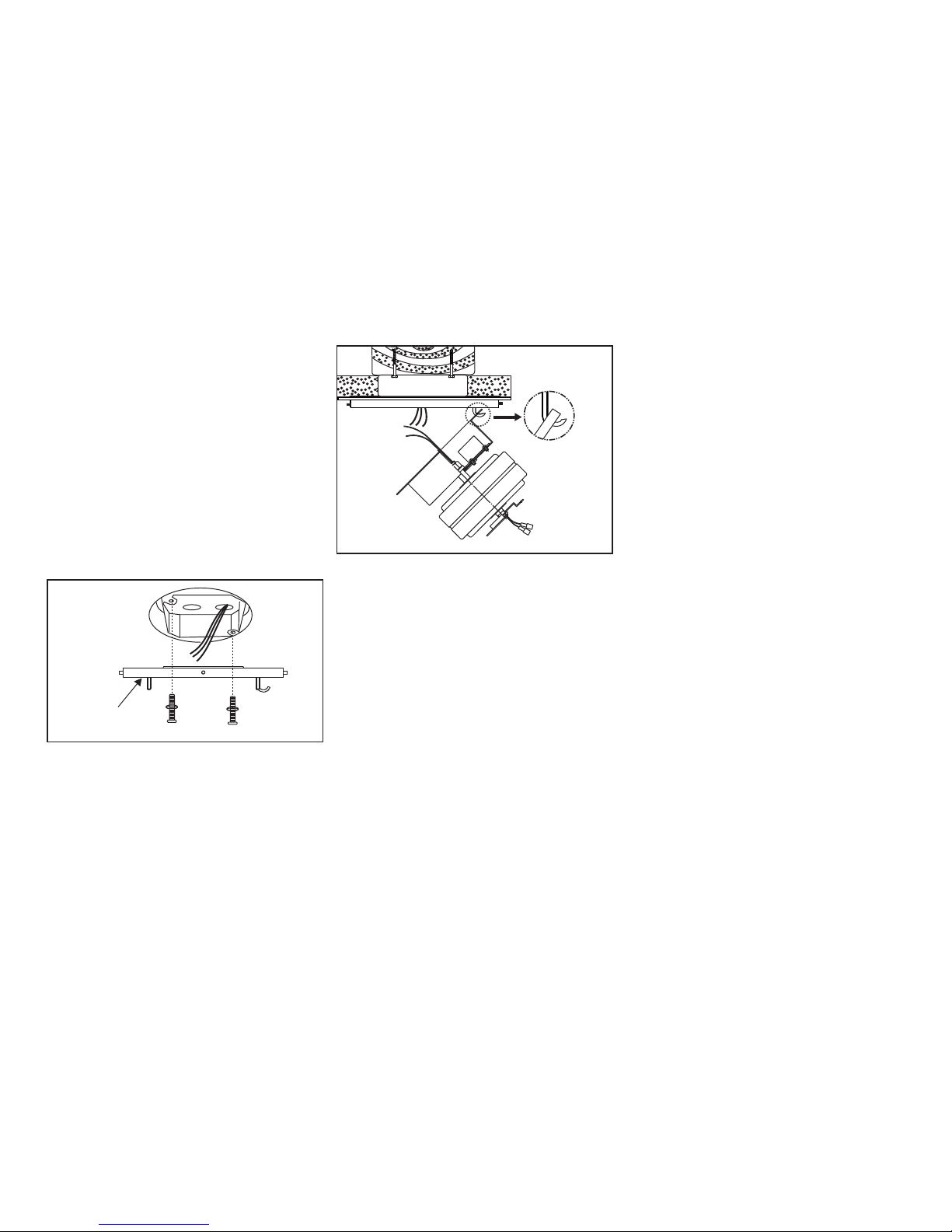

Hanging the Fan

Attach the mounting bracket to the outlet box

with two screws and washers provided with the

outlet box. Make sure the bracket is tight and

secured (Fig. 4).

Lift fan into position by hanging the motor

assembly onto the hook from the ceiling

mounting bracket allowing it to hang freely

(Fig. 5).

Figure 5

Figure 4

Outlet Box

Mounting Bracket

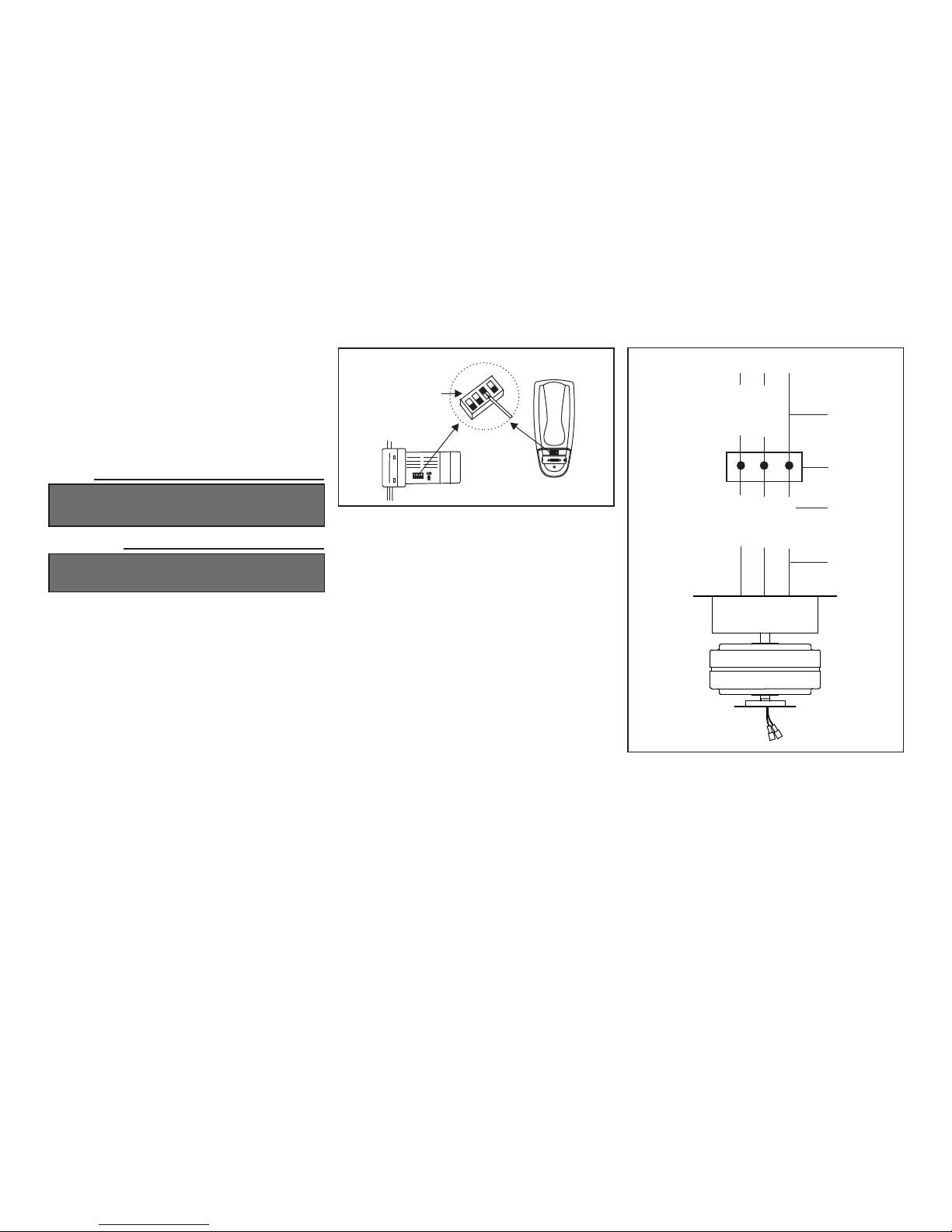

Connect the fan supply (black) wire to the

black household supply wire as shown in

Figure 7.

Connect the neutral fan (white) wire to the

white neutral household wire.

Connect the fan ground wire (green) to the

household ground wire.

Making the Electrical

Connections

REMEMBER to disconnect the power.

If you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

NOTE: The Hand Held Remote or Wall Control

units included with your ceiling fan are equipped

with 16 code combinations to prevent possible

interference from or to other remote units. The dip

switches on your Receiver and Transmitter units

have been preset at the factory, please re-check to

make sure the switches on both units are set to the

same positions. The frequency settings should be

changed only in case of interference or if a second

or more remote controlled ceiling fans are

installed in the same structure. Any code

combination will operate the ceiling fan and light

as long as the Receiver and Transmitter units are

set to the same codes (Fig. 6)

SUPPLY CIRCUIT

Figure 7

BLACK

WHITE

BLACK

WHITE

GREEN

Outlet Box

Ground

Conductor

Green

Ground

Lead

Ground to

Downrod

After connecting the wires, spread them apart

so that the green and white wires are on one

side of the outlet box and the black wires are on

the other side.

Turn the connecting nuts upward and push the

wiring into the outlet box.

CAUTION

DO NOT USE WITH WALL LIGHT DIMMER

SWITCH.

NOTE

THE TRANSMITTER ONLY WORKS WITHIN 40

FEET FROM RECEIVER. Figure 6

Frequency Switch

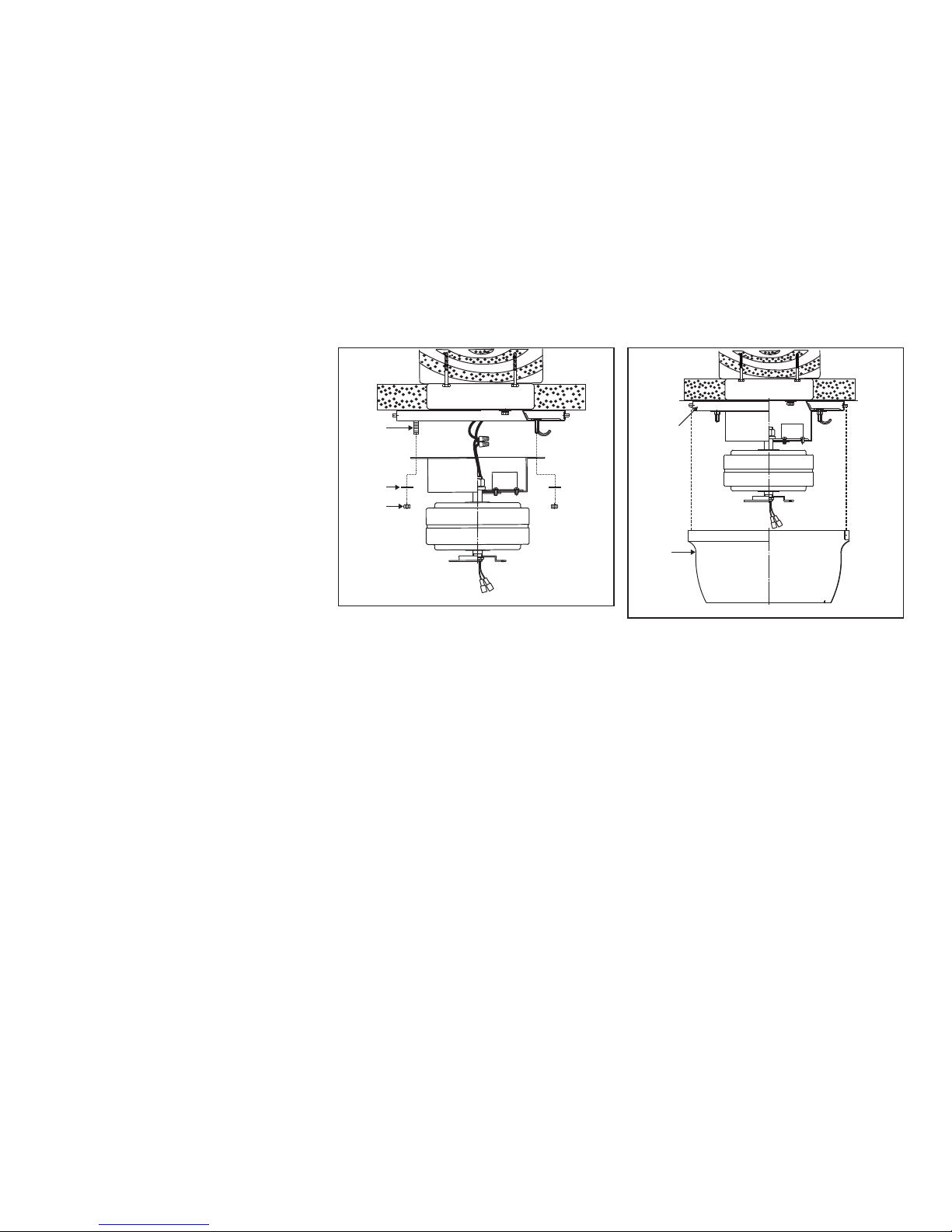

Finishing the Fan

Installation

Figure 8

Move fan into position over the four mounting

studs and secure with the provided washers and

nuts. (Fig. 8)

Raise the motor housing up against the

mounting bracket, the four supports inside the

housing should be placed against the four studs

on mounting bracket, twist the housing

clockwise until snug. (Fig. 9)

Figure 9

Washers

Motor

Housing

Screws Studs

Nuts

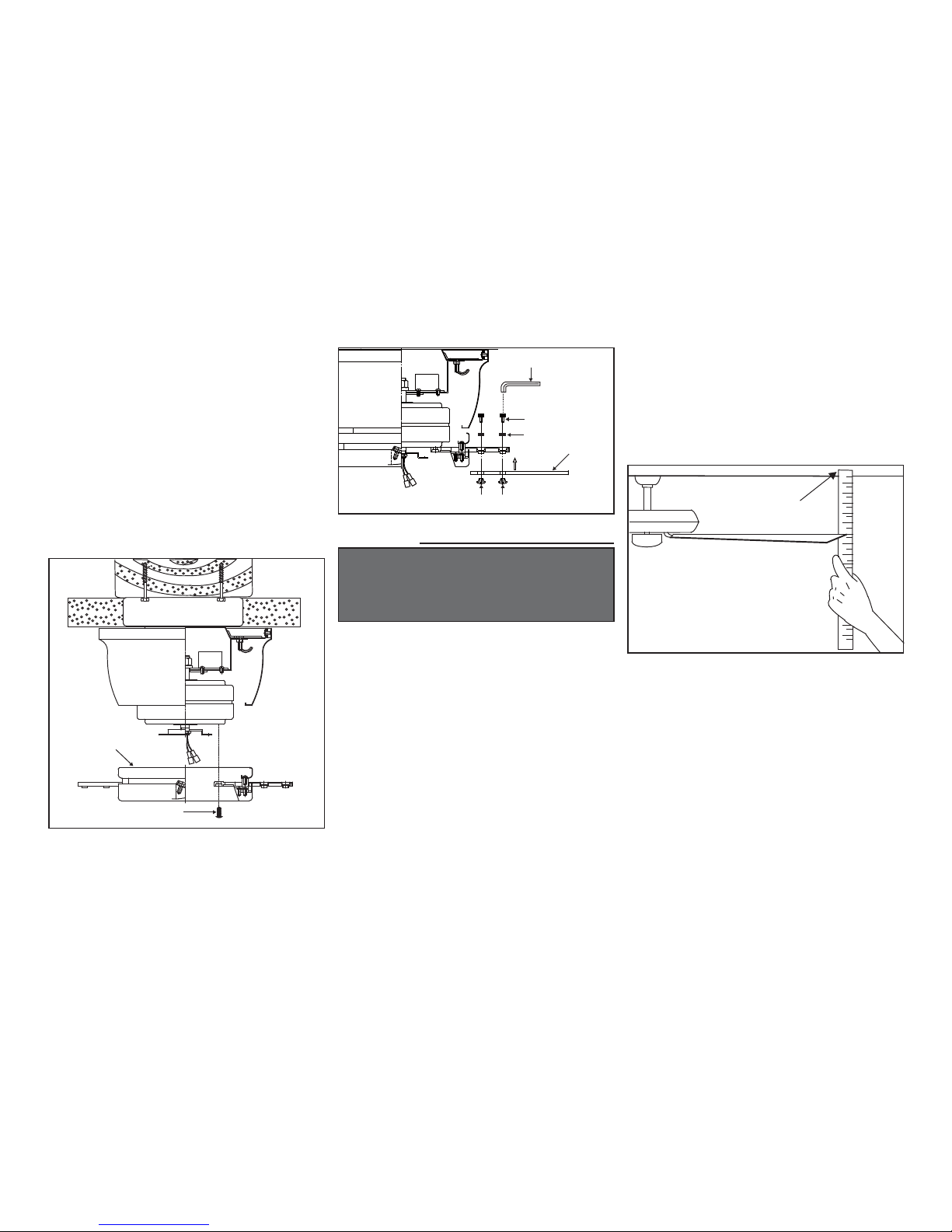

Attaching the Fan Blades

Attach the blade holder plate to the motor using

the screws provided, tighten screws securely.

(Fig. 10)

Attach fan blade to the blade holder and blade

medallions using the 4 screws and rubber

washers provided. Tighten all 4 screws

securely using the Allen Wrench provided.

Repeat procedure with remaining blades. (Fig.

11)

for measurement. Repeat for each blade.

Measurements deviation should be within 1/8˝.

Run the fan for 10 Minutes.

Use the enclosed Blade Balancing Kit if the

blade wobble is still noticeable.

Blade Balancing

Check that all blade and blade bracket screws

are secure.

Most fan wobble problems are caused when

blade levels are unequal. Check this level by

selecting a point on the ceiling above the tip of

one of the blades. Measure from a point on the

center of each blade to the point on the ceiling.

Measure this distance as shown in Figure 12.

Rotate the fan until the next blade is positioned

The following procedure should correct most fan

wobble. Check after each step.

Figure 12

Touching Ceiling

Figure 11

Allen Screws

Allen wrench

Rubber Washers

Blade

Blade Medallions

Figure 10

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO

NOT BEND THE BLADE ARMS WHILE INSTALL-

ING, BALANCING THE BLADES, OR CLEANING

THE FAN. DO NO INSERT FOREIGN OBJECTS

BETWEEN ROTATING FAN BLADES.

Screws

Blade Holder Plate
