HAMPTON BAY Thorton Manuale utente

Hampton Bay Lifetime Limited Warranty

The retailer warrants the fan motor to be free from defects in workmanship and material

present at time of shipment from the factory for a lifetime after the date of purchase by the

original purchaser. The retailer also warrants that all other fan parts, excluding any glass or

plexiglass blades, to be free from defects in workmanship and material at the time of

shipment from the factory for a period of one year after the date of purchase by the original

purchaser. We agree to correct such defects without charge or at our option replace with a

comparable or superior model if the product is returned to the retailer. To obtain warranty

service, you must present a copy of the receipt as proof of purchase. All costs of removing

and reinstalling the product are your responsibility. Damage to any part such as by accident

or misuse or improper installation or by affixing any accessories, is not covered by this

warranty. Because of varyingclimatic conditions inthe United States this warranty does not

cover any changesin brass finish, including rusting, pitting, corroding, tarnishing orpeeling.

Brass finishes of this type give their longest useful life when protectedfrom varying weather

conditions. A certain amount of wobble is normal and should not be considered a defect.

Servicing performed by unauthorized persons shallrender the warranty invalid. There is no

other express warranty. The retailer hereby disclaims any and all warranties,

including but not limited to. Those of merchantability and fitness for a particular

purpose to the extent permitted by law. The duration of any implied warranty which

cannot be disclaimedis limited to the time period as specified inthe express warranty. Some

states do not allow limitation on how long an implied warranty lasts, so the above limitation

may not apply to you. The retailer shall not be liable for incidental, consequential, or

special damages arising out of or in connection with product use or performance except

as may otherwise be accorded by law. Some states do not allow theexclusion of incidental

or consequential damages, so the above exclusion or limitation may not apply to you. This

warranty gives specific legal rights, and you may also have other rights which vary from

state to state. This warranty supersedes all priorwarranties.

Lifetime Limited Warranty

Date Purchased

Store Purchased

Model No.

Serial No.

Vendor No.

UPC

867-670

219032

792145351603

Safety Rules.....................................................................................................................................

Unpacking Your Fan ........................................................................................................................

Installing Your Fan ...........................................................................................................................

Installing the Light Kit....................................................................................................................

Your .............................................................................................................

Care of Your Fan ...........................................................................................................................

Troubleshooting ............................................................................................................................

Specifications ...............................................................................................................................

Operating Transmitter

10.

11.

12.

13.

Table of Contents

1. Safety Rules

1. To reduce the risk of electric shock, insure electricity has been turned

off at the circuit breakeror fuse boxbefore beginning.

2. All wiring must be in accordance with the National Electrical Code

and local electrical codes. Electrical installation should be performed

by a qualifiedlicensed electrician.

3. WARNING: To reduce the risk of electrical shock and fire, do not use

this fan withany solid-state fanspeed control device.

4. WARNING: To reduce the risk of personal injury, use only the two

steel screws (and lock washers) provided with the outlet box for

mounting to the outlet box. Most outlet boxes commonly used for the

support of lighting fixtures are not acceptable for fan support and may

need to bereplaced, consult aqualified electrician ifin doubt.

8. Avoid placing objectsin the pathof the blades.

9. To avoid personal injury or damage to the fan and other items, be

cautious when workingaround or cleaningthe fan.

10. Do not use water or detergents when cleaning thefan or fan blades. A

dry dust cloth or lightly dampened cloth will be suitable for most

cleaning.

11. After making electrical connections, spliced conductors should be

turned upward and pushed carefully up into the outlet box. The wires

should be spread apart with the grounded conductor and the

equipment-grounding conductor onone side ofthe outlet box.

12. Electrical diagrams are for reference only. Light kits that are not

packed with the fan must be UL Listed and marked suitable for use

with the model fan you are installing. Switches must be UL General

Use Switches. Refer to the Instructions packaged with the light kits

and switches forproper assembly.

WARNING

TO REDUCETHE RISK OFFIRE, ELECTRIC SHOCKOR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKEDACCEPTABLE FOR

FAN SUPPORT.

5. The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 50 pounds. Use only UL

Listed outlet boxesmarked FOR FAN SUPPORT.

6. The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge ofthe blades tothe floor.

7. Do not operate the reverse switch while the fan blades are in motion.

The fan must be turned off and the blades stopped before reversing

the blades direction.

WARNING

TO REDUCETHE RISK OFPERSONAL INJURY, DO NOTBEND THE

BLADE ARMS(ALSO REFERRED TO AS BRACKETS) DURING

ASSEMBLYOR AFTERINSTALLATION. DO NOTINSERT OBJECTS IN

THE PATHOF THE BLADES.

NOTE

READ AND SAVE ALLINSTRUCTIONS!

Unpack your fanand check the contents. You should havethe following items;

1. Fan blades (5)

2. Canopy assembly

4. Coupling cover

5. Fan motor assembly

6. Light plate

Ball/downrod assembly

13. Loose partsbag containing:

a. Mounting hardware

( 3 plasticwire connectors)

b. Blade supportplates (5)

c. Blade attachedhardware

(16 screws withlock washers)

Unpacking Your Fan 2.

7. Light holder

9. Glass shade

10.

11.

12. Balancing kit

Fluorescent lamp

Receiver with 6wire nuts

Transmitter+holder+2 mounting screws

WARNING

DO NOT INSTALL ORUSE FAN

IF ANYPARTIS DAMAGED OR MISSING.

CALL TOLLFREE 1-877-902-5588

Provide strong support

Recessed

outlet box

Mounting bracket

opening must be

toward the top

3. Installing Your Fan

Tools Required

Phillips screwdriver, straight slot

screwdriver, adjustablewrench, step ladder,

and wire cutters.

Mounting Options

If there isn't an existing ULlisted mounting

box, then read the following instructions.

Disconnect the power by removing fuses or

turning off circuit breakers.

Secure the outlet box directly to the

building structure. Use appropriate

fasteners and buildingmaterials. The outlet

box and its support must be able to fully

support the moving weight of the fan (at

least 50 lbs).Do not useplastic outlet boxes.

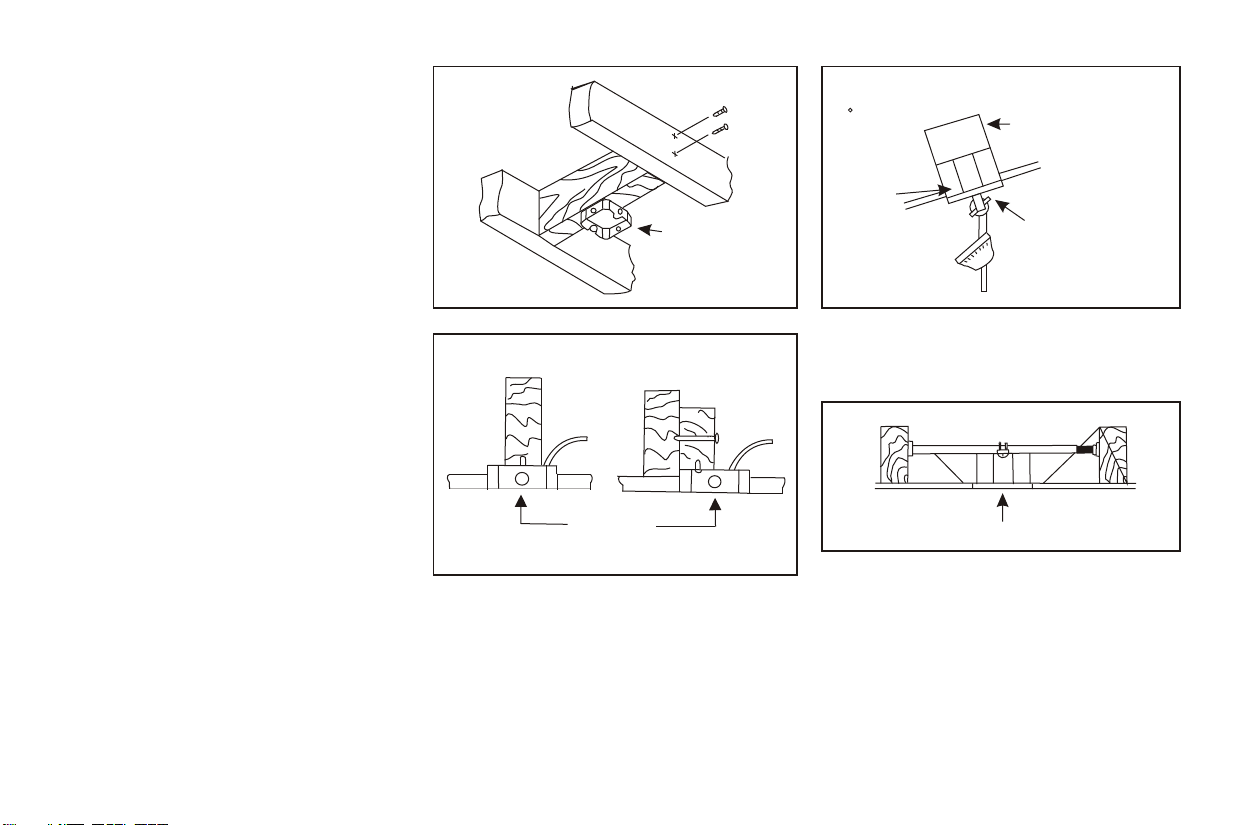

Figures 1,2 and 3 are examples of different

ways to mountthe outlet box.

Note: You may need a longer downrod to

maintain proper blade clearance when

installing on asteep, sloped ceiling.

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4

(available at yourHampton Bay Retailer).

Outlet box

Outletbox

Figure 1 Figure 3

Figure 2

Figure 4

Angled ceiling

maximum

24 angle

Hanging the Fan

REMEMBER to turn off the power. Follow the

steps below tohang your fanproperly:

Step 1. Remove the decorative canopy bottom

cover from the canopy by turning the cover

counter clockwise.(Fig. 5)

Step 2. Remove the hanger bracket from the

canopy by loosening the two screws on the

bottom of the hanging bracket from

the screw head and turning the canopy counter

clockwise.(Fig, 5)

Step 3. Pass the 120-volt supply wires through

the center hole in the ceilinghanger bracket as

shown in Fig.6.

Step 4. Secure the hanger bracket to the

ceiling outlet box with the screwsand washers

provided with youroutlet box.

Step 5. Remove the hanger pin, lock pin and

set screws fromthe top ofthe motor assembly.

Step 6. Route wires exiting from the top of the

fan motor through the collar cover, canopy

cover, canopy and then through the ball /

downrod. (Fig. 7)

a half turn

WARNING

FAILURETO PROPERLY INSTALL LOCKINGPIN

AS NOTED INSTEP 7 COULD RESULT IN FAN

LOOSENING ANDPOSSIBLYFALLING.

Step 8. Tighten two set screws on top of the fan

motor firmly (Figure 7)

Step 9. Place the downrod ball into the hanger

bracket socket.

Step 7. Align the holes at the bottom of the

downrod with the holes in the collar on top of

the motor housing. Carefully insert the

hanger pin through the holes in the collar and

downrod. Be careful not to jam the pin

against the wiring inside the downrod. Insert

the locking pin through the hole near the end

of the hanger pin until it snaps into its locked

position. (Fig.7)

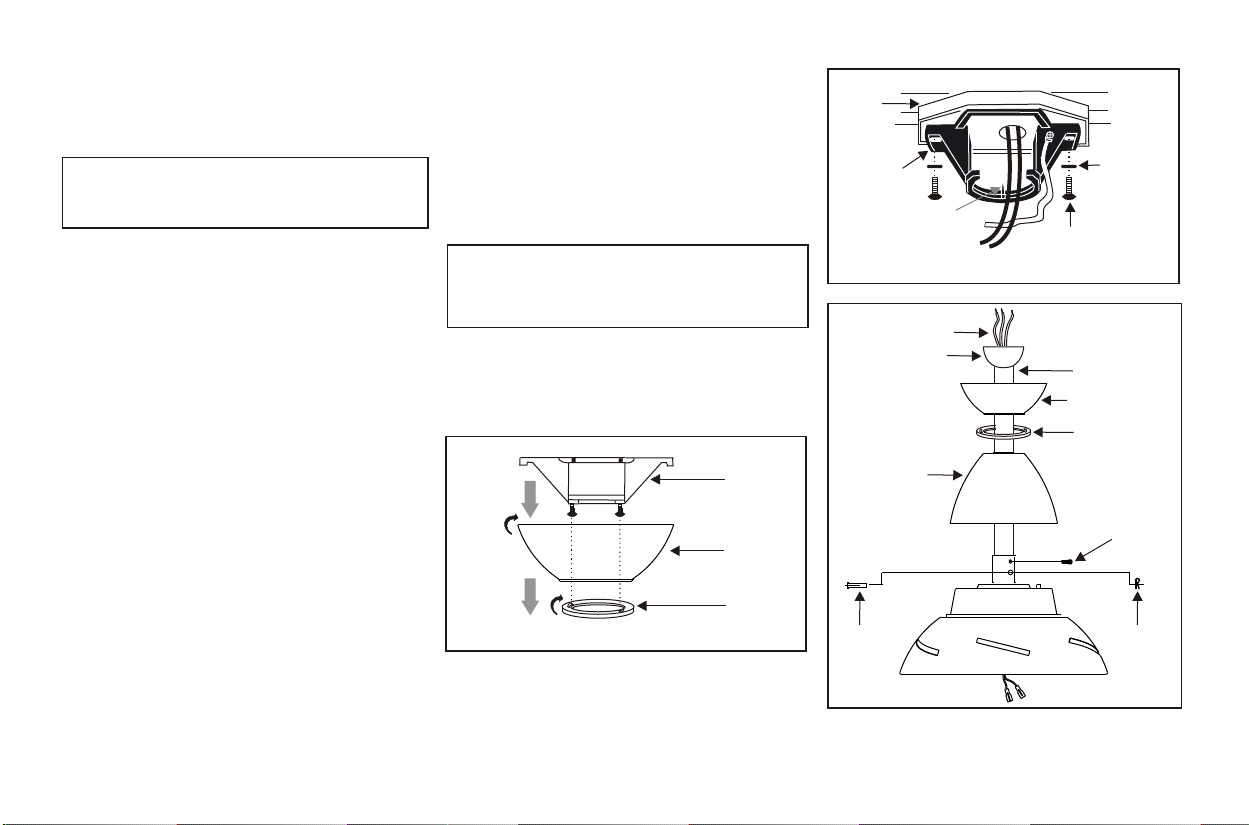

Figure 5

Hanger

bracket

Ceiling

canopy

Canopy

cover

Mounting

screws

(supplied with

electrical box)

Hook

Ceiling

mounting

plate

UL Listed

electrial

box

Figure 6 120V Wires

Washers

CAUTION

Remove the 5 screws from the motor support plate,

discard the 5 screws and motor support plate.

Figure 7

Motor wires

Ball/downrod

assembly

Hanger pin Locking pin

Downrod

Canopy

Canopy cover

Set screws

Collar cover

Make the Electric Connections

WARNING: To avoid possible electrical

shock, be sureelectricity is turned off at the

main fuse boxbefore wiring.

NOTE: This remote control unit is

equipped with 16 code combinations to

prevent possible interference from or to

other remote units. The frequency switches

on your receiver and transmitter have been

preset at the factory. Please recheck to

make sure the switches on the transmitter

and the receiver are set to the same

position, any combination of settings will

operate the fan as long as the transmitter

and receiver are set to the same

position.(Figure 8)

Step 1. (Figure 9) Insert the receiver into

the mounting bracket with the flatside of

the receiver facingthe ceiling.

Step 2. (Fig. 10) Motor to Receiver

Electrical Connections: Connect the

Black wire from the fan to Black wire

marked "TO MOTOR L". Connect the

White wire from the fan to the White wire

marked "TO MOTOR N" from the receiver.

Connect the Blue wire from the fan to the

Blue wire marked "For Light" from the

receiver. Secure wire connections with the

plastic wire nutsprovided.

Step 3. (Figure 10) Receiver to House Supply

Wires Electrical Connections: Connect the

black (hot) wire from the ceiling to the black

wire marked "AC in L" from the receiver.

Connect the white (neutral) wire from the

ceiling to the white wire marked "AC in N"

from the Receiver. Secure the wire

connections with the plastic wire nuts

provided.

Step 4. (Figure 10) If your outlet box has a

ground wire (green or bare copper) connect it

to the fanground wires; otherwiseconnect the

hanging bracket ground wire to the mounting

bracket. Secure the wire connection with a

plastic nut provided. After connecting the

wires spread them apart so that the green

and white wires are on one side of the outlet

box and blackand blue wires are on the other

side. Carefully tuck the wire connections up

into the outletbox.

Note: Fan must be installed at a maximum

distance of 20 feet from the transmitting unit

for proper signal transmission between the

transmitting unit andthe fan's receivingunit.

Figure 9

Receiver

Hanger

bracket

Figure 8

ONON

Code switch

Figure 11

Outlet box

Hanger

bracket

Canopy

cover

Screws

Finishing the Installation

Step 1. Tuck connections neatly into ceiling

outlet box.

Step 2. Slide the canopy up to ceiling and

over the 2 screws on the hanger bracket.

Rotate canopy clockwise. Next, while

holding the canopy with one hand, slide the

canopy cover over the screws and rotate

clockwise until tight.Note: adjust the canopy

screws as necessary until the canopy and

canopy cover aresnug. (Fig. 11)

WARNING

Make sure thenotch on thehanging

bracket properly sitsin the groovein the

hanger ball beforeattaching the canopyto

the bracket byturning the housinguntil it

drops into place.

Figure 10

White (neutral)

Green or bare

copper (ground)

White ("AC INN")

White ("to motor N")

Ground

(green)

(Connect to

ground wire on

hanger bracket

if no house

ground wire

exists.)

Outlet box

Black (hot)

Black ("AC INL")

Black ("to motor L")

Receiver

Blue ("for light")

Blue (light)

Black (motor)

SUPPLYCIRCUIT

Fan

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HAMPTON BAY Fan

HAMPTON BAY

HAMPTON BAY Vasner Manuale utente

HAMPTON BAY

HAMPTON BAY PALM BEACH Manuale utente

HAMPTON BAY

HAMPTON BAY NORTH GROVE 52-HASLD Manuale utente

HAMPTON BAY

HAMPTON BAY ESALA AK395-CB Manuale utente

HAMPTON BAY

HAMPTON BAY 45071-050 Manuale utente

HAMPTON BAY

HAMPTON BAY Clarkston Manuale utente

HAMPTON BAY

HAMPTON BAY RIVERWALK Manuale utente

HAMPTON BAY

HAMPTON BAY CAMPBELL Manuale utente

HAMPTON BAY

HAMPTON BAY 91655 Manuale utente

HAMPTON BAY

HAMPTON BAY HVW-18M BK Manuale utente

HAMPTON BAY

HAMPTON BAY SOUTHWIND 52371 Manuale utente

HAMPTON BAY

HAMPTON BAY TUDOR Manuale utente

HAMPTON BAY

HAMPTON BAY BANNERET YG730-MWH Manuale utente

HAMPTON BAY

HAMPTON BAY MENA HUGGER 92402 Manuale utente

HAMPTON BAY

HAMPTON BAY FALLSBURG AK389-GA Manuale utente

HAMPTON BAY

HAMPTON BAY GRECO II Manuale utente

HAMPTON BAY

HAMPTON BAY BPT12-13D Manuale utente

HAMPTON BAY

HAMPTON BAY Minorca Manuale utente

HAMPTON BAY

HAMPTON BAY Clarkston Manuale utente

HAMPTON BAY

HAMPTON BAY MARLSTON N375-MWH Manuale utente

HAMPTON BAY

HAMPTON BAY ASHBURTON YG593-TB Manuale utente

HAMPTON BAY

HAMPTON BAY Devereaux II Manuale utente

HAMPTON BAY

HAMPTON BAY Northport 178-047 Manuale utente

HAMPTON BAY

HAMPTON BAY GRANTWAY 48 RD5114B-BN Manuale utente

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
