Hanna Instruments HI 96717C Manuale utente

www.hannainst.com

This Instrument is in

Compliance with the CE Directives

Instruction Manual

HI 96717C

Phosphate High Range ISM

TABLE OF CONTENTS

PRELIMINARY EXAMINATION .............................................................................................. 3

GENERAL DESCRIPTION ...................................................................................................... 4

ABBREVIATIONS ................................................................................................................ 4

SPECIFICATIONS ................................................................................................................ 5

PRECISION AND ACCURACY ................................................................................................. 5

PRINCIPLE OF OPERATION .................................................................................................. 6

FUNCTIONAL DESCRIPTION ................................................................................................7

ERRORS AND WARNINGS ..................................................................................................9

GENERAL TIPS FOR AN ACCURATE MEASUREMENT ...........................................................11

STARTUP...................................................................................................................13

MEASUREMENT PROCEDURE ...........................................................................................13

VALIDATION PROCEDURE .................................................................................................15

CALIBRATION PROCEDURE ...............................................................................................17

GLP...........................................................................................................................20

BATTERY MANAGEMENT ..................................................................................................21

BATTERY REPLACEMENT ..................................................................................................22

ACCESSORIES .................................................................................................................22

WARRANTY .................................................................................................................23

Dear Customer,

Thank you for choosing a Hanna product. This manual will provide you with the necessary

information for the correct use of the instrument. Please read it carefully before using the meter. If

you need additional technical information, do not hesitate to e-mail us at [email protected].

This instrument is in compliance with directives.

All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner,

Hanna Instruments Inc., Woonsocket, Rhode Island, 02895 , USA.

PRELIMINARY EXAMINATION

Please examine this product carefully. Make sure that the instrument is not damaged. If any

damage occurred during shipment, please notify your Dealer.

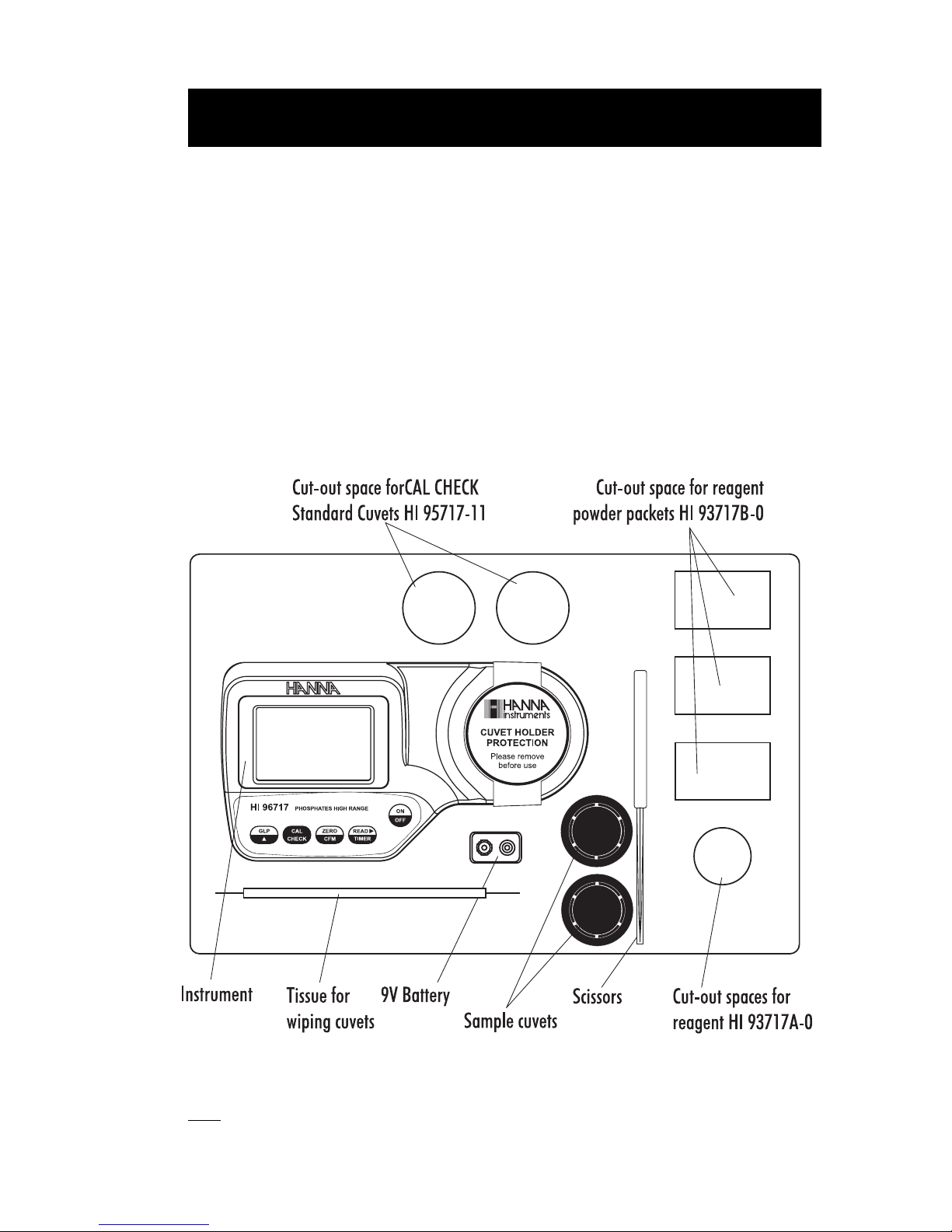

Each HI 96717 Ion Selective Meter is supplied complete with:

• Two Sample Cuvets and Caps

• 9V Battery

• Scissors

• Tissue for wiping cuvets

• Instrument quality certificate

• Instruction Manual

• Rigid carrying case

Note:Save all packing material until you are sure that the instrument works correctly. Any

defective item must be returned in its original packing.

GENERAL DESCRIPTION

ABBREVIATIONS

The HI 96717 is an auto diagnostic portable microprocessor meter that benefits from Hanna’s

years of experience as a manufacturer of analytical instruments. It has the advanced optical

system based on a special tungsten lamp and a narrow band interference filter that allows most

accurate and repeatable readings. All instruments are factory calibrated and the electronic and

optical design minimizes the need of frequent calibration.

With the powerful CAL CHECKTM validation function, you are able to validate good performance

of your instrument at any time. The validation procedure is extremely user friendly. Just use the

exclusive HANNA ready-made, NIST traceable standards to verify the performance of the

instrument and recalibrate if necessary.

All instruments are splash waterproof and the lamp and filter units are protected from dust or dirt

by a transparent cup. This makes the instruments fulfill field applications. Display messages aid

the user in routine operation. The meter has an auto-shut off feature that will turn off the

instrument after 10 minutes of non use in measurement mode or after 1 hour if left in

calibration mode.

The meter uses an exclusive positive-locking system to ensure that the cuvet is in the same

position every time it is placed into the measurement cell. It is designed to fit a cuvet with a

larger neck making it easier to add both sample and reagents. The cuvet is made from special

optical glass to obtain best results.

The HI 96717 meter measures the phosphate (PO4

3-) content in water samples in the 0.0 to

30.0 mg/L (ppm) range. The method is an adaptation of the Standard Method for the

Examination of Water and Wastewater.

The reagents are in powder and liquid form and are supplied in packets and bottles. The amount

of reagent is precisely dosed to ensure the maximum repeatability.

degree Celsius

US Environmental Protection Agency

degree Fahrenheit

milligrams per liter. mg/L is equivalent to ppm (part per million)

milliliter

millivolts

°C:

EPA:

°F:

mg/L:

mL:

mV:

SPECIFICATIONS

PRECISION AND ACCURACY

Range 0.0 to 30.0 mg/L

Resolution 0.1 mg/L

Precision ±0.5 mg/L @ 12.0 mg/L

Typical EMC Deviation ±0.2 mg/L

Light Source Tungsten lamp

Light Detector Silicon Photocell with narrow band interference filter @ 525 nm

Method Amino Acid Method, adapted from Standard Method for the Examination

of Water and Wastewater. The reaction between phosphate and the

reagents causes a blue tint in the sample.

Environment 0 to 50°C (32 to 122°F); max 95% RH non-condensing

Battery Type 1 x 9 volt

Auto-Shut off After 10' of non-use in measurement mode;

after 1 hour of non-use in calibration mode;

with last reading reminder.

Dimensions 192 x 102 x 67 mm (7.6 x 4 x 2.6")

Weight 290 g (10 oz.).

REQUIRED REAGENTS

Code Description Quantity/test

HI 93717A-0 Phosphate Reagent A (Molybdate) 10 drops

HI 93717B-0 Phosphate Reagent B (Amino Acid) 1 packet

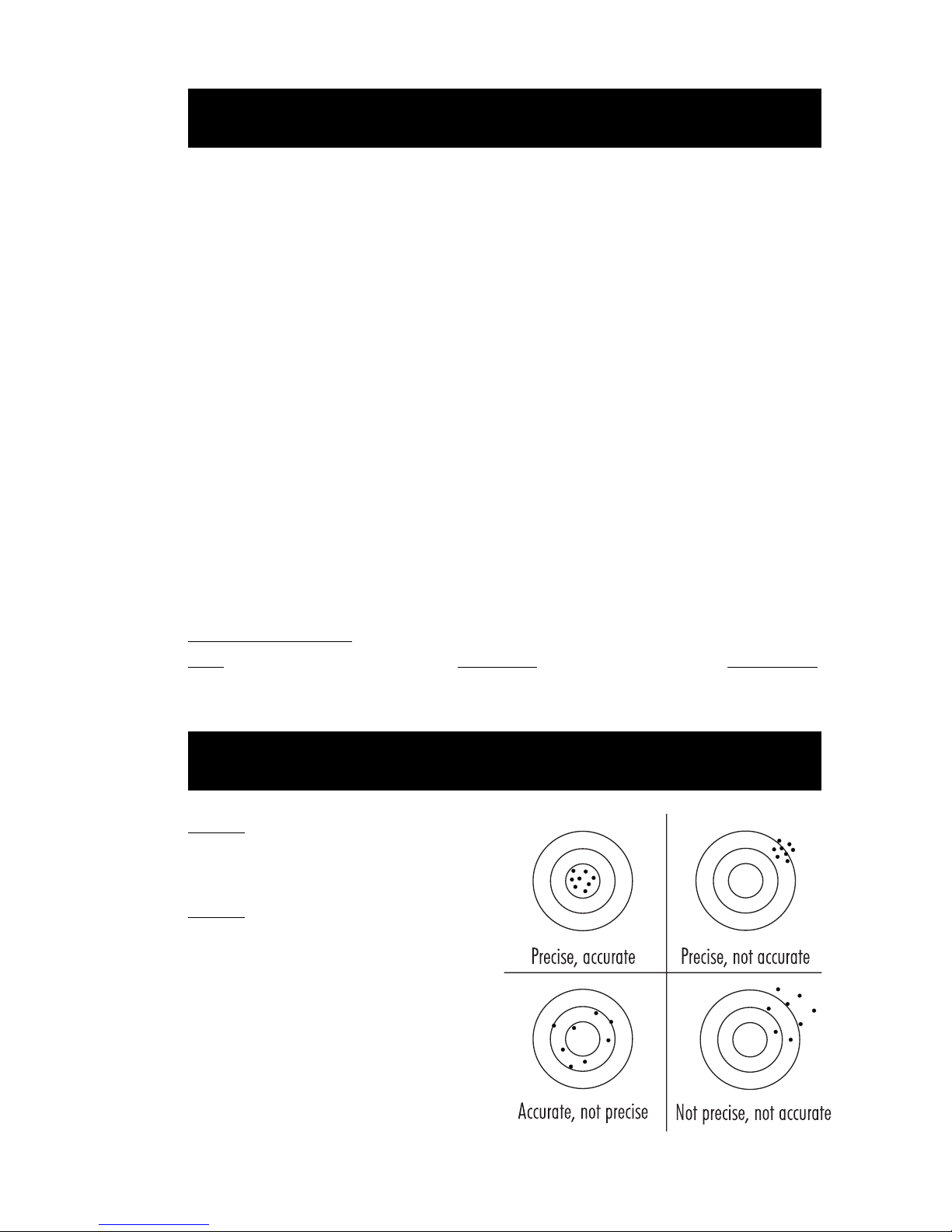

Precision is how closely repeated measurements

agree with each other. Precision is usually

expressed as standard deviation (SD).

Accuracy is defined as the nearness of a test

result to the true value.

Although good precision suggests good accuracy,

precise results can be inaccurate. The figure

explains these definitions.

In a laboratory using a standard solution of 12.0

mg/L phosphate and a representative lot of

reagents, an operator obtained with a single

instrument a standard deviation of 0.5 mg/L.

PRINCIPLE OF OPERATION

Absorption of Light is a typical phenomenon of interaction between electromagnetic radiation and

matter. When a light beam crosses a substance, some of the radiation may be absorbed by

atoms, molecules or crystal lattices.

If pure absorption occurs, the fraction of light absorbed depends both on the optical path length

through the matter and on the physical-chemical characteristics of the substance according to the

Lambert-Beer Law:

-log I/Io= ελc d

A = ελc d

Where:

-log I/Io= Absorbance (A)

Io= intensity of incident light beam

I= intensity of light beam after absorption

ελ= molar extinction coefficient at wavelength λ

c = molar concentration of the substance

d = optical path through the substance

Therefore, the concentration "c" can be calculated from the absorbance of the substance as the

other factors are known.

Photometric chemical analysis is based on the possibility to develop an absorbing compound

from a specific chemical reaction between sample and reagents. Given that the absorption of a

compound strictly depends on the wavelength of the incident light beam, a narrow spectral

bandwidth should be selected as well as a proper central wavelength to optimize measurements.

The optical system of Hanna's HI 96 series colorimeters is based on special subminiature

tungsten lamps and narrow-band interference filters to guarantee both high performance and

reliable results.

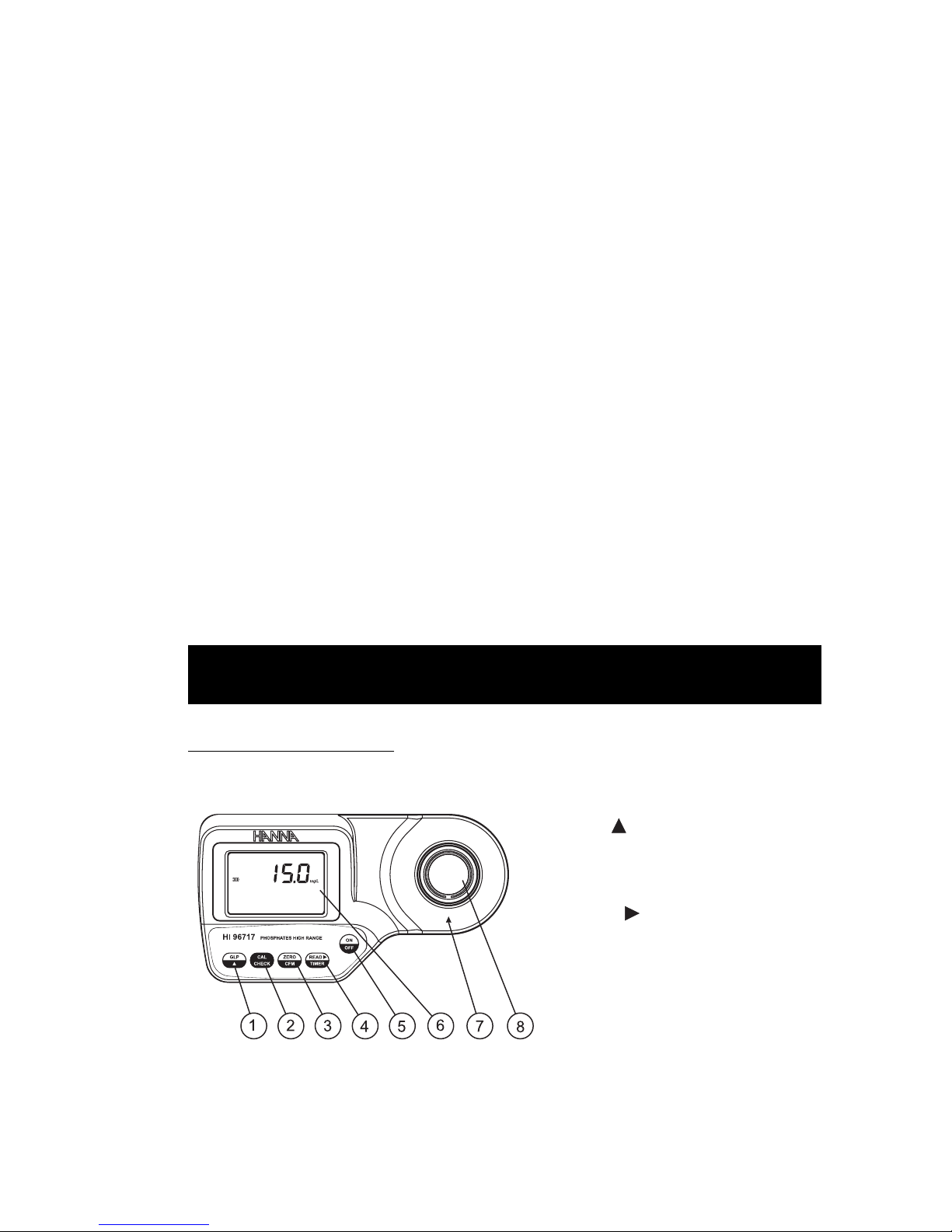

HI 96 series block diagram (optical layout)

1) GLP/ key

2) CAL CHECK key

3) ZERO/CFM key

4) READ/ /TIMER key

5) ON/OFF key

6) Liquid Cristal Display (LCD)

7) Cuvet alignment indicator

8) Cuvet holder

FUNCTIONAL DESCRIPTION

A microprocessor controlled special tungsten lamp emits radiation which is first optically

conditioned and beamed to the sample contained in the cuvet. The optical path is fixed by the

diameter of the cuvet. Then the light is spectrally filtered to a narrow spectral bandwidth, to

obtain a light beam of intensity Ioor I.

The photoelectric cell collects the radiation Ithat is not absorbed by the sample and converts

it into an electric current, producing a potential in the mV range.

The microprocessor uses this potential to convert the incoming value into the desired measuring

unit and to display it on the LCD.

The measurement process is carried out in two phases: first the meter is zeroed and then the

actual measurement is performed.

The cuvet has a very important role because it is an optical element and thus requires particular

attention. It is important that both, the measurement and the calibration (zeroing) cuvets, are

optically identical to provide the same measurement conditions. Whenever possible use the same

cuvet for both. It is necessary that the surface of the cuvet is clean and not scratched. This to

avoid measurement interference due to unwanted reflection and absorption of light. It is

recommended not to touch the cuvet walls with hands.

Furthermore, in order to maintain the same conditions during the zeroing and the measuring

phases, it is necessary to close the cuvet to prevent any contamination.

INSTRUMENT DESCRIPTION

KEYPAD DESCRIPTION

•ON/OFF: to turn the meter on and off.

•ZERO/CFM: to zero the meter prior to measurement, to confirm edited values or to confirm

factory calibration restore.

•READ/ /TIMER: this is a multi-functional key. In measurement mode, press to make a

measurement, or press and hold for three seconds to start a pre-programmed countdown prior

to measurement. In GLP mode press to view the next screen.

•CAL CHECK: this is a bi-functional key. Just press to perform the validation of the meter, or

press and hold for three seconds to enter calibration mode.

• GLP/: this is a bi-functional key. Just press to enter GLP mode. In calibration mode press

to edit the date and time.

OPERATING MODES

•Measurement mode: default operation mode, enables both validation and measurement.

•Calibration mode: may be entered by keeping CAL CHECK pressed for three seconds (the

“CAL” tag appears), it enables calibration of the instrument.

•GLP mode may be entered by pressing GLP/(“GLP” appears), it enables consulting of

user calibration date or restore factory calibration.

DISPLAY ELEMENTS DESCRIPTION

1) The measuring scheme (lamp, cuvet, detector), appears during different phases of zero or

reading measurement

2) Error messages and warnings

3) The battery icon shows the charging level of the battery

4) The hourglass appears when an internal checking is in progress

5) Status messages

6) The chronometer appears when the reaction timer is running

7) The month, day and date icons appear when a date is displayed

8) Four digit main display

9) Measuring units

10) Four digit secondary display

ERRORS AND WARNINGS

The instrument shows clear messages when erroneous condition appears. Messages are also displayed

when the obtained values are outside expected range. The beeper is playing a beep on errors.

a) on zero reading

Light High: There is too much light to perform a measurement.

Please check the preparation of the zero cuvet.

Light Low: There is not enough light to perform a measurement.

Please check the preparation of the zero cuvet.

No Light:The instrument cannot adjust the light level. Please

check that the samples does not contain any debris.

Inverted cuvets: The sample and the zero cuvet are inverted.

Zero: A zero reading was not taken. Follow the instructions of

the measurement procedure for zeroing the meter.

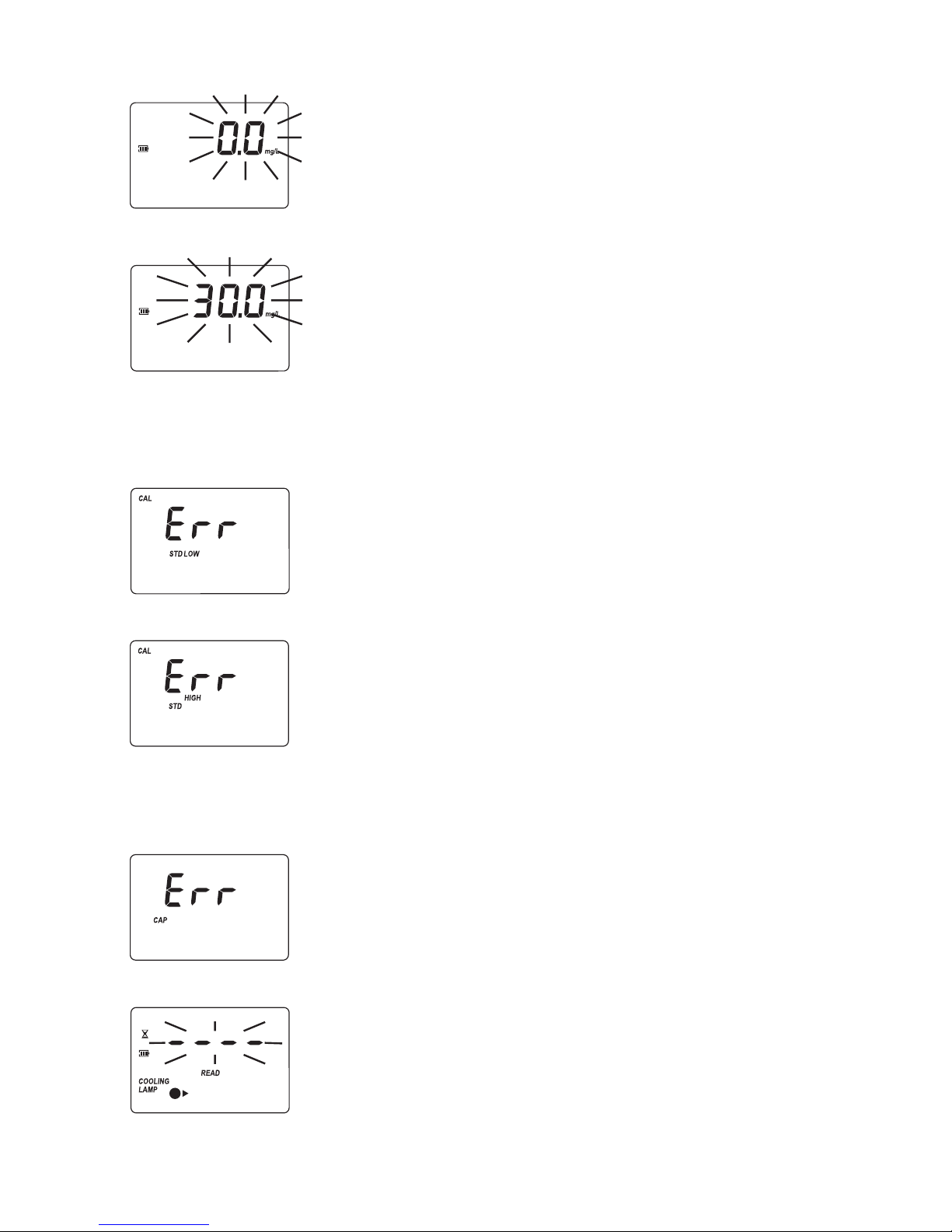

b) on sample reading

Under range: A blinking “0.0” indicates that the sample

absorbs less light than the zero reference. Check the procedure

and make sure you use the same cuvet for reference (zero) and

measurement.

Over Range: A flashing value of the maximum concentration

indicates an over range condition. The concentration of the

sample is beyond the programmed range: dilute the sample and

re-run the test.

c) during calibration procedure

Standard Low: The standard reading is less than expected.

Standard High: The standard reading is higher than expected.

Cap error: Appears when external light enters in the analysis

cell. Assure that the cuvet cap is present.

Cooling lamp: The instrument waits for the lamp to cool down.

d) other errors and warnings

Indice

Altri manuali Hanna Instruments Apparecchiature di prova

Hanna Instruments

Hanna Instruments DEMI-02 Manuale utente

Hanna Instruments

Hanna Instruments HI 93828 Manuale utente

Hanna Instruments

Hanna Instruments Foodcare HI981034 Manuale utente

Hanna Instruments

Hanna Instruments HI 38039 Manuale utente

Hanna Instruments

Hanna Instruments HI 98311 Manuale utente

Hanna Instruments

Hanna Instruments Foodcare HI981036 Manuale utente

Hanna Instruments

Hanna Instruments HI 38074 Manuale utente

Hanna Instruments

Hanna Instruments HI 98127 Manuale utente

Hanna Instruments

Hanna Instruments Primo Series Manuale utente

Hanna Instruments

Hanna Instruments Gro Line HALO 2 Manuale utente

Hanna Instruments

Hanna Instruments Foodcare HI981038 Manuale utente

Hanna Instruments

Hanna Instruments HI96107 Manuale utente

Hanna Instruments

Hanna Instruments HI 98103 Manuale utente

Hanna Instruments

Hanna Instruments Groline HI981030 Manuale utente

Hanna Instruments

Hanna Instruments HI 3812 Manuale utente

Hanna Instruments

Hanna Instruments HALO2 Manuale utente

Hanna Instruments

Hanna Instruments Pool Line HI983044 Manuale utente

Hanna Instruments

Hanna Instruments HI 95701C Manuale utente

Hanna Instruments

Hanna Instruments Pool Line HI9310014 Manuale utente

Hanna Instruments

Hanna Instruments HI 98129 Manuale utente

Hanna Instruments

Hanna Instruments HI 38078 Manuale utente

Hanna Instruments

Hanna Instruments HI 98129 Manuale utente

Hanna Instruments

Hanna Instruments HI 38081 Manuale utente

Hanna Instruments

Hanna Instruments UPW HI 98309 Manuale utente

Manuali Apparecchiature di prova popolari di altre marche

SMART

SMART KANAAD SBT XTREME 3G Series Manuale utente

Agilent Technologies

Agilent Technologies BERT Serial Manuale utente

Agilent Technologies

Agilent Technologies N3280A Manuale utente

Vernier

Vernier Go Direct Voltage Manuale utente

Lifeloc

Lifeloc R.A.D.A.R. Manuale utente

Fluke

Fluke T5-600 Istruzioni per l'uso e l'installazione

Mercury

Mercury TSL01 Manuale utente

MAHA

MAHA MBT Series Manuale utente

Fuji Electric

Fuji Electric P-61 Manuale utente

ETC

ETC SealerAtor Manuale utente

Skyfine

Skyfine ETHYWAY V2 Manuale utente

Appion

Appion G5 Twin Manuale utente

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuale utente

BW Technologies

BW Technologies MicroDock II Manuale utente

Sun Nuclear

Sun Nuclear 1027 Manuale utente

Biomark

Biomark HPR LITE READER Manuale utente

Hioki

Hioki 3169-20 Manuale utente

Ashcroft

Ashcroft ATE-100 Manuale utente
