Hansaton Sound 13 Manuale utente

Receiver in canal (RIC) guide.

Fitting guide.

Receiver-in-Canal (RIC).

Table of Contents.

RIC product line � � � � � � � � � � � � � � � � � � � 3

Measuring for an accurate xReceiver unit � � � � � � � � � 5

How to measure for an accurate wire length � � � � � � � � 6

Modifying xReceiver wire to improve ﬁt� � � � � � � � � � 7

Choosing the correct coupling � � � � � � � � � � � 8 – 10

Attaching the retention piece to the standard or

power xReceiver unit � � � � � � � � � � � � � � � � � � 11

Attaching the dome or sleeve mold to the

standard xReceiver unit � � � � � � � � � � � � � � � � 12

Attaching the power dome to the

power xReceiver unit� � � � � � � � � � � � � � � � � � 12

Attaching the standard, power or

super power xReceiver unit to sound 312 � � � � � � � � � 13

Attaching the standard, power or

super power plus xReceiver unit to sound 13� � � � � � � � 14

Conﬁguring in HANSATON scout � � � � � � � � � � � � 15

Feedback optimization � � � � � � � � � � � � � � � � 16

sound 312 battery door replacement� � � � � � � � � � � 17

sound 13 battery door replacement� � � � � � � � � � � � 17

How to measure performance in a coupler � � � � � � � � 18

sound 312 programming cable � � � � � � � � � � � � � 19

sound 13 programming cable � � � � � � � � � � � � � 19

Wax guard replacement and cleaning domes � � � � � � � 20

Fitting guide.

Receiver-in-Canal (RIC).

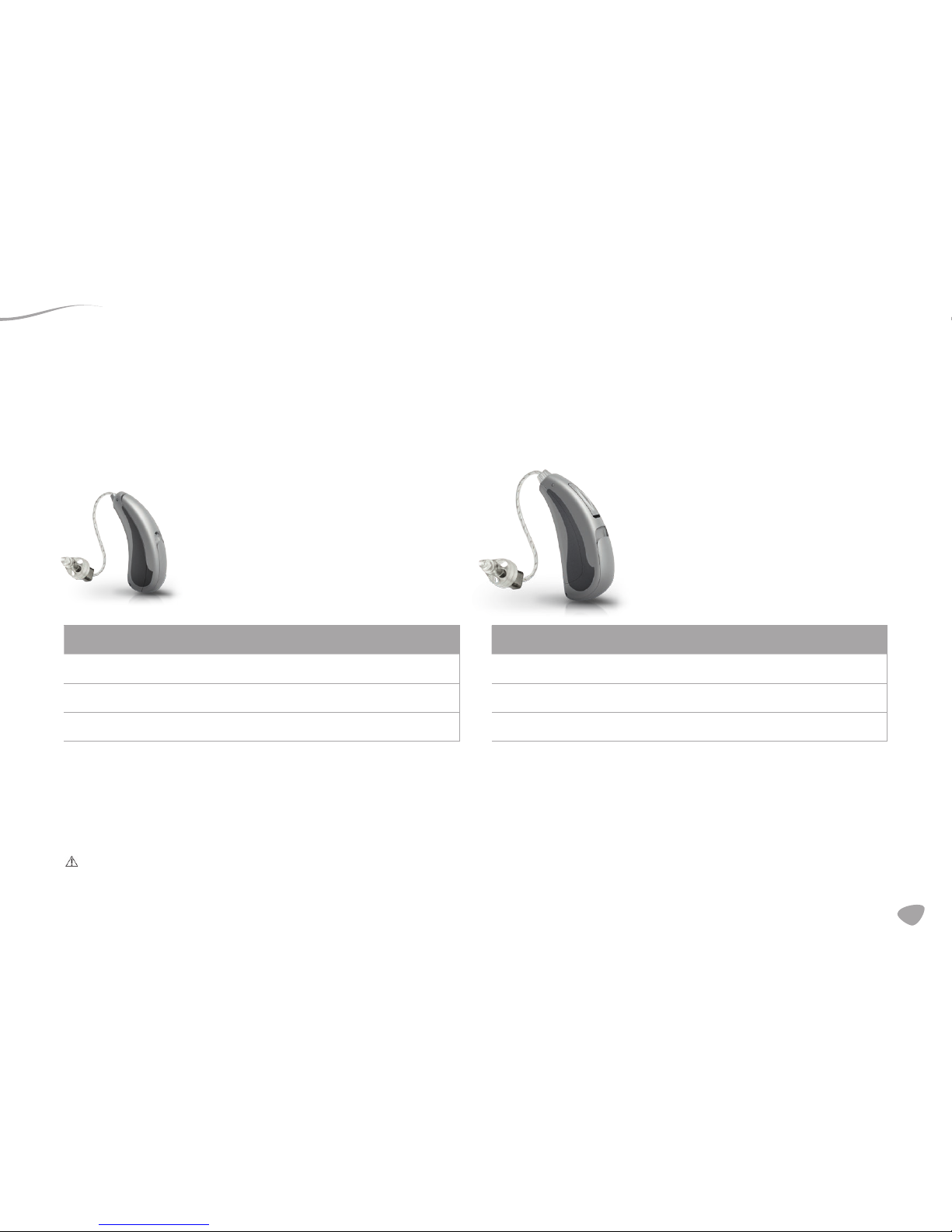

RIC options Vmax./LAmax. (2cc) Battery

Standard RIC 45/112 dB 312

Power RIC 55/126 dB 312

Super Power RIC 61/129 dB 312

RIC options Vmax./LAmax. (2cc) Battery

Standard RIC 45/112 dB 13

Power RIC 55/126 dB 13

Super Power Plus RIC 65/133 dB 13

RIC Produktlinie.

Warning to hearing healthcare professional: Domes should never be tted on patients with perforated eardrums, exposed middle ear cavities, or surgically altered ear canals. In the case of such a condition, we recommend

to use a customized ear mold. In the unlikely case that any parts remain in the ear canal aer the removal of the hearing instrument, contact a physician immediately

sound 312. sound 13.

Fitting guide.

Receiver-in-Canal (RIC).

250 500 1000 2000 4000 8000

-10

100

110

120

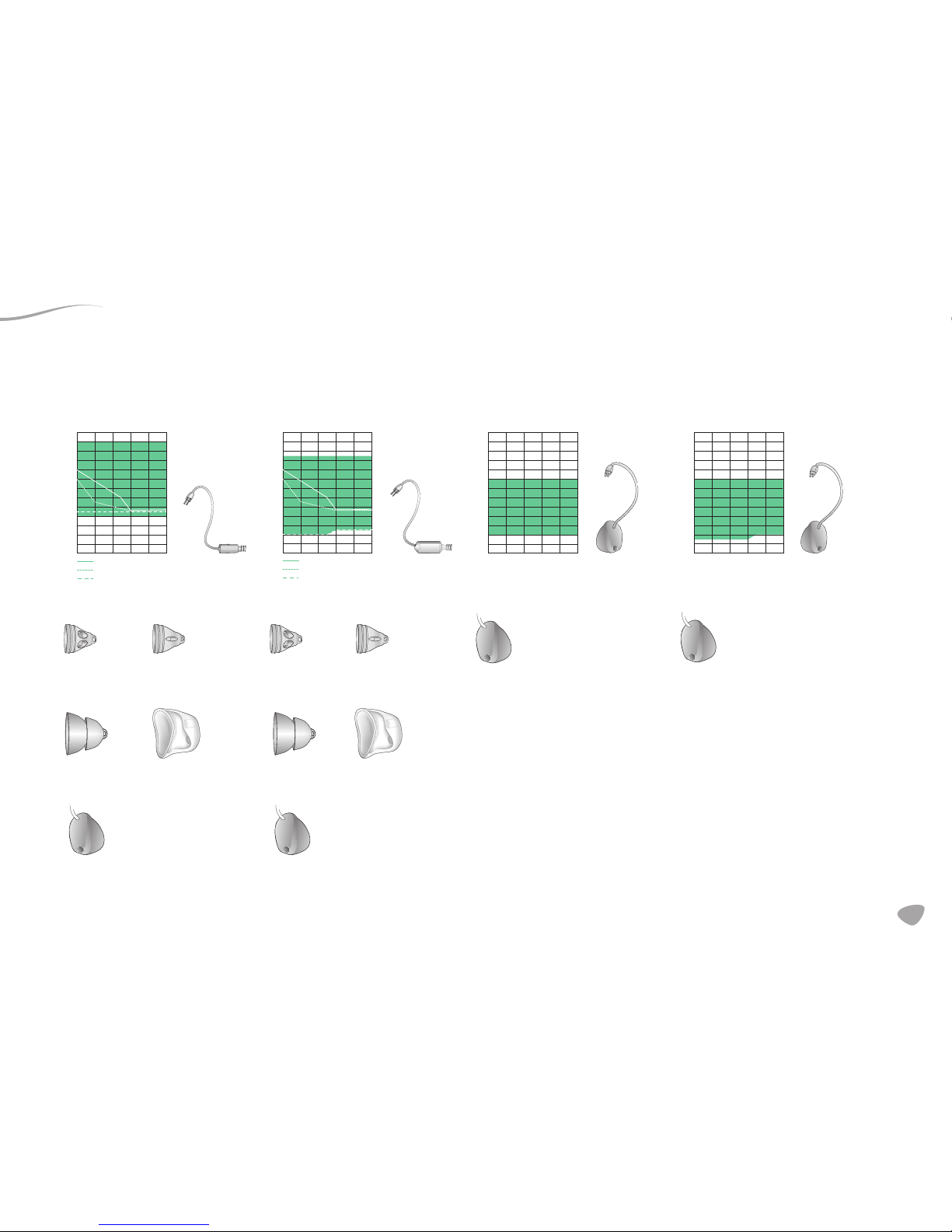

Power Dome Power DomeSleeve Mold Sleeve mold

cShell cShell

Standard-xReceiver. Power-xReceiver. Super Power-xReceiver. Super Power Plus*-xReceiver.

Coupling options.

Open Dome Open DomeClosed Dome Closed Dome cShell cShell

250 500 1000 2000 4000 8000

-10

100

110

120

250 500 1000 2000 4000 8000

-10

100

110

120

250 500 1000 2000 4000 8000

-10

100

110

120

Fitting guide.

Receiver-in-Canal (RIC).

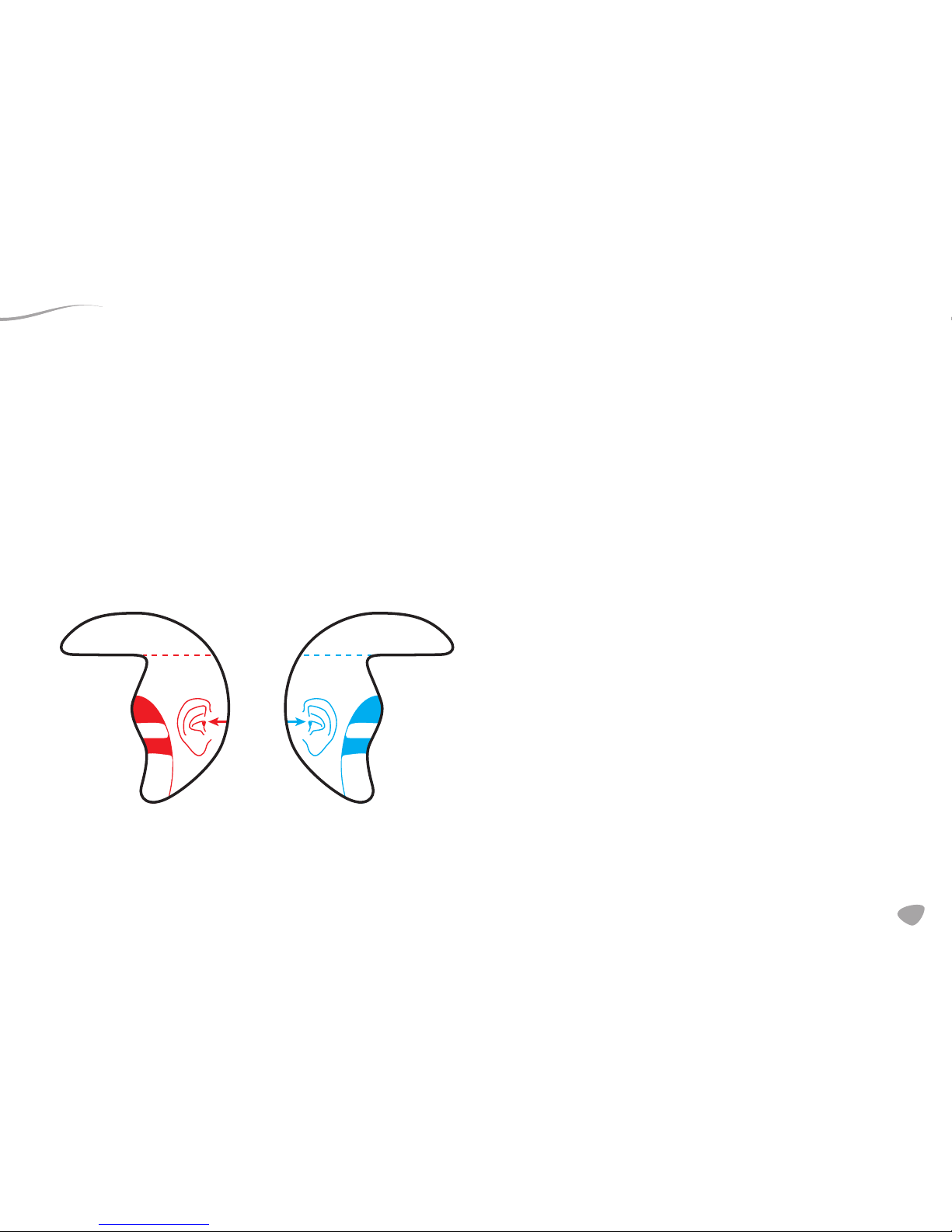

Measuring for an accurate xReceiverunit.

Choosing the correct xReceiver wire length will ensure a more accurate, com-

fortable ﬁt� The measurement tool included in the kit allows for a quick and

simple measurement and has the following features:

Color Code Markings – blue (left ear) and red (right ear) color code markings

to indicate which of the patient’s ears to measure�

Horizontal Line Markings – measurements must be made horizontally with the

measurement tool touching the skin in the gap between the head and the

top of the pinna� Four Horizontal Sightlines – (0-1-2-3) – to indicate which wire

length you should use for an accurate ﬁtting�

Fitting guide.

Receiver-in-Canal (RIC).

4Choose the sightline (0-1-2-3) on the measurement tool that is most

parallel with the top of the opening of the ear canal� In this example,

the sightline marked 1 would be the most accurate choice�

5Make a note of the sightline chosen and then repeat steps 1-4 on the

opposite ear for a binaural ﬁtting�

To measure for an accurate wire length.

Place your head at the same horizontal level as the patient’s head so

you are looking straight into the patient’s ear that you wish to ﬁt with

the hearing instrument�

Hold the measurement tool with the appropriate blue or red color

code marking (for the left or right ear) with your thumb placed on

the ear diagram�

3Place the measurement tool on the top of the ear and in contact with

the skin in the narrow gap between the head and the pinna� Keep the

horizontal line on the measurement tool horizontal and level�

Note: It is important to measure the opposite ear for a binaural tting since right and le ear sizes can vary and thus, require dierent wire lengths.

Fitting guide.

Receiver-in-Canal (RIC).

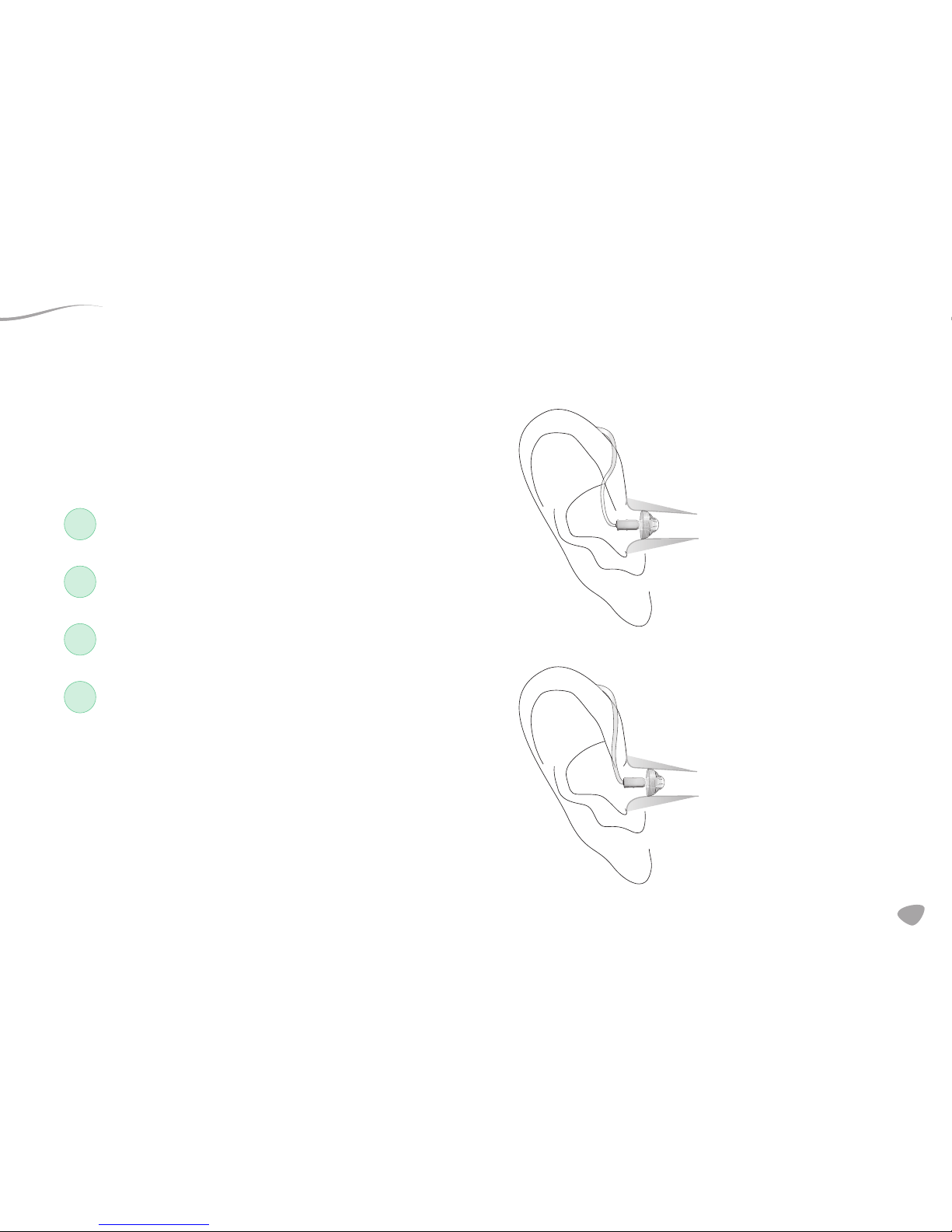

Poor t (tube does not lie close to the head)

Good t

Modifying xReceiver wire to improve t.

In some cases, you might ﬁnd that the wire of the xReceiver unit does not lie

close to the side of the head or follow the shape of the ear�

First, ensure the selected dome and xReceiver unit sizes are appropriate (see

following pages)�

Remove the xReceiver unit from the hearing instrument�

Heat the tube carefully with a hairdryer at a low setting

for a few seconds�

Do not use excessive heat to avoid damage to the electrical components�

Bend the tubing into the desired shape and hold until it has cooled

off� Once completely cooled, the tube will maintain its new shape�

Fitting guide.

Receiver-in-Canal (RIC).

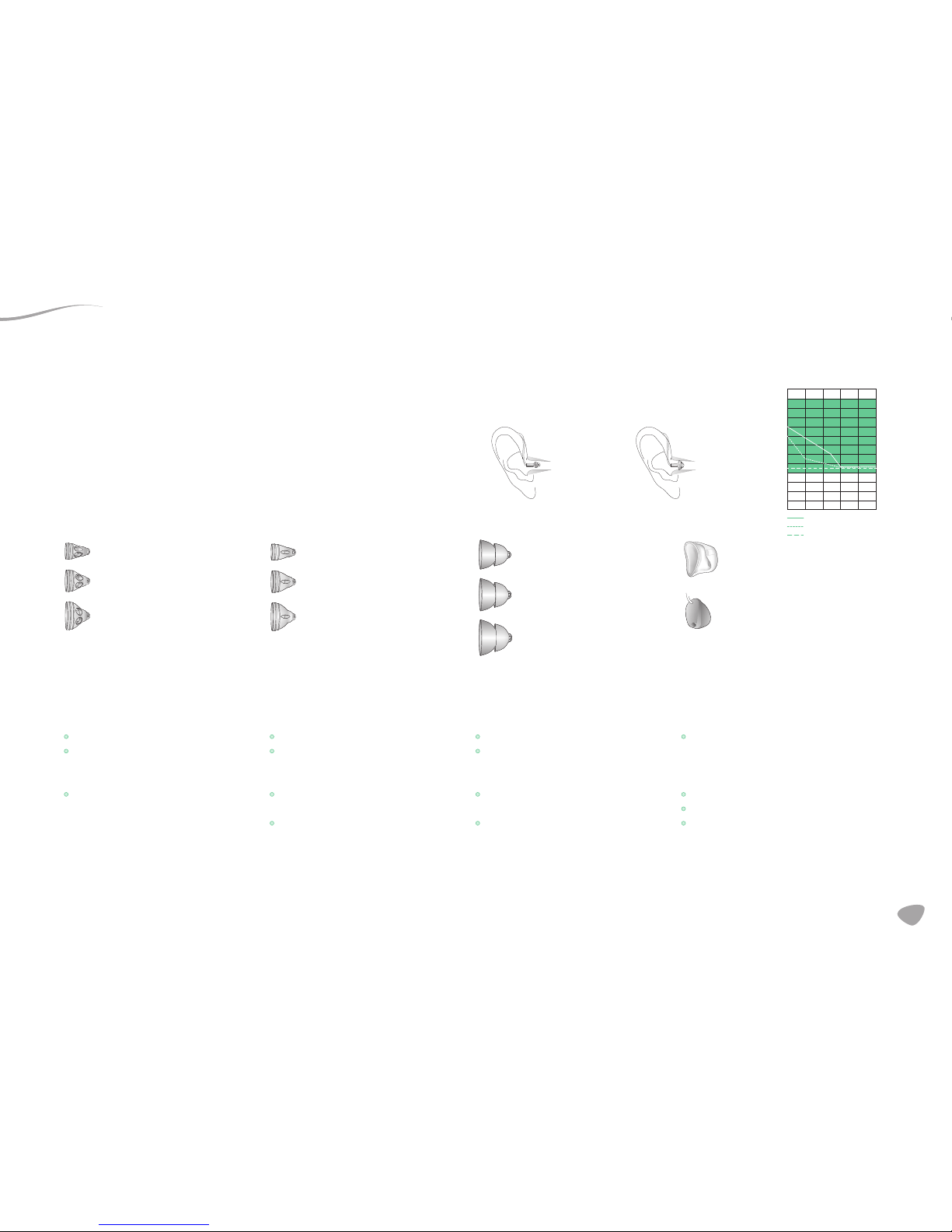

Schlechter Sitz

(Dome zu klein)

Guter Sitz

250 500 1000 2000 4000 8000

-10

100

110

120

Open Dome

Choose for:

Instant ﬁt

Open ﬁt

Considerations:

Occlusion free

Closed Dome

Choose for:

Instant ﬁt

Open ﬁt

Considerations:

Extended ﬁtting range over

open dome

Some occlusion

Power Dome

Choose for:

Instant ﬁt

Open ﬁt

Considerations:

Extended

low-frequency response

Occlusion

Hohlotoplastik cShell

Choose for:

Custom ﬁt

Considerations:

Comfort

possible occlusion

Impression required

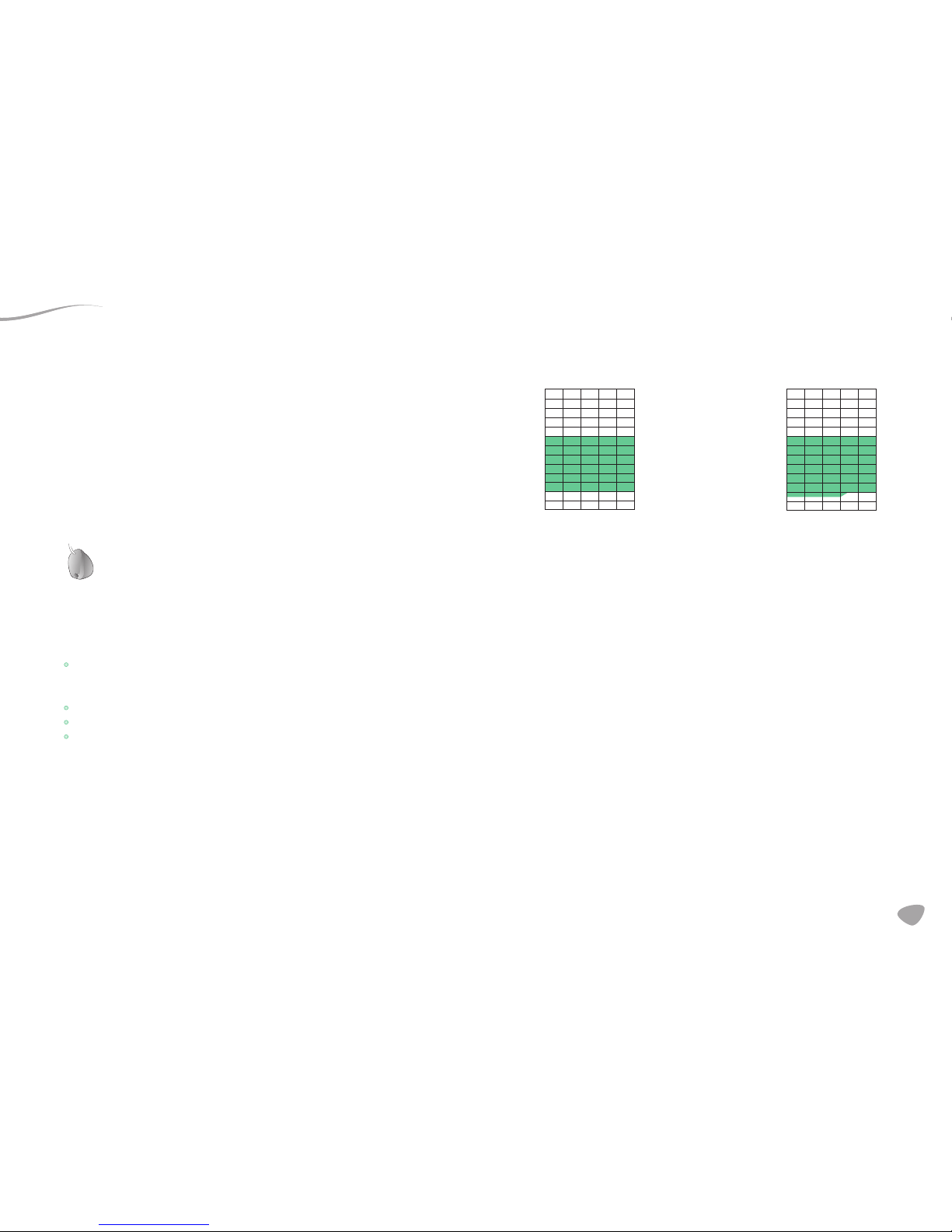

Choosing the correct coupling for standard

xReceivers.

Determine the correct dome size based on your otoscopic examination of the

ear canal� Select the dome type based on the audiometric requirements and

ﬁtting ranges shown on this page� Allow the dome to ﬁt comfortably in the

ear canal�

Open dome

Closed dome

Power dome/sleeve mold

Fitting guide.

Receiver-in-Canal (RIC).

250 500 1000 2000 4000 8000

-10

100

110

120

Choosing the correct coupling for

power xReceivers.

Determine the correct dome size based on your otoscopic examination of the

ear canal� Select the dome type based on the audiometric requirements and

ﬁtting ranges shown on this page� Allow the dome to ﬁt comfortably in the

ear canal�

Open Dome

Choose for:

Instant ﬁt

Open ﬁt

Considerations:

Occlusion free

Closed Dome

Choose for:

Instant ﬁt

Semi-occluded ﬁt

Considerations:

Extended ﬁtting range

over open dome

Some occlusion

Power Dome

Choose for:

Instant ﬁt

Occluded ﬁt

Considerations:

Extended

low-frequency response

Occlusion

Sleeve mold cShell

Choose for:

Custom ﬁt

Considerations:

Comfort

Possible occlusion

Impression required

Open dome

Closed dome

Power dome/sleeve mold

Fitting guide.

Receiver-in-Canal (RIC).

250 500 1000 2000 4000 8000

-10

100

110

120

250 500 1000 2000 4000 8000

-10

100

110

120

Super power** xReceiver

**R 312, Rm 312 only

Super power plus* xReceiver

*R 13 only

Choosing the correct coupling for super power

and super power plus xReceivers.

Select, based on the audiometric requirements and ﬁtting ranges

shown on this page�

cShell

Choose for:

Custom ﬁt

Verwendbar für:

Comfort

Possible occlusion

Impression required

Fitting guide.

Receiver-in-Canal (RIC).
