Harman JBL Quantum 810 Wireless Manuale utente

QUICK START GUIDE

810

WIRELESS

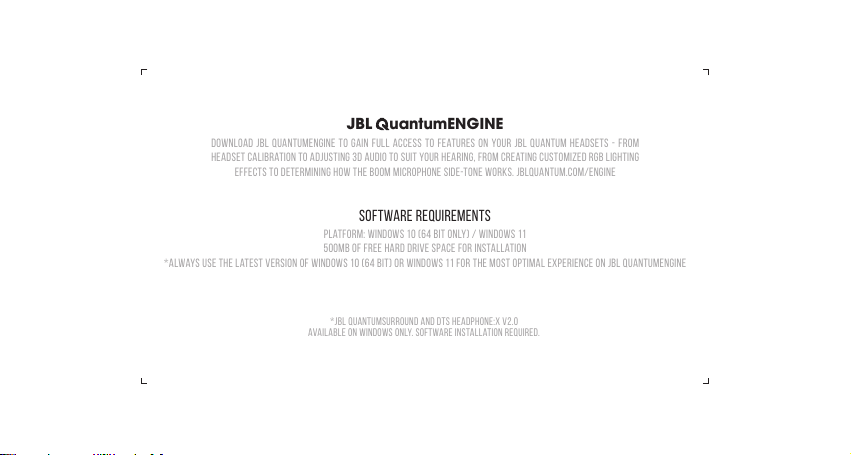

Software requirements

Platform: Windows 10 (64 bit only) / Windows 11

500MB of free hard drive space for installation

*Always use the latest version of Windows 10 (64 bit) or Windows 11 for the most optimal experience on JBL QuantumENGINE

*JBL QuantumSURROUND and DTS Headphone:X V2.0

available on Windows only. Software installation required.

Download JBL QuantumENGINE to gain full access to features on your JBL Quantum headsets - from

headset calibration to adjusting 3D audio to suit your hearing, from creating customized RGB lighting

effects to determining how the boom microphone side-tone works. JBLquantum.com/engine

JBL QuantumENGINE

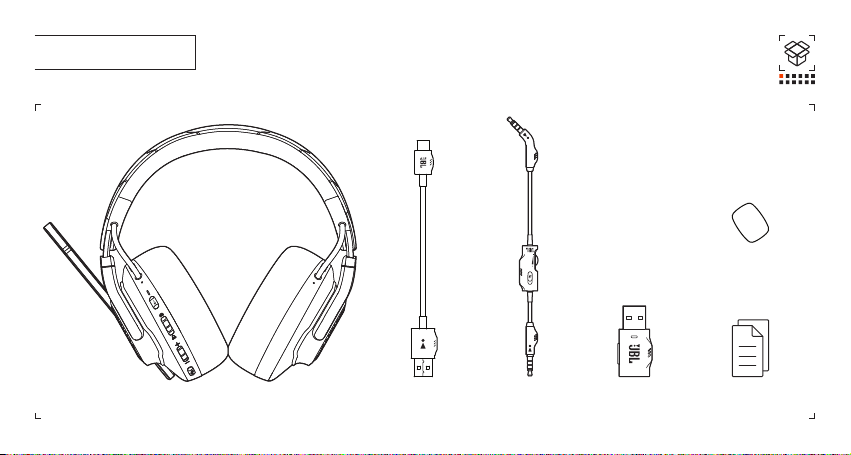

001 WHAT'S IN THE BOX

JBL quantum810 WIRELESS headset

USB charging

cable

3.5MM AUDIO

CABLE

USB WIRELESS

DONGLE

QSG | WARRANTY CARD |

Safety Sheet

Windshield foam for

boom microphone

002 Requirements

System compatibility

PC | Xbox™ | PlayStation™ | Nintendo Switch™ | Mobile | MAC | VR

Platform: Windows 10 (64 bit only) / Windows 11

500MB OF FREE HARD DRIVE SPACE FOR INSTALLATION

SOFTWARE REQUIREMENTS

JBL

Connectivity PC PS4/PS5 XBOX™ Nintendo Switch™ Mobile MAC VR

3.5 mm Audio Cable Stereo Stereo Stereo Stereo Stereo Stereo Stereo

2.4GWireless Stereo Not

Compatible Stereo Not

Compatible Stereo Stereo

Bluetooth Stereo Not

Compatible

Not

Compatible Stereo Stereo Stereo Not

Compatible

003 OVERVIEW

01 ANC / TALKTHRU LED

02 ANC / TALKTHRU button

03 Game audio-chat balance dial

04 Volume Control

05 Detachable Windshield foam

06* Notification LED for mic mute / unmute

07* Microphone Mute / unMute

08 CHARGING LED

09 3.5mm Audio Jack

10 USB-C port

11 Voice Focus Boom Microphone

12 Bluetooth pairing button

13 POWER ON / OFF slider

14 POWER / 2.4G / Bluetooth LED

15* RGB Lighting Zones

16 Flat-fold ear cup

17 2.4G PAIRING BUTTON

18 Volume Control

19 MIC MUTE BUTTON

004 POWER ON & CONNECT

power on

MANUAL CONTROLS

>5S

01 02

2.4G Wireless02

PC | mac | PLAYSTATIONTM |Nintendo Switch™

Settings Bluetooth

Bluetooth

DEVICES

JBL Quantum810 Wireless

Now Discoverable

Connected

01 02

>2S

005 Bluetooth

×1 ×1

×2

006 SETUP

007 BUTTON COMMAND

>2S BT PAIRING MODE

ON OFF

INCREASE CHAT VOLUME

INCREASE GAME VOLUME

INCREASE MASTER VOLUME

DECREASE MASTER VOLUME

ON / OFF

>5S

Microphone Mute / unMute

ANC on/off

TALKTHRU ON/OFF

>2S

008 First time setup

8a Connect the headset to your PC via 2.4G USB wireless

connection.

8b Go to “Sound Settings” -> “Sound Control Panel”.

8c Under “Playback” highlight “JBL QUANTUM810 WIRELESS GAME”

and select “Set Default” -> “Default Device”.

8d Highlight “JBL QUANTUM810 WIRELESS CHAT” and select “Set

Default” -> “Default Communication Device”.

8e Under “Recording” highlight “JBL QUANTUM810 WIRELESS CHAT”

and select “Set Default” -> “Default Device”.

8f In your chat application select “JBL QUANTUM810 WIRELESS CHAT”

as the default audio device.

8G Follow the onscreen instructions to personalize your sound

settings.

JBL Quantum810 WIRELESS

Game

JBL Quantum810 WIRELESS

Chat
