Harman JBL JS-120 Manuale utente

Features

• Designed for the L100 Classic

• Also supports the original L100, L100A, L100 Century,

4312E, 4312SE, 4312G and 4319

• 4 rubber-tipped ﬂoor feet are included

• Packed and sold in pairs

• Metal construction with black ﬁnish

Speciﬁcations

Rear Height (bottom of speaker): 5.65" (143.4mm)

Rear Riser Height: 9.29" (235.9mm)

Rear Height (including riser): 9.29"

Front Height (bottom of speaker): 7.075" (179.7mm)

Tilt-back angle: 7 degrees

NOTE: Feet are adjustable in height

JS-120 Loudspeaker Stand

7°

10.082 in.

(256.1mm)

12.677 in.

(322mm)

14.252 in.

(362mm)

7.126 in.

(181mm)

7.077 in.

(179.8mm)

11.732 in.

(298mm)

3.667 in.

(93.15mm)

11.047 in.

(280.6mm)

9.287 in.

(235.9mm)

© 2018 HARMAN International Industries, Incorporated. All rights reserved. JBL is a trademark of HARMAN International

Industries, Incorporated, registered in the United States and/or other countries. Features, speciﬁcations and appearance

are subject to change without notice.

HARMAN International Industries, Incorporated

8500 Balboa Boulevard, Northridge, CA 91329 USA

www.jblsynthesis.com

JS-120 Loudspeaker Stand

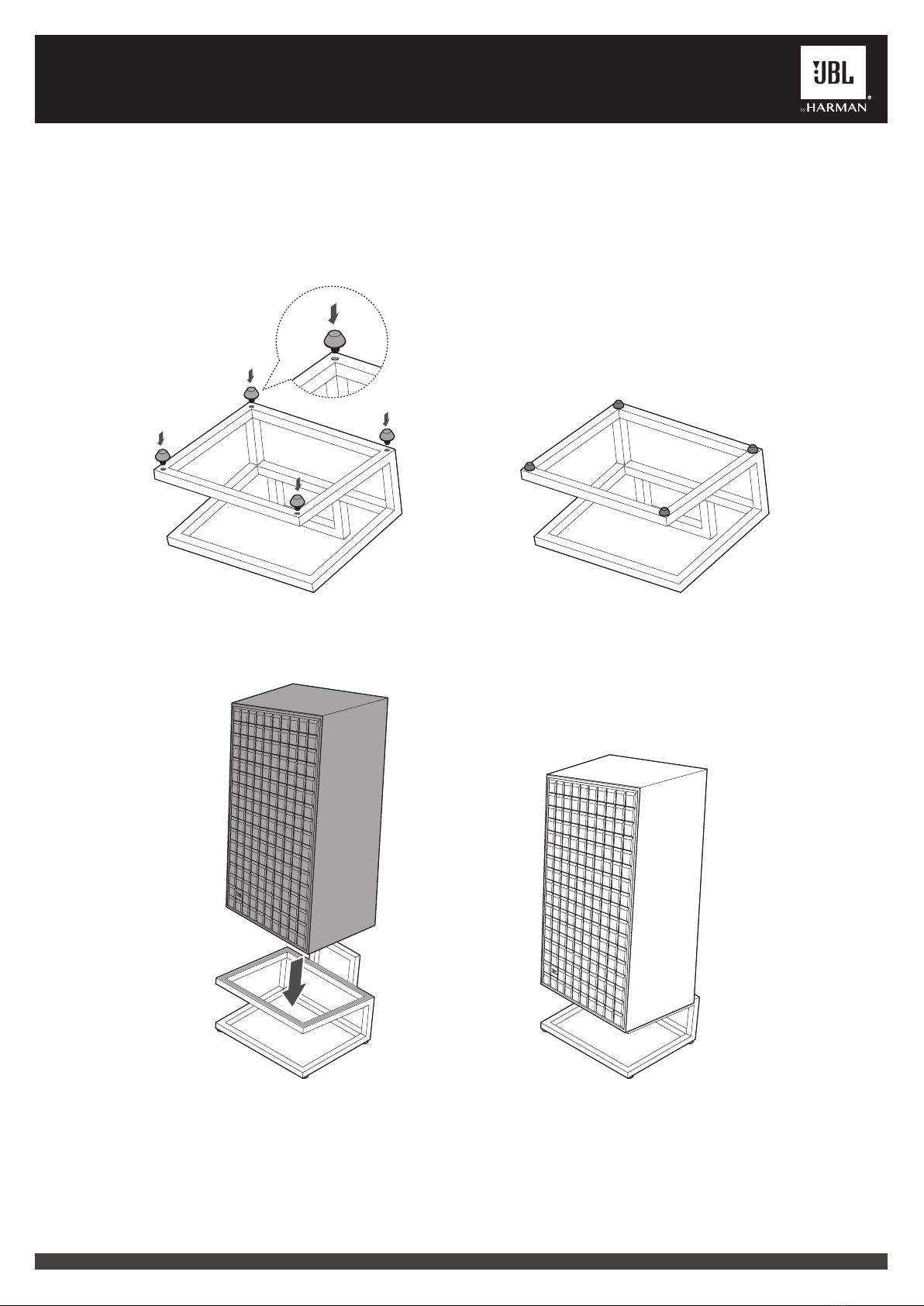

JS-120 LOUDSPEAKER STAND ASSEMBLY INSTRUCTIONS

Step 1 - Locate the parts (packed with the stand) that contains 4 pieces of rubber feet. Place the stand upside down and install the

bottom base with rubber feet as shown below. Tighten the rubber feet in clockwise direction.

Step 2 - Place your loudspeaker as shown.
