Harman JBL Performance Series Manuale utente

Legend on Page 2

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance 8 Ohms

• Max Amp Power 100 Watts*

• Frequency Response 32Hz – 20kHz (–10dB)

• Sensitivity 89dB (2.83V @ 1 meter)

• Crossover Frequency 2,400Hz

SYSTEM COMPONENTS:

• Grille With Cloth 329-080-00445-0WAE

• Low-Frequency Transducer 8" (203mm) Titanium-

laminate cone w/rubber

surround (20PR10CAO-FW01-P)

DC Resistance 5.5 Ohms, ±10%

• High-Frequency Transducer 1" (25mm) Titanium-laminate

dome (20PR10CAO-FW01-P)

DC Resistance 5.3 Ohms, ±10%

• Crossover Network 013-7600-05195-E

AURAL SWEEP TEST SPECIFICATIONS:

• System Aural Sweep Test 6.0V Input 30Hz to 20kHz

• L.F. Aural Sweep Test 5.0V Input 30Hz to 2kHz

• H.F. Aural Sweep Test 2.83V Input 4kHz to 20kHz

PHYSICAL SPECIFICATIONS:

• Plate Size (Diameter) 10-7/8" (275mm)

• Mounting Cutout Size (Diameter) 9-1/2" (240mm)

• Mounting Depth 4-1/4" (108mm)

• Weight 11.2 lb/5.0kg (sold in pairs)

WARRANTY:

• Refer to Warranty Statement packed with each product.

* The maximum recommended amplifier power rating will ensure

proper system headroom to allow for occasional peaks. We do not

recommend sustained operation at these maximum power levels.

4μf

100V

6μf

100V

0.4mH

20μf

100V

0.8mH

10 ohms

10 watts

5.1 ohms

10 watts

GRN .250

WHT .205

RED

.187

BLK

.205

COAXIAL DRIVER

20PR10CAO-FW01-P

GRN

WHT –

–

CROSSOVER

NETWORK

013-7600-05195-E

BLK

RED

-I

N+

XR5215

+W -

+W-

SP8C

+T-

IS8C SCHEMATIC

Technical Manual

IS8C Performance™Series

1/07

Harman Consumer Group, Inc., 250 Crossways Park Drive, Woodbury, New York 11797

PACKAGING WIRING DIAGRAM

ITEM NO. PART NO. DESCRIPTION

712 611

(4) (4)

1 406-000-05371-E OWNER’S MANUAL

2 404-000-00222-E TEMPLATE

3 405-000-05008-E WARRANTY CARD

4 431-000-00767-E POLYFOAM

5 20PR10CAO-FW01-P COAXIAL DRIVER (woofer and tweeter)

6 301-ABS-00302-0WAE BAFFLE

7 329-080-00445-0WAE GRILLE W/CLOTH

8 013-7600-05195-E CROSSOVER NETWORK

9 402-000-05531-E OUTER CARTON

10 316-PC-05201-1TAE JBL LOGO

11 325-ABS-00323-0BAE DOG EAR

12 352-BM04549D1057-E DOG EAR SCREW

13 352-CM04008D144-E NETWORK SCREW

14 352-FM04010D462-E WOOFER SCREW

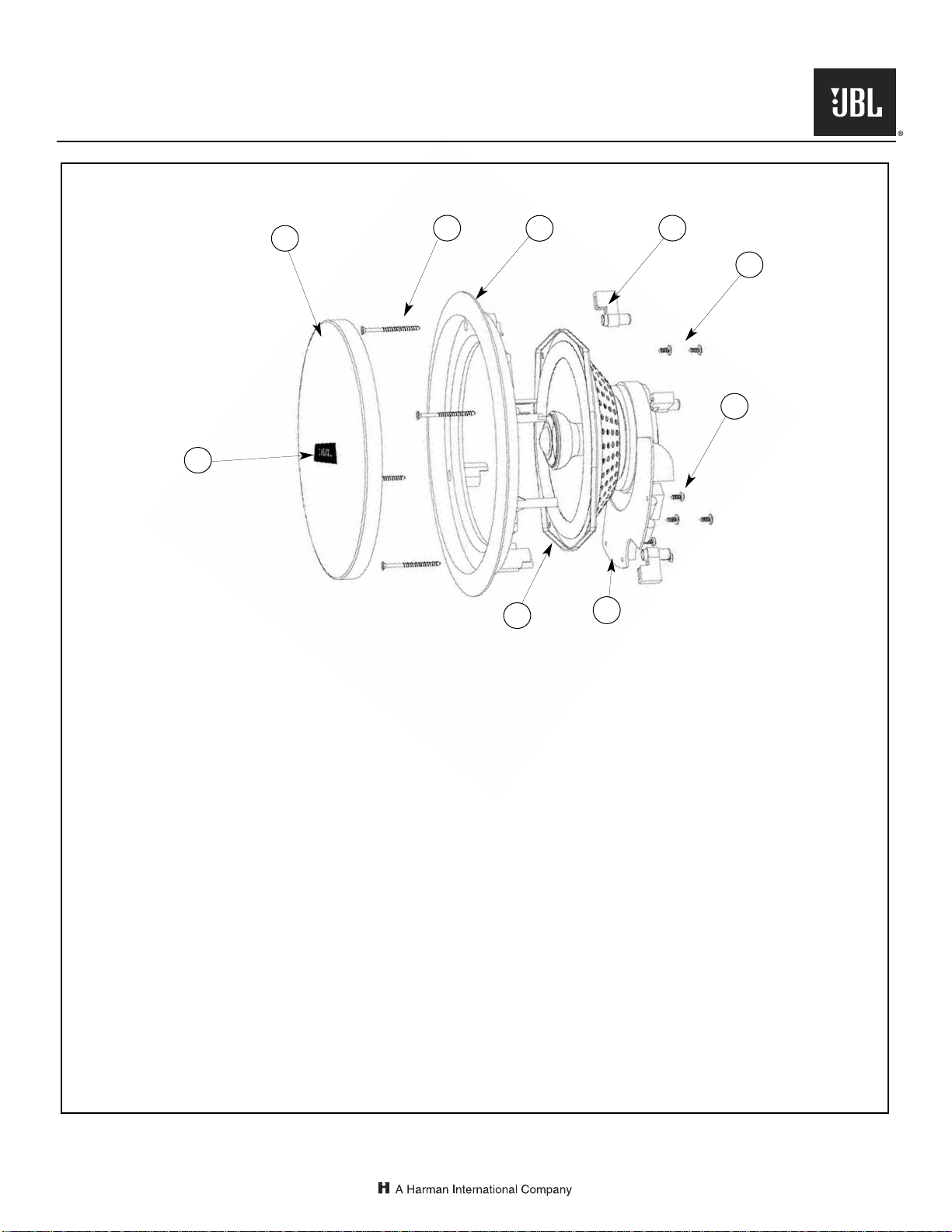

IS8C ROUGH-IN FRAME PART #RIF8C

EXPLODED VIEW

Technical Manual

IS8C Performance™Series

1/07

Harman Consumer Group, Inc., 250 Crossways Park Drive, Woodbury, New York 11797
