Harman JBL STADIUM 6 Manuale utente
JBL STADIUM 6, STADIUM 8, AND
STADIUM 10 MARINE SPEAKER
EN
ES
FR
JBL Stadium 6, Stadium 8, and Stadium 10 marine speaker - Owner’s Manual
Haut-parleur marine JBL Stadium 6, Stadium 8 et Stadium 10 - Mode D’emploi
Altavoz para entornos marinoss JBL Stadium 6, Stadium 8 y Stadium 10 - Manual de Propietario
THANK YOU FOR YOUR PURCHASE . . .
Your JBL product has been designed to provide you with the performance and ease of operation you would expect from
JBL.
ABOUT THE MANUAL
This manual describes general installation guidelines. However, please note that proper installation of marine audio
components requires qualified experience. If you do not have the knowledge and tools to successfully perform this
installation, we strongly recommend consulting an authorized JBL dealer about your installation options. Keep all
instructions and sales receipts for reference.

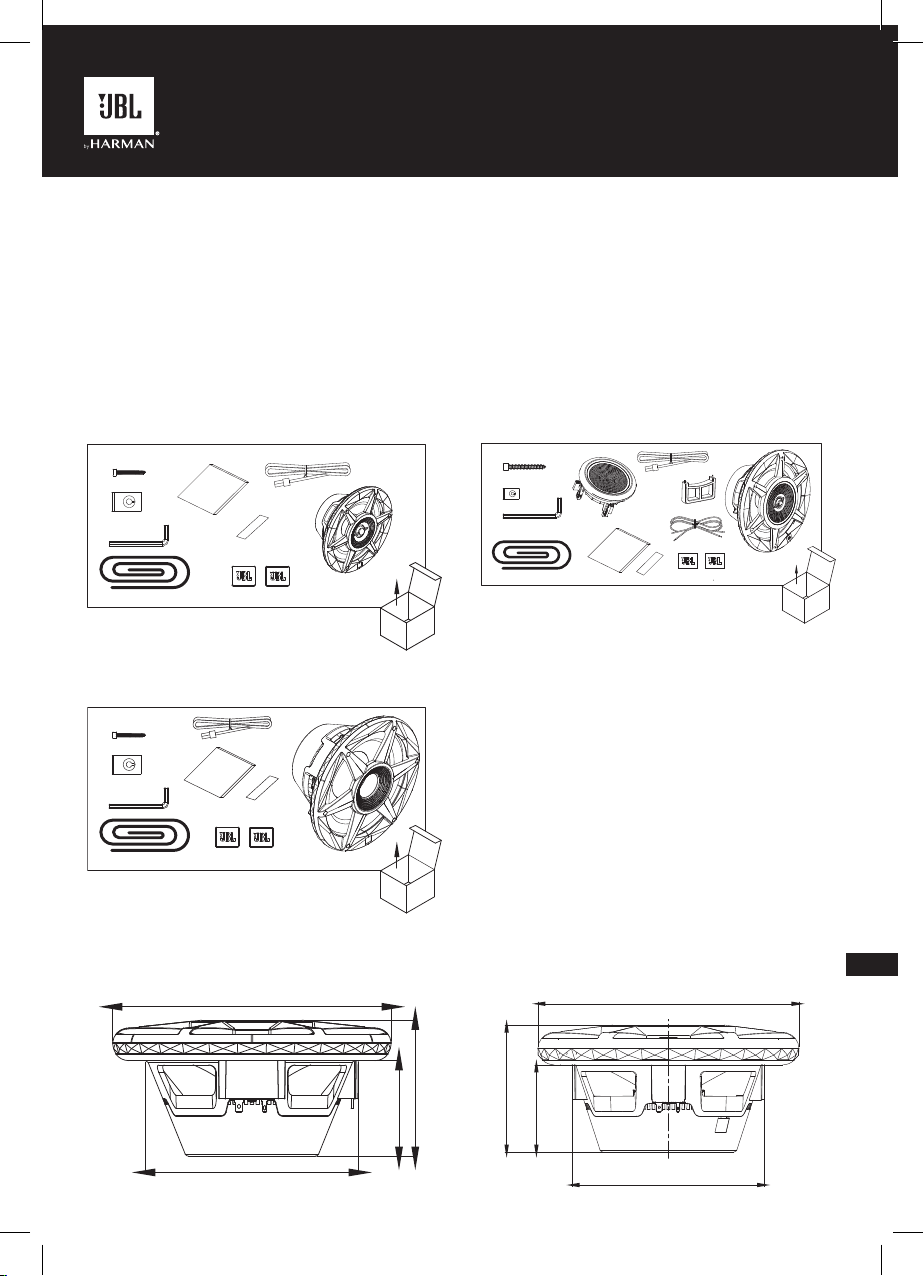

WHAT’S IN THE BOX
Stadium 6
DIMENSIONS
Stadium 6 Stadium 8
Stadium 10
Stadium 8
12X
12X
2X
1X
2X
1X
2X 2X
1X
2X
2X
12X
12X
1X
1X
1X
2X
2X
2X
1X
2X 2X
2X
6X
6X
1X
1X
1X 1X
1X 1X
1X
1X
7-15/32” (189.4mm)
5-23/32” (144.8mm)
2-9/16” (65mm)
3-21/32” (92.5mm)
3-3/16” (80.5mm)
4-5/8”(117.2mm)
7"(177.4mm)
9-1/2”(241.0mm)
JBL STADIUM 6, STADIUM 8, AND
STADIUM 10 MARINE SPEAKER
EN

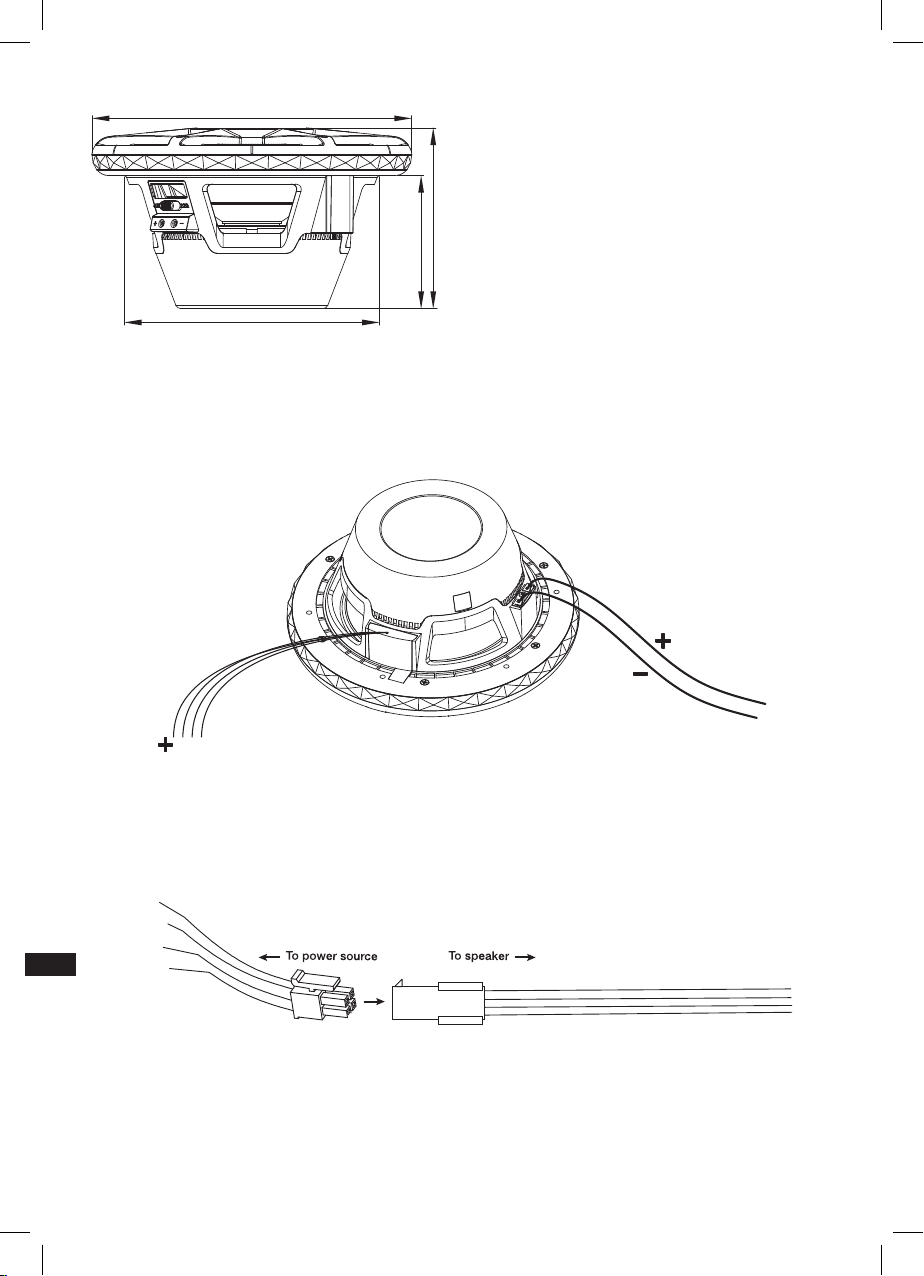

SPEAKER SIGNAL WIRING
To send signal to the JBL marine speaker, connect the positive (+) and negative (-) speaker wires to the appropriate speaker
outputs of your source unit or amplifier. Be sure to observe proper polarity.
SPEAKER LED WIRING
To provide power for the LEDs, plug the 24-gauge black (+), blue, green, and red LED wires from the speaker into the
included female connector, then run the wires from the female connector to your compatible 12-volt power source or light
controller (sold separately). If using a separate controller, be sure to connect each wire to the proper output.
If hardwiring the LEDs directly to your power source, you can choose the color of the LEDs by connecting the black wire to
the positive (+) terminal, and the appropriate R, G, and/or B single wire or combination of wires to the negative (-) terminal.
There are 7 possible colors, depending on the wiring configuration you choose:
Stadium 10
11-5/8” (295.3mm)
9-9/16” (235.6mm)
4-7/8” (123mm)
6-9/16” (167mm)
R BG
Blue
Green
Red
Black
EN
Wire connected to positive
(+12V) terminal
Wire connected to
negative (-) terminal
Color produced
Black
Red Red
Green Green
Blue Blue
Red + Green Yellow
Red + Blue Purple
Blue + Green Aquamarine
Red + Blue + Green White

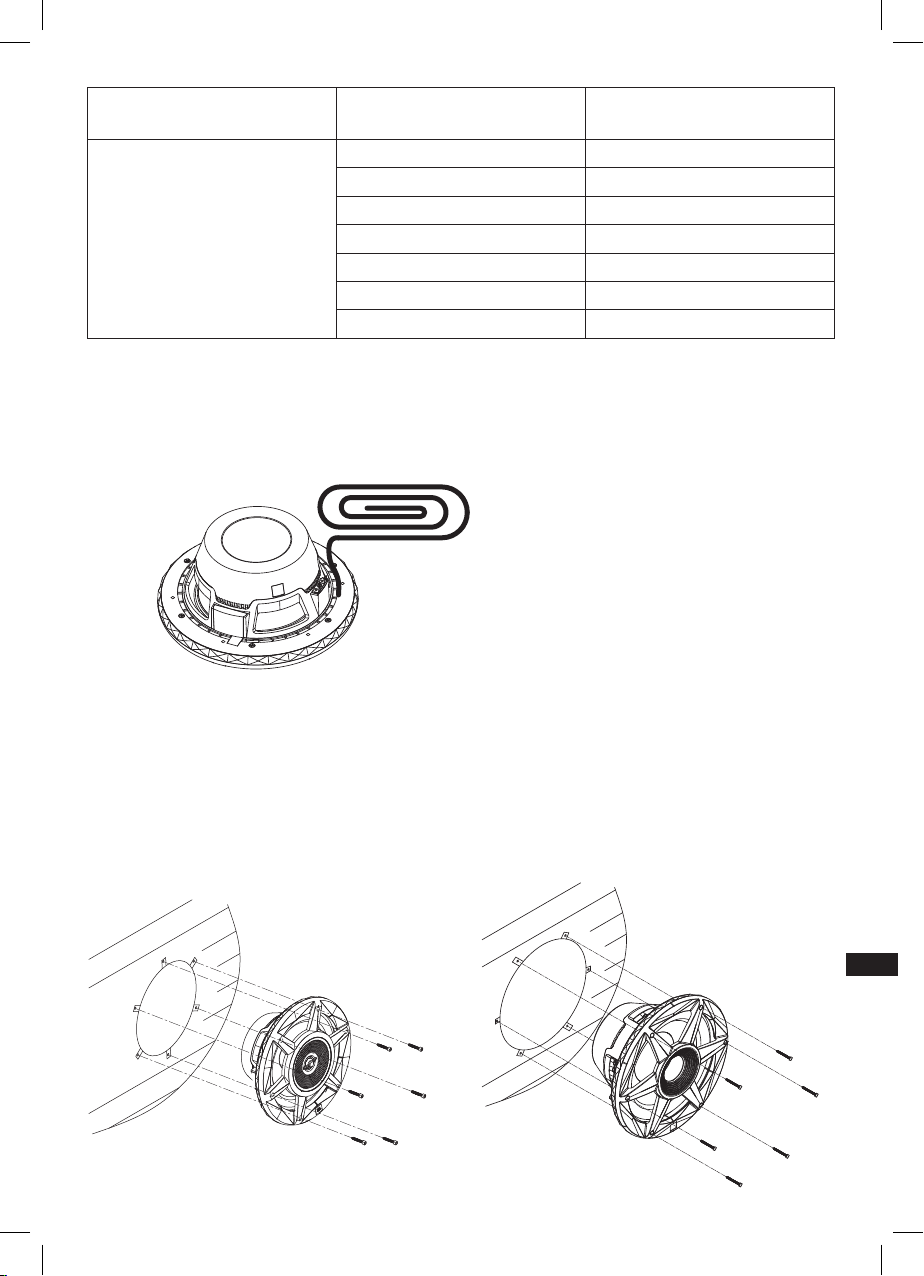

APPLYING FOAM SEAL
To help seal your installation against water, and to provide an airtight acoustic seal, apply the self-adhesive foam seal to the
speaker frame.
MOUNTING THE SPEAKER
Use the included screws to mount the speaker to the location. Use the included speed clips if necessary to provide a secure
mount.
NOTE: Use caution when cutting and using screws with fiberglass to prevent scratches and cracks.
Stadium 6 and Stadium 8 Stadium 10
EN

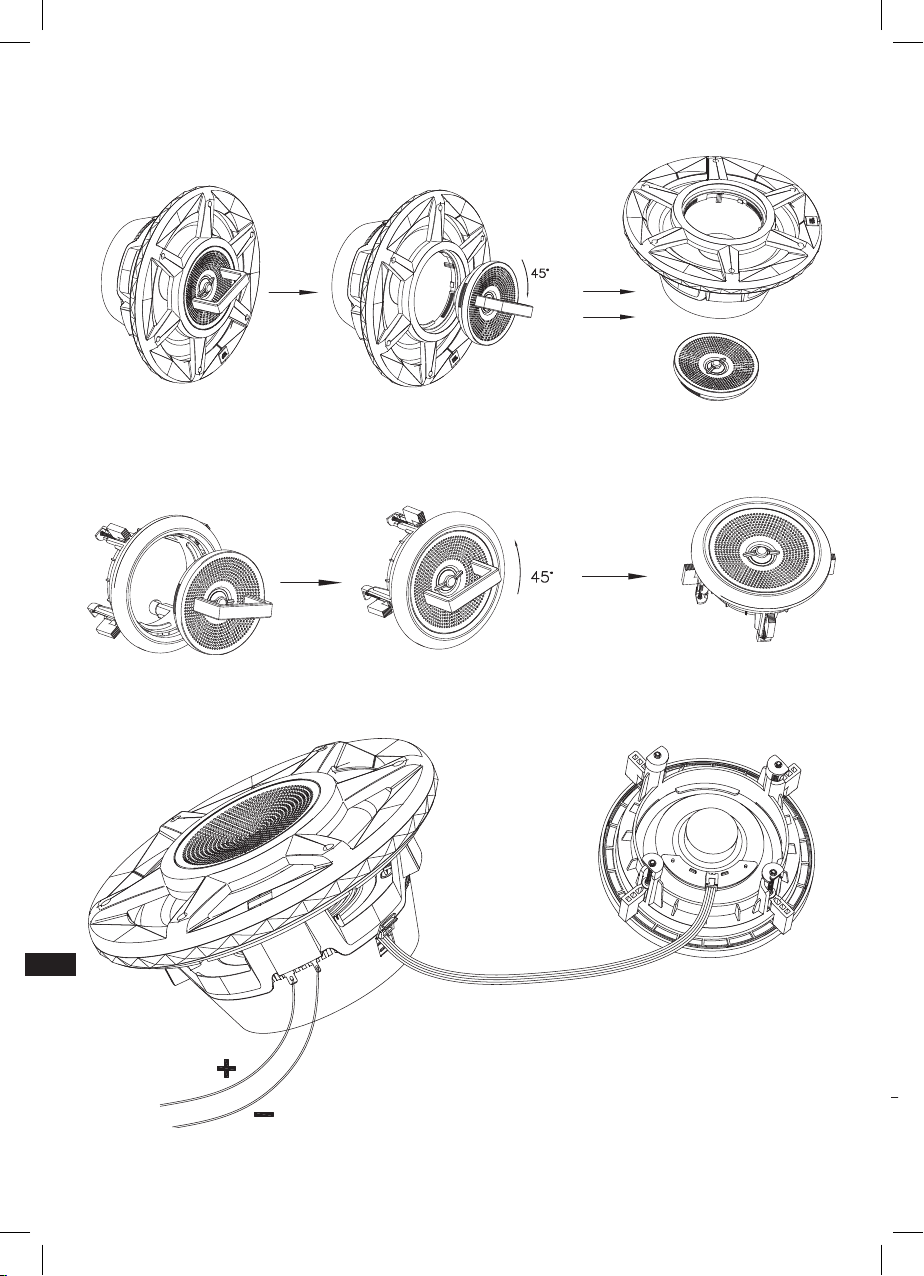

REMOVING THE TWEETER FOR SEPARATE MOUNTING (STADIUM 8 ONLY)
Use the included 2-pin tool to remove the tweeter from the woofer housing. Place the pins of the tool in the holes of the
tweeter grille and rotate 45 degrees clockwise to loosen and remove.

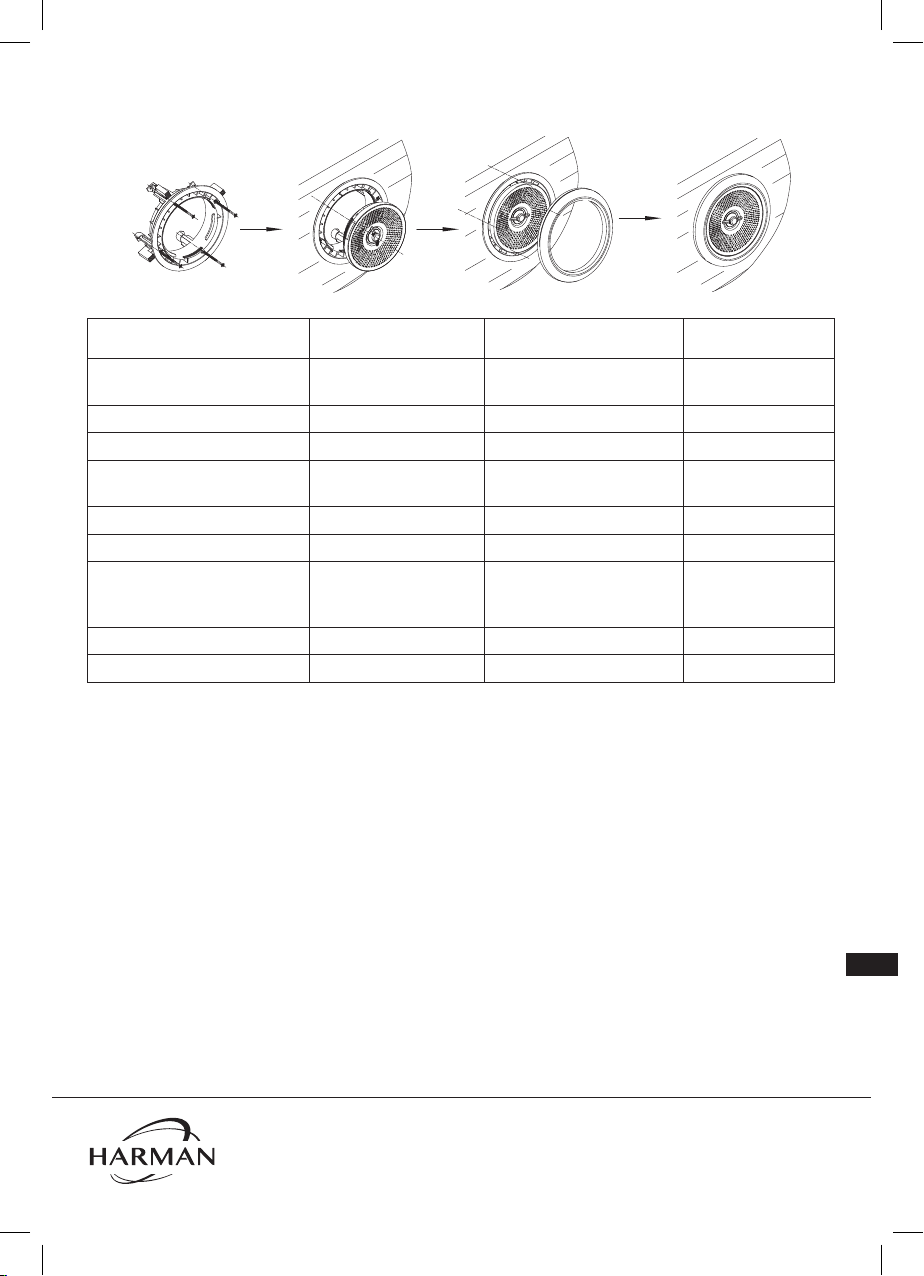

FLUSH-MOUNTING THE TWEETER
Place the tweeter in the mounting bracket and use the tool to secure by turning 45 degrees counter-clockwise.
To transmit audio signal to the tweeter, make sure the woofer and tweeter are connected with the included cable.
EN
Place the tweeter in the mounting location, then turn each setscrew clockwise to tighten mounting brackets. Use caution so
as not to overtighten. Snap the included outer ring over the mounting bracket to hide the setscrews.
Specications Stadium 6 Stadium 8 Stadium 10
Continuous power
handling
100W 200W 300W
Peak power handling 300W 500W 900W
Frequency response 40Hz – 25kHz 30Hz – 22kHz 20Hz – 2kHz
Nominal impedance 3 Ohms* 3 Ohms* 2 or 4 Ohms (use
switch to select)
Sensitivity 92dB 92dB 89dB
External diameter 7-15/32” (189.4mm) 9-1/2” (241mm) 11-5/8” (295.3mm)
Mounting cutout diameter 5-23/32” (144.8mm) Woofer: 7” (177.4mm)
Tweeter bracket: 4-9/16”
(115.9mm)
9-9/16” (235.6mm)
Total depth 3-21/32” (92.5mm) 4-5/8” (117.2mm) 6-9/16” (167mm)
Mounting depth 2-9/16” (65mm) 3-3/16” (80.5mm) 4-7/8” (123mm)
*NOTE: Because of the woofer’s low impedance, do not wire two or more in parallel to an amplifier; doing so can result in
overheating and damage to the amplifier.
HARMAN International Industries,
Incorporated 8500 Balboa Boulevard,
Northridge, CA 91329 USA
www.jbl.com
© 2018 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated,
registered in the United States and/or other countries. Features, specifications
and appearance are subject to change without notice.
EN
JBL STADIUM 6, STADIUM 8, AND
STADIUM 10 MARINE SPEAKER
FR
MERCI POUR VOTRE ACHAT. . .
Votre produit JBL a été conçu pour vous offrir les performances et la facilité d’utilisation que vous attendez de notre part.
PRÉSENTATION DU MANUEL
Ce manuel contient les directives d’installation générales. Cependant, veuillez noter que l’installation correcte de
composants audio marine requiert une expérience qualifiée. Si vous ne disposez pas des connaissances et des outils
permettant d’exécuter correctement cette installation, nous vous recommandons fortement de consulter un distributeur
agréé JBL pour connaître vos options d’installation. Conservez toutes les instructions et les factures à titre de référence.
CONTENU DE LA BOÎTE
Stadium 6
DIMENSIONS
Stadium 6 Stadium 8
Stadium 10
Stadium 8
12X
12X
2X
1X
2X
1X
2X 2X
1X
2X
2X
12X
12X
1X
1X
1X
2X
2X
2X
1X
2X 2X
2X
6X
6X
1X
1X
1X 1X
1X 1X
1X
1X
7-15/32” (189.4mm)
5-23/32” (144.8mm)
2-9/16” (65mm)
3-21/32” (92.5mm)
3-3/16” (80.5mm)
4-5/8”(117.2mm)
7"(177.4mm)
9-1/2”(241.0mm)

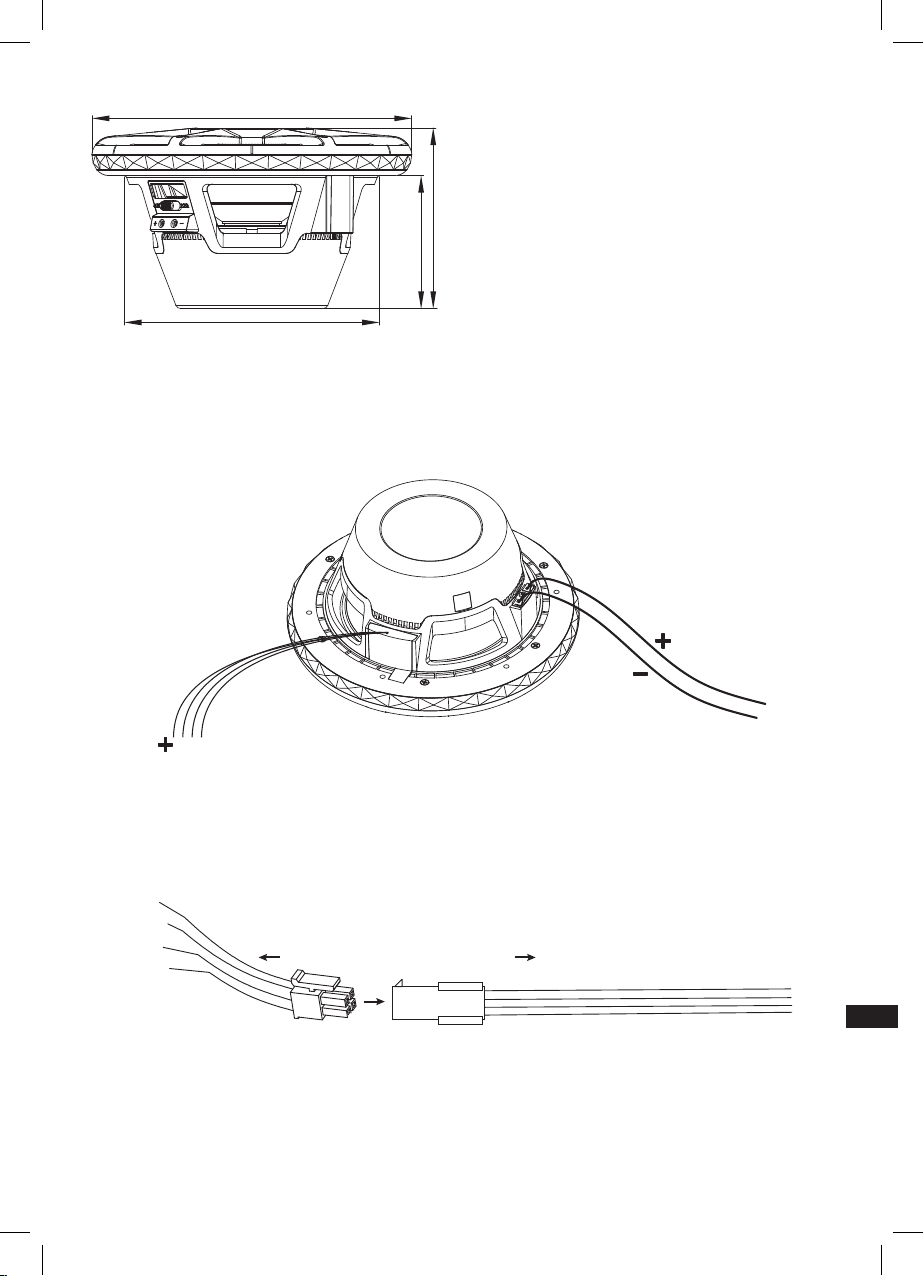

CÂBLAGE DU SIGNAL DU HAUT-PARLEUR
Pour envoyer le signal au haut-parleur marine JBL, connectez les fils de haut-parleur positif (+) et négatif (-) aux sorties de
haut-parleur appropriées de votre appareil ou amplificateur source. Veillez à respecter la polarité adéquate.
CÂBLAGE DES DEL DU HAUT-PARLEUR
Pour alimenter les DEL, branchez les fils de DEL de 0,205 mm² (24-gauge) noir (+), bleu, vert et rouge du haut-parleur dans le
connecteur femelle inclus, puis faites passer les fils du connecteur femelle à votre alimentation 12 volts ou contrôleur d’éclai-
rage compatible (vendu séparément). Si vous utilisez un contrôleur séparé, veillez à connecter chaque fil à la bonne sortie.
Si vous câblez directement les DEL à votre alimentation, vous pouvez choisir la couleur des DEL en connectant le fil noir à la
borne positive (+) et les fils R, V et/ou B individuels appropriés ou une combinaison de ces fils à la borne négative (-).
Il y a 7 couleurs possibles, selon la configuration de câblage que vous choisissez :
Blue
Green
Red
Black
Stadium 10
11-5/8” (295.3mm)
9-9/16” (235.6mm)
4-7/8” (123mm)
6-9/16” (167mm)
R BG
Bleu
Rouge
Noir
Vert
Vers le haut-parleur
Vers l’alimentation
FR
FR
Fil connecté à la borne
positive (+12V)
Fil connecté à la borne
négative (-)
Couleur produite
Noir
Rouge Rouge
Vert Vert
Bleu Bleu
Rouge + vert Jaune
Rouge + bleu Mauve
Bleu + vert Bleu vert
Rouge + vert + bleu Blanc

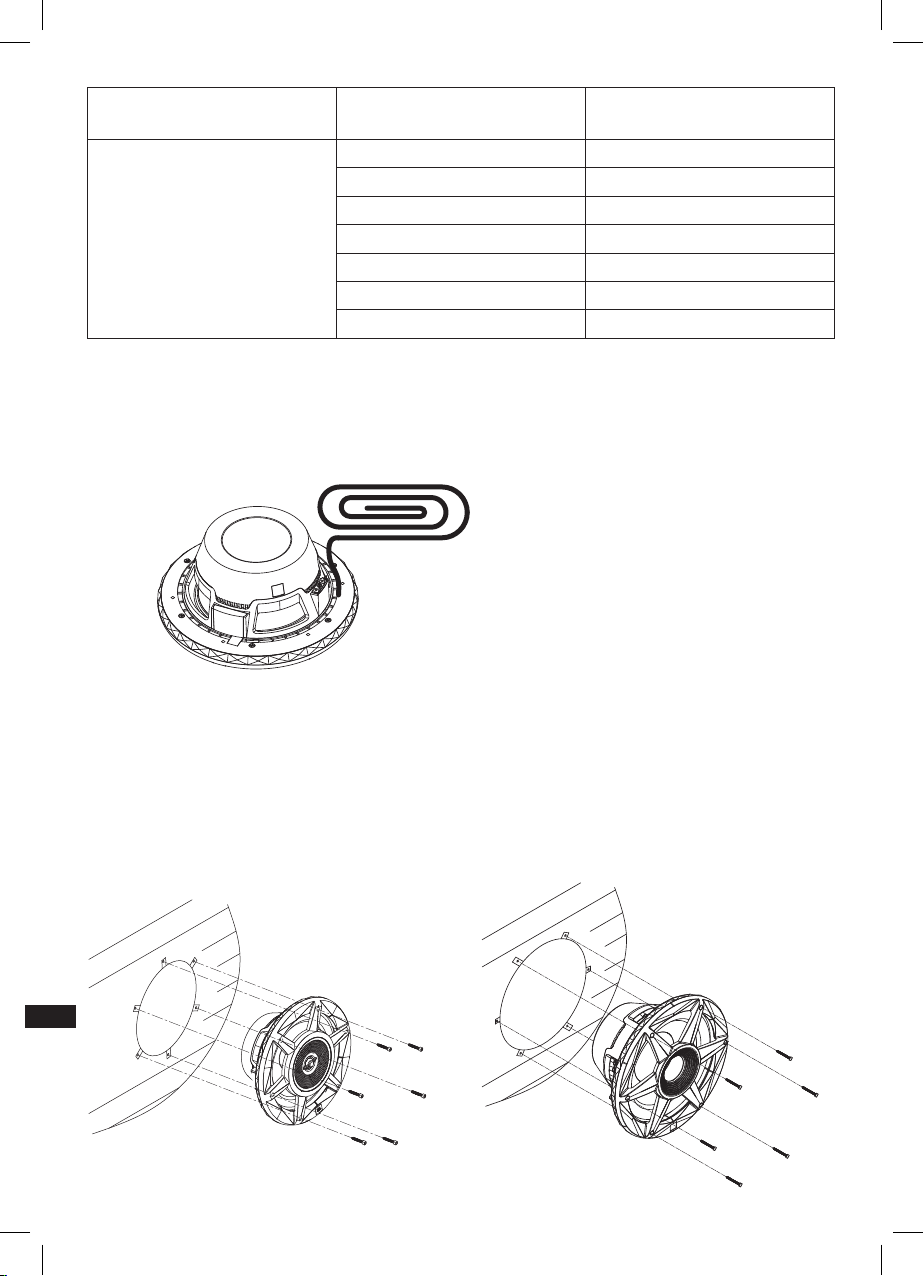

APPLICATION DE LA MOUSSE D’ÉTANCHÉITÉ
Pour contribuer à l’étanchéité de votre installation contre l’eau et pour créer une étanchéité acoustique à l’air, appliquez le
joint de mousse auto-adhésif sur la structure du haut-parleur.
MONTAGE DU HAUT-PARLEUR
Utilisez les vis incluses pour monter le haut-parleur dans son emplacement. Utilisez les attaches rapides incluses si nécessaire
pour sécuriser le montage.
REMARQUE : Soyez prudent pour découper et visser des vis dans la fibre de verre afin d’éviter des rayures et des fêlures.
Stadium 6 et Stadium 8 Stadium 10
FR
