Haztec 4-3056-T Manuale utente
Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: +44(0)113 202 9115 ∙ info@haztec.uk ∙ www.haztec.uk
4-3056-T
6-LED Slim Turn Light
M389.1.0 - 1 - July 2022
Thank you for purchasing this Haztec product. Before proceeding with installation, it is essential to
read and understand this instruction booklet.
▪This product must be installed by persons competent in vehicle electrical installations
▪Care should be taken to ensure that water ingress cannot occur through mounting or
wiring holes
▪Regularly inspect the product to confirm correct operation
▪DO NOT stare directly into the light it produces as permanent damage to the eyes
may result
▪Use only a mixture of soap and water to clean this product
▪DO NOT allow solvents, fuels, acetone-based cleaners etc. to contact with this product
Basic Operating Specifications:
Supply voltage range:
10-30VDC
Maximum current draw:
0.06A @ 12VDC / 0.03A @ 24VDC
Operating temperature range:
-40OC ~ +65OC
LED Power:
1W per LED
Dimensions (mm):
130 (L) x 28.5 (H) x 13 (D)
Cable length:
200mm
Weight:
84g
▪Ultra slim LED turn light
▪12/24VDC
▪6-LED
▪UNECE R6 approved
▪IP67 rated
Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: +44(0)113 202 9115 ∙ info@haztec.uk ∙ www.haztec.uk
4-3056-T
6-LED Slim Turn Light
M389.1.0 - 2 - July 2022
Installation Notes
▪Ensure that the mounting surface is completely flat. The lamp is not flexible, and will be
damaged if any attempt is made to mount on a curved surface
▪Always use the fixing screws provided. If a different fixing screw must be used, it is
essential that the screw head fits comfortably in the screw-head recess on the lamp. If
the screw head is larger than the recess, then the lamp lens will be damaged during
installation
▪DO NOT over tighten mounting screws as this will cause damage to the assembly
Connection Instructions:
Wire
Connect to
Function
Red
Positive [+] via fuse
Main feed
Black
Permanent Negative [-]
Ground

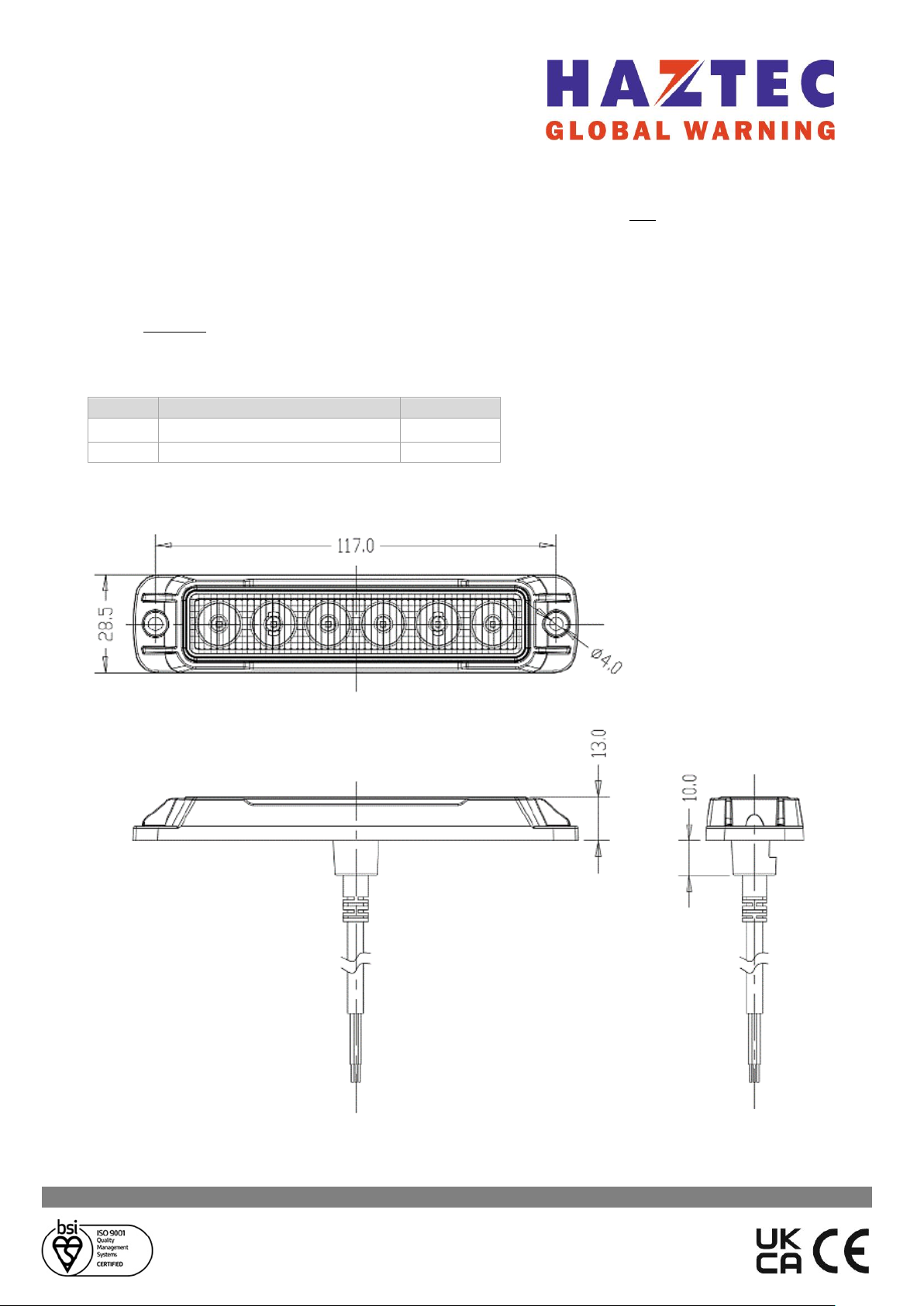

Basic Dimensions:
