HighPoint RocketStor 6674T Manuale utente

1

RocketStor 6674T

ThunderboltTM 16-Bay SATA RAID

Storage Enclosure

Quick Installation Guide

V1.0.0

2

Kit Content

1x 16-Bay Enclosure

16x Drive Trays

1x ThunderboltTM 40Gb/s Cable

2x UL Power Cord

64x 3.5” HDD Mounting Screws

64x 2.5” SSD Mounting Screws

1x Quick Installation Guide

3

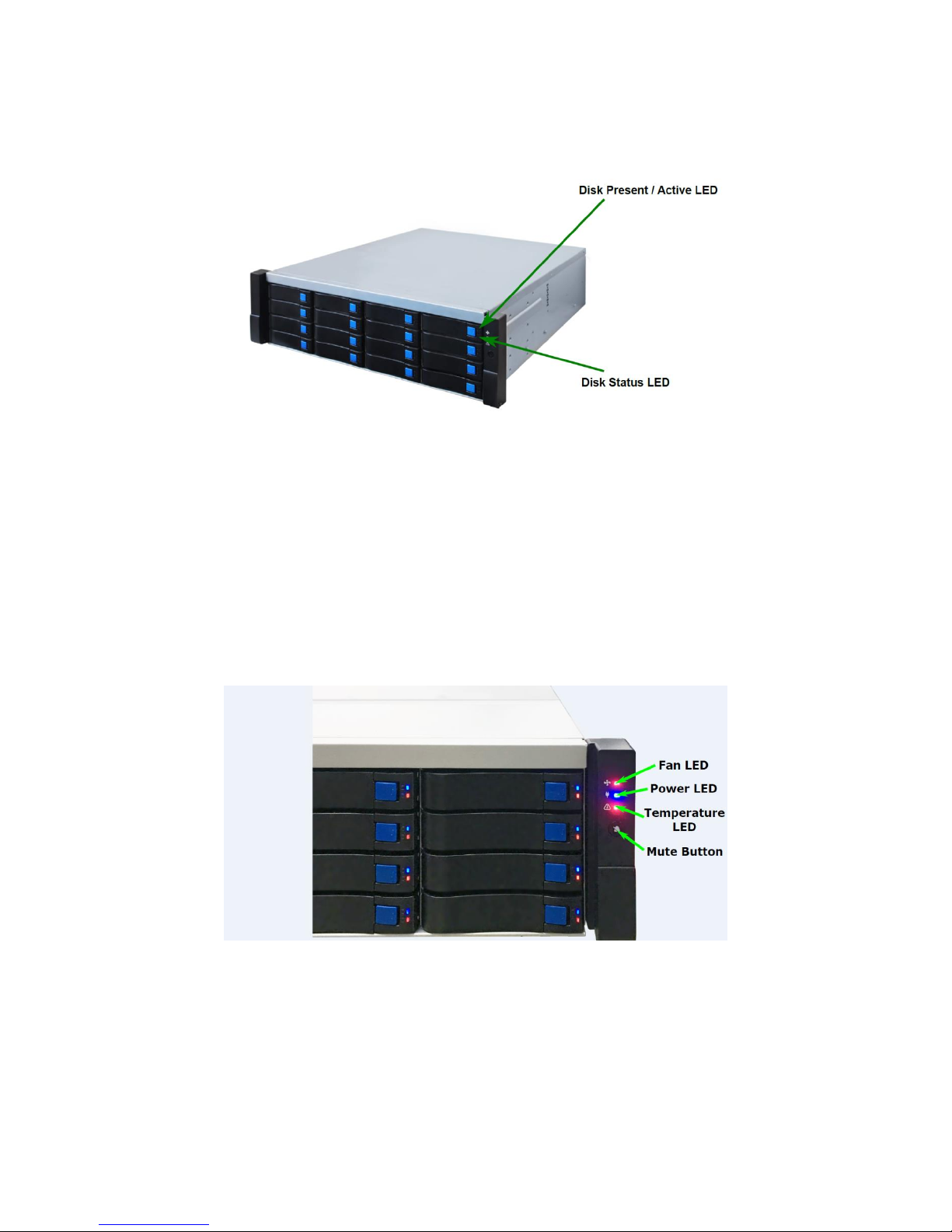

Panel Layout-Front View

LED Indicators

Disk Present: Solid blue LED

Active LED: Flashing blue LED

Disk Status LED

oSolid red LED if disk failure

oFlashing red LED if identifying/rebuilding

Fan LED: Red LED when internal fan fails

Power LED: Solid blue LED when enclosure is powered on

Temperature LED: Red LED when enclosure temperature is over

50˚C

Mute Button: Mutes alarm when pressed

4

Panel Layout-Rear View

System Requirements

System with a USB-C port (ThunderboltTM 3)

Mac OS X 10.10 and later

Windows 8 and later

Enclosure Setup

1. If using 3.5” HDDs, use the 3.5” mounting screws to connect the

HDDs to the tray in the locations shown below

5

2. If using 2.5” SSDs, please use the 2.5” mounting screws to connect

the SSDs to the tray in the locations shown below

3. Connect the RocketStor 6674T to the host system with the

ThunderboltTM cable, and then connect the RocketStor 6674T to

both power receptacles

4. With the power cord connected to the power source, turn on the

RocketStor 6674T using the power switch on (“I” position) on the

rear panel

Setting up the RocketStor 6674T (Mac)

1. Go to http://www.highpoint-tech.com/USA_new/series-rs6674t-

download.htmto download and extract both folders from the Mac

Software Package

2. Mount and enter the RSWebGUI_Mac folder and run the

installation file

3. Mount and enter the driver folder and run the HighPointRR.pkg

installation file

6

4. After installation, restart your computer

5. Select the Apple logo in the top left of the screen and select

About this Mac. Then, select the System Report button.

6. Select the PCI tab on the left and double check the RocketRAID

840A SATA Controller is detected to ensure the driver is installed

Setting up the RocketStor 6674T (Windows)

1. Go to http://www.highpoint-tech.com/USA_new/series-rs6674t-

download.htm to download and extract both folders from the

Windows Software Package

7

2. Enter the RocketStor_Manager_Win folder and run the

HighPointRocketStor Management.exe file to install the

HighPointRocketStor Manager, which allows you to analyze the

RAID array

3. Enter the Windows driver folder and run the setup.exe

application

4. After installation, restart your computer

5. To double check the installation, first right click on the Windows

start logo and select Device Manager

6. Then, under Storage Controllers, make sure RocketRAID 840A

SATA Controller is present

8

Customer Support

If you encounter any problems with the RocketStor 6674T or have any

questions regarding this or any other HighPoint Technologies, Inc.

product, feel free to contact our Customer Support Department

Web Support:

http://www.highpoint-tech.com/websupport

HighPoint Technologies, Inc. Website

http://www.highpoint-tech.com

© Copyright 2017 HighPoint Technologies, Inc. All rights reserved.
