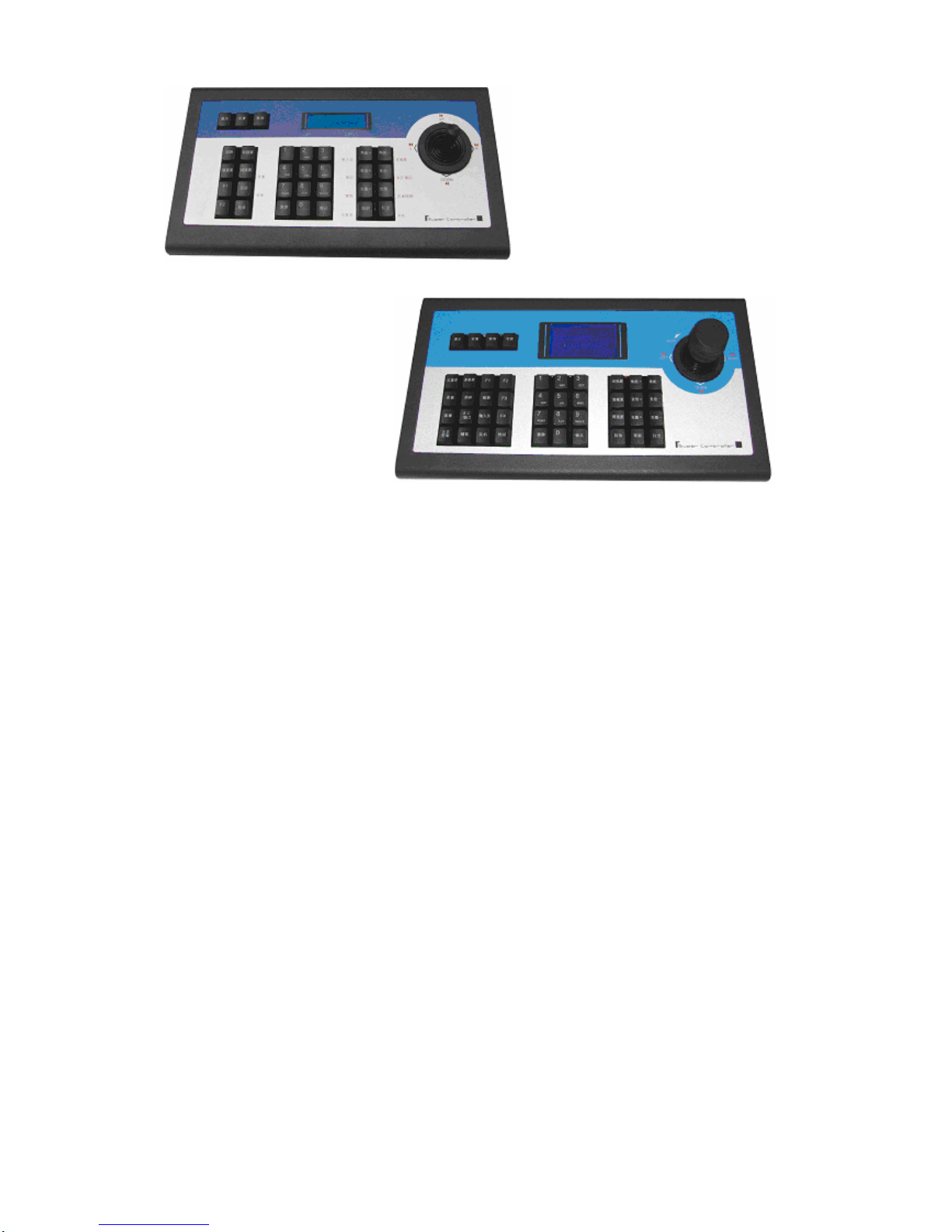

DS-1002KI/1003KI Keyboard User Manual

V1.0

Thanks a lot for purchasing our product. If there is any question, please feel free to contact us.

This manual may have something inaccurate in technology, unsuited with the product’s functions and operations or the

misprints. The manual’s content will change with the enhanced functions of the product, as well as give the regular

advance or renew the product and procedure in this manual. The renewed content will be added in the new edition of this

manual and no separate notice will be given.

Notes:

zLCD display can be easily damaged. Please do not press or exposure in sunshine for a long time;

zThe joystick can be easily damaged. If it needs to be repaired, please wrap and ship it by using original or safety

packaging;

zThis keyboard should be used in certain range of temperature and humidity, referring the technical index.

zPlease connect the keyboard correctly as this manual requires.

Items list Items Quantity Note

DC12V power adapter 1

10PIN connector 1

CD with user’s manual 1

Contents

Main Features........................................................................................................................................................................4

Install Introduction................................................................................................................................................................5

Back panel interface introduction .................................................................................................................................5

DS-1002KI front panel introduction.............................................................................................................................6

Key button function introduction..........................................................................................................................6

Joystick control introduction.................................................................................................................................7

LCD display indication introduction.....................................................................................................................7

DS-1003KI front panel introduction.............................................................................................................................7

Key button functions introduction ........................................................................................................................8

Joystick control introduction.................................................................................................................................9

LCD display indication introduction.....................................................................................................................9

Keyboard configuration and query......................................................................................................................................10

Keyboard menu tree....................................................................................................................................................10

Configuration illustration............................................................................................................................................10

Typical wiring diagram...............................................................................................................................................11

Control speed dome ....................................................................................................................................................11

Control DVR...............................................................................................................................................................12

Technical Specification.......................................................................................................................................................13

Main Features

DS-1002K and DS-1003K keyboards are compatible with all of our company’s full series embedded DVRs. These

keyboards can control speed dome and PTZ either directly, or through the DVRs. Also they can control DVRs as well.

Control

Completely replace the all functions of DVR front panel.

Any operation is indicated in LCD display.

One keyboard can manage 31 DVRs maximum.

Control speed dome and PTZ: The speed dome and PTZ address is among 0~254.

Control protocol

Contain 9 kinds of speed dome and PTZ protocol. Users can require installing other specific protocol if the

keyboard has not contained. We will send the modified procedure to you to update keyboard procedure via RS-485

communication port, as it does not need to change hardware in advance.

Divided control by host and auxiliary keyboard

Classifying control can be supported in controlling embedded DRV, and 15 auxiliary keyboard can be connected, and the

ID ranging from 0 to 15

Classifying control can be supported in controlling quick DOME and decoder, and 15 auxiliary keyboard can be

connected, and the ID ranging from 0 to 15.

Features and functions

The flexibility of system is improved wisely as any equipments connect with RS485 can be set in different protocols

and baud rates. Due to all the configuration can be done on the LCD display, it is not needed to look for how to change

the protocol.

Install Introduction

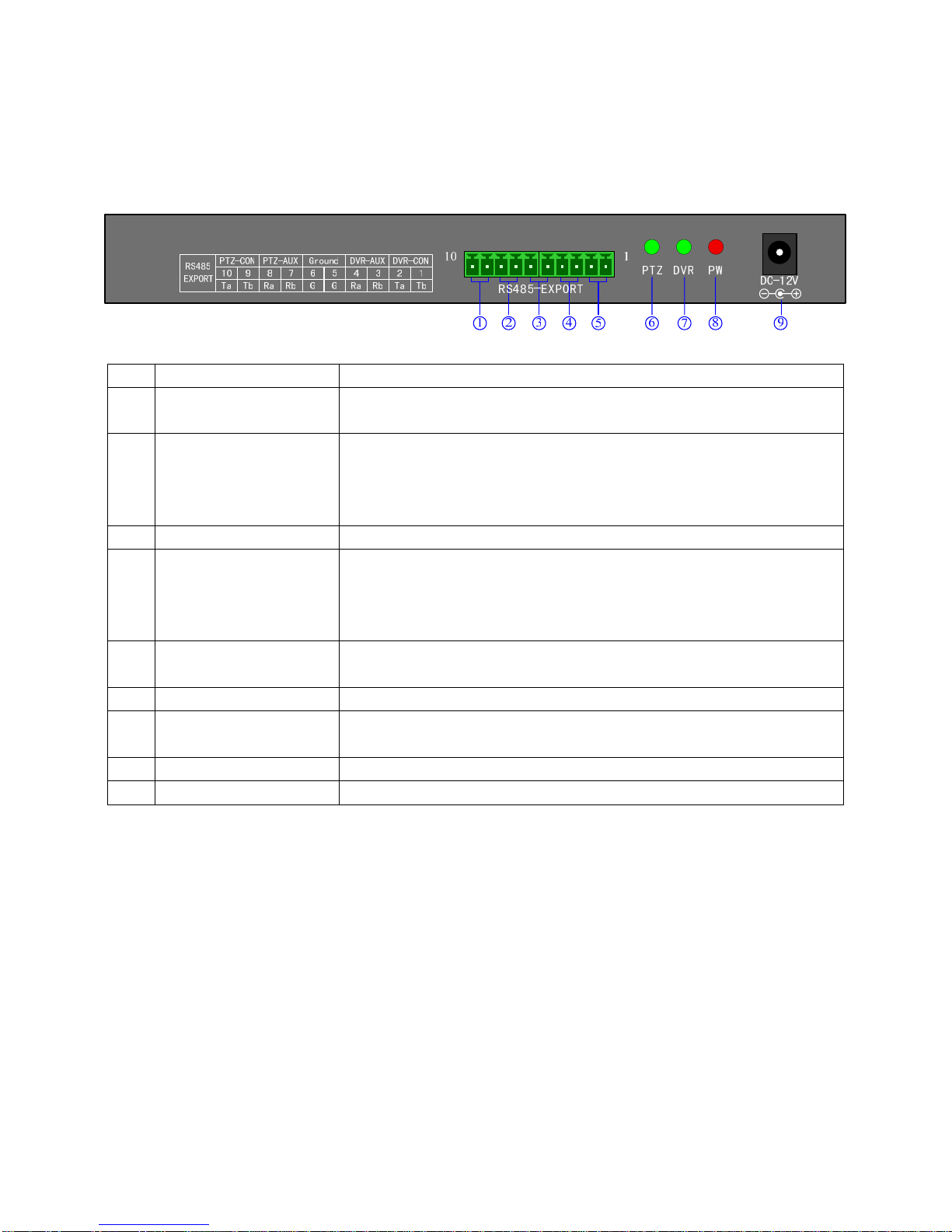

Back panel interface introduction

Introduction: DS-1002K、DS-1003K Back panel interfaces are the same

Fig 1

No Physical interface Connect introduction

1 Output of control PTZ

PTZ-CON

Host keyboard connects PTZ RS485 port. Ta is for RS485+, and Tb is for

RS485-

2 Input of auxiliary keyboard

for PTZ control

PTZ-AUX

Host keyboard connects auxiliary keyboard for PTZ control. Host keyboard

pin8 (Ra) connects auxiliary keyboard pin10 (Ta), and host keyboard pin7

(Rb) connects auxiliary keyboard pin9 (Tb). Then auxiliary keyboard can

control PTZ.

3 Ground Ground control signal line terminal

4 Input of auxiliary control

keyboard for DVR control

DVR-AUX

Host keyboard connects auxiliary keyboard for DVR control. Host keyboard

pin4 (Ra) connects auxiliary keyboard pin2 (Ta), and host keyboard pin3 (Rb)

connects auxiliary keyboard pin1 (Tb). Then auxiliary keyboard can control

DVR.

5 Output of control DVR

DVR-CON connect host keyboard pin2 (Ta) with DVR KB port D+, and connect host

keyboard pin1 (Tb) with DVR KB port D-

6 PTZ control indicator light In PTZ control mode, the led is green lighted and twinkling.

7 DVR control indicator

light

In DVR control mode, it is green and twinkling.

8 Power light PW The lamp of keyboard is constantly red lighted on the working state

9 Power input DC-12V DC 12V power input

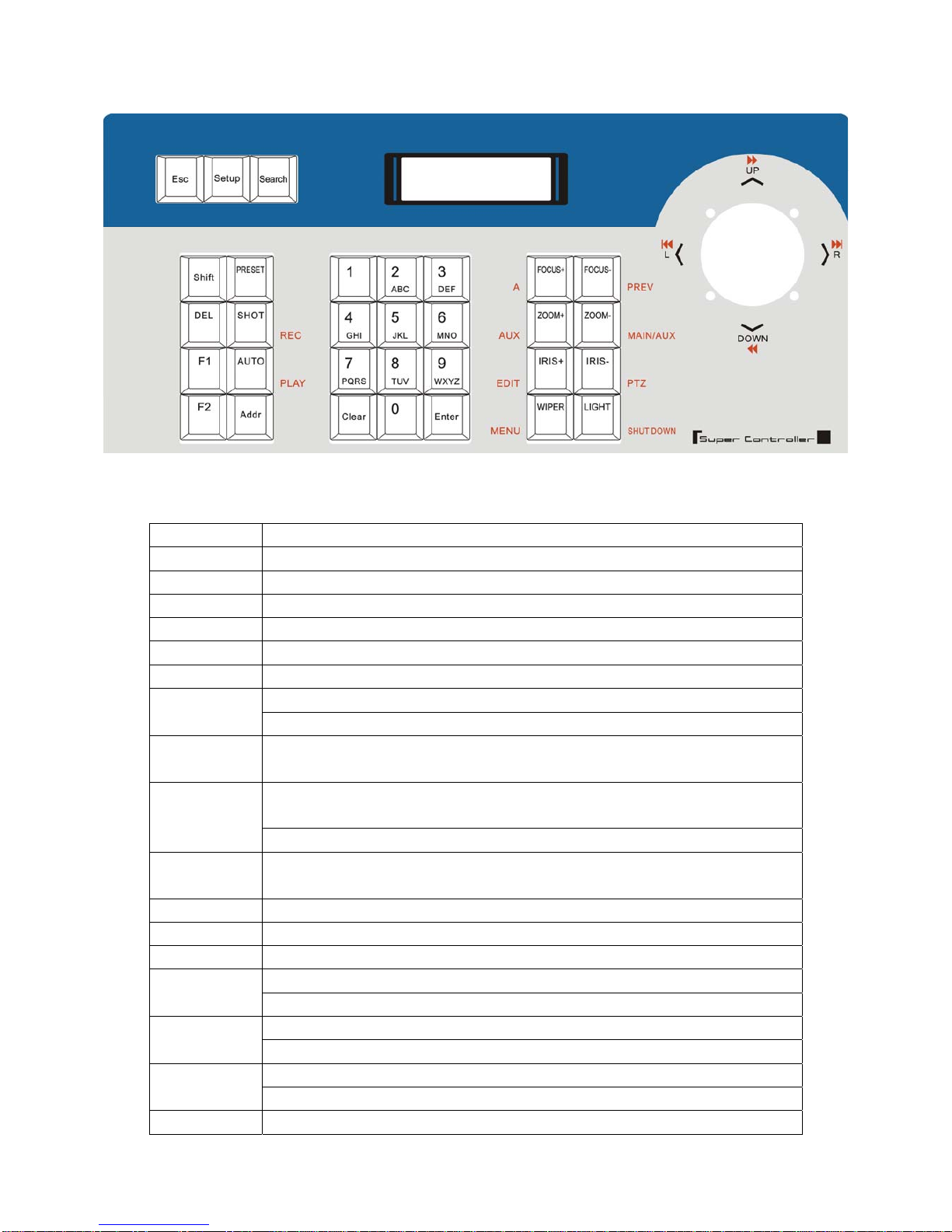

DS-1002KI front panel introduction

Fig 2

Key button function introduction

Button name Function introduction

ESC back to up-level menu

Setup hold for 3 seconds, enter into keyboard configuration state (default password: 8888)

Search press 1 second, check keyboard Configuration: the PTZ protocol

Shift switch the control mode of embedded DVR or speed dome

PRESET In PTZ control mode: setup the speed dome preset position.

DEL In PTZ control mode: clear the speed dome preset position.

In PTZ control mode: call PTZ presetSHOT

(REC) In DVR control mode: enter into DVR manual recording menu

F1 Quick key-press of setup speed dome, it is related to used protocol, refer to LCD

explanation.

In PTZ control mode: set the speed dome to auto rotate（depend on speed dome

itself, please reference the speed dome’s manual）

Auto

(PLAY)

In DVR control mode: enter into DVR playback menu

F2 Quick key-press of setup speed dome, it is related to used protocol, refer to LCD

explanation

Addr choose addresses of PTZ or the device ID of embedded DVRs

Clear clean currently input content

ENTER confirm currently input content

Number: 0, 1, 2, 3, 4, 5, 6, 7, 8, 90-9

Letter A-Z (26 letters)

In PTZ control mode: set the lens focus nearFOCUS+

(A) In DVR control mode: switch input method

In PTZ control mode: set the lens focus farFOCUS-

(PREV) In DVR control mode: switch DVR preview mode

ZOOM+ In PTZ control mode: zoom in the lens

(AUX) In DVR control mode, this button is reserved

In PTZ control mode: zoom out the lensZOOM-

(MAIN/AUX) In DVR control mode: switch the main/aux output port (hold for 2 seconds)

In PTZ control mode: open the lens irisIRIS+

(EDIT) In DVR control mode: edit input, same function as DVR front panel [EDIT] button

In PTZ control mode: close the lens irisIRIS-

(PTZ) In DVR control mode: enter the embedded DVR pan/tilt control function

In PTZ control mode: on/off the wiper relayWIPER

(MENU) In DVR control mode: show the DVR main menu

In PTZ control mode: on/off the light relayLight

(Shut down) In DVR control mode: power off DVR

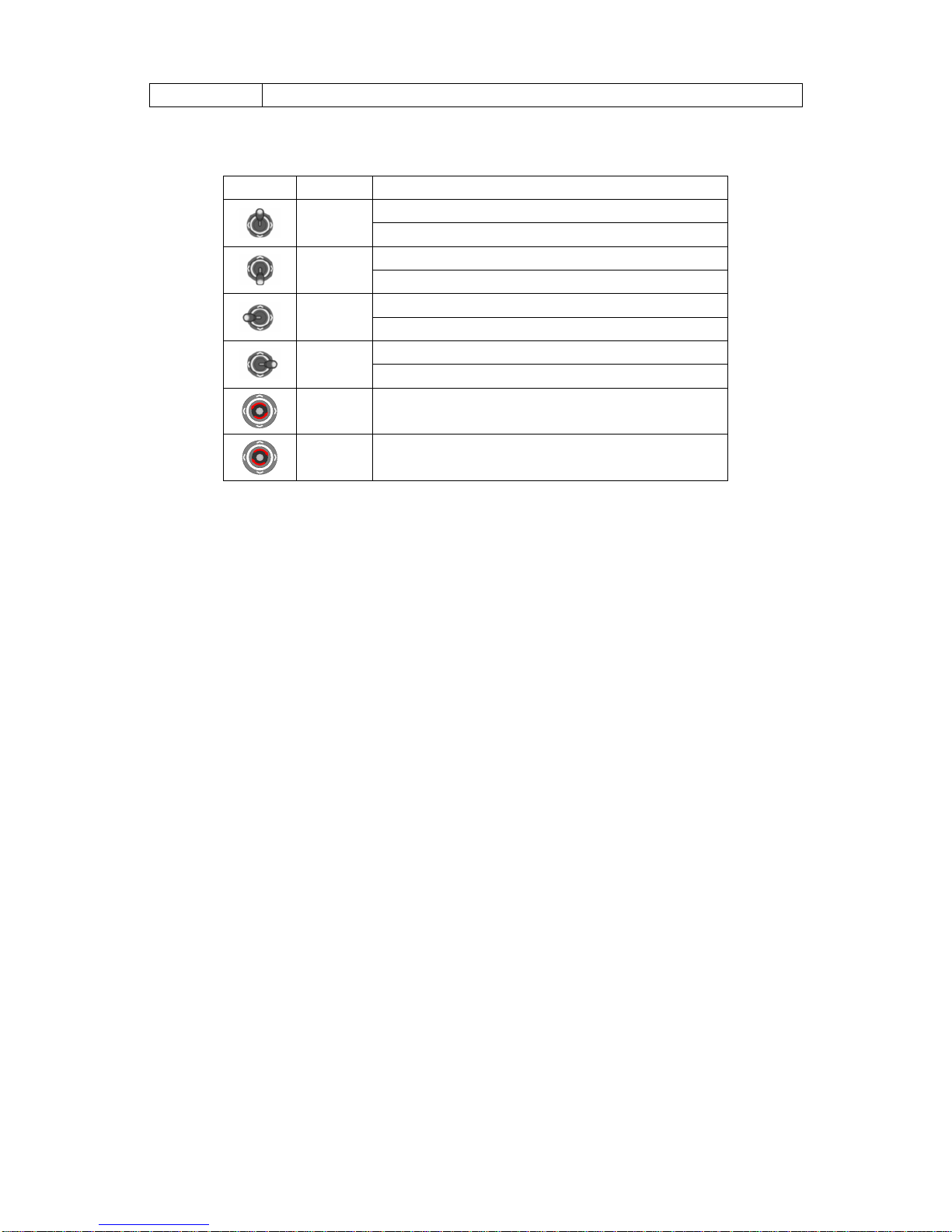

Joystick control introduction

fig operation

function introduction

In PTZ control mode: control the movement of pan/tilt

up In DVR control mode: play record file fast

In PTZ control mode: control the pan/tilt to move upon

down In DVR control mode: play record file slowly

In PTZ control mode: control pan/tilt to move left

left In DVR control mode: control record file backward

In PTZ control mode: control pan/tilt to move right

right In DVR control mode: control record file forward

LCD display indication introduction

Any operation is displayed and corresponding in LCD. The LCD will turn into electricity-save mode (minimum the

lightness) in 30 seconds without any input signal.

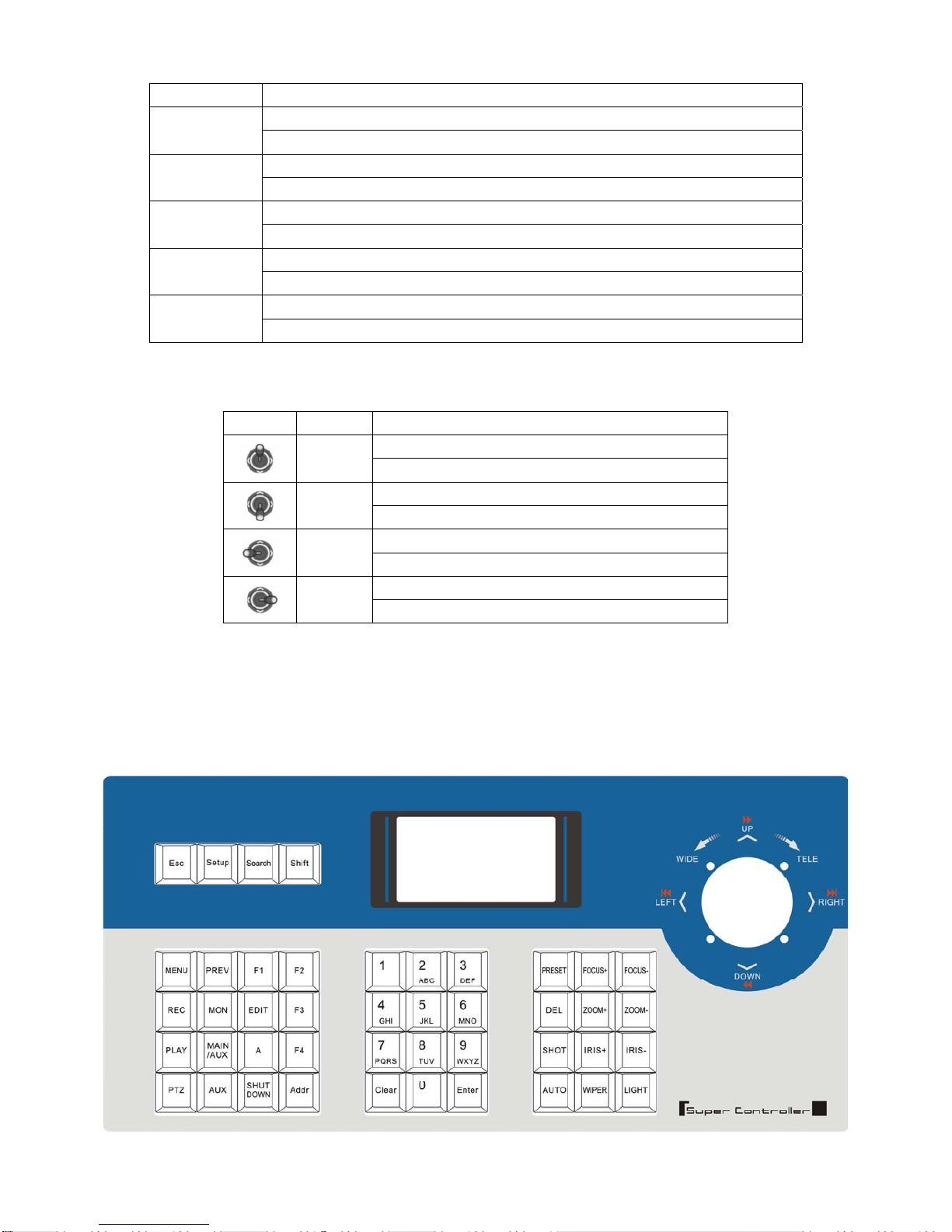

DS-1003KI front panel introduction

Fig 3

Key button functions introduction

Button name Function introduction

ESC back to up-level menu

Setup hold for 3 seconds, enter into keyboard configuration state (default password: 8888)

Search press 1 second, check keyboard configuration: PTZ protocol

Shift switch the control mode of embedded DVR or speed dome

MENU show the main menu

PREV switch the previews of single, four, nine, twelve, sixteen screens

F1 Quick key-press of setup speed dome, it is related to used protocol, refer to LCD

explanation.

F2 Quick key-press of setup speed dome, it is related to used protocol, refer to LCD

explanation.

REC Enter into DVR manual record menu.

MON specially control the four auxiliary display output ports of DS-8016HSI (hold for 2

seconds )

EDIT Enter into DVR edit mode.

F3 Quick key-press of setup speed dome, it is related to used protocol, refer to LCD

explanation.

PLAY Enter into DVR playback menu.

MAIN/AUX switch the main/aux output port (hold for 2 seconds)

A switch input ways

F4 Quick key-press of setup speed dome, it is related to used protocol, refer to LCD

explanation.

PTZ Enter into DVR PTZ control menu.

AUX In DVR control mode, this button is reserved.

Shut Down power off DVR

Addr choose addresses of PTZ or the device ID of embedded DVRs

Clear clean currently input content

ENTER confirm currently input content

Number.: 0, 1, 2, 3, 4, 5, 6, 7, 8, 90-9

A – Z A-Z (26 letters)

PRESET Setup the speed dome preset position

FOCUS+ set the lens focus near

FOCUS- set the lens focus far

DEL Delete the speed dome preset position

ZOOM+ zoom in the lens

ZOOM- zoom out the lens

SHOT Call the speed dome preset position

IRIS+ open the lens iris

IRIS- close the lens iris

Auto Set the speed dome to auto rotate（depend on speed dome itself, please reference the

speed dome’s manual）

WIPER on/off the wiper relay

Light on/off the light relay

Joystick control introduction

fig operation

function introduction

In PTZ control mode: control the movement of pan/tilt

up In DVR control mode: play record file fast

In PTZ control mode: control the pan/tilt to move upon

down In DVR control mode: play record file slowly

In PTZ control mode: control pan/tilt to move left

left In DVR control mode: control record file backward

In PTZ control mode: control pan/tilt to move right

right In DVR control mode: control record file forward

rotate left zoom in the lens

rotate right zoom out the lens

LCD display indication introduction

Any operation is indicated and corresponding in LCD display. The LCD will turn into electricity-save mode

(minimum the lightness) in 30 seconds without any operation.

。

Keyboard configuration and query

All the operation of keyboard configuration and query can be done via joystick and certain key buttons.

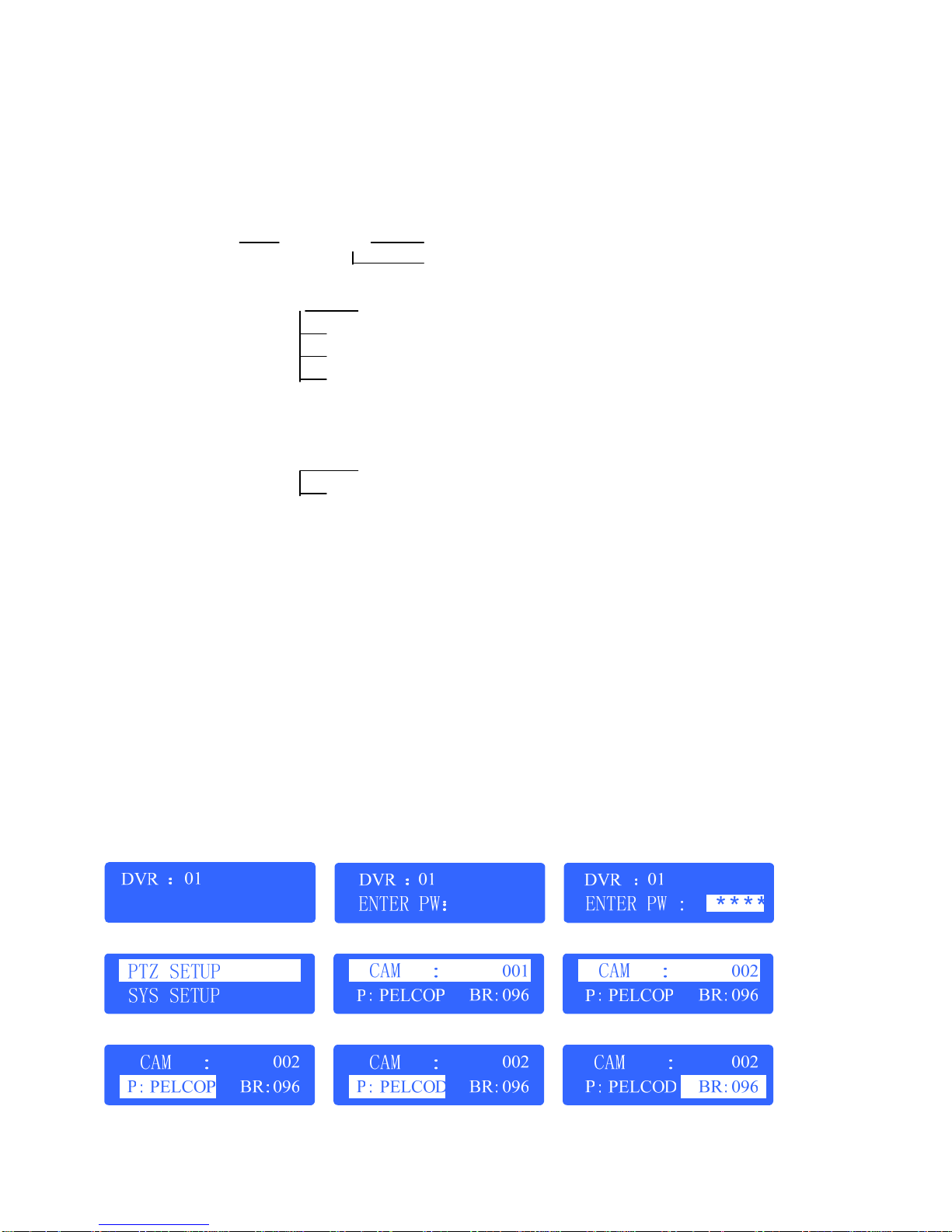

Keyboard menu tree

Configuration menu tree:

PTZ setup PTZ address corresponding protocol

BaudRate

keyboard parameter）password setup

Restoredefaultsetup

Sound setup

Keyboard ID setup

Inquire Keyboard parameter:

SYSTEMSEARCH modelname

Keyboard serial number

Configuration illustration

Here is a example to illustrate how to set dome: change the communication protocol of dome 002 to PELCO-D, and

change the baud rate to 4800.

1. In the mode of standby (fig a), hold the “Setup” button for 3 seconds, login the main menu (fig b);

2. Enter the password (fig c, default password: 8888);

3. Press [Enter], enter into setup menu, operate the Joystick up and down to choose [PTZ SETUP] or [SYS SETUP]

(fig d);

4. Choose [PTZ SETUP], press [Enter] to enter in [PTZ SETUP];

5. Operate the Joystick left and right to choose the address of speed dome, e.g. 002（fig e, f）, then press [Enter] to enter

the next level menu (fig g);

6. Operate the Joystick up and down to choose communication protocol, e.g. PELCO-D (fig h);

7. Operate the Joystick right to change the baud rate (fig i), and then choose the baud rate up and down (fig j);

8. Press [Enter], then press “ESC” until back to the standby mode (fig a);

9. Configuration is done

a b c

d e f

g h i

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HIK VISION Tastiera

HIK VISION

HIK VISION DS-1005KI Manuale utente

HIK VISION

HIK VISION DS-1200KI Manuale utente

HIK VISION

HIK VISION DS-1100KI Manuale utente

HIK VISION

HIK VISION DS-1100KI Manuale utente

HIK VISION

HIK VISION DS-1 KI Manuale utente

HIK VISION

HIK VISION DS-1200KI Manuale utente

HIK VISION

HIK VISION DS-1100KI Manuale utente

HIK VISION

HIK VISION DS-1600KI Manuale utente

HIK VISION

HIK VISION DS-1 Series Manuale utente

HIK VISION

HIK VISION DS-1005KI Manuale utente

HIK VISION

HIK VISION DS-1100KI Guida utente

HIK VISION

HIK VISION DS-1105KI Manuale utente

HIK VISION

HIK VISION DS-1100KI Manuale utente

HIK VISION

HIK VISION DS-1105KI Manuale utente

HIK VISION

HIK VISION DS-1600KIB Manuale utente

HIK VISION

HIK VISION DS-1005KI Istruzioni operative

HIK VISION

HIK VISION DS-1100KI Manuale utente

HIK VISION

HIK VISION DS-1004KI Manuale utente

HIK VISION

HIK VISION HI-1005KI Manuale utente

HIK VISION

HIK VISION DS-1004KI Manuale utente

HIK VISION

HIK VISION DS-1100KI Manuale utente

HIK VISION

HIK VISION HIK-1100KI Manuale utente

HIK VISION

HIK VISION DS-1100KI Manuale utente

HIK VISION

HIK VISION DS-1600KI Manuale utente

Manuali Tastiera popolari di altre marche

Vortexgear

Vortexgear POK3R Manuale utente

Razer

Razer RZ03-0188 Manuale utente

Logitech

Logitech RUGGED LITE Manuale utente

Honeywell

Honeywell ADEMCO 5839 Istruzioni per il montaggio

Hama

Hama AK-120 Manuale utente

Rodgers

Rodgers RK-76 Manuale utente

Logic Controls

Logic Controls KB5000 Series Manuale utente

Rapoo

Rapoo E9270P Manuale utente

iKey

iKey DP-88 Manuale utente

Logitech

Logitech G413 TKL SE Istruzioni di montaggio

Keychron

Keychron C1 Manuale utente

Dahua

Dahua NKB Manuale utente

Ultimate Technology

Ultimate Technology 500 POS Manuale utente

Ducky

Ducky Shine 5 Manuale utente

Mace

Mace MACALLY MERGOKEY Manuale utente

iKey

iKey KYB-42-KIOSK Manuale utente

Akko

Akko MX108 Manuale utente

Viper

Viper V770 Manuale utente
