HIK VISION DS-2CD2012-I Manuale utente

Installation Manual

www.eyesoniccctv.com

Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate

to contact the dealer.

This manual applies to

Type

Model

20xx Series

DS-2CD2012-I, DS-2CD2032-I

21xx Series

DS-2CD2112-I, DS-2CD2132-I

22xx Series

DS-2CD2212-I5, DS-2CD2232-I5, DS-2CD2212-I3, DS-2CD2232-I3

23xx Series

DS-2CD2312-I, DS-2CD2332-I

26xx Series

DS-2CD2612F-I, DS-2CD2632F-I

27xx Series

DS-2CD2712F-I(S); DS-2CD2732F-I(S)

This manual may contain several technical incorrect places or printing errors, and the content is

subject to change without notice. The updates will be added to the new version of this manual. We

will readily improve or update the products or procedures described in the manual.

DISCLAIMER STATEMENT

“Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of the security

or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined

in UL’s Standard(s) for Safety, UL60950-1. UL Certification does not cover the performance or

reliability of the security or signaling aspects of this product. UL MAKES NO REPRESENTATIONS,

WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY

OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.”

www.eyesoniccctv.com

Table of Contents

Chapter 1 Appearance Description........................................................................................................................ 3

1.1 Appearance Description of Bullet Camera ........................................................................................................... 3

1.1.1 20xx Series Bullet Camera ................................................................................................................................ 3

1.1.2 22xx Series Bullet Camera ................................................................................................................................ 4

1.1.3 26xx Series Bullet Camera ................................................................................................................................ 5

1.2 Appearance Description of Dome Camera ........................................................................................................... 6

1.2.1 21xx Series Dome Camera ................................................................................................................................ 6

1.2.2 27xx Series Dome Camera ................................................................................................................................ 7

1.3 Appearance Description of Turret Camera........................................................................................................... 8

Chapter 2 Setting the Network Camera over the LAN ........................................................................................... 9

Chapter 3 Accessing via Web Browsers ................................................................................................................11

www.eyesoniccctv.com

Chapter 1 Appearance Description

1.1 Appearance Description of Bullet Camera

1.1.1 20xx Series Bullet Camera

Camera Overview:

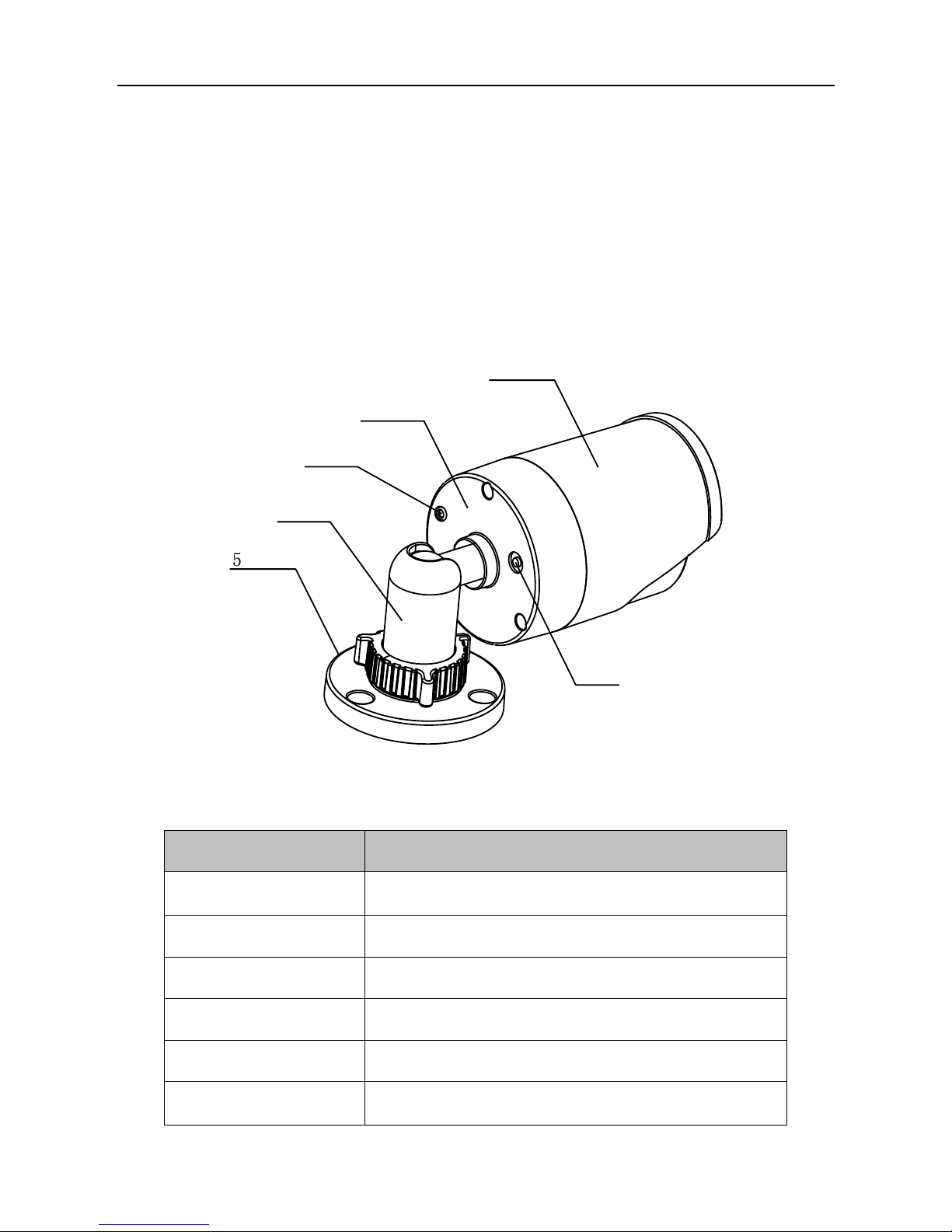

Figure 1-1 Bullet Camera Overview

Table 1-1 Description

No.

Description

Sun Shield

Back Box

Grounding Screw

Adjustable Bracket

Mounting Base

Reset

www.eyesoniccctv.com

1.1.2 22xx Series Bullet Camera

Camera Overview:

Figure 1-2 Bullet Camera Overview

Table 1-2 Description

No.

Description

Lens

IR LED

Sun Shield

Adjusting Screw

Network Cable

Power Cable

www.eyesoniccctv.com

Quick Operation Guide of Network Camera

1.1.3 26xx Series Bullet Camera

Camera Overview:

Figure 1-3 Overview

Table 1-3 Overview

No.

Description

Sun Shield

Front Cover

Zoom and Focus Lever

IR LED

Lens

Air Vent

Video Output Interface

Integrated Bracket

Reset Button

SD Card Slot

Power Cable

Network Cable

www.eyesoniccctv.com

1.2 Appearance Description of Dome Camera

1.2.1 21xx Series Dome Camera

Camera Overview:

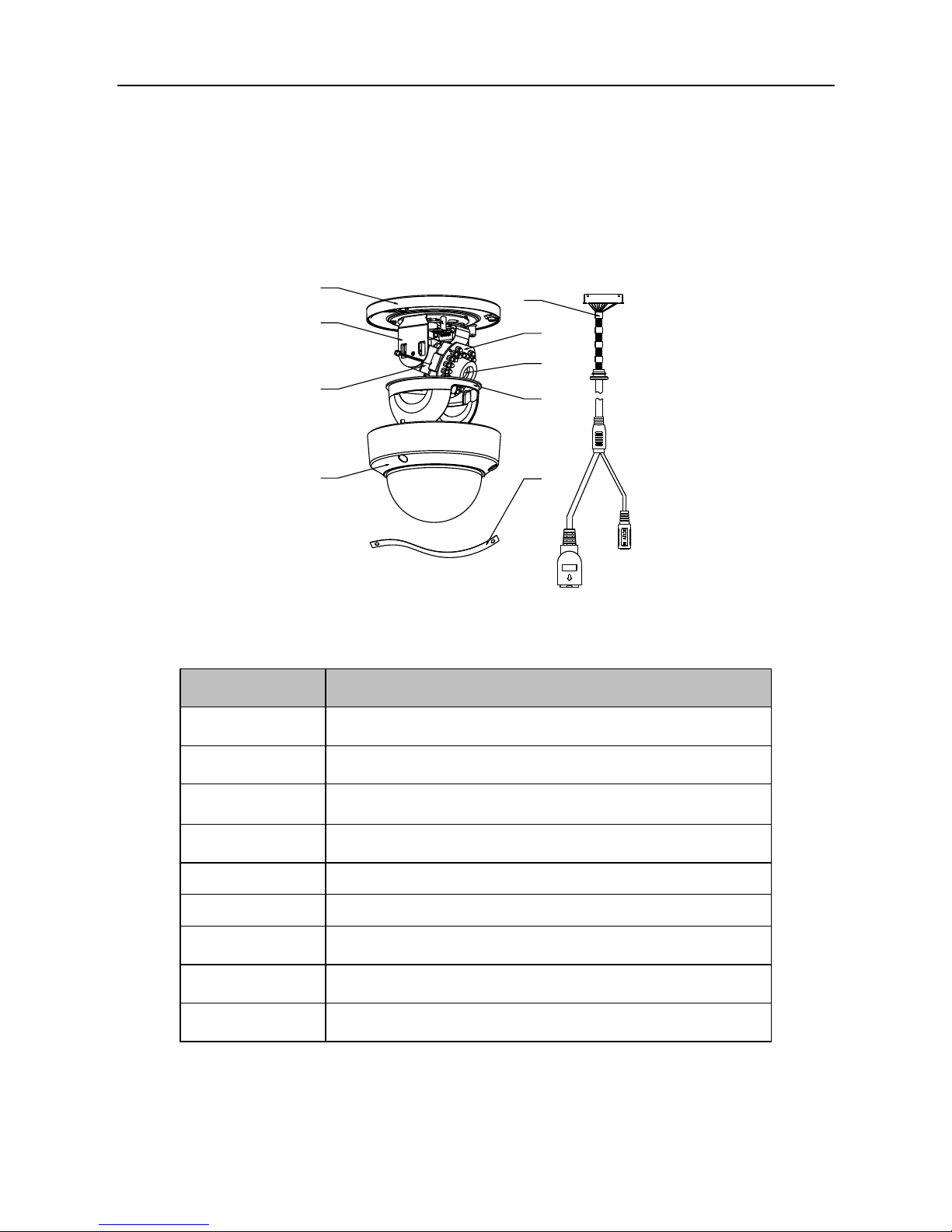

Figure 1-4 Overview

Table 1-4 Description

No.

Description

Mounting Base

Horizontal Stand

Vertical Stand

Bubble

Cables

IR LED

Lens

Black Liner

Safety Rope

www.eyesoniccctv.com

1.2.2 27xx Series Dome Camera

Camera Description

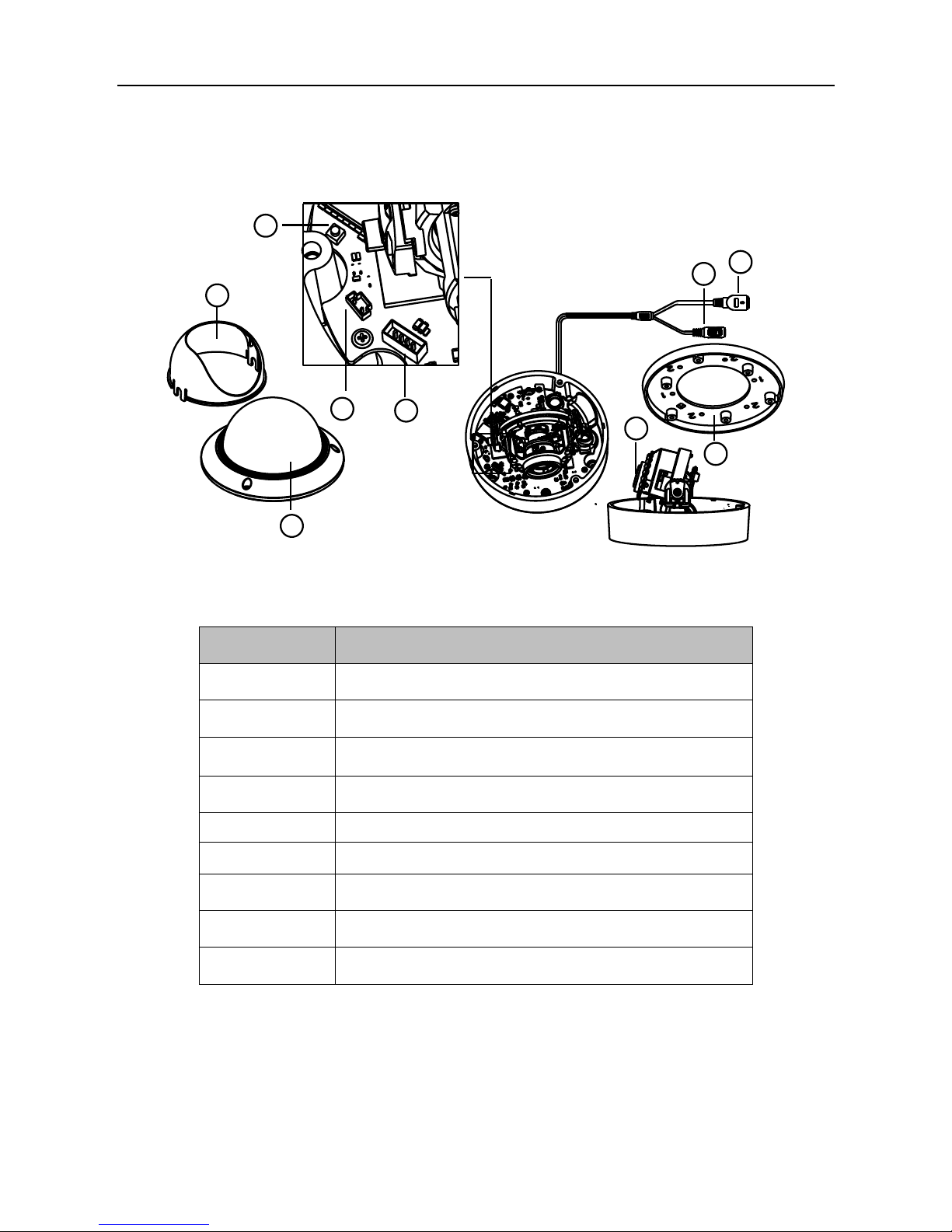

Figure 1-5 Overview

Table 1-5 Description

No.

Description

Bubble

Black Liner

Reset Button

AUX Video Output Interface

Serial Port

Power Cable

Ethernet Cable

Adapter Plate

Lens

www.eyesoniccctv.com

Quick Operation Guide of Network Camera

1.3 Appearance Description of Turret Camera

Camera Overview:

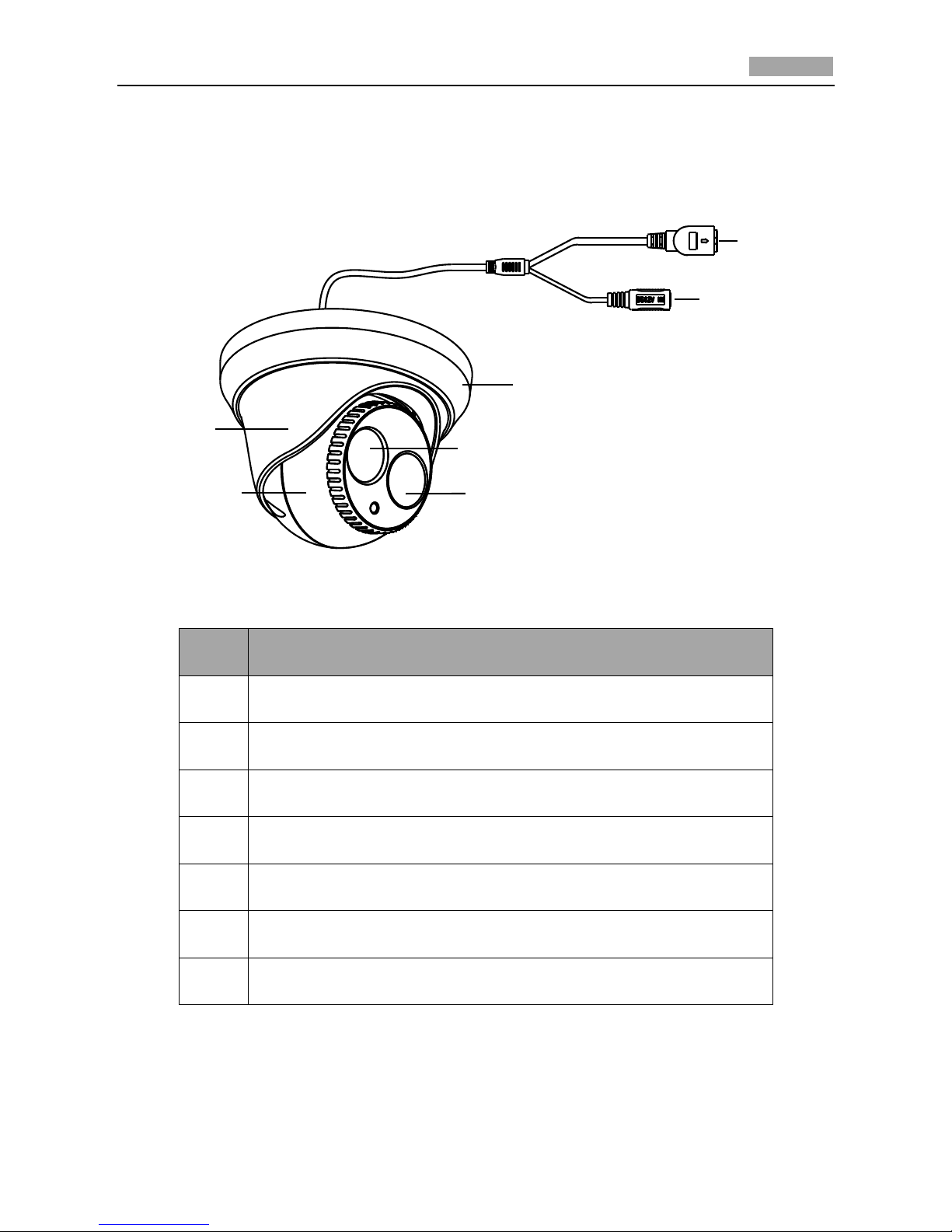

Figure 1-6 Overview

Table 1-6 Description

NO.

Description

10M/100M self-adaptive Ethernet interface

Power Cable

Trim Ring

Lens

IR LED

Enclosure

Camera

www.eyesoniccctv.com

Chapter 2 Setting the Network Camera over

the LAN

Purpose:

To view and configure the camera via LAN (Local Area Network), you need to connect the network

camera in the same subnet with your PC. Then install the iVMS-4200 software to search and change

the IP address of the network camera.

The following figure shows the cable connection of a network camera and a PC:

Figure 2-1 Wiring over LAN

Set the IP address of the camera for accessing via LAN.

Steps:

1. Use iVMS-4200 client software to detect the online devices. Please refer to the user manual of

iVMS-4200 client software for detailed information.

●Search online devices automatically

After launch iVMS-4200 software, it automatically searches the online devices every 15

seconds from the subnet where your computer locates. It displays the total number and

information of the searched devices in the Online Devices interface.

Go to Device Management, and click Server tab on the left-top of the window, and you can

see the online devices listed on the right bottom of the window.

Figure 2-2 Search Online Devices

www.eyesoniccctv.com
