LAN CABLE HiTESTER 3665
Wiremap
Detect Split Pairs with Wiring Check
Cable Length
Get NVP-Enhanced Measurement Accuracy
Direction
Identify Up to 21 Cable Destinations
Actual Size
Network Construction with
One Single Instrument
Network Construction with
One Single Instrument
2
Both straight-through and crossover cables (10/100BASE,
1000BASE-T and 1000BASE-TX) can be checked.

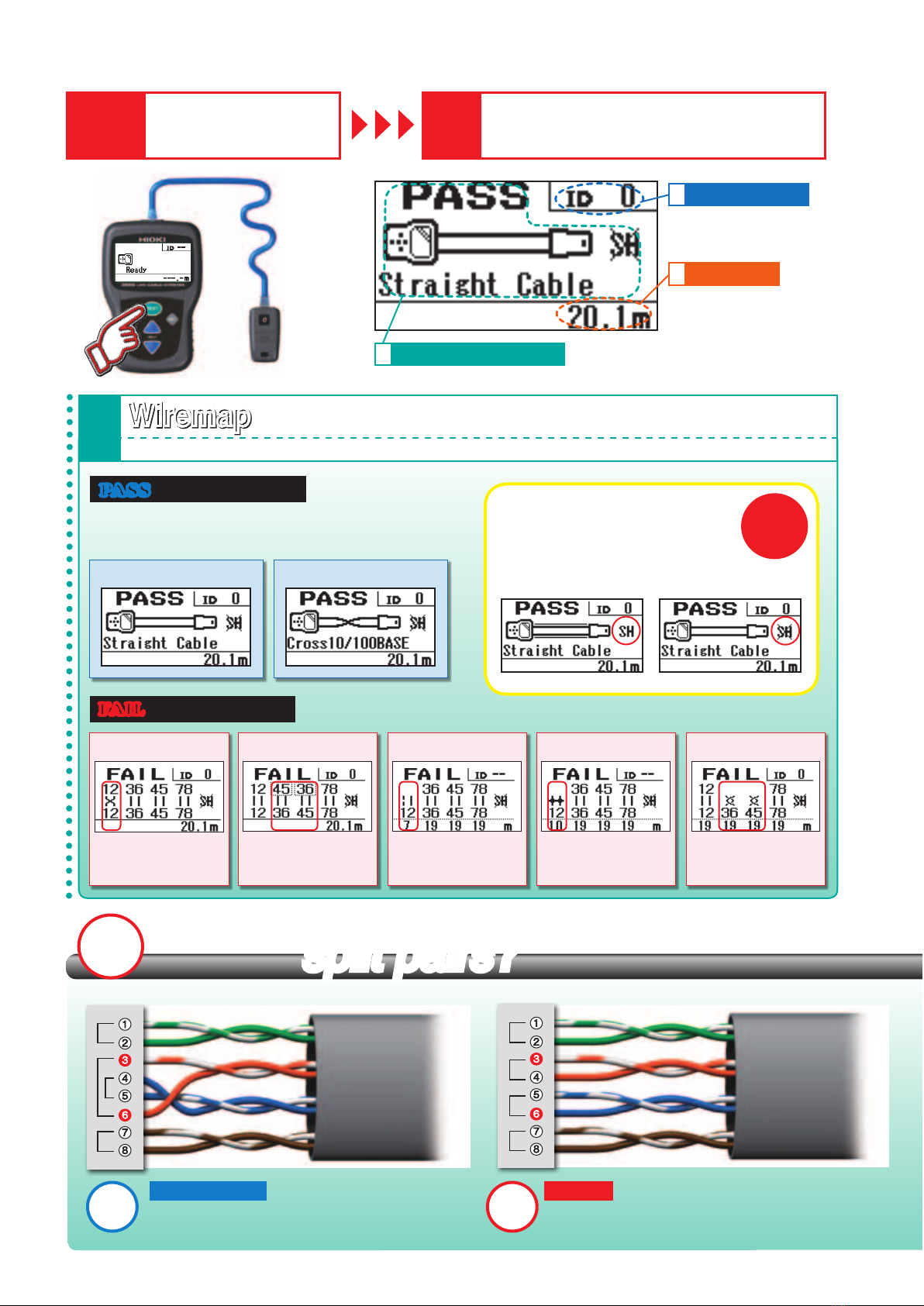

PASS Display Examples
Detect the existence of
shields or check for shield integrity.
Fully Compatible to
CAT6 LAN Cables
FAIL Display Examples
Pins 1 and 2 are reversed. Pins 3 and 6 have been incor-
rectly paired with Pins
4 and 5.
Pin 1 is open at a distance 7
meters from the LAN cable
tester.
Pins 1 and 2 are shorted at a
distance 10 meters from the LAN
cable tester.
A very common mistake - twist
pairs Pins 3+6, and Pins 4+5,
have been incorrectly con-
nected.
For wiring confirmation and locating broken wires after installation.Quick PASS/FAIL reading helps you complete your work faster.
1
Super-
sensitive
Detection
Caution!
split pairs?split pairs?
Can you find
Split Pair
Proper Wiring
Direction (ID No.)
2
Wiremap
(Wiring Status)
1
Cable Length
3
Just connect a cable, and
press the TEST button
Check all parameters such as wiremap,
direction and cable length at a glance.
Extremely
Intuitive
Wide
LCD
Screen
Identify the terminator ID here.
Obtain a record of the entire
length of the cable, or up to the
point where the cable is dam-
aged.
Large PASS/FAIL display, cable type, reason for cable failure and shield condition.
LAN cable wires should be connected as shown in the diagram
above, such that Pins 3 and 6 are twisted.
A "Split Pair" is detected when Pins 3 and 6 are not twisted and
paired together as shown above.
FAIL
PASS
Wiremap
Wiremap
UnshieldedShielded
Straight Cable Cross Cable
Split PairShortOpenTransposedReversed
3
Have you ever had trouble
installing additional cables?
Take advantage of the conveniences offered by the tes-
ter's capabilities to check wiring while conrming multiple
cable destinations.
Up to 21 terminators can be connected (additional terminators
sold separately.) Convenient for conrming the connection desti-
nations of multiple cables.
You will never need to go back and forth
again just to change the terminators.
1 2 3
n Activating the NVP function is as simple as 1-2-3
NVP (Nominal Velocity of Propagation) is the ratio of the speed of a signal in the cable relative to the speed of light in a vacuum.
NVP differs according to the type of cable and the manner in which the wire pairs are twisted, so measurement accuracy can be enhanced by setting the NVP value for the particular type of cable to be measured.
Preparation
The HIOKI 3665 can do the job for you properly and accu-
rately by also detecting split pairs.
To properly check LAN cable wiring,
a tester capable of detecting split pairs is indispensable.
Measure for cable length and detect the location of broken or short-circuited wires.
3
Cable Length
Cable Length
Locate up to 21 unique cable destinations.
2
Direction

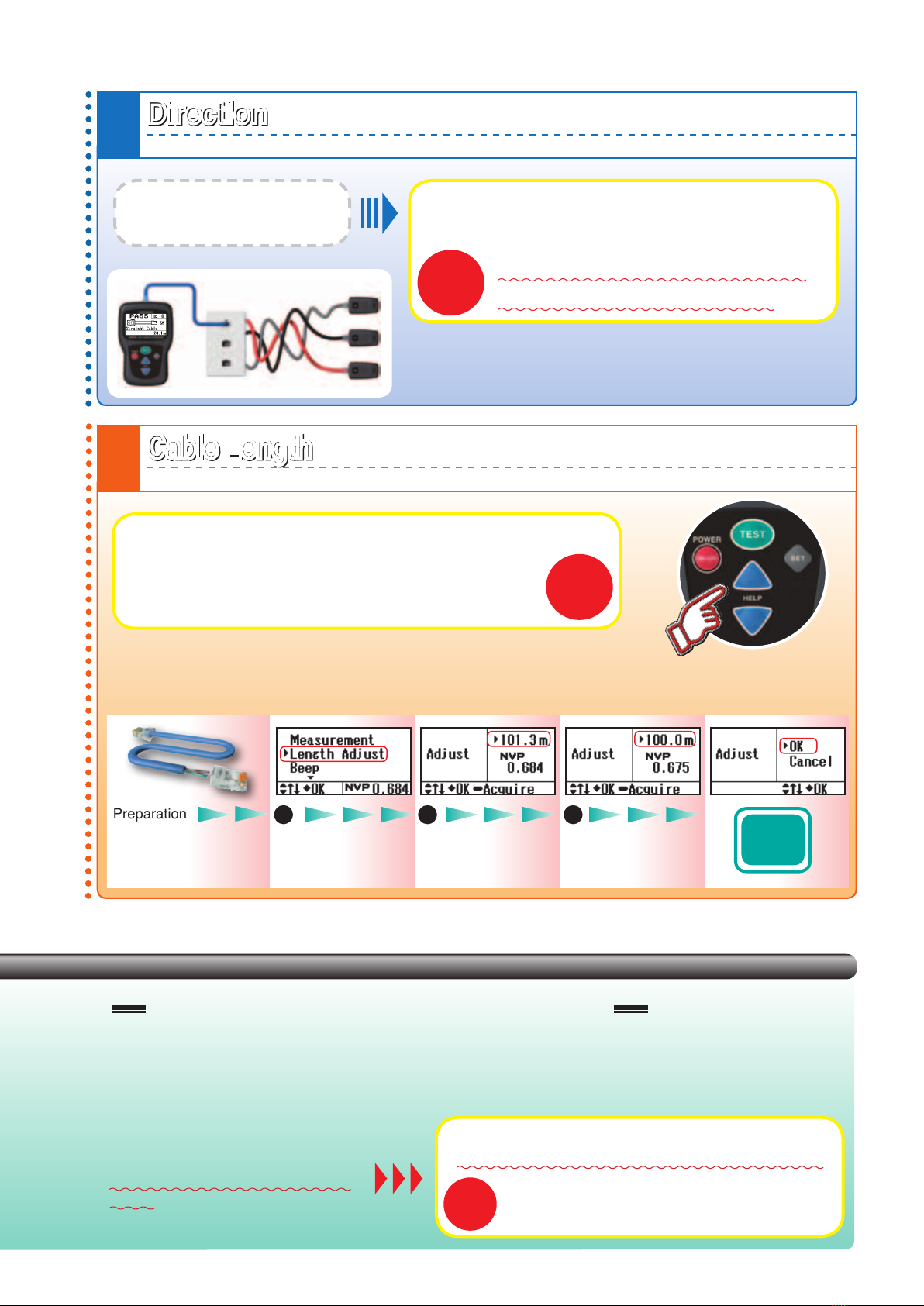

The NVP setting is a cable-length compensation function that enhances the ac-
curacy of cable length measurements.
Accuracy with NVP activated:
n ± 4% rdg. ± 1m
(vs.previous HIOKI model: 15% rdg. ±1m)
Increased
Precision!
Split pairs appear to be properly
connected to the untrained eye,
and cannot be detected with continuity
testing. OK!
How Can Split Pairs Affect the Network?
u
Communication speed can be suppressed - 100BASE signals may reach only 10BASE speeds.
u
Excessive communication errors - data transfer may be intermittent or completely inhibited.
u
Cables miswired in this way are more susceptible to electrical noise.
Increased
Efciency!
*
Direction
*
Setting
Finished
On the Settings screen, se-
lect “Length Adjust”.
Press the TEST button to
measure the (already known)
length of the reference cable.
Calibrate the display to the
measured reference cable.
Prepare a reference cable using a
known length of the same type as that
to be measured (at least 100-meter
length recommended).
HEADQUARTERS
81 Koizumi
Ueda, Nagano 386-1192 Japan
www.hioki.com
HIOKI USA CORPORATION
TEL +1-609-409-9109 FAX +1-609-409-9108
hioki@hiokiusa.com / www.hiokiusa.com
All information correct as of Apr. 9, 2018. All specications are subject to change without notice. 3665E6-84B Printed in Japan
DISTRIBUTED BY
HIOKI (Shanghai) SALES & TRADING CO., LTD.
TEL +86-21-6391-0090/0092 FAX +86-21-6391-0360
info@hioki.com.cn / www.hioki.cn
HIOKI SINGAPORE PTE.LTD.
TEL +65-6634-7677 FAX +65-6634-7477
info-sg@hioki.com.sg / www.hioki.com.sg
HIOKI KOREA CO., LTD.
TEL +82-2-2183-8847 FAX +82-2-2183-3360
info-kr@hioki.co.jp / www.hiokikorea.com
HIOKI EUROPE GmbH
TEL +49-6173-31856-0 FAX +49-6173-31856-25
Note: Company names and Product names appearing in this catalog are trademarks or registered trademarks of various companies.
Measurable cables Twisted-pair cable
100 Ω characteristic impedance, shielded and unshielded, CAT 3, 4, 5, 5e and 6
Compatible connectors
RJ-45 plugs
Measurement Items
[Wiremap] Wiring condition and shielding can be confirmed using the HIOKI TERMINATOR 9690
Detectable errors: open, short, reversed, transposed, split pairs and other miswiring
[Cable Length]
Measurable lengths: 2 to 300 m, 6.6 to 984 ft
Measurement accuracy: ±4% rdg. ±1 m, ±4% rdg. ±3.3 ft
Display resolution: 0.1 m
[Destination] Up to 21 cables can be identified using the supplied TERMINATOR 9690 and optional Models 9690-01 to
9690-04 to test multiple cables simultaneously
Display 128 × 64 dot matrix LCD (with backlight)
Functions
Auto Backlight: pressing a button turns the backlight on (it turns off automatically after about 20 seconds)
Beeper: sounds when pressing buttons and when measurement results are displayed
Energy-Saving Mode: enter into energy-saving mode after measurement (and resume when the TEST button is pressed)
Auto Power Save: the 3665 turns off automatically about 10 minutes after the last button press
Battery Check: Battery indicator blinks when voltage falls below 2.4 V
Unit Switch: Select between meters or feet
Compliance
Standards
Safety Standard: EN61010 Pollution Level 2
EMC Standard: EN61326
Allowable Input 3.3 V peak (between RJ-45 pins)
Operating Temperature & Humidity
0 to 40 °C, 80% RH or less, non-condensating
Storage Temperature & Humidity
–10 to 50 °C, 80% RH or less, non-condensating
Power supply LR6 (AA) alkaline batteries × 2
Maximum Power Consumption
1.4 VA
Operating Time Approx. 50 hours (measuring once per minute)
Dimensions Approx. 85 mm (3.35 in) W × 130 mm (5.12 in) H × 33 mm (1.30 in) D
Mass Approx. 160 g (5.6 oz)
n Specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
@ 23 ±5 °C, 80% RH or less, non-condensating, with battery indicator unlit
CARRYING CASE
TERMINATOR 9690-01 (IDs 1 to 5)
TERMINATOR 9690-02 (IDs 6 to 10)
TERMINATOR 9690-03 (IDs 11 to 15)
TERMINATOR 9690-04 (IDs 16 to 20)
CARRYING CASE 9249 (stores the 3665 and 9690 together)
nSupplied Accessories nOptions
TERMINATOR 9690
CARRYING CASE
(Stores the HiTESTER 3665 and TERMINATORs 9690)
CARRYING CASE 9249
(for storing everything together)
TERMINATOR 9690
TERMINATOR 9690-01
Model : LAN CABLE HiTESTER 3665
Model No. (Order Code)
(Note)
3665-20 (English model)
Accessories: Terminator 9690 ×1, Carrying case ×1, LR6 (AA) alkaline battery ×2,
Instruction manual ×1
