Hioki 3550 Manuale utente

INSTRUCTION MANUAL

For...は専用機種。複数の場合は「/」で区切る。

不要の場合はとる。

形名を入力。複数の場合は「/」で区切る。

3550

品名を入力。

BATTERY HiTESTER

Contents

Introduction i

Inspection i

Safety ii

Precautions v

Organization of this Manual viii

Chapter 1 Overview 1

Chapter 2 Names and Functions of Parts 3

Chapter 3 Specifications 9

3.1 General Specification 9

3.2 Measurement Range 13

3.2.1 Maximum Input Voltage 14

3.2.2 Floating Voltage 15

3.2.3 Dielectric Strength 15

Chapter 4 Standard Measurement 17

4.1 Preparing for Measurement 17

4.2 Measurement 19

Chapter 5 Advanced Measurement Functions 23

5.1 Comparator Function 23

5.1.1 What is the Comparator Function? 23

5.1.2 Comparator Settings 24

5.1.3 Comparator Decision Result Table 29

5.1.4 Switching the Comparator On and Off 30

5.1.5 Changing the Comparator Number 31

5.2 Measurement Value Memory Function 32

5.2.1 Memory 32

5.2.2 Clear 34

5.2.3 Readout 35

5.2.4 Printing 36

5.3 Beeper On/Off Function 38

5.4 Hold Function 38

5.5 Moving Average Function 39

5.6 Zero Adjust Function 41

5.7 Battery Low Warning 42

5.8 Auto Power Off 43

5.9 AC Four-Terminal Method 45

5.10 Internal Resistance of Lead-Acid Batteries 47

Chapter 6 Maintenance 49

6.1 Troubleshooting 49

6.2 Message Reference 51

6.3 Cleaning 51

___________________________________________________________________

Inspection

___________________________________________________________________

Introduction

Inspection

Thank you for purchasing the HIOKI "3550 BATTERY

HiTESTER." To obtain maximum performance from the

product, please read this manual first, and keep it handy for

future reference.

When you receive the product, inspect it carefully to ensure

that no damage occurred during shipping. In particular,

check the accessories, panel switches, and connectors. If

damage is evident, or if it fails to operate according to the

specifications, contact your dealer or Hioki representative.

Accessories

9460 CLIP TYPE LEAD WITH TEMPERATURE SENSOR

9382 CARRYING CASE

Six LR6 alkaline batteries

Instruction Manual

Dust cover (for the printer interface)

Shipping

Use the original packing materials when reshipping the

product, if possible.

___________________________________________________________________

Safety

___________________________________________________________________

DANGER This product is designed to conform to IEC 61010

Safety Standards, and has been thoroughly tested for

safety prior to shipment. However, mishandling

during use could result in injury or death, as well as

damage to the product. Be certain that you

understand the instructions and precautions in the

manual before use. We disclaim any responsibility for

accidents or injuries not resulting directly from

product defects.

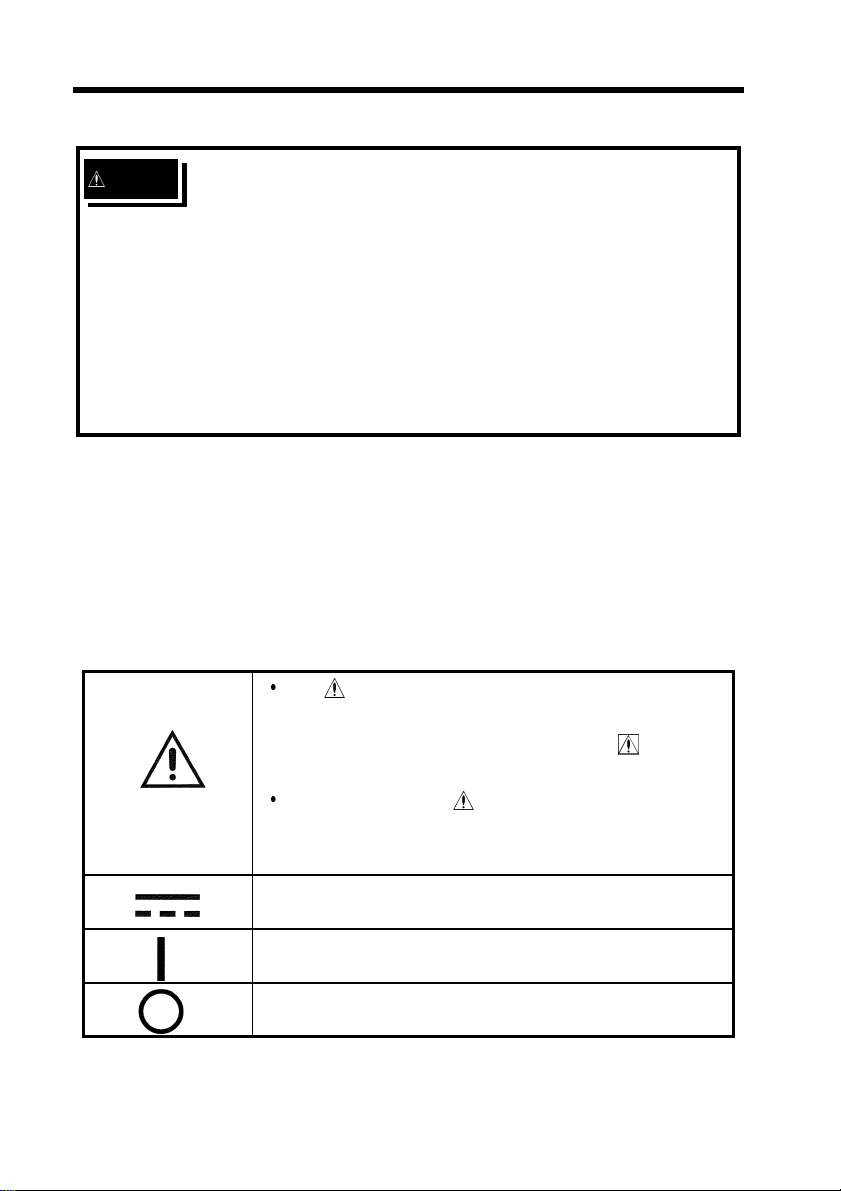

The symbol printed on the product indicates

that the user should refer to a corresponding

topic in the manual (marked with the symbol)

before using the relevant function.

In the manual, the symbol indicates

particularly important information that the user

should read before using the product.

Indicates DC (Direct Current).

Indicates the ON side of the power switch.

Indicates the OFF side of the power switch.

Safet

Safety symbols

This manual contains information and warnings essential for

safe operation of the product and for maintaining it in safe

operating condition. Before using the product, be sure to

carefully read the following safety notes.

iii

___________________________________________________________________

Safety

___________________________________________________________________

DANGER

Indicates that incorrect operation presents an

extreme hazard that could result in serious injury

or death to the user.

WARNING

Indicates that incorrect operation presents a

significant hazard that could result in serious

injury or death to the user.

CAUTION

Indicates that incorrect operation presents a

possibility of injury to the user or damage to the

product.

NOTE Advisory items related to performance or correct

operation of the product.

The following symbols in this manual indicate the relative

importance of cautions and warnings.

___________________________________________________________________

Safety

___________________________________________________________________

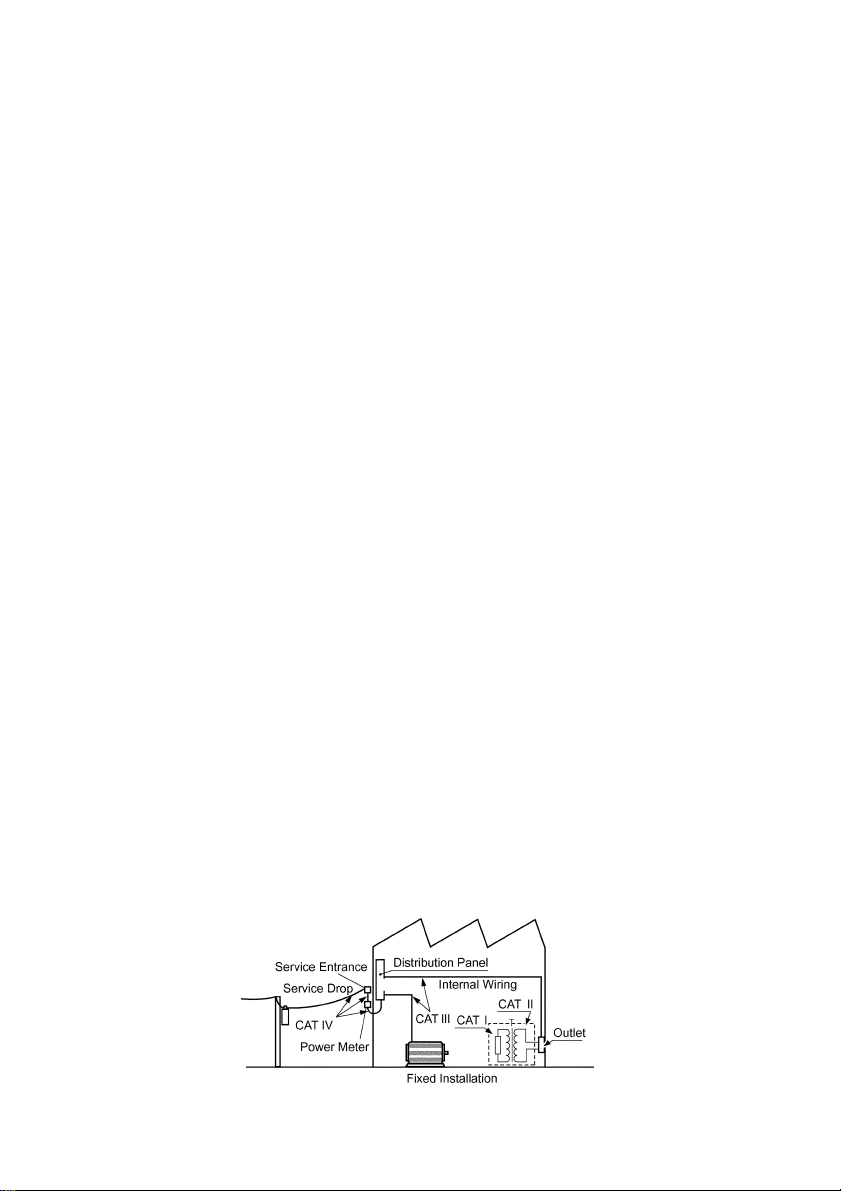

Measurement categories (Overvoltage categories)

This product conforms to the safety requirements for CAT I

measurement products.

To ensure safe operation of measurement products, IEC 61010

establishes safety standards for various electrical environments,

categorized as CAT I to CAT IV, and called measurement

categories. These are defined as follows.

CAT I : Secondary electrical circuits connected to an AC

electrical outlet through a transformer or similar device.

CAT II : Primary electrical circuits in equipment connected to an

AC electrical outlet by a power cord (portable tools,

household appliances, etc.)

CAT III : Primary electrical circuits of heavy equipment (fixed

installations) connected directly to the distribution panel,

and feeders from the distribution panel to outlets.

CAT IV: The circuit from the service drop to the service entrance,

and to the power meter and primary overcurrent

protection device (distribution panel).

Higher-numbered categories correspond to electrical environments

with greater momentary energy, so a measurement product

designed for CAT III environments can endure greater momentary

energy than one designed for CAT II. Using a measurement

product in an environment designated with a higher-numbered

category than that for which the product is rated could result in a

severe accident, and must be carefully avoided.

Never use a CAT I measuring product in CAT II, III, or IV

environments.

The measurement categories comply with the Overvoltage

Categories of the IEC60664 Standards.

___________________________________________________________________

Precautions

___________________________________________________________________

DANGER The floating voltage between input terminals and

ground is 450V DC/AC. Attempting to measure

voltages exceeding 450V with respect to ground

could damage the product and result in personal

injury.

When voltages higher than 30 Vrms, 42.4 Vpeak or

battery circuits with more than 60 VDC are to be

measured, be sure to establish the floating state

first. Carrying out such measurements in the

grounded state involves the risk of electric shock.

When measuring batteries, always ensure sufficient

ventilation. Sometimes sparks may occur when the

test leads are connected to batteries, which can

ignite any accumulated inflammable gases such as

hydrogen.

To avoid electric shock accidents, when measuring

batteries being charged wear proper protective gear

such as rubber gloves.

WARNING

Do not allow the product to get wet, and do not take

measurements with wet hands. This may cause an

electric shock.

Do not use the product where it may be exposed to

corrosive or combustible gases. The product may be

damaged or cause an explosion.

Precautions

Follow these precautions to ensure safe operation and to

obtain the full benefits of the various functions.

___________________________________________________________________

Precautions

___________________________________________________________________

WARNING

Before using the product, make sure that the

insulation on the leads is undamaged and that no

bare conductors are improperly exposed. Using the

product in such conditions could cause an electric

shock, so contact your dealer or Hioki representative

for replacements. (Model 9460)

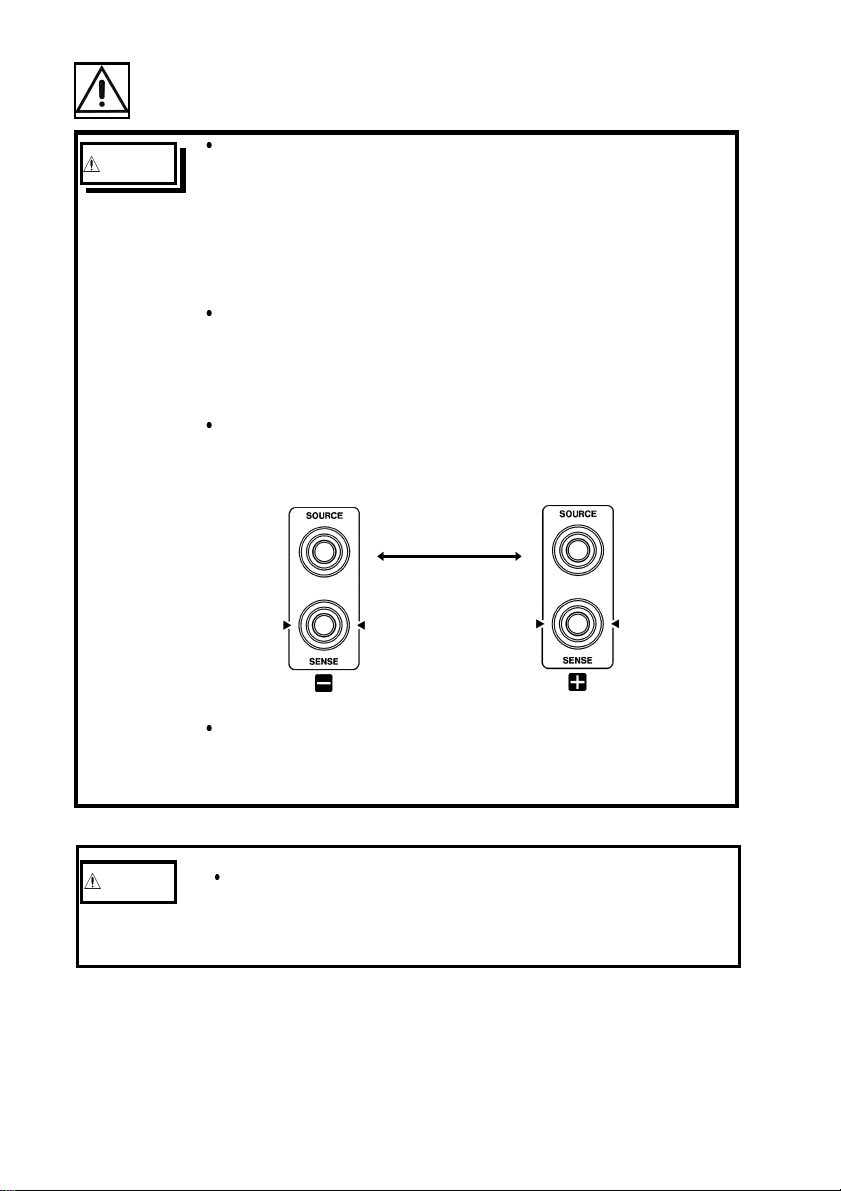

Be sure to connect the SOURCE and SENSE

terminals (banana plugs), and TEMP SENSOR

terminal (mini-plug) correctly. See Section 4.2,

"Measurement" for details of the connections.

To avoid injury or damage to the product, do not

attempt to measure AC voltage, or DC voltage

exceeding 50 V.

50 VDC max.

Do not apply a voltage between the SOURCE(+) and

SENSE(+) or SOURCE(-) and SENSE(-) terminals.

This could result in damage to the unit.

CAUTION This product is not designed to be entirely water- or

dust-proof. To avoid damage, do not use it in a wet or

dusty environment.
