Hioki BT3554-50 Manuale utente

BT3554-50

BT3554-51 Instruction Manual

BATTERY TESTER

Sept. 2021 Revised edition 3

BT3554F961-03 21-09H

Read carefully before use.

Keep for future reference.

BT3554-52

HIOKI BT3554F961-03

www. .com information@itm.com1.800.561.8187

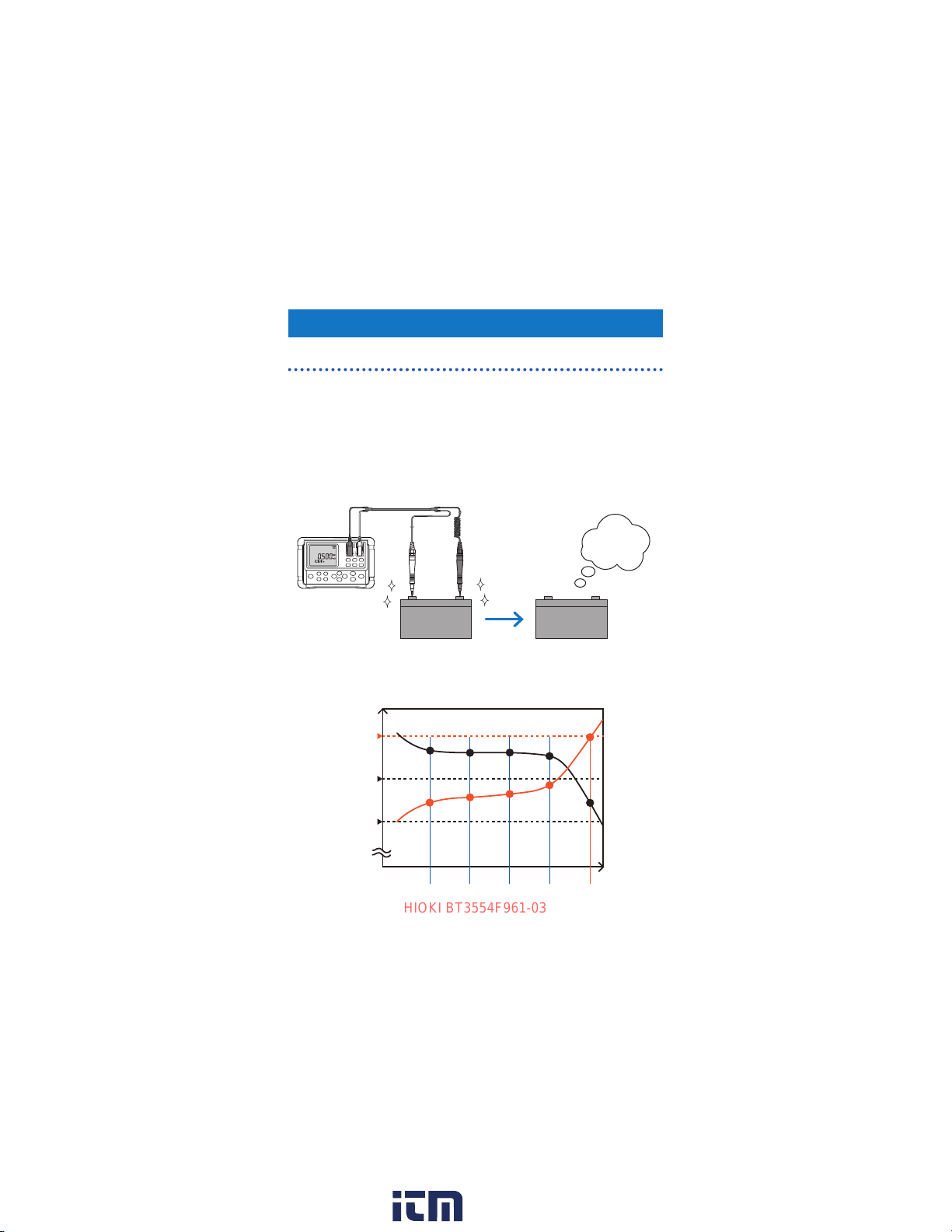

Let’s start by measuring a fresh battery

To evaluate whether batteries have deteriorated, measure the

internal resistance of a fresh battery. Deteriorated batteries will have

about 1.5 to 2 times (values for reference purposes) as high internal

resistance as a fresh one. Use these values as guidelines when

determining deterioration evaluation values.

Example: Changes in the internal resistance and voltage

associated with battery deterioration

Internal resistance: 0.5 mΩ

Voltage: 2.0 V

(Example values)

1.0 mΩ(Doubled)

1.8 V (Decreased by 10%)

Resistance has

doubled . . . Deteriorated

Fresh Need

replacing

FAIL

Initial value × 2

WARNING

Initial value × 1.5

PASS

Initial value Available

charge

amount

Internal

resistance

Deterioration

evaluation value

of resistance

PassPassPassPass Fail

Battery Tester Quick Guide

BT3554F961-03

Battery Tester Quick Guide

HIOKI BT3554F961-03

www. .com information@itm.com1.800.561.8187

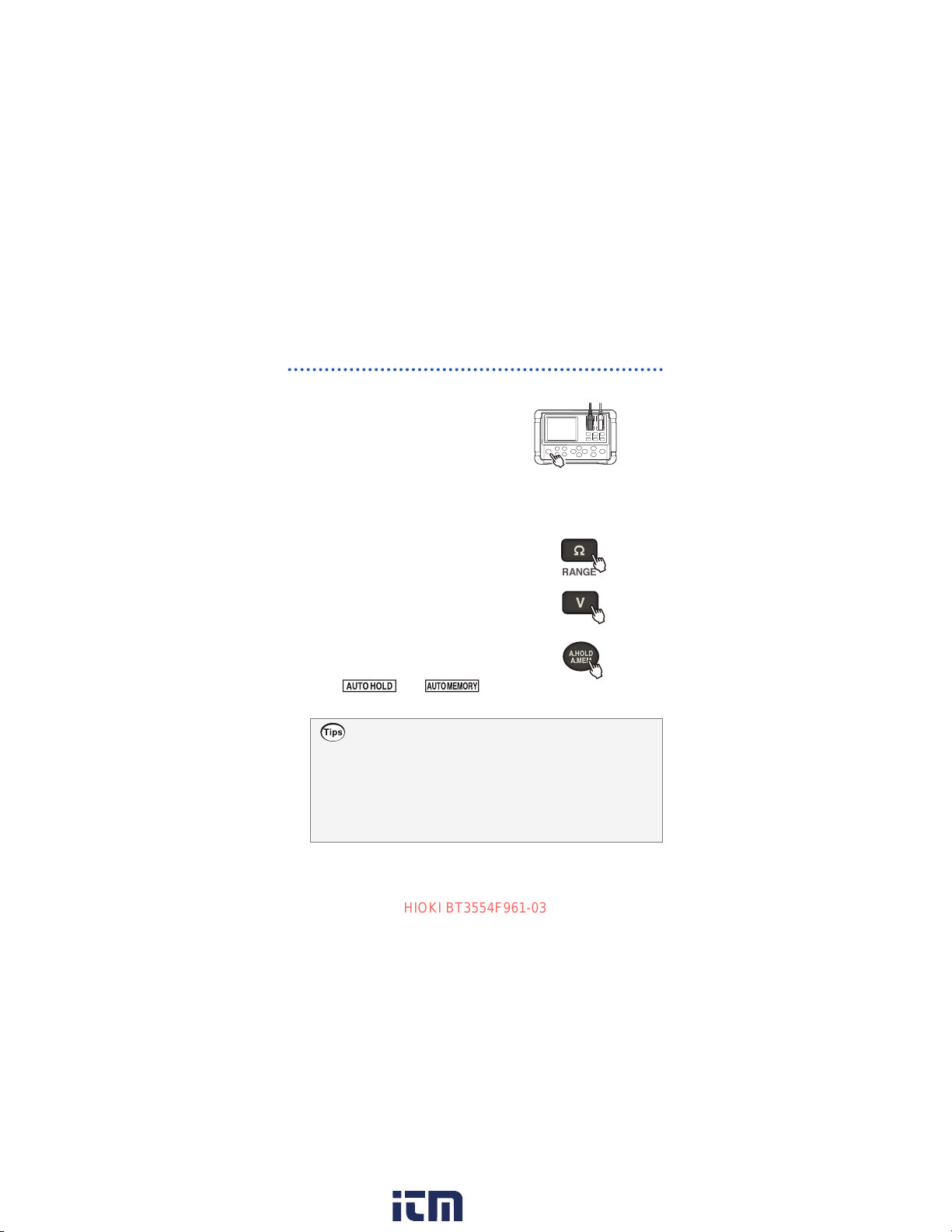

Basic instruction on how to use the instrument

Connect the test lead to the

instrument. (Black) (Red)

Hold down for

at least 1 s.

Turn on the instrument.

Set the date and time when using

the instrument for the rst time.

(p. 45)

Choose a resistance range.

(p. 49)

Choose a voltage range.

(p. 49)

Enable the automatic hold and

automatic memory functions.

(The and

segments will appear.)

When the measured values become stable, the

display will automatically freeze them.

See “3.6 Automatic Hold Function” (p. 61).

Immediately after the display freezes measured

values, the instrument will automatically save them.

See “5.3 Automatic Memory Function” (p. 89).

HIOKI BT3554F961-03

www. .com information@itm.com1.800.561.8187

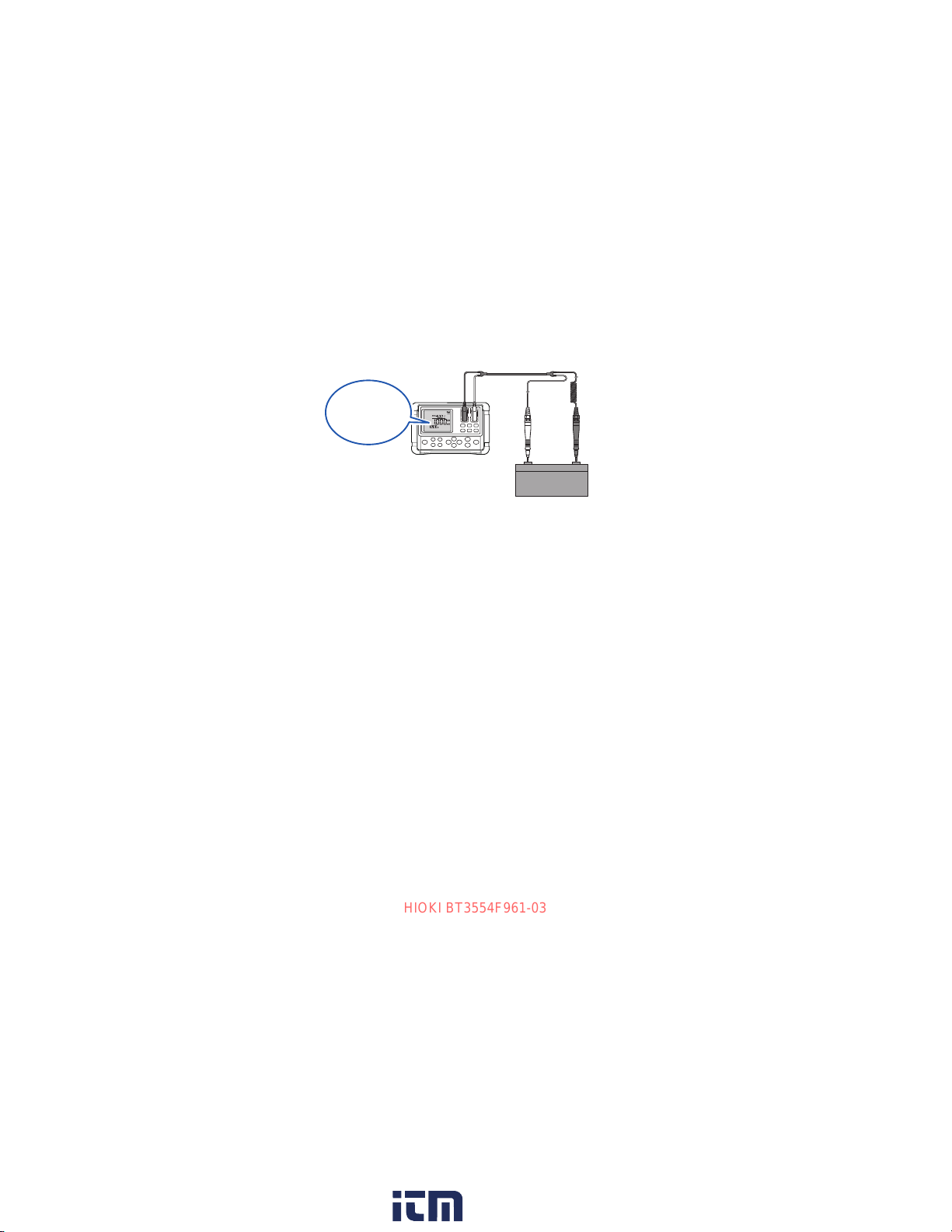

Connect the test lead to a battery under measurement.

(Black)(Red) −

Saved in

internal

memory.

HIOKI BT3554F961-03

www. .com information@itm.com1.800.561.8187

Convenient functions

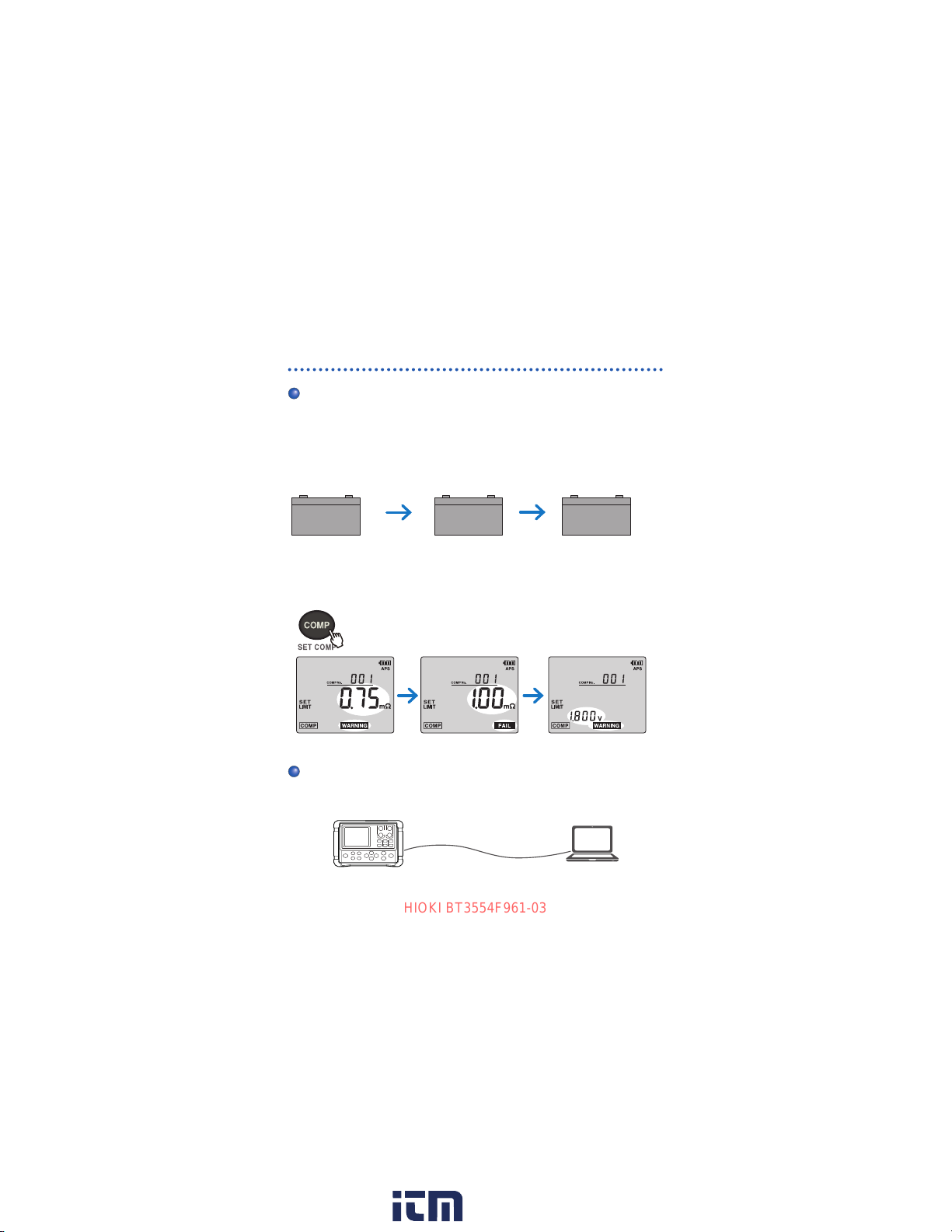

Comparator function

You can set threshold values to evaluate battery deterioration using

the comparator function. (p. 69)

Example of setting deterioration evaluation values

Acceptance value

Resistance: 0.5 mΩ

Voltage: 2.0 V

Warning threshold

0.75 mΩ

(Fresh battery’s value × 1.5)

1.8 V

(Fresh battery’s value × 0.9)

Rejection value

1.0 mΩ

(Fresh battery’s value × 2)

PASS WARNING FAIL

Fresh In use Need

replacing

Hold down for

at least 1 s.

Downloading measured values to your computer

You can connect the instrument and your computer using the

accompanying USB cable to download measured values. (p. 105)

HIOKI BT3554F961-03

www. .com information@itm.com1.800.561.8187

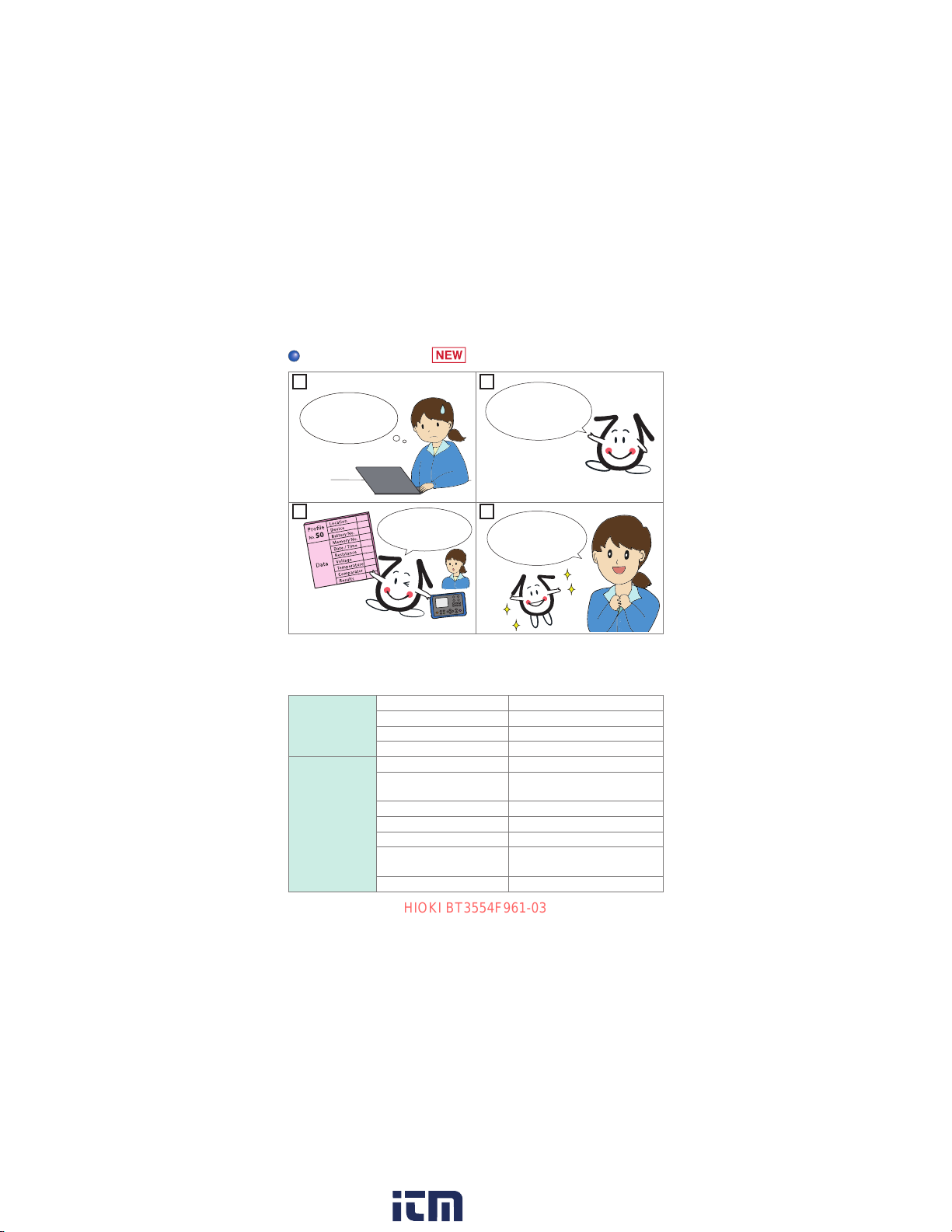

Prole information (p. 84)

Where this battery

has been installed?

1 2

“Hiokichi-kun”

Hioki’s corporate mascot

How can I help you?

3Prole information

comes in handy. Prole information?

Let me know the

details.

The use of prole information lets you save measured data

associating with detail information.

Concept of a data set to be saved

Prole

information Prole number 1

Location information HIOKI 1F UPS ROOM

Device information UPS 1-1

Battery number 1

Measured data Memory number A.001

Date and time 2020/4/20 13:00:00

(yyyy/mm/dd hh:mm)

Resistance value . mΩ

Voltage value . V

Temperature .°C

Comparator threshold

values

mΩ, mΩ, V

Comparison result PASS, WARNING, or FAIL

HIOKI BT3554F961-03

www. .com information@itm.com1.800.561.8187

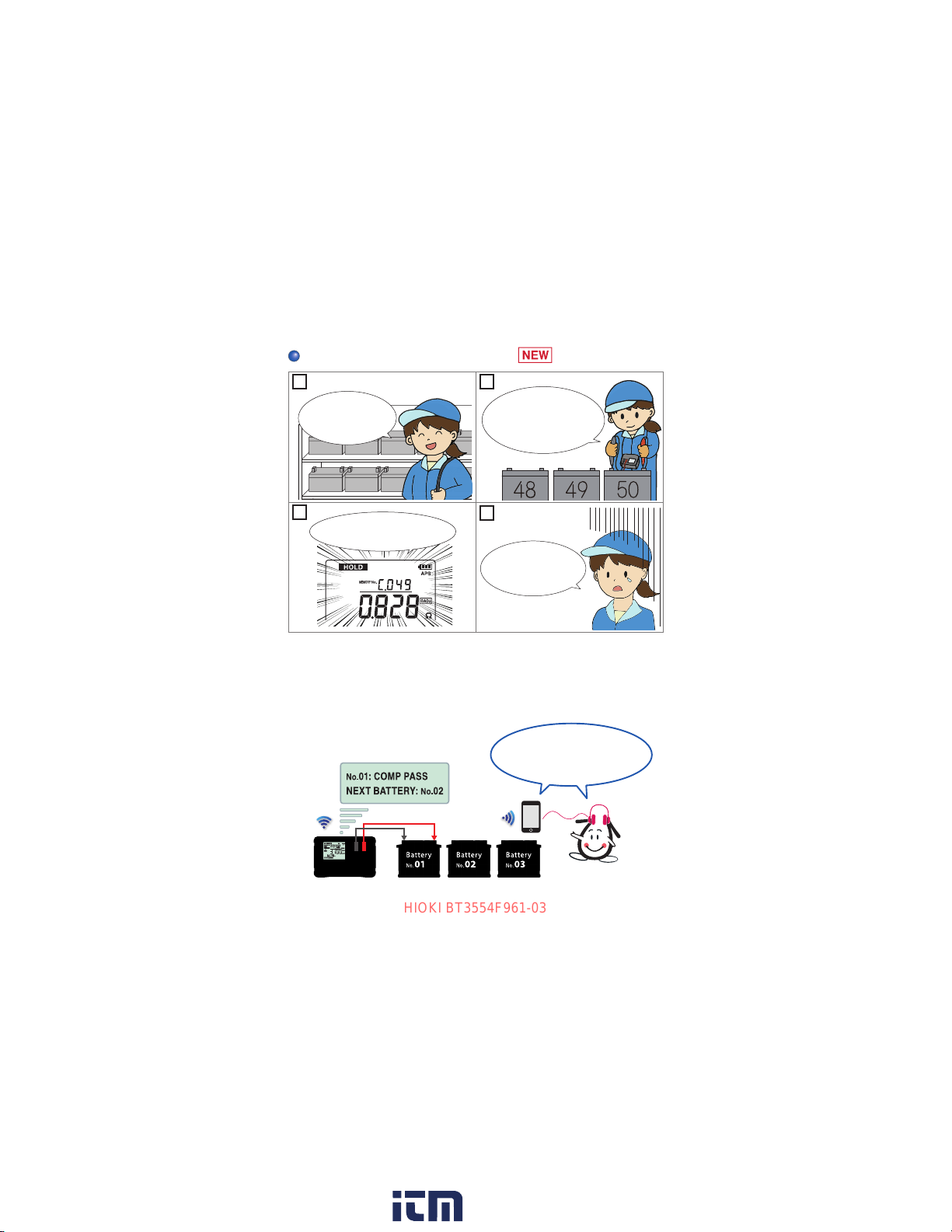

Measurement recording prompt (p. 97)

Let’s get down

to work.

1 2

The 50th battery.

That’s it.

3The memory contains

49 data sets only . . .

One short!

I have to start from

scratch again.

The measurement recording prompt uses voice prompts and the

display to inform you of the battery number you are to measure

next. You can get your jobs done neatly, which will no longer require

you to start all over again.

No. 1, pass.

Next battery, No. 2.

Display

Voice prompt

HIOKI BT3554F961-03

www. .com information@itm.com1.800.561.8187

Contents

Battery Tester Quick Guide

Introduction.........................................................................1

Verifying Package Contents..............................................3

Options................................................................................4

Safety Information..............................................................8

Operating Precautions.....................................................12

1 Overview 23

1.1 Evaluating Battery Deterioration .................23

1.2 Overview ........................................................26

1.3 Features .........................................................28

1.4 Names and Functions of Parts ....................30

1.5 Outer Dimension Drawing............................38

2 Preparing for Measurement 39

2.1 Installing/Replacing LR6 Alkaline

Batteries.........................................................39

2.2 Attaching the Z5041 Protector.....................40

2.3 Connecting the Z3210 Wireless Adapter

(Option) ..........................................................41

2.4 Connecting the Test Lead.............................42

Bundling up the Pin Type Lead and the 9466

Remote Control Switch.............................................43

2.5 TurningOn/O󰀨theInstrument .....................44

2.6 Setting the Date and Time............................45

2.7 Attaching the Neck Strap .............................46

HIOKI BT3554F961-03

www. .com information@itm.com1.800.561.8187

Contents

3 Measurement 47

3.1 Inspection Before Measurement..................48

3.2 Setting the Measurement Ranges ...............49

3.3 Noise-Frequency Reduction Function ........51

3.4 Adjusting the Zero Point

(Zero Adjustment) .........................................52

How to short-circuit various test lead........................53

Performing zero adjustment......................................56

Troubleshooting on zero adjustment.........................58

Canceling the zero adjustment.................................58

3.5 Using the Hold Function...............................59

Disabling the hold function........................................59

Freezing measured values using the 9466

Remote Control Switch.............................................60

3.6 Automatic Hold Function .............................61

3.7 Determining Battery-Deterioration

Evaluation Values..........................................63

3.8 Measuring Batteries (Inspection) ................64

Measurement error...................................................67

Warning display ........................................................67

3.9 Measuring Temperature................................68

4 Comparator Function (Evaluation

Based on Threshold Values) 69

4.1 Overview ........................................................69

4.2 Enabling the Comparator Function.............70

4.3 Setting Threshold Values for the

Comparator....................................................71

Comparison table for the comparator.......................78

4.4 Setting the Comparator Buzzer ...................80

4.5 Canceling the Comparator Function...........81

HIOKI BT3554F961-03

www. .com information@itm.com1.800.561.8187

iii

Contents

5 Memory Function 83

5.1 Overview ........................................................83

Memory structure......................................................83

Prole information.....................................................84

5.2 Saving Data in the Memory ..........................87

5.3 Automatic Memory Function........................89

5.4 Disabling the Memory Function...................91

5.5 Reading Out Saved Data ..............................92

5.6 Deleting Measured Data ...............................94

Deleting a single measured data set ........................94

Deleting all data contained in a unit..........................95

Deleting entire data...................................................96

6 Measurement Recording Prompt

Function 97

6.1 Preliminary Preparation................................98

Transferring the prole information to the

instrument.................................................................98

6.2 Visual Prompt From the Instrument..........100

6.3 Visual Prompt and Voice Prompt...............103

7 Communications Function 105

7.1 Communicating With a Computer .............107

7.2 Communicating With a Mobile Device ......108

Enabling/disabling the wireless communications

function................................................................... 111

7.3 Z3210-to-Excel®Direct Data Entry

Function

(Excel®Direct Input Function, HID

Function)......................................................112

Enabling/disabling the HID function........................113

HIOKI BT3554F961-03

www. .com information@itm.com1.800.561.8187
