Safety and warning information_ _ _ _ _ 2

Control panel _ _ _ _ _ _ _ _ _ _ _ _ _ _

Using your appliance _ _ _ _ _ _ _ _ _ _

Helpful hints and tips _ _ _ _ _ _ _

Cleaning and care _ _ _ _ _ _ _ _ _ _ _

Installing your new appliance_ _ _ _ _ _

Description of the appliance _ _ _ _ _ _

13 Troubleshooting_ _ _ _ _ _ _ _ _ _ _ _ _

Disposal of the appliance_ _ _ _ _ _ _ _

Safety for children and others

who are vulnerable people

For your safety and

correct usage, before

installing and first using

the appliance, read this

user manual carefully,

including its hints and

warnings.

To avoid unnecessary

mistakes and accidents, it

is important to make sure

that all people using the

appliance are thoroughly

familiar with its operation

and safety features.

Save these instructions

and be sure that they

remain with the appliance

if it is moved or sold, so

that anyone, using it

throughout its life, will be

properly informed on

usage and safety notices.

For the safety of life and

property, keep the

precautions of these user's

instructions as the

manufacturer is not

responsible for damages

caused by omission.

This appliance can be

used by children aged

from 8 years and above

and persons with reduced

physical, sensory or

mental capabilities or lack

of experience and

knowledge if they have

been given supervision or

instruction concerning

use of the appliance in a

safe way and understand

the hazards involved.

Children shall not play

with the appliance.

Cleaning and user

maintenance shall not be

made by children without

supervision.

Keep all packaging away

from children as there is

risk of suffocation.

Hisense Refrigerator

This appliance is in accordance with the following EU guidelines:

2014/35/EU and EMC 2014/30/EU and 2009/125/EC and EC.643/2009

and 2002/96/EC

LVD

_ _

If you are discarding the

appliance, pull the plug

out of the socket, cut the

connection cable (as

close to the appliance as

you can) and remove the

door to prevent children

playing from suffering an

electric shock or from

closing themselves inside

it.

If this appliance, featuring

a magnetic door seals, is

to replace an older

appliance having a spring

lock (latch) on the door or

lid, be sure to make the

spring lock unusable

before you discard the old

appliance. This will

prevent it from becoming

a death trap for a child.

General safety

WARNING - This

appliance is intended

to be used in household

and similar applications

such as

-staff kitchen areas in

shops, offices and other

working environments;

-farm houses and by

clients in hotels, motels

and other residential type

environments;

-bed and breakfast type

environments;

-catering and similar non-

retail applications

WARNING - Do not store

explosive substances

such as aerosol cans with

a flammable propellant in

this appliance.

WARNING - If the supply

cord is damaged, it must

be replaced by the

manufacturer, its service

agent or similarly qualified

persons in order to avoid

a hazard.

WARNING - Keep

ventilation openings, in

the appliance enclosure

or in the built-in structure,

clear of obstruction.

WARNING - Do not use

mechanical devices or

other means to accelerate

the defrosting process,

other than those

recommended by the

manufacturer.

WARNING - Do not

damage the refrigerant

circuit.

WARNING - Do not use

electrical appliances

inside the food storage

compartments of the

appliance, unless they are

of the type recommended

by the manufacturer.

WARNING - The

refrigerant and insulation

Hisense Refrigerator

1.The power cord must

not be lengthened.

2. Make sure that the

power plug is not crushed

or damaged. A crushed or

damaged power plug may

overheat and cause a

fire.

3. Make sure that you can

access the main plug of

the appliance.

4. Do not pull the main

cable.

5. If the power plug

socket is loose, do not

insert the power plug.

There is a risk of electric

shock or fire.

6.You must not operate

the appliance without the

interior lighting lamp

cover.

7.The fridge is only

applied with power supply

of single phase

alternating current of

220~240V/50Hz. If

fluctuation of voltage in

the district of user is so

large that the voltage

exceeds the above

scope, for safety sake, be

Electrical safety

blowing gas are

flammable.

When disposing of the

appliance, do so only at

an authorized waste

disposal centre. Do not

expose to flame.

The refrigerant isobutene

(R600a) is contained

within the refrigerant

circuit of the appliance, a

natural gas with a high

level of environmental

compatibility, which is

nevertheless flammable.

During transportation and

installation of the

appliance, ensure that

none of the components

of the refrigerant circuit

becomes damaged.

The refrigerant (R600a) is

flammable.

Refrigerant

If the refrigerant circuit

should be damaged:

-Avoid opening flames

and sources of ignition.

-Thoroughly ventilate the

room in which the

appliance is situated.

It is dangerous to alter

the specifications or

modify this product in any

way.

Caution:risk of fire

Hisense Refrigerator

Any damage to the cord

may cause a shortcircuit,

fire, and/or electric shock.

sure to apply A.C.

Automatic voltage

regulator of more than

350W to the fridge. The

fridge must employ a

special power socket

instead of common one

with other electric

appliances. Its plug must

match the socket with

ground wire.

Do not store flammable

gass or liquids in the

appliance,There is a risk of

an explosion.

Do not operate any

electrical appliances in the

appliance(e.g.electric ice

cream makers,mixers

etc.).

When unplugging always

pull the plug from the

mains socket,do not pull

on the cable.

Do not place hot items

near the plastic

components of this

appliance.

Do not place food products

directly against the air

outlet on the rear wall.

Store pre-packed frozen

food in accordance with the

frozen food manufacture’s

instructions.

The appliances

Daily use

manufactures storage

recommendations

should be strictly adhered

to.Refer to relevant

instructions for storage.

Do not place carbonated

or fizzy drinks in the

freeze compartment as it

creates pressure on the

container, which may

cause it to explode,

resulting in damage to the

appliance.

Frozen food can cause

frost burns if consumed

straight from the freezer

compartment.

Do not place the

appliance in direct

sunlight.

Keep burning candles,

lamps and other items

with naked flames away

from the appliance so that

do not set the appliance

on fire.

The appliance is intended

for keeping food stuff

and/or beverages in

normal household as

explained in this

instruction booklet The

appliance is heavy.Care

should be taken when

moving it.

Do not remove or touch

items from the freezer

compartment if your

Hisense Refrigerator

For electrical connection

carefully, follow the

instructions given in this

manual.

Unpack the appliance and

check if there are

damages on it. Do not

connect the appliance if it

is damaged. Report

possible damages

immediately to the place

you bought it. In this case

retain packing.

It is advisable to wait at

least four hours before

connecting the appliance

to allow the oil to flow

back in the compressor.

Adequate air circulation

should be around the

appliance, lacking this

leads to overheating. To

achieve sufficient

ventilation, follow the

instructions relevant to

installation.

Wherever possible the

back of the product

should not be close to a

wall to avoid touching or

catching warm parts

(compressor, condenser)

to prevent the risk of a

fire, follow the instructions

hands are damp/wet,as

this could cause skin

abrasions or frost/freezer

burns.

Never use the base,

drawers, doors etc. to

stand on or as supports.

Frozen food must not be

refrozen once it has been

thawed out.

Do not consume ice

popsicles or ice cubes

straight from the freezer

as this can cause freezer

burn to the mouth and

lips.

To avoid items falling and

causing injury or damage

to the appliance, do not

overload the door racks

or put too much food in

the crisper drawers.

Installation Important!

caution!

Care and cleaning

Before maintenance,

switch off the appliance

and disconnect the mains

plug from the mains

socket.

Do not clean the

appliance with metal

objects, steam cleaner,

ethereal oils, organic

solvents or abrasive

cleansers.

Do not use sharp objects

to remove frost from the

Hisense Refrigerator

appliance. Use a plastic

scraper.

Hisense Refrigerator

relevant to installation.

The appliance must not

be locate close to

radiators or cookers.

Make sure that the mains

plug is accessible after

the installation of the

appliance.

Service

Any electrical work

required to do the

servicing of the appliance

should be carried out by

qualified electrician or

competent person.

This product must be

serviced by an authorized

Service Center, and only

genuine spare parts must

be used.

1)If the appliance is Frost

Free.

2)If the appliance

contains freezer

compartment.

Installing your new appliance

Ventilation of appliance

Before using the appliance

for the first time, you should

review the following tips.

In order to improve

efficiency of the cooling

system and save energy, it

is necessary to maintain

good ventilation around the

appliance. For this reason,

sufficient clear space

should be available around

the refrigerator.

It is advisable for there to

be at least 75mm of space

from the back to the wall, at

least 100mm from its top,at

last 100mm from its side to

the wall and a clear space

in front to allow the doors to

open 130°. Please see the

following diagrams.

Note:

This appliance performs

well within the climate class

from SN to T showed in the

table below.

●

It may not work properly if

left at a temperature above

or below the indicated

range for a long period.

Climate class Ambient temperature

+10°C to +32°C

+16°C to +32°C

+16°C to +38°C

+16°C to +43°C

100

722.5

1267

956

130

。

100

Stand your appliance in a

dry place to avoid moisture

damage.

Keep the appliance out of

direct sunlight, rain or frost.

Stand the appliance away

from heat sources such as

stoves, fires or heaters.

Leveling of appliance

For sufficient leveling and

air circulating in the lower

rear section of the

appliance, the bottom feet

may need to be adjusted.

You can adjust them

manually using a suitable

spanner.

●

Hisense Refrigerator

To allow the doors to self-

close, tilt the top backwards

by about 10mm.

●

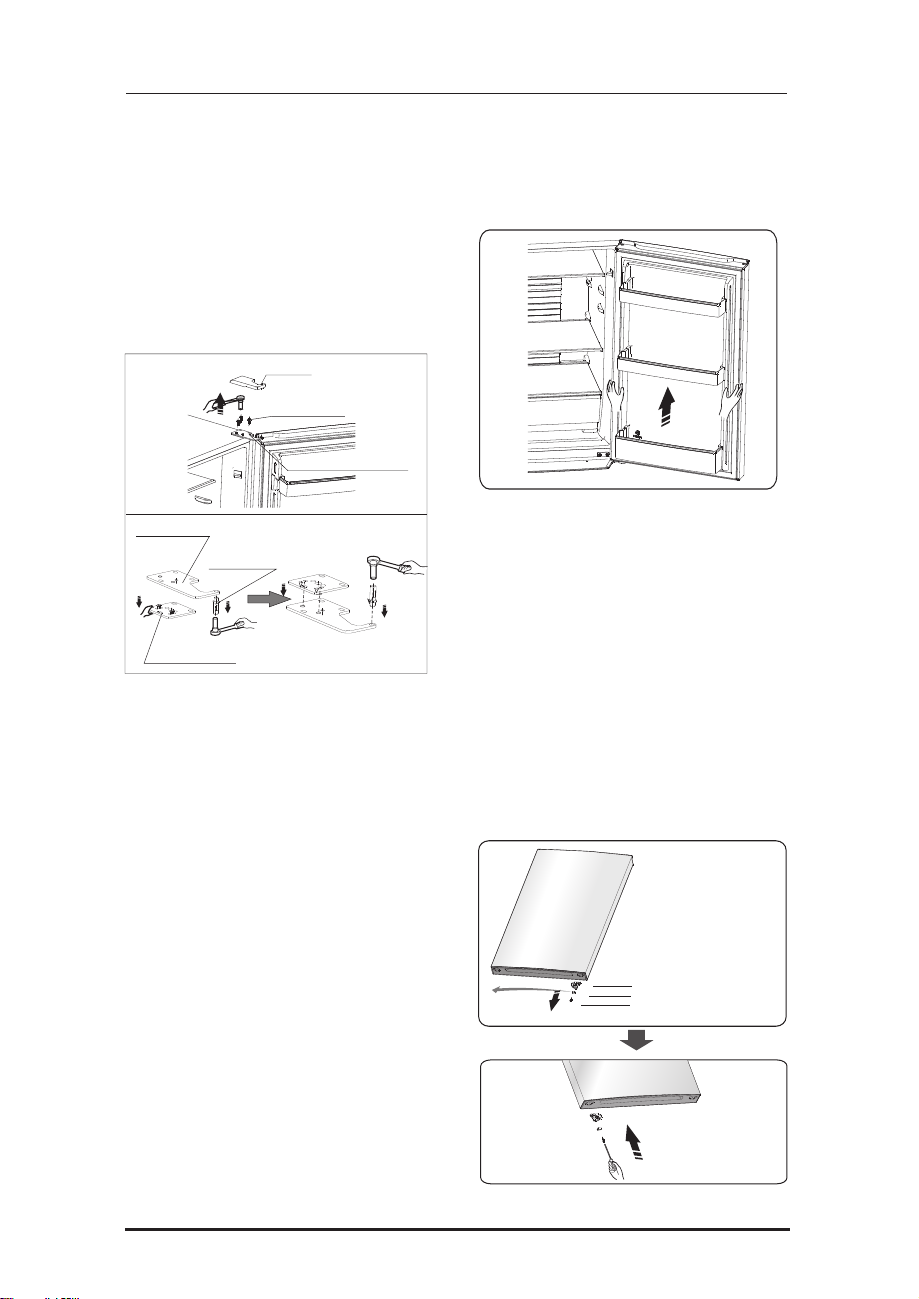

Reversing the door

The side at which the door

opens can be changed,

from the right side (as

supplied) to the left side, if

required.

Warning! When reversing

the door, the appliance

must not be connected to

the mains. Ensure that the

plug is removed from the

mains socket.

Note: If required you may

lay the refrigerator on its

back in order to gain

access to the base, you

should rest it on soft

foam packaging or similar

material to avoid damaging

the backboard of the

refrigerator. To reverse the

door, the following steps

are generally

recommended.

1. Stand the refrigerator

upright. Open the upper

door to take out all door

racks(to avoid damage)

and then close the door.

≤10mm

Tools you will need

left door stopper Left Hinge Cover

8mm wrench

8mm socket wrench

Monkey wrench

Thin-blade screwdriver

Cross-shaped screwdriver

Hisense Refrigerator

Caution! Please slightly

squeeze the door rack from

two sides toward

door rack,and then

move it upward when taking

out.

centre and

inside of

Hisense Refrigerator

①hinge cover

②self-tapping screw

③upper hinge parts

③upper hinge

⑤ gasket

④hinge axle

3. Loosen the hinge axle

with monkey wrench and

change it to the reverse

hole site , and then tighten

into position. Take down the

gasket and change it to

the reverse hole site .

④

⑤

4. Remove screw cover

from the left-front corner of

cabinet with thin-blade

screwdriver and install it to

the right-front corner.

Caution! Please hold the

upper door in place during

step 3 to prevent the door

dropping.

6. Place the upper door on a

smooth surface with its panel

upwards. Loose screw ③

nd take down part ② nd

part ①, Install replacement

door stopper-left ④

provided (in the plastic bag)

and part ②(stop block) to

the left side with screw③.

Keep part ① with the

appliance for future

reference.

a a

① Door stopper

①

②

③ Self-tapping screw

③

Stop block

2. Remove right upper

hinge cover ①

and take down the

upper hinge parts③

on top of the

cabinet.remove the 3

screws② which are used

for fixing the right upper

hinge part (see the picture

below)

5. Remove the upper door

from the middle hinge by

carefully lifting the door

straight up.

Indice

Altri manuali Hisense Frigorifero

Hisense

Hisense RS723N4WCU Istruzioni per il montaggio

Hisense

Hisense FV105D4BC2 Istruzioni per il montaggio

Hisense

Hisense RT286N4ABN Istruzioni per il montaggio

Hisense

Hisense RT728N4WCE Istruzioni per il montaggio

Hisense

Hisense HRF208N6BSE Manuale utente

Hisense

Hisense H720FSB-WD Istruzioni per il montaggio

Hisense

Hisense RS-34WC4SIA Istruzioni per il montaggio

Hisense

Hisense HR6BF47 Istruzioni per il montaggio

Hisense

Hisense HFU210N6CVE Istruzioni per il montaggio

Hisense

Hisense RB15A2CWE Istruzioni per il montaggio

Hisense

Hisense BCD-440WPZ/HC1(H) Manuale utente

Hisense

Hisense RB372N4ADE Istruzioni per il montaggio

Hisense

Hisense HRB208N6BSE Manuale utente

Hisense

Hisense RS694N4TB1 Istruzioni per il montaggio

Hisense

Hisense RIB291F4AWF Istruzioni per il montaggio

Hisense

Hisense HR6TFF222 Manuale utente

Hisense

Hisense HRT180N6ABD Manuale utente

Hisense

Hisense BCD-620WP Istruzioni per il montaggio

Hisense

Hisense RS-11DC4SAB/CPA Manuale utente

Hisense

Hisense RS694N4TZE Istruzioni per il montaggio

Hisense

Hisense RQ689N4AC1 Istruzioni per il montaggio

Hisense

Hisense WMS017M6XVE Istruzioni per il montaggio

Hisense

Hisense RT641N4WFE Istruzioni per il montaggio

Hisense

Hisense RQ515N4AB1 Istruzioni per il montaggio

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
