Hisense RF21N1 Series Istruzioni per il montaggio

Model number: RF21N1***

www.hisense-canada.com Customer care#:18553447367

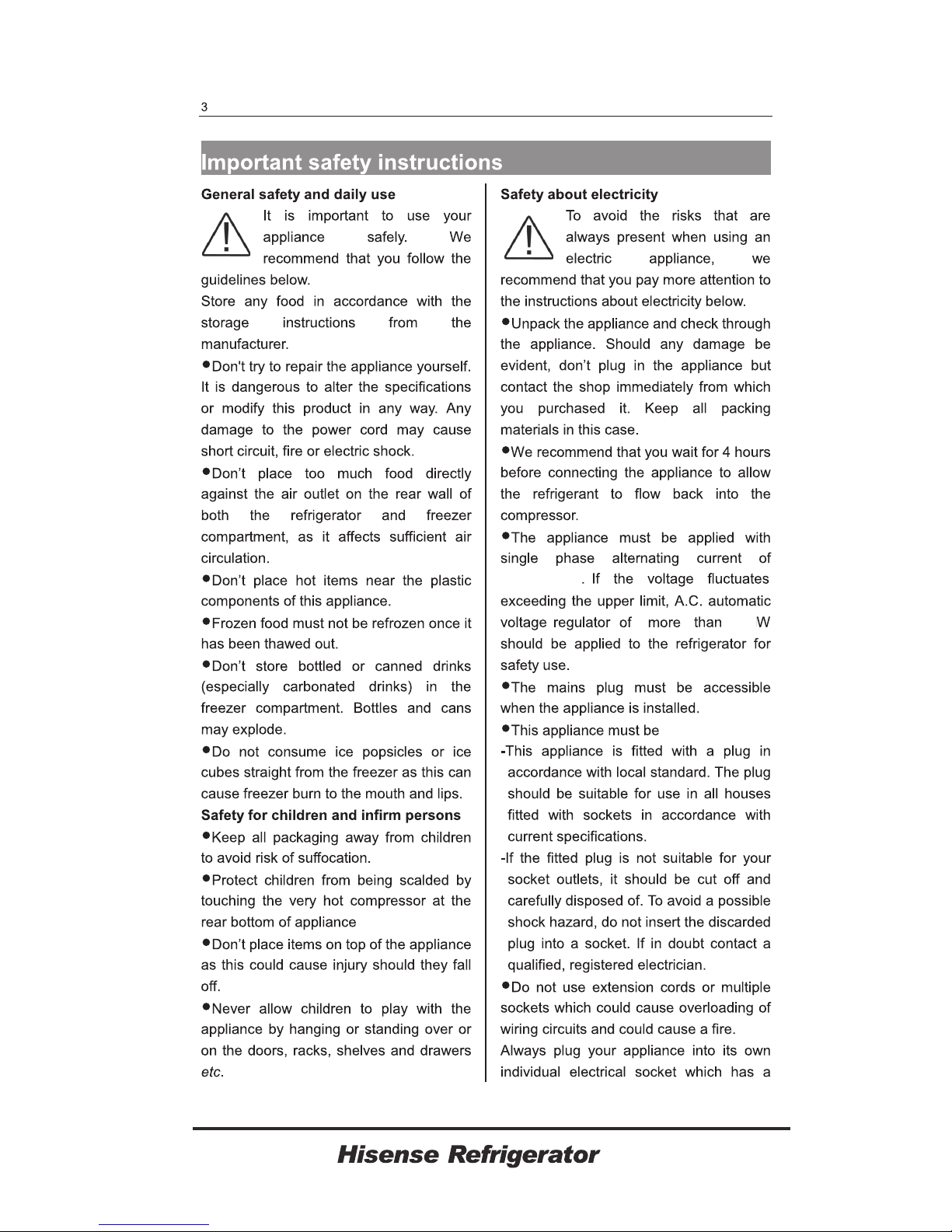

This appliance is not intended for use

by persons (including children) with

reduced physical, sensory or mental

capabilities, or lack of experience and

knowledge, unless they have been given

supervision or instruction concerning use

Do not use extension cords or

ungrounded (two prong) adapters.

of the appliance by a person responsible

for their safety.

Parts and features

Cyclopentane is used in the

insulation. The gases in the insulation

material require a special disposal

procedure. Please contact your local

a u t h o r i t i e s i n r e g a r d t o t h e

environmentally safe disposal of this

product.

Warranty 29

only.

115V/60Hz

525

grounded.

R134a

Do not store explosive substances such as

aerosol cans with a flammable propellant

in this appliance.

appliance.

Recommendation:

It is advisable for there to be at

°°

filled

What you need to have before start

1. Power drill and 1/4’’ drill bit

2. 1/2’’ or adjustable wrench

3. Flat blade and Philips head screwdrivers

4.You may find these items sold as

a kit at local hardware store.

Saddle-type

Shut offvalve

(1/4’’ outlet)

one 1/4’’

compression nut

1 ferrule

(sleeve)

5. These items are provided with your

fridge .Please check your fridge drawer

to find them.

1/4’’extension

tubing 1 Coupler 2 clips

Connecting to the water supply line

1.First ,shut off the main water supply.

2.Using the power drill and a 1/4’’ drill

bit drill into the cold water line and

connect the saddle-type shutoff valve.

3.Connect 1/4’’ extension tubing to shutoff valve

outlet.

4.Flush the tubing .Turn the main water supply on

and flush out the tubing until the water is clear.

Then , shut the water off at the water valve after

about quart of water has been flushed through

the tubing.

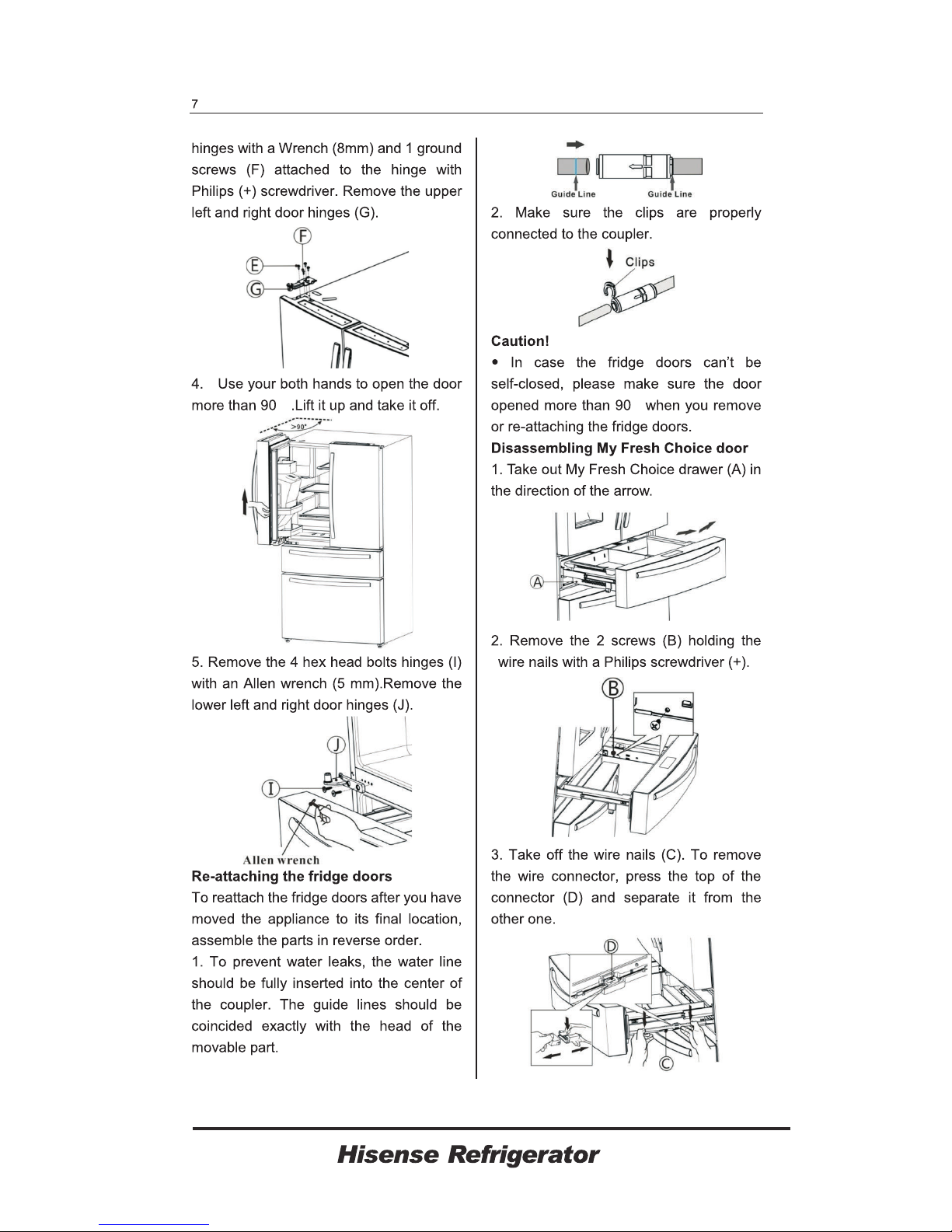

5.Connect the extension tubing line with the line

on the back of the fridge via the coupler .Fully

insert the extension tubing into the coupler ,

and then insert the clip onto the coupler to lock

up the tubing.Do the same with the other end.

After both clips are inserted ,check the line to

make sure it is held firmly by the clip.

Note:Ensure that water line does not get pinched

or bent when installing.This can result in improper

water flow through the line and will affect the

functionality of the fridge.

6.Turn the water on and check for leakage.

below

Clip

Connector

Water line Water line

Connect to potable water supply only.

lever

athat
