Hitachi CP-D10 Series Manuale utente

Projector

CP-D10

User's Manual (detailed)

Operating Guide – Technical

Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode

720 x 400 37.9 85.0 VESA TEXT

640 x 480 31.5 59.9 VESA VGA (60Hz)

640 x 480 37.9 72.8 VESA VGA (72Hz)

640 x 480 37.5 75.0 VESA VGA (75Hz)

640 x 480 43.3 85.0 VESA VGA (85Hz)

800 x 600 35.2 56.3 VESA SVGA (56Hz)

800 x 600 37.9 60.3 VESA SVGA (60Hz)

800 x 600 48.1 72.2 VESA SVGA (72Hz)

800 x 600 46.9 75.0 VESA SVGA (75Hz)

800 x 600 53.7 85.1 VESA SVGA (85Hz)

832 x 624 49.7 74.5 Mac 16” mode

1024 x 768 48.4 60.0 VESA XGA (60Hz)

1024 x 768 56.5 70.1 VESA XGA (70Hz)

1024 x 768 60.0 75.0 VESA XGA (75Hz)

1024 x 768 68.7 85.0 VESA XGA (85Hz)

1152 x 864 67.5 75.0 VESA

1152 x 864 (75Hz)

1280 x 768 47.7 60.0 VESA W-XGA (60Hz)

1280 x 800 49.7 60.0 VESA

1280 x 800 (60Hz)

1280 x 960 60.0 60.0 VESA

1280 x 960 (60Hz)

1280 x 1024 64.0 60.0 VESA SXGA (60Hz)

1280 x 1024 80.0 75.0 VESA SXGA (75Hz)

1280 x 1024 91.1 85.0 VESA SXGA (85Hz)

1400 x 1050 65.2 60.0 VESA SXGA+ (60Hz)

1600 x 1200 75.0 60.0 VESA UXGA (60Hz)

NOTE • Be sure to check jack type, signal level, timing and resolution

before connecting this projector to a PC.

• Some PCs may have multiple display screen modes. Use of some of these

modes will not be possible with this projector.

• Depending on the input signal, full-size display may not be possible in some

cases. Refer to the number of display pixels above.

• Although the projector can display signals with resolution up to UXGA

(1600x1200), the signal will be converted to the projector’s panel resolution

before being displayed. The best display performance will be achieved if the

resolutions of the input signal and projector panel are identical.

• Automatic adjustment may not function correctly with some input signals.

• The image may not be displayed correctly when the input sync signal is a

composite sync or a sync on G.

Example of PC signal

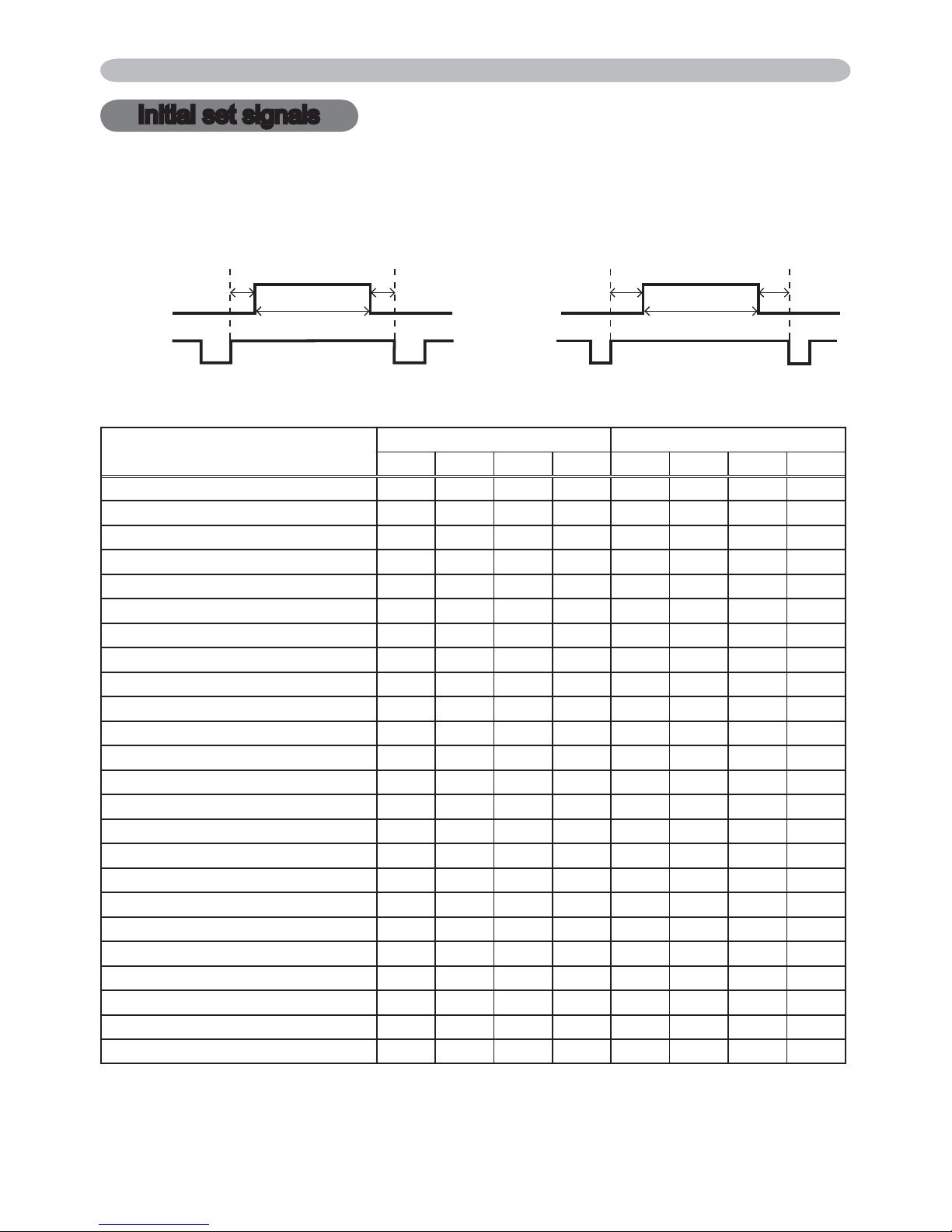

Initial set signals

The following signals are used for the initial settings. The signal timing of some

PC models may be different. In such case, adjust the items V POSITION and H

POSITION in IMAGE menu.

Computer signal Horizontal signal timing (μs) Vertical signal timing (lines)

(A) (B) (C) (D) (a) (b) (c) (d)

720 x 400 / TEXT 2.0 3.0 20.3 1.0 3 42 400 1

640 x 480 / VGA (60Hz) 3.8 1.9 25.4 0.6 2 33 480 10

640 x 480 / VGA (72Hz) 1.3 4.1 20.3 0.8 3 28 480 9

640 x 480 / VGA (75Hz) 2.0 3.8 20.3 0.5 3 16 480 1

640 x 480 / VGA (85Hz) 1.6 2.2 17.8 1.6 3 25 480 1

800 x 600 / SVGA (56Hz) 2.0 3.6 22.2 0.7 2 22 600 1

800 x 600 / SVGA (60Hz) 3.2 2.2 20.0 1.0 4 23 600 1

800 x 600 / SVGA (72Hz) 2.4 1.3 16.0 1.1 6 23 600 37

800 x 600 / SVGA (75Hz) 1.6 3.2 16.2 0.3 3 21 600 1

800 x 600/SVGA (85Hz) 1.1 2.7 14.2 0.6 3 27 600 1

832 x 624 / Mac 16" mode 1.1 3.9 14.5 0.6 3 39 624 1

1024 x 768 / XGA (60Hz) 2.1 2.5 15.8 0.4 6 29 768 3

1024 x 768 / XGA (70Hz) 1.8 1.9 13.7 0.3 6 29 768 3

1024 x 768 / XGA (75Hz) 1.2 2.2 13.0 0.2 3 28 768 1

1024 x 768 / XGA (85Hz) 1.0 2.2 10.8 0.5 3 36 768 1

1152 x 864 (75Hz) 1.2 2.4 10.7 0.6 3 32 864 1

1280 x 768 / W-XGA (60Hz) 1.7 2.5 16.0 0.8 3 23 768 1

1280 x 800 (60Hz) 1.6 2.4 15.3 0.8 3 24 800 1

1280 x 960 (60Hz) 1.0 2.9 11.9 0.9 3 36 960 1

1280 x 1024 / SXGA (60Hz) 1.0 2.3 11.9 0.4 3 38 1024 1

1280 x 1024 / SXGA (75Hz) 1.1 1.8 9.5 0.1 3 38 1024 1

1280 x 1024 / SXGA (85Hz) 1.0 1.4 8.1 0.4 3 44 1024 1

1400 x 1050 / SXGA+ (60Hz) 1.2 2.0 11.4 0.7 3 33 1050 1

1600 x 1200 / UXGA (60Hz) 1.2 1.9 9.9 0.4 3 46 1200 1

Back porch (B) Front porch (D) Back porch (b) Front porch (d)

Active video (C)

Data Data

H. Sync. V. Sync.

Sync (A) Sync (a)

Active video (c)

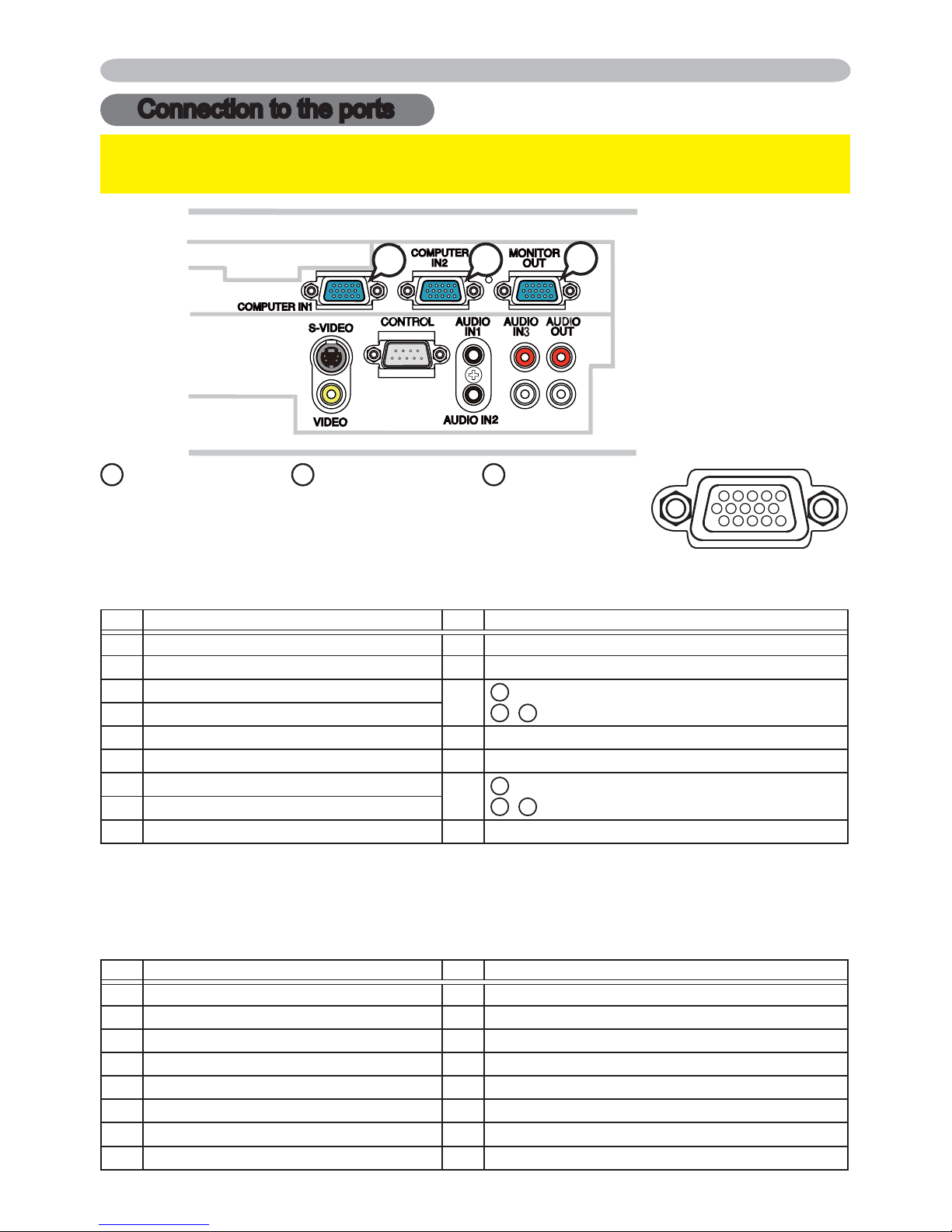

ACOMPUTER IN1, BCOMPUTER IN2, CMONITOR OUT

D-sub 15pin mini shrink jack

(1) for PC signal

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)

• H/V. sync. Signal: TTL level (positive/negative)

• Composite sync. Signal: TTL level

Pin Signal Pin Signal

1Video Red 10 Ground

2 Video Green 11 (No connection)

3 Video Blue 12 A

: SDA (DDC data)

B, C

: (No connection)

4 (No connection)

5 Ground 13 H. sync / Composite sync.

6 Ground Red 14 V. sync.

7 Ground Green 15 A

: SCL (DDC clock)

B, C

: (No connection)

8 Ground Blue

9 (No connection) - -

Connection to the ports





 

Connection to the ports

NOTICE ►Use the cables with straight plugs, not L-shaped ones, as the

input ports of the projector are recessed.

(2) for Component signal

• Y : Component video Y with composite sync, 1.0±0.1 Vp-p, 75 Ω terminator

• Cr/Pr : Component video Cr/Pr, 0.7±0.1 Vp-p, 75 Ω terminator

• Cb/Pb : Component video Cb/Pb, 0.7±0.1 Vp-p, 75 Ω terminator

System:480i@60,480p@60,576i@50,576p@50,720p@50/60,1080i@50/60,1080p@50/60

Pin Signal Pin Signal

1Cr/Pr 9 (No connection)

2 Y 10 Ground

3 Cb/Pb 11 (No connection)

4 (No connection) 12 (No connection)

5 Ground 13 (No connection)

6 Ground Cr/Pr 14 (No connection)

7 Ground Y 15 (No connection)

8 Ground Cb/Pb - -

Connection to the ports (continued)

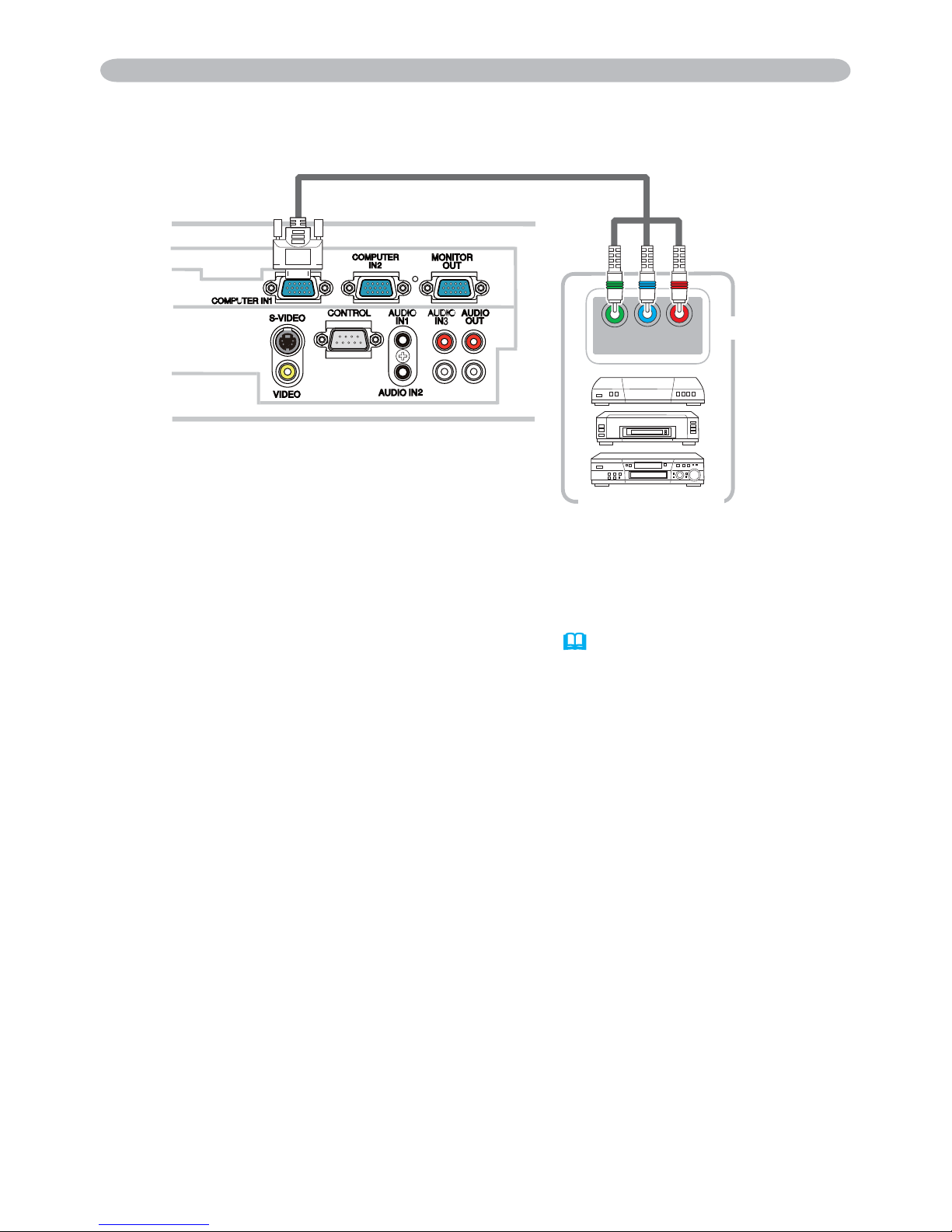

To input component video signal to COMPUTER IN ports

ex.

To input component video signal to the COMPUTER IN1 or IN2 port of the

projector, use a RCA to D-sub cable or adapter.

For about the pin description of the required cable or adapter, refer to the

descriptions about COMPUTER IN1 and IN2 port (3).

Y CB/PBCR/PR

COMPONENT VIDEO OUT

VCR/DVD player

RCA connectors

RCA plugs

D-sub plug

DS-VIDEO

Mini DIN 4pin jack

Pin Signal

1Color signal 0.286Vp-p (NTSC, burst), 75Ω terminator

Color signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator

2 Brightness signal, 1.0Vp-p, 75Ω terminator

3 Ground

4 Ground

Connection to the ports (continued)

EVIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL60

• 1.0±0.1Vp-p, 75Ω terminator

Connection to the ports (continued)

FAUDIO IN1,

AUDIO IN2

Ø3.5 stereo mini jack

• 200 mVrms 47kΩ terminator

AUDIO IN3

RCA jack x2

• 200 mVrms 47kΩ terminator

AUDIO OUT

R, KL

RCA jack x2

• 200 mVrms 1kΩ output impedance

Connection to the ports (continued)

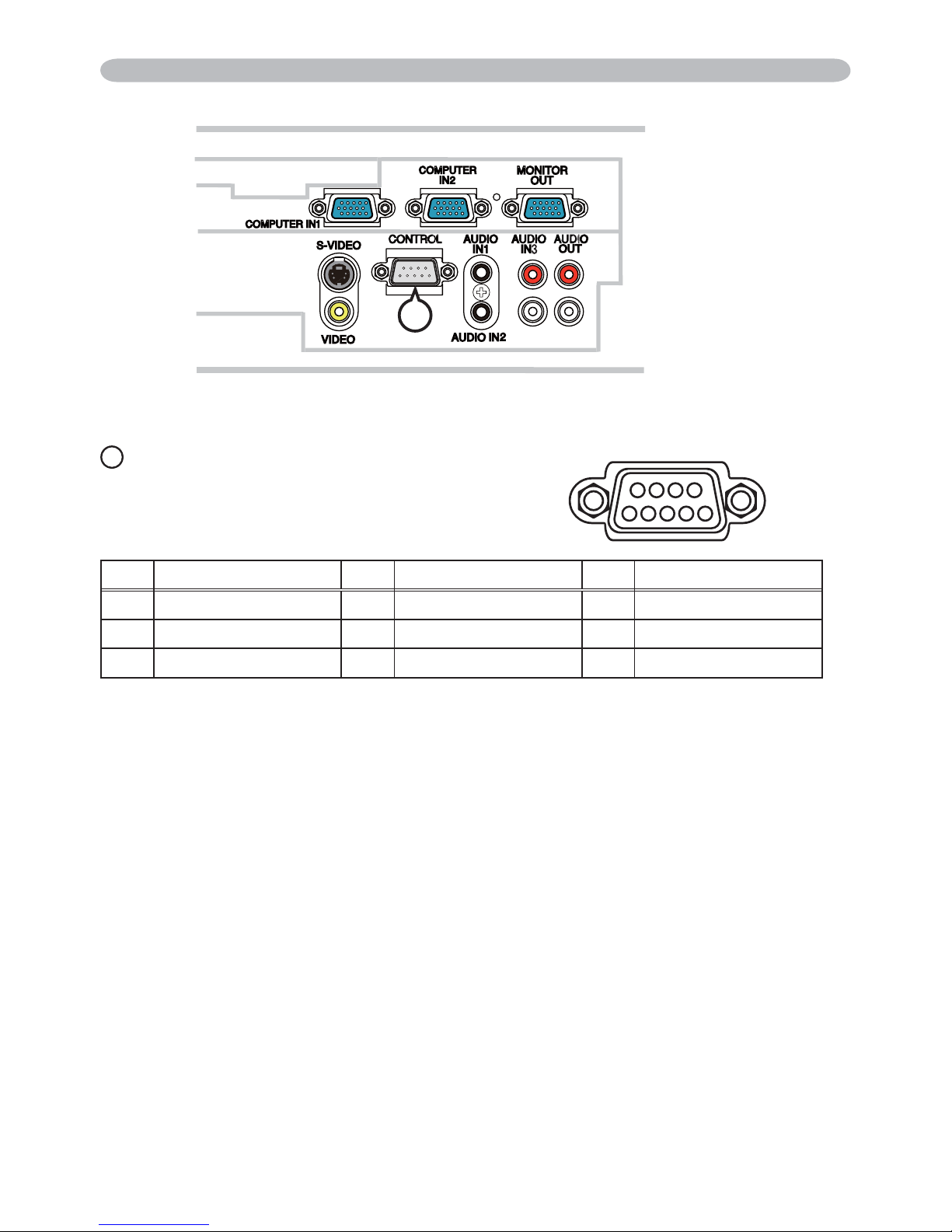

CONTROL

D-sub 9pin plug

• About the details of RS-232C communication,

please refer to the following page.

Pin Signal Pin Signal Pin Signal

1 (No connection) 4 (No connection) 7 RTS

2 RD 5 Ground 8 CTS

3 TD 6 (No connection) 9 (No connection)

54321

987

RS-232C Communication

When the projector connects to the computer by RS-232C communication, the

projector can be controlled with RS-232C commands from the computer.

For details of RS-232C commands, refer to RS-232C Communication command

table (9).

Connection

1. Turn off the projector and the computer.

2. Connect the projector's CONTROL port and the computer's RS-232C port

with a RS-232C cable (cross). Use the cable that fulﬁlls the speciﬁcation

shown in ﬁgure

3. Turn the computer on, and after the computer has started up turn the projector

on.

CONTROL port

of the projector

RS-232C port

of the computer

CD (1) (1) −

RD(2) (2) RD

TD (3) (3) TD

DTR (4) (4)

−

GND (5) (5) GND

DSR (6) (6)

−

RTS (7) (7) RTS

DTS (8) (8) CTS

RI (9) (9)

−



CONTROL

RS-232C

(cross)

RS-232C Cable

54321

987

RS-232C Communication (continued)

Communicaion settings

1. Protocol

19200bps,8N1

2. Command format ("h" shows hexadecimal)

Byte Number 01 2 3456

789101112

Command

Action

Header Data

Header

code

Packet

Data

size

CRC

ﬂag Action Type Setting

code

LH LHLHLHLHLH

<SET>

Change setting to

desired value [(cL)(cH)]

by [(eL)(eH)].

BEh EFh 03h 06h 00h

(aL) (aH) 01h 00h (bL) (bH) (cL) (cH)

<GET>

Read projector

internal setup value [(bL)

(bH)] .

(aL) (aH) 02h 00h (bL) (bH) 00h 00h

Increment setup value

[(bL)(bH)] by 1.

(aL) (aH) 04h 00h (bL) (bH) 00h 00h

Decrement setup value

[(bL)(bH)] by 1.

(aL) (aH) 05h 00h (bL) (bH) 00h 00h

<EXECUTE> Run a

command [(bL)(bH)].

(aL) (aH) 06h 00h (bL) (bH) 00h 00h

[Header code] [Packet] [Data size]

Set [BEh, EFh, 03h, 06h, 00h] to byte number 0

[CRC ﬂag]

For byte number

5, 6,

refer to

RS-232C Communication command table

(11).

[Action]

Set functional code to byte number 7, 8.

<SET> = [01h, 00h], <GET> = [02h, 00h], <INCREMENT> =[04h, 00h]

<DECREMENT> = [05h, 00h], <EXECUTE> = [06h, 00h]

Refer to the Communication command table (above).

[Type] [Setting code]

For byte number

〜

, refer to

RS-232C Communication command table

(11).

RS-232C Communication (continued)

NOTE • Operation cannot be guaranteed when the projector receives an

undeﬁned command or data.

• Provide an interval of at least 40ms between the response code and any

other code.

• The projector outputs test data when the power supply is switched ON, and

when the lamp is lit. Ignore this data.

• Commands are not accepted during warm-up.

3. Response code / Error code ("h" shows hexadecimal)

(1) ACK reply : 06h

When the projector receives the Set, Increment, Decrement or Execute

command correctly, the projector changes the setting data for the speciﬁed

item by [Type], and it returns the code.

(2) NAK reply : 15h

When the projector cannot understand the received command, the projector

returns the error code.

In such a case, check the sending code and send the same command again.

(3) Error reply : 1Ch + 0000h

When the projector cannot execute the received command for any reasons,

the projector returns the error code.

In such a case, check the sending code and the setting status of the projector.

(4) Data reply : 1Dh + xxxxh

When the projector receives the GET command correctly, the projector returns

the responce code and 2 bytes of data.

Altri manuali per CP-D10 Series

Indice

Altri manuali Hitachi Proiettore

Hitachi

Hitachi Innovate CP-WX8240 Manuale utente

Hitachi

Hitachi SM0328 Manuale utente

Hitachi

Hitachi CPX4 series Manuale utente

Hitachi

Hitachi CP-X970W Manuale utente

Hitachi

Hitachi CP-A222WN Manuale utente

Hitachi

Hitachi CP-WU5506M Manuale utente

Hitachi

Hitachi CPX605 - 4000 Lumens XGA LCD Projector Manuale utente

Hitachi

Hitachi CP-X615W and Documento tecnico

Hitachi

Hitachi CP-X2 series Guida

Hitachi

Hitachi CP-X4020 Manuale utente

Hitachi

Hitachi CP-X4021N Documento tecnico

Hitachi

Hitachi CP-X430W Manuale utente

Hitachi

Hitachi CP-X417W(C14-30AWL) Manuale utente

Hitachi

Hitachi Innovate CP-RX94 Manuale utente

Hitachi

Hitachi CP-A52 Series Manuale utente

Hitachi

Hitachi CP-WUX645N Manuale utente

Hitachi

Hitachi CP-WX4021N Manuale utente

Hitachi

Hitachi ED-X8250 series Manuale utente

Hitachi

Hitachi CP-X4030WN Manuale utente

Hitachi

Hitachi CP-X10000 Series Manuale utente

Hitachi

Hitachi CP X206 - XGA LCD Projector Istruzioni di installazione e manutenzione

Hitachi

Hitachi CP-S210 series Manuale utente

Hitachi

Hitachi CP-WX3014WN Manuale utente

Hitachi

Hitachi CP-X990W Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente
