Projector

User's Manual – Operating Guide

CP-RX60

Thank you for purchasing this projector.

WARNING

►

Before using, read the "User's Manual - Safety Guide" and

these manuals to ensure correct usage through understanding. After reading,

store them in a safe place for future reference.

About this manual

Various symbols are used in this manual. The meanings of these symbols are

described below.

WARNING

This symbol indicates information that, if ignored, could possibly

result in personal injury or even death due to incorrect handling.

CAUTION

This symbol indicates information that, if ignored, could result

possibly in personal injury or physical damage due to incorrect

handling.



Please refer to the pages written following this symbol.

NOTE

• The information in this manual is subject to change without notice.

• The manufacturer assumes no responsibility for any errors that may appear in this manual.

• The reproduction, transmission or use of this document or contents is not permitted without

express written authority.

Trademark acknowledgment

• VGA and XGA are registered trademarks of the International Business Machines

Corporation.

• Apple and Mac are registered trademarks of Apple Computer, Inc.

• VESA and SVGA are trademarks of the Video Electronics Standard Association.

• Windows is a registered trademark of Microsoft Corporation.

• Internet Explorer is a trademark of Microsoft Corporation.

All other trademarks are the property of their respective owners.

About th

is manua

. . . . . . . . . .

Content

. . . . . . . . . . . . . . . . .

Projector feature

. . . . . . . . . .

About contents of package

. .

Part name

. . . . . . . . . . . . . . .

Projecto

. . . . . . . . . . . . . . . . . . . . .

Control

. . . . . . . . . . . . . . . . . . . . . .

Remote contro

. . . . . . . . . . . . . . . .

Preparations

. . . . . . . . . . . . . .

Fastening the lens cover

. . . . . . . . .

Fastening the lens cover . . . . . . . . . Fastening the lens cover

Putting batteries

. . . . . . . . . . . . . . .

Using the remote control

. . . . . . . . .

About the ﬁ lter cover for bottom-up use

. . .

Setting up

. . . . . . . . . . . . . . .

Arrangement

. . . . . . . . . . . . . . . . . .

Adjusting the projector's elevator

. . .

Connecting your devices

. . . . . . . .

Connecting power supply

. . . . . . .

Power on/of

. . . . . . . . . . . . .

Turning on the powe

. . . . . . . . . . .

r . . . . . . . . . . . r

urning off the powe

. . . . . . . . . . .

r . . . . . . . . . . . r

eratin

. . . . . . . . . . . . . . .

Adjusting the volum

. . . . . . . . . . .

Temporarily muting the soun

. . . .

Selecting an input signa

. . . . . . . .

Searching an input signa

. . . . . . .

Selecting an aspect rati

. . . . . . . .

Adjusting the zoom (magnifying

power)

. . . . . . . . . . . . . . . . . . . . . .

Adjusting the focus

. . . . . . . . . . . .

Using the automatic adjustment

feature

. . . . . . . . . . . . . . . . . . . . . .

Adjusting the positio

. . . . . . . . . .

Correcting the keystone distortion

. . .

Using the partial magnify feature

. . .

Freezing the scree

. . . . . . . . . . . .

Temporarily blanking the scree

. . .

Multifunctional setting

. . . .

Using the menu functio

. . . . . . . .

Contents

ASY

ENU

. . . . . . . . . . . . . . . . .

Aspect,

oom

, Keystone, Mode,

Bright, Contrast, Color, Tint,

Sharpness, Whisper, Mirror, Reset,

Filter time, Language,

Go to advanced menu

PICTURE men

. . . . . . . . . . . . . . .

Bright, Contrast, Gamma, Color temp,

Color, Tint, Sharpness, Progressive,

My memory

IMAGE men

. . . . . . . . . . . . . . . . .

Aspect, Over scan, V. position,

H. position, H. phase, H. size,

Auto adjust execute

INPUT men

. . . . . . . . . . . . . . . . .

Color space,

Video format,

Frame lock,

Information

SETUP men

. . . . . . . . . . . . . . . . .

Zoom,

Keystone, Whisper, Mirror,

Volume

SCREEN men

. . . . . . . . . . . . . . .

Language, Menu position, OSD bright,

Blank, Start up, MyScreen,

MyScreen lock, Message

OPTION men

. . . . . . . . . . . . . . . .

Auto s

earch

, Auto off, Lamp time,

Filter time, Service

Maintenanc

. . . . . . . . . . . . .

Lam

. . . . . . . . . . . . . . . . . . . . . . .

Air ﬁ lte

. . . . . . . . . . . . . . . . . . . . .

Other car

. . . . . . . . . . . . . . . . . . .

Troubleshootin

. . . . . . . . . .

Related message

. . . . . . . . . . . . .

Regarding the indicator lamp

. . . .

Phenomena that may easily be

mistaken for machine defect

. . . .

Warranty and after-servic

. . .

Speciﬁ cation

. . . . . . . . . . . .



Projector features / About contents of package

Projector features

This projector is used to project various computer signals as well as NTSC / PAL

/ SECAM video signals onto a screen. It requires just a little space for installation

and gets a large image from short distance.



High Brightness

Newly developed 165W UHB (Ultra High Brightness) lamp gives you a higher

brightness image on a screen. The image can be still kept as bright and clean

enough for use in bright rooms.



Low Noise

WHISPER mode is equipped for reducing acoustic noise to realize quieter

operation. It is perfect for use in low luminance rooms where low noise is more

important than brightness.



Compact Body

Even with its many features, this projector is extremely compact and slim,

which gives you more ﬂ exibility and usability to use it where you want.

About contents of package

Please see the "Contents of package" of the "User's Manual - Quick Guide". Your

projector should come with the items shown there. Contact immediately your

dealer if anything is missing.

NOTE

• Keep the original packing materials for future reshipment. For

moving the projector, be sure to use the original packing material. Use special

caution for the lens part.

S-VIDEO VIDEO

AUDIO

RGB

CONTROL

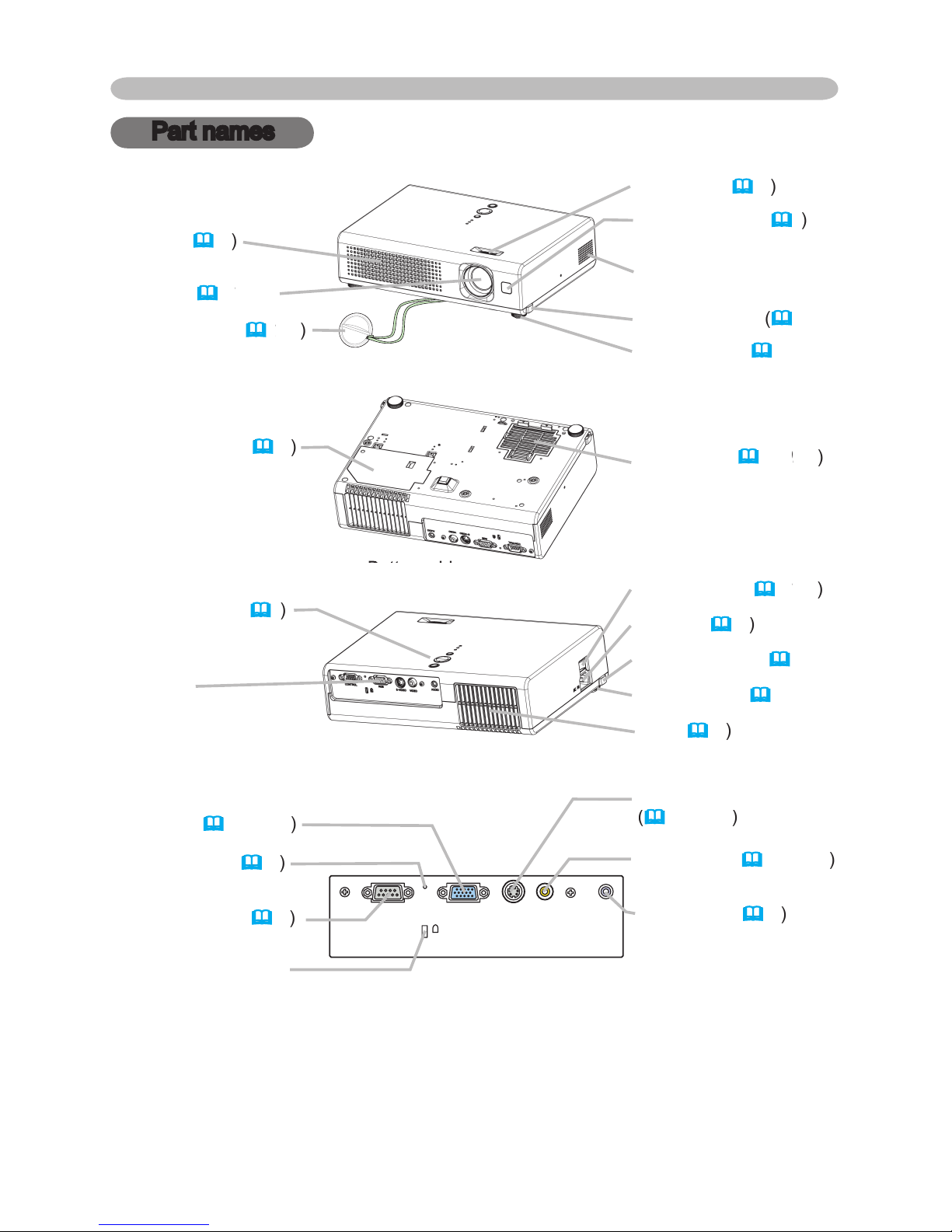

Part names

Lens (



, 45

6, 456

)

Lens cover (



, 16

6, 166

)

Filter cover (



9, 1

, 43

0, 430

)

(Air ﬁ lter and intake vent

are inside.)

Elevator button

(



)

Elevator foot (



)

Remote sensor (



)

Focus ring (



)

Vent (



)

AC inlet (



)

Power switch (



, 17

6, 176

)

Elevator button (



)

S-VIDEO port

(



4, 18, 19

)

VIDEO port (



4, 18, 19

)

CONTROL port (



)

Part names

Projector

Lamp cover (



)

(Lamp unit is inside.)

Elevator foot (



)

Bottom side

Speaker

Front-Right side

Rear-Left side

Control buttons (



)

Ports

(See below.)

Vent (



)

Ports

AUDIO port (



)

Restart switch (



)

RGB port (



4, 18, 19

)

Kensington lock slot

STANDBY/ON

INPUT

LAMP

TEMP

POWER

VIDEO RGBSEARCH

FREEZE

OFF

MAGNIFY

ASPECT AUTO BLANK

MUTE

VOLUME

KEYSTONE

POSITION

ESC

ENTER

RESET

ZOOM

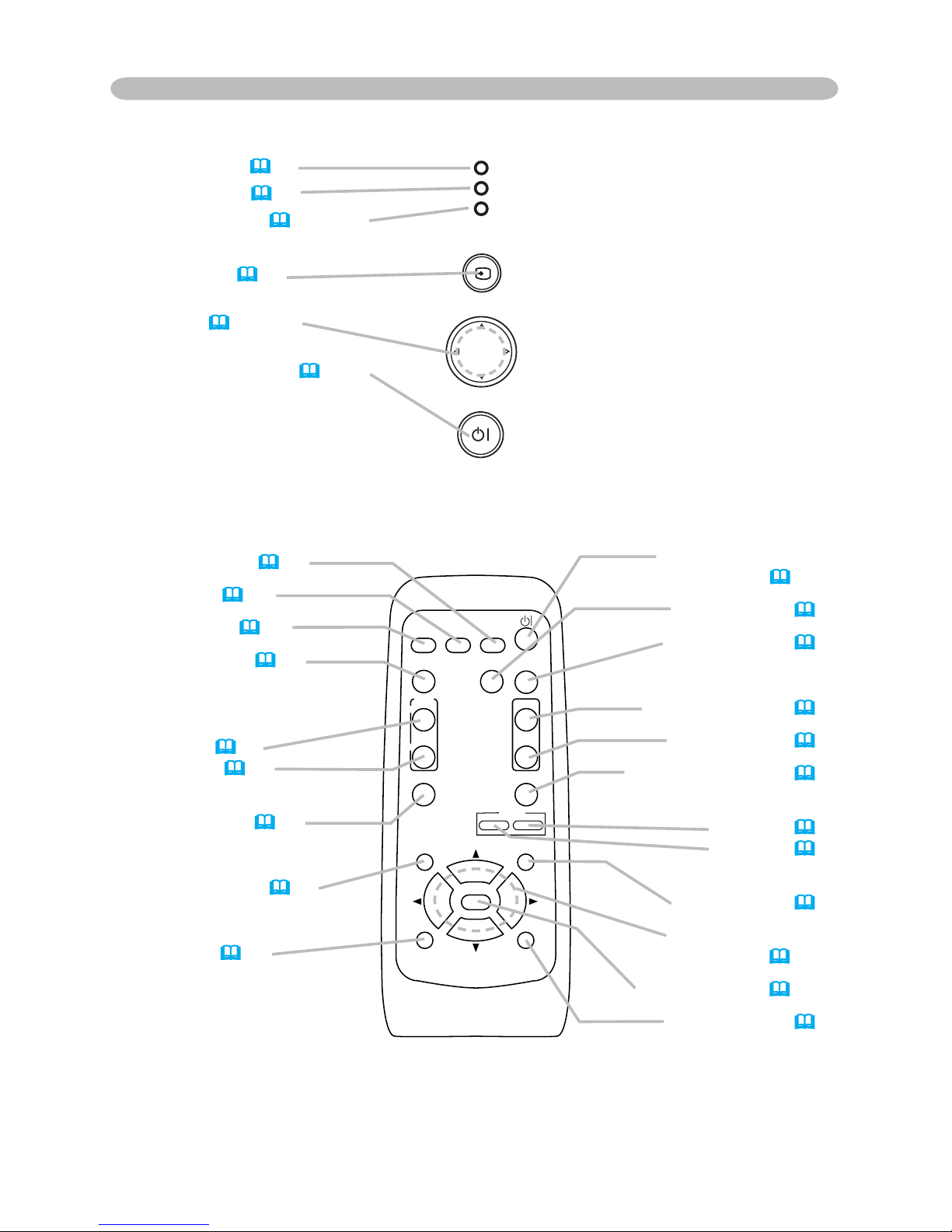

Part names

LAMP indicator (48)

TEMP indicator (48)

POWER indicator (16, 17, 48)

INPUT button (18)

Cursor buttons

▲,▼,◄,► (18~40)

STANDBY/ON button (16, 17)

Controls

Remote control

SEARCH button (19)

RGB button (18)

VIDEO button (18)

ASPECT button (19)

MAGNIFY

ON button (21)

OFF button (21)

FREEZE button (21)

POSITION button (20)

ESC button (24)

STANDBY/ON button

(16, 17)

AUTO button (20)

BLANK button (21)

VOLUME button (18)

MUTE button (18)

KEYSTONE button (20)

Zoom

+ button (19)

- button (19)

MENU button (22)

Menu cursor buttons

▲,▼,◄,►(18~40)

ENTER button (18~40)

RESET button (24)

Preparations

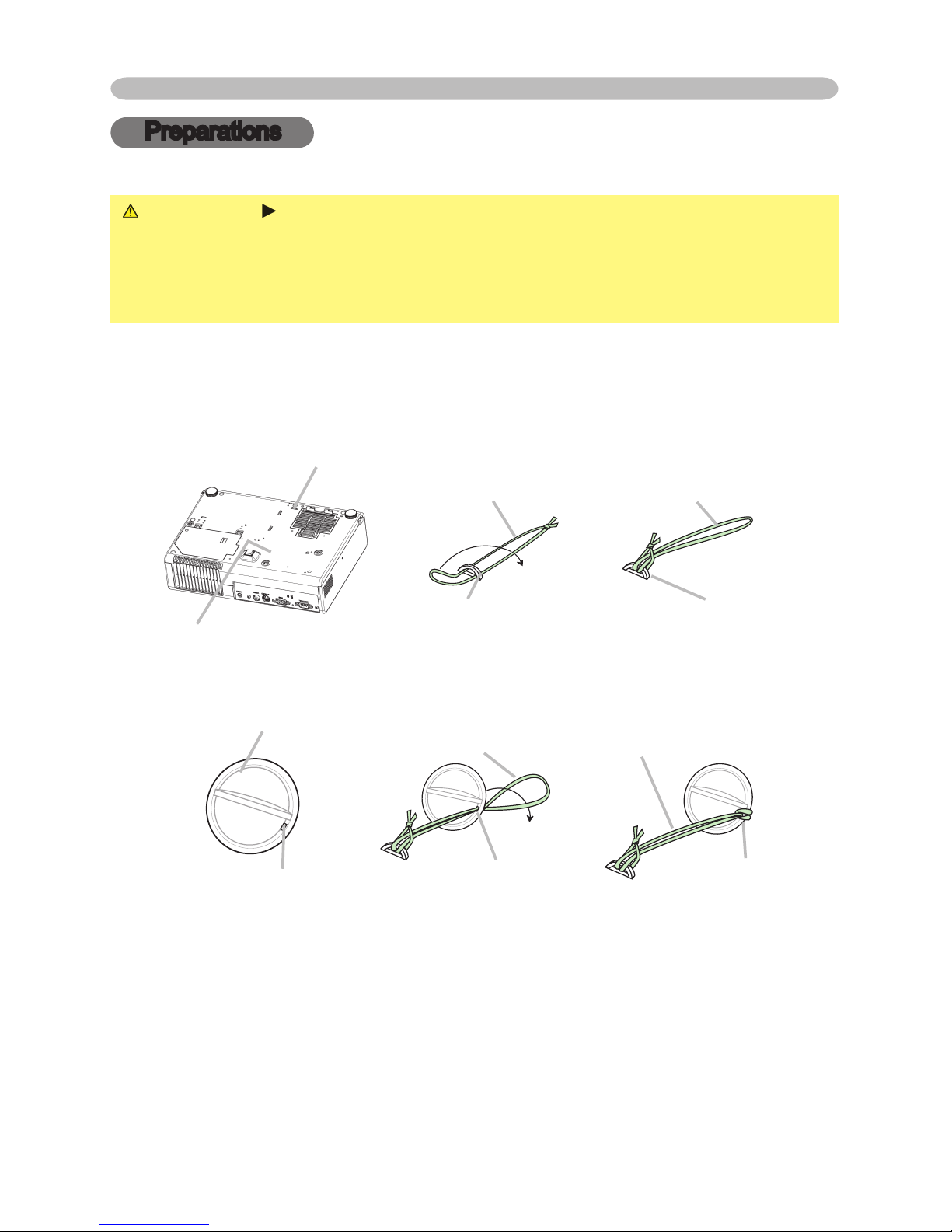

Fastening the lens cover

WARNING

►

Do not fasten the lens cover during use or immediately after

use. Handling while the projector is in a high temperature could cause a burn

and/or malfunction to the projector. Before operating, make sure that the power

switch is off, that the power cord is not plugged in, and that the projector is cool

adequately.

To avoid losing, please fasten the lens cover to the projector using the strap.

Slowly turn over the projector, so that the bottom is facing up.

Fix the strap to the strap ring of projector.

Fix the strap to the strap ring of lens cover.

Attach the lens cover to the lens of projector, and slowly turn over the

projector, so that the top is facing up.

Preparations

Strap ring

Projector (Bottom side)

Strap

Strap ring

Strap

Strap ring

(1)

(2)

Lens cover

Strap

Strap ring

Strap

Strap ring

(1)

(2)

Strap ring

Preparations

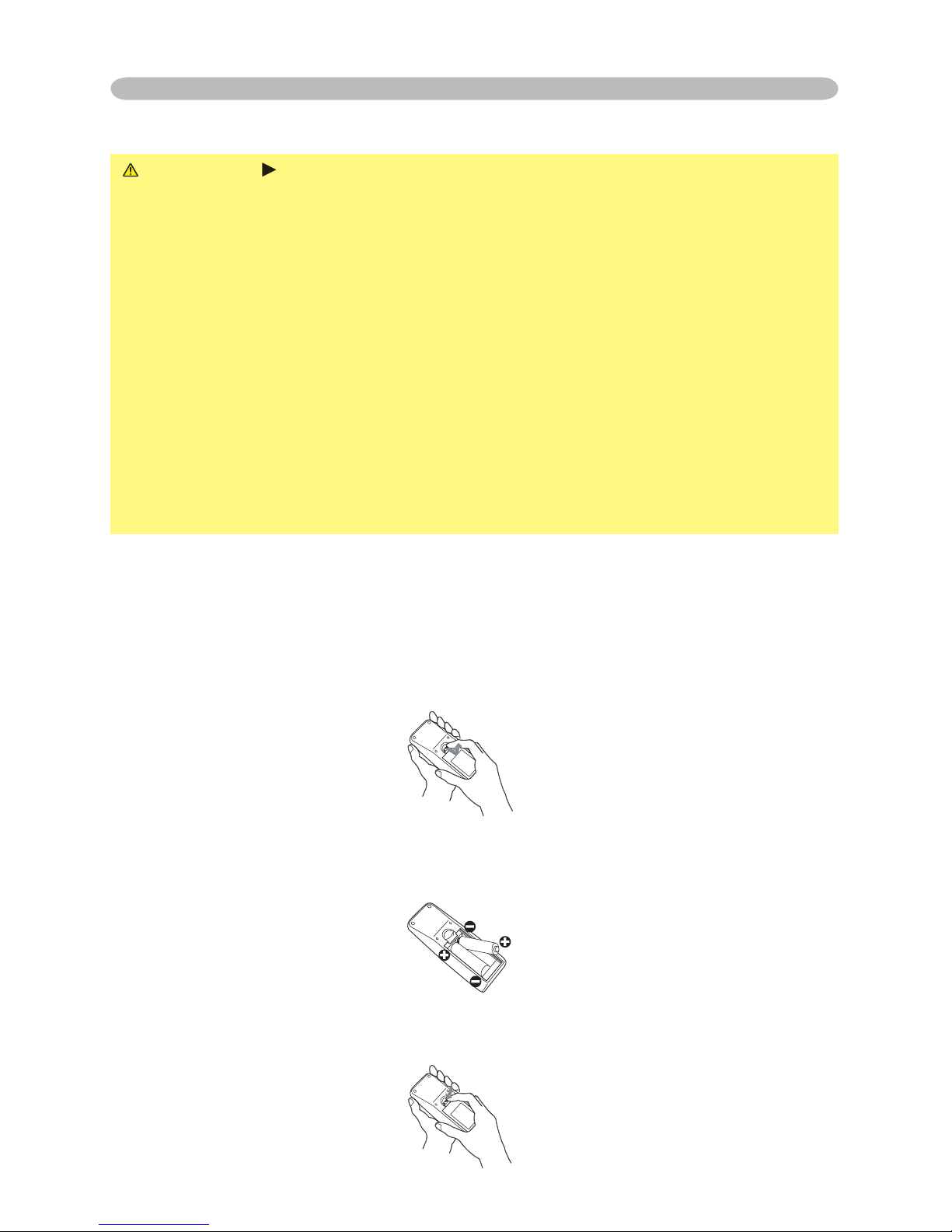

Putting batteries

WARNING

►

Always handle the batteries with care and use them only as

directed. Improper use may result in battery explosion, cracking or leakage,

which could result in ﬁ re, injury and/or pollution of the surrounding environment.

• Be sure to use only the batteries speciﬁ ed. Do not use batteries of different

types at the same time. Do not mix a new battery with used one.

• Make sure the plus and minus terminals are correctly aligned when loading a

battery.

• Keep a battery away from children and pets.

• Do not recharge, short circuit, solder or disassemble a battery.

• Do not allow a battery in a ﬁ re or water. Keep batteries in a dark, cool and dry

place.

• Do not give the battery a physical impact.

• If you observe a leakage of a battery, wipe out the ﬂ ower and then replace

a battery. If the ﬂ ower adheres your body or clothes, rinse well with water

immediately.

• Obey the local laws on disposing a battery.

To use the remote control, please load the batteries. Whenever the remote control

starts to malfunction, replace the batteries. If you won’t use the remote control for

an extended period, remove the batteries from the remote control and store them

in a safe place.

Remove the battery cover.

Slide back and remove the battery cover in the direction of the arrow.

Take old batteries out and/or put new batteries in.

When putting in batteries, align and insert the two AA batteries according to

their plus and minus terminals as indicated in the remote control.

Close the battery cover.

Replace the battery cover in the direction of the arrow and snap it back into

place.

Preparations

Using the remote control

CAUTION

►

Be careful in handling the remote control. Incorrect handling

could cause damage or malfunction.

• Do not drop or otherwise expose the remote control to physical impact.

• Do not get the remote control wet or place it on wet objects.

• Remove the batteries from the remote control and store them in a safe place if

you won’t be using the remote control for an extended period.

• Replace the batteries whenever the remote control starts to malfunction.

• When strong lights such as direct sunlight or light from an extremely close

range (such as from an inverter ﬂ uorescent lamp) hit the projector’s remote

sensor, the remote control may not function correctly. Adjust the direction of the

projector to keep light from directly hitting the projector’s remote sensor.

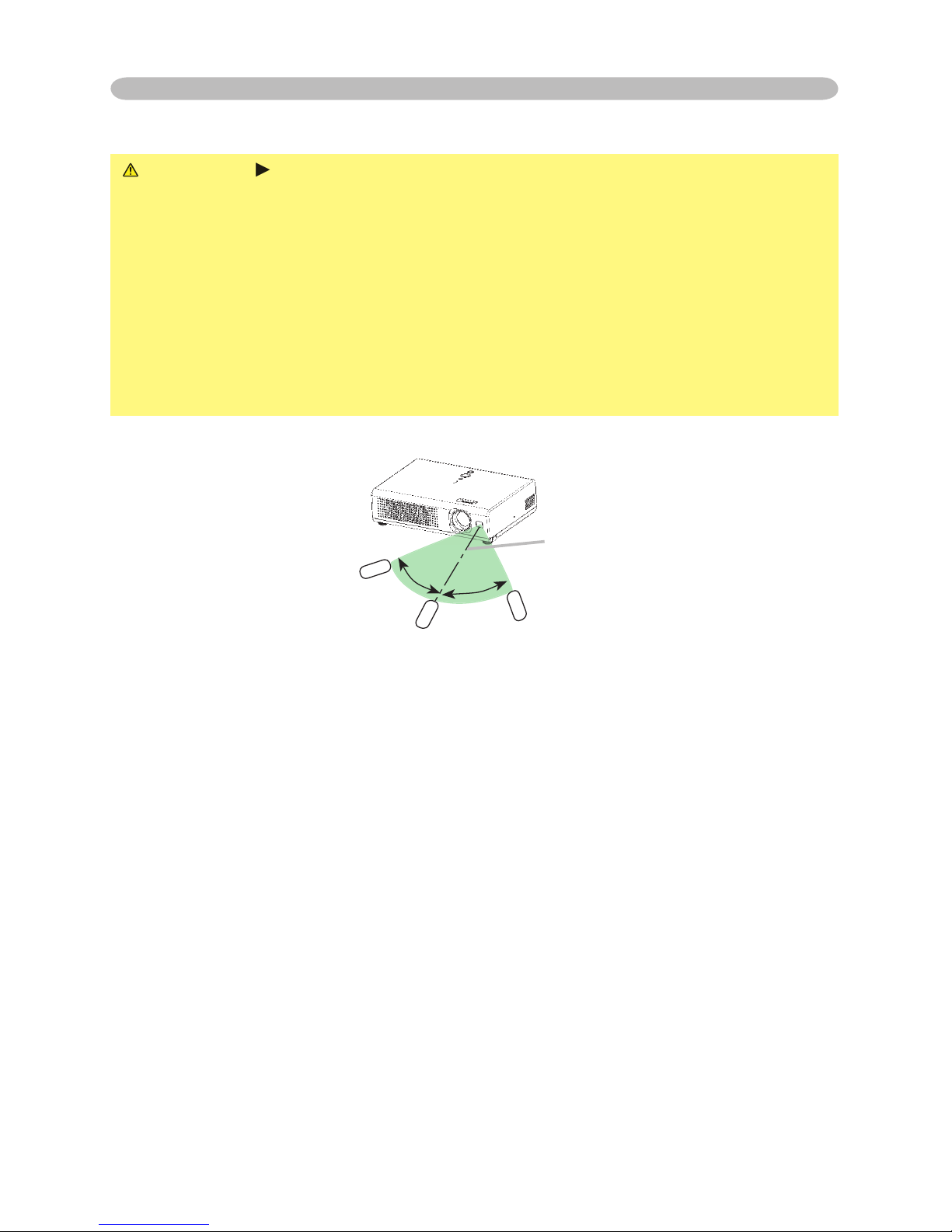

The remote control works with the projector’s remote sensor.

• The range of the remote sensor is 3 meters with a 60 degree range (30 degrees

to the left and right of the remote sensor).

• Also a remote signal reﬂ ected in the screen etc. may be available. If it is difﬁ cult

to send a remote signal to the sensor directly, please try.

• Since the remote control uses infrared light to send signals to the projector

(Class1 LED), be sure to use the remote control in an area free from obstacles

that could block the remote control’s output signal to the projector.

approx. 3 meters

30º

Preparations

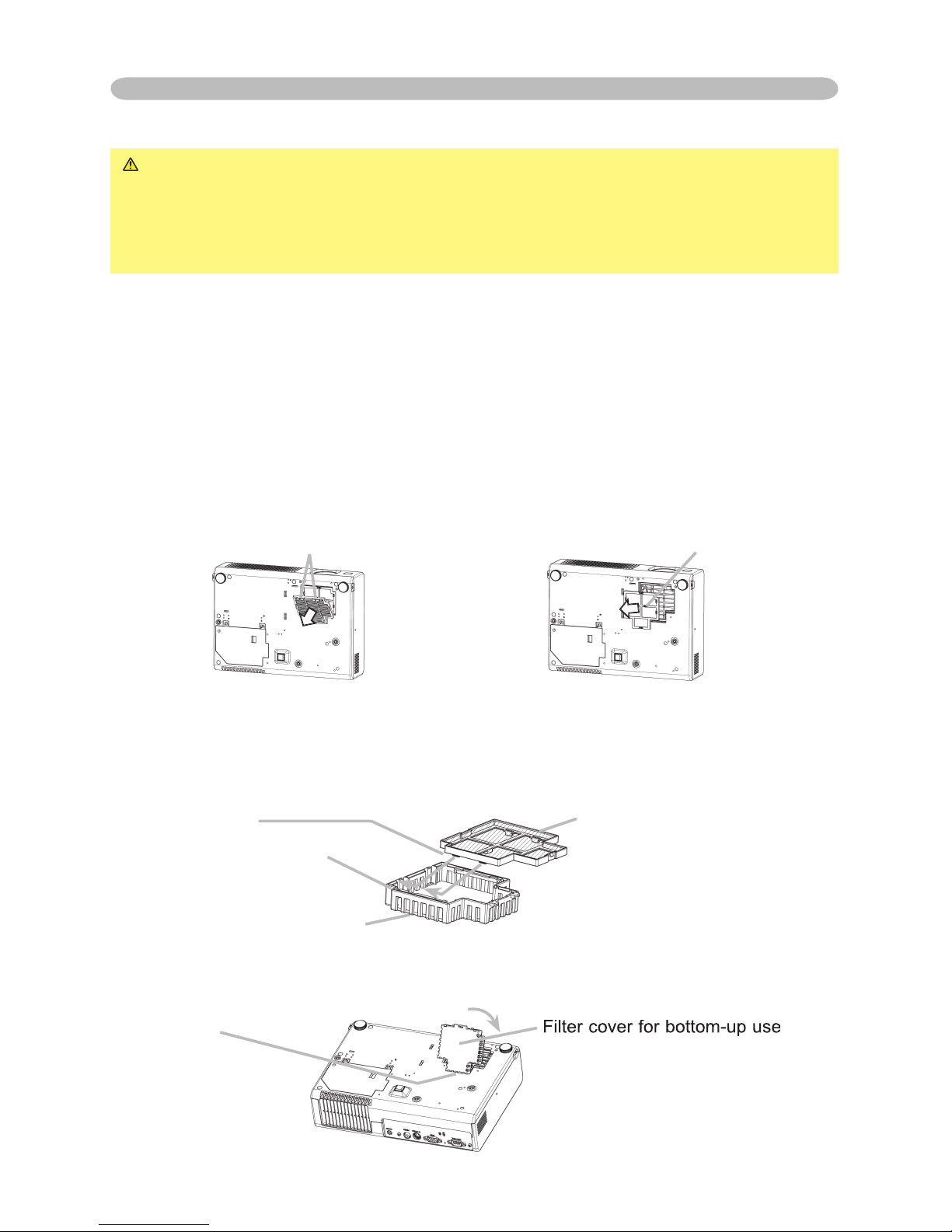

About the ﬁ lter cover for bottom-up use

WARNING

►Do not replace the ﬁ lter cover and/or air ﬁ lter during use or

immediately after use. Handling while the projector is in a high temperature

could cause a burn and/or malfunction to the projector. Before operating, make

sure that the power switch is off, that the power cord is not plugged in, and that

the projector is cool adequately.

When the projector is installed bottom up, please use the accessory ﬁ lter cover

for bottom-up use. It is higher than usual ﬁ lter cover, to keep the space for intake

ventilation. Please change in the following procedure.

Disconnect all the connectors and adapters that were connected to the

projector’s ports. Then slowly turn the projector so that the lens-side is facing

up. Please be careful for a projector not to fall. While the projector is placed

lens-side up, hold the projector.

Remove the ﬁ lter cover and the air ﬁ lter. Hold the knobs while pulling out it.

Slowly turn the projector so that the bottom is facing up.

Set a new or cleaned air ﬁ lter to the ﬁ lter cover for bottom-up use. Make the

claws slide along the rail, and set the air ﬁ lter into place.

Interlocking the tabs, snap the ﬁ lter cover for bottom-up use into place.

Air ﬁ lter’s knob

Claws

Filter cover’s knob

Rail of air ﬁ lter

Filter cover for bottom-up use

Air ﬁ lter (New or cleaned)

Filter cover for bottom-up use

(with an air ﬁ lter)

Tabs

Setting up

WARNING

►

Place the projector in a stable position horizontally. A fall or

a turnover could cause an injury and/or damage to the projector. Then using

damaged projector could result in a ﬁ re and/or an electric shock.

• Don’t place the projector on an unstable, slant or vibrant surface such as a

wobbly or inclined stand.

• Do not place the projector in the side/front/rear-up position, except care of the

air ﬁ lter.

• For the projector installed bottom-up, use the accessory ﬁ lter cover for bottom-

up use. And in the case of a ceiling installation or the like, contact your dealer

before installation.

►Place the projection in a cool place, and pay attention enough to ventilation.

The high temperature of the projector could cause a ﬁ re, a burn and/or

malfunction to the projector.

• Don’t stop up, block and cover the projector's vents.

• Keep a space of 30 cm or more between the sides and other objects such as

walls.

• Don’t place the projector on a metallic thing or anything weak in heat.

• Don’t place the projector on a carpet, cushion or bedding.

• Don’t place the projector in direct sunlight or near a hot object such as heater.

• Put nothing about lens and vents of the projector. Put nothing on the projector.

• Put nothing that is sucked or sticks to the bottom of projector. This projector

has some intake vents also on the bottom.

►Do not place the projector on the place that gets wet. Damping the projector

or inserting liquid in the projector could cause a ﬁ re, an electric shock and/or

malfunction to the projector.

• Don’t place the projector in a bathroom or the outdoors.

• Put nothing containing the liquid near the projector.

CAUTION

►Avoid a smoky, humid or dusty place. Placing the projector

in such place could cause a ﬁ re, an electric shock and/or malfunction to the

projector.

•

Don’t place the projector near a humidiﬁ er, a smoking space or a kitchen.

•

Put nothing containing the liquid near the projector.

►Adjust the direction of the projector to keep light from directly hitting the

projector's remote sensor.

Altri manuali per CP-RX60 Series

Indice

Altri manuali Hitachi Proiettore

Hitachi

Hitachi CP-X201 Manuale utente

Hitachi

Hitachi CP-RX60Z Manuale utente

Hitachi

Hitachi CP-AW3005 Manuale utente

Hitachi

Hitachi LP-TW4001 Manuale utente

Hitachi

Hitachi CP-X8150 Manuale utente

Hitachi

Hitachi CP-SX1350 P5SX+ Manuale utente

Hitachi

Hitachi CP-WU9100 Manuale utente

Hitachi

Hitachi ED-X30 Manuale utente

Hitachi

Hitachi CPX4 series Manuale utente

Hitachi

Hitachi CP-AW3506 Manuale utente

Hitachi

Hitachi ED-X22 Manuale utente

Hitachi

Hitachi CP-X2515WN Manuale utente

Hitachi

Hitachi Innovate ED-X50 Manuale utente

Hitachi

Hitachi CP-WX4022WN Manuale utente

Hitachi

Hitachi CP-RS56 series Documento tecnico

Hitachi

Hitachi CP-X3030WN Manuale utente

Hitachi

Hitachi Performa CP-RS55 Manuale utente

Hitachi

Hitachi CP-AW250N Manuale utente

Hitachi

Hitachi X308 - CP XGA LCD Projector Guida rapida

Hitachi

Hitachi CP-AX3503 Manuale utente

Hitachi

Hitachi Innovate CP-X2520 Manuale utente

Hitachi

Hitachi CP-X885 Series Manuale utente

Hitachi

Hitachi ED-X24Z and Documento tecnico

Hitachi

Hitachi CP-X615 series Istruzioni di installazione e manutenzione

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente
