NOTE • Be sure to check jack type, signal level, timing and resolution before

connecting this projector to a PC.

• Some PCs may have multiple display screen modes. Use of some of these modes

will not be possible with this projector.

• Depending on the input signal, full-size display may not be possible in some cases.

Refer to the number of display pixels above.

• Although the projector can display signals with resolution up to UXGA (1600x1200),

the signal will be converted to the projector’s panel resolution before being displayed.

The best display performance will be achieved if the resolutions of the input signal

and projector panel are identical.

• Automatic adjustment may not function correctly with some input signals.

• The image may not be displayed correctly when the input sync signal is a composite

sync or a sync on G.

Projector

CP-X4021N/CP-X5021N/

CP-WX4021N

User's Manual (detailed)

Operating Guide – Technical

Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode

720 x 400 37.9 85.0 VESA TEXT

640 x 480 31.5 59.9 VESA VGA (60Hz)

640 x 480 37.9 72.8 VESA VGA (72Hz)

640 x 480 37.5 75.0 VESA VGA (75Hz)

640 x 480 43.3 85.0 VESA VGA (85Hz)

800 x 600 35.2 56.3 VESA SVGA (56Hz)

800 x 600 37.9 60.3 VESA SVGA (60Hz)

800 x 600 48.1 72.2 VESA SVGA (72Hz)

800 x 600 46.9 75.0 VESA SVGA (75Hz)

800 x 600 53.7 85.1 VESA SVGA (85Hz)

832 x 624 49.7 74.5 Mac 16” mode

1024 x 768 48.4 60.0 VESA XGA (60Hz)

1024 x 768 56.5 70.1 VESA XGA (70Hz)

1024 x 768 60.0 75.0 VESA XGA (75Hz)

1024 x 768 68.7 85.0 VESA XGA (85Hz)

1152 x 864 67.5 75.0 VESA

1152 x 864 (75Hz)

1280 x 768 47.7 60.0 VESA W-XGA (60Hz)

1280 x 800 49.7 60.0 VESA

1280 x 800 (60Hz)

1280 x 960 60.0 60.0 VESA

1280 x 960 (60Hz)

1280 x 1024 64.0 60.0 VESA SXGA (60Hz)

1280 x 1024 80.0 75.0 VESA SXGA (75Hz)

1280 x 1024 91.1 85.0 VESA SXGA (85Hz)

1400 x 1050 65.2 60.0 VESA SXGA+ (60Hz)

1600 x 1200 75.0 60.0 VESA UXGA (60Hz)

Example of computer signal

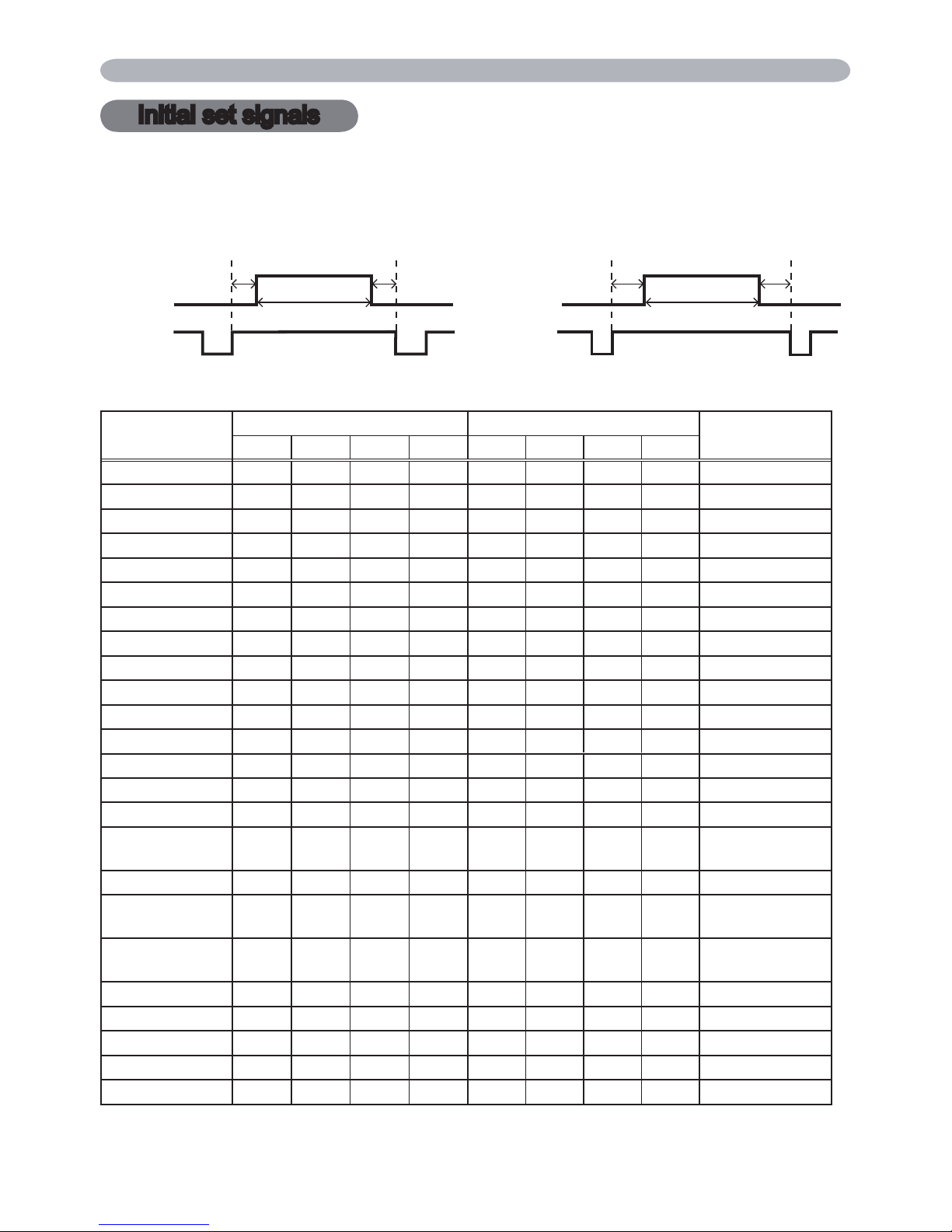

Initial set signals

The following signals are used for the initial settings. The signal timing of some

computer models may be different. In such case, adjust the items V POSITION

and H POSITION in the IMAGE menu.

Back porch (B) Front porch (D) Back porch (b) Front porch (d)

Active video (C)

Data Data

H. Sync. V. Sync.

Sync (A) Sync (a)

Active video (c)

Resolution

(H x V)

Horizontal signal timing (μs) Vertical signal timing (lines) Signal mode

(A) (B) (C) (D) (a) (b) (c) (d)

720 x 400 2.0 3.0 20.3 1.0 3 42 400 1 TEXT

640 x 480 3.8 1.9 25.4 0.6 2 33 480 10 VGA (60Hz)

640 x 480 1.3 4.1 20.3 0.8 3 28 480 9 VGA (72Hz)

640 x 480 2.0 3.8 20.3 0.5 3 16 480 1 VGA (75Hz)

640 x 480 1.6 2.2 17.8 1.6 3 25 480 1 VGA (85Hz)

800 x 600 2.0 3.6 22.2 0.7 2 22 600 1 SVGA (56Hz)

800 x 600 3.2 2.2 20.0 1.0 4 23 600 1 SVGA (60Hz)

800 x 600 2.4 1.3 16.0 1.1 6 23 600 37 SVGA (72Hz)

800 x 600 1.6 3.2 16.2 0.3 3 21 600 1 SVGA (75Hz)

800 x 600 1.1 2.7 14.2 0.6 3 27 600 1 SVGA (85Hz)

832 x 624 1.1 3.9 14.5 0.6 3 39 624 1 Mac 16" mode

1024 x 768 2.1 2.5 15.8 0.4 6 29 768 3 XGA (60Hz)

1024 x 768 1.8 1.9 13.7 0.3 6 29 768 3 XGA (70Hz)

1024 x 768 1.2 2.2 13.0 0.2 3 28 768 1 XGA (75Hz)

1024 x 768 1.0 2.2 10.8 0.5 3 36 768 1 XGA (85Hz)

1152 x 864 1.2 2.4 10.7 0.6 3 32 864 1 1152 x 864

(75Hz)

1280 x 768 1.7 2.5 16.0 0.8 3 23 768 1 W-XGA (60Hz)

1280 x 800 1.6 2.4 15.3 0.8 3 24 800 1 1280 x 800

(60Hz)

1280 x 960 1.0 2.9 11.9 0.9 3 36 960 1 1280 x 960

(60Hz)

1280 x 1024 1.0 2.3 11.9 0.4 3 38 1024 1 SXGA (60Hz)

1280 x 1024 1.1 1.8 9.5 0.1 3 38 1024 1 SXGA (75Hz)

1280 x 1024 1.0 1.4 8.1 0.4 3 44 1024 1 SXGA (85Hz)

1400 x 1050 1.2 2.0 11.4 0.7 3 33 1050 1 SXGA+ (60Hz)

1600 x 1200 1.2 1.9 9.9 0.4 3 46 1200 1 UXGA (60Hz)

ACOMPUTER IN1, BMONITOR OUT

D-sub 15pin mini shrink jack

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)

• H/V. sync. signal: TTL level (positive/negative)

• Composite sync. signal: TTL level

• Video signal:

-Y, Analog, 1.0±0.1Vp-p with composite sync, 75Ω terminated

-Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated

-C

, Analog, 0.7±0.1Vp-p 75Ω terminated

• System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60

Pin Signal Pin Signal

1Video Red, Cr/Pr 9(No connection)

2 Video Green, Y 10 Ground

3 Video Blue, Cb/Pb 11 (No connection)

4 (No connection) 12 A: SDA (DDC data), (No connection)

5 Ground B: (No connection)

6 Ground Red, Ground Cr/Pr 13 H. sync / Composite sync., (No connection)

7 Ground Green, Ground Y 14 V. sync., (No connection)

8 Ground Blue, Ground Cb/Pb 15 A: SCL (DDC clock), (No connection)

B: (No connection)

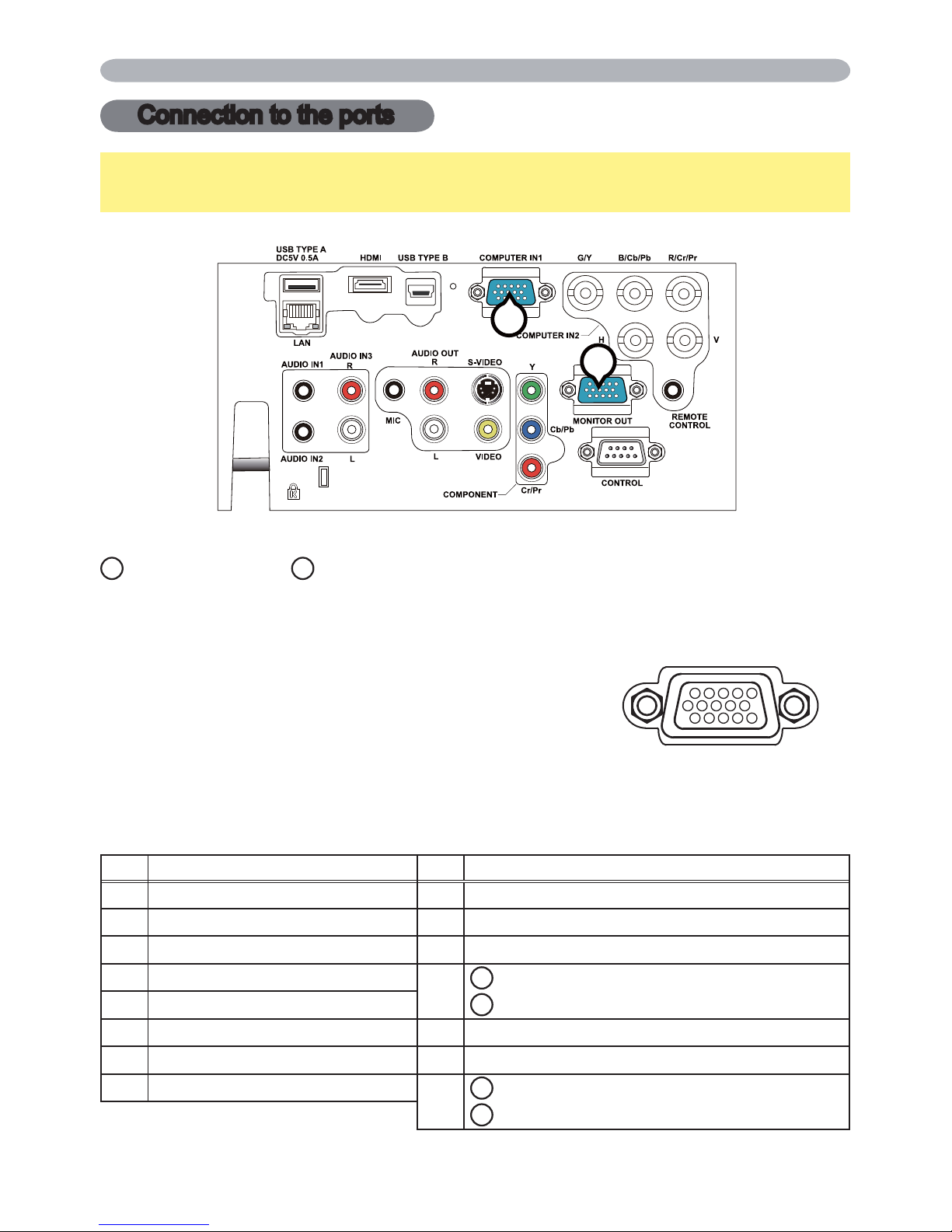

Connection to the ports





 

Connection to the ports

NOTICE ►Use the cables with straight plugs, not L-shaped ones, as the

input ports of the projector are recessed.

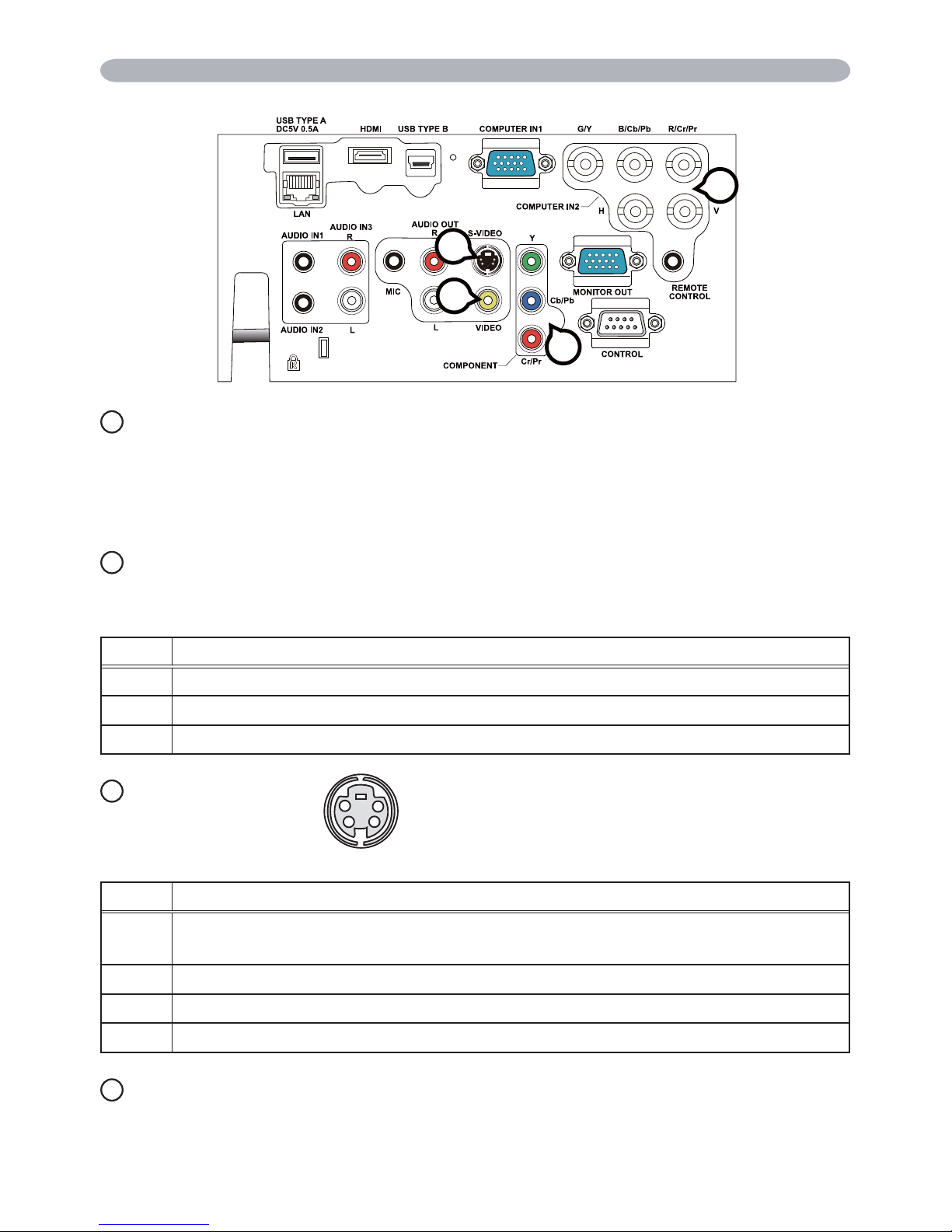

ES-VIDEO

Mini DIN 4pin jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

Pin Signal

1Color signal 0.286Vp-p (NTSC, burst), 75Ω terminator

Color signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator

2 Brightness signal, 1.0Vp-p, 75Ω terminator

3 Ground

4 Ground

Connection to the ports (continued)

FVIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

• 1.0±0.1Vp-p, 75Ω terminator

CCOMPUTER IN2 (G/Y, B/Cb/Pb, R/Cr/Pr, H, V)

• BNC jack x 5

• Video : Analog 0.7Vp-p, 75Ω terminator

• H/V, sync, : TTL level (positive/negative)

• Composite sync, : TTL level

DCOMPONENT (Y, Cb/Pb, Cr/Pr)

RCA jack x3

• System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60, 1080p@50/60

Port Signal

Y Component video Y, 1.0±0.1Vp-p with composite sync, 75Ω terminator

Cb/Pb Component video Cb/Pb, 0.7±0.1Vp-p, 75Ω terminator

Cr/Pr Component video Cr/Pr, 0.7±0.1Vp-p, 75Ω terminator

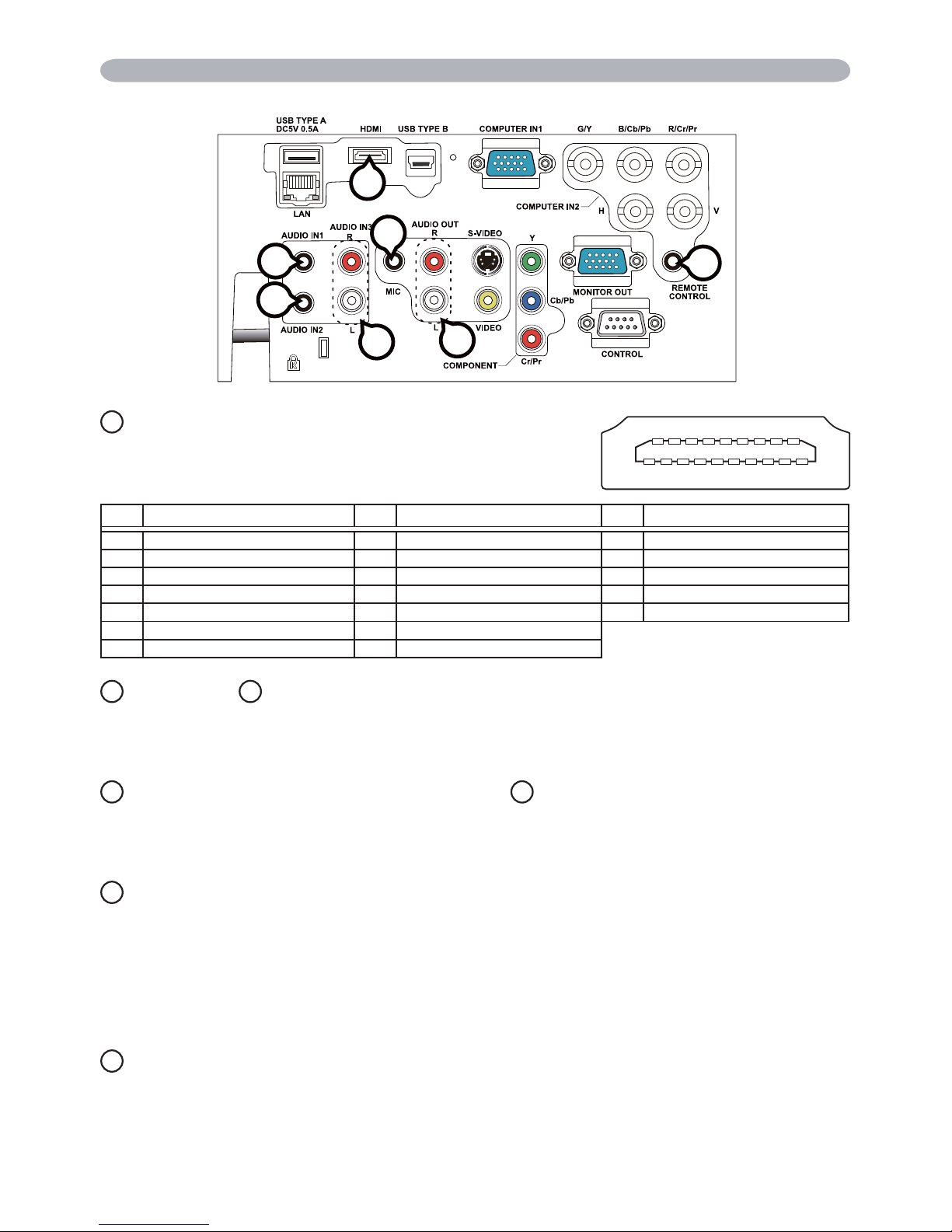

Connection to the ports (continued)

HAUDIO IN1,

AUDIO IN2

Ø3.5 stereo mini jack

• 200 mVrms, 47kΩ terminator

AUDIO IN3 (R, L)

AUDIO OUT (R, L)

RCA jack x2 RCA jack x2

• 200 mVrms, 47kΩ terminator • 200 mVrms, 1kΩ output impedance

LMIC

Ø3.5 mono mini jack

• 2 mVrms, 1kΩ terminator

• 20 mVrms, 1kΩ terminator

MREMOTE CONTROL K IN L OUT

Ø3.5 stereo mini jack

• To be connected with the remote control that came with the projector.

GHDMI

• Type :Digital audio/video connector

• Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)

Pin Signal Pin Signal Pin Signal

1 T.M.D.S. Data2 + 8 T.M.D.S. Data0 Shield 15 SCL

2 T.M.D.S. Data2 Shield 9 T.M.D.S. Data0 - 16 SDA

3 T.M.D.S. Data2 - 10 T.M.D.S. Clock + 17 DDC/CEC Ground

4T.M.D.S. Data1 + 11 T.M.D.S. Clock Shield

+5V Power

5 T.M.D.S. Data1 Shield 12 T.M.D.S. Clock - 19 Hot Plug Detect

6 T.M.D.S. Data1 - 13 CEC

7 T.M.D.S. Data0 + 14 Reserved(N.C. on device)

624 8 1610 12 14 18

13 151171917593

Connection to the ports (continued)

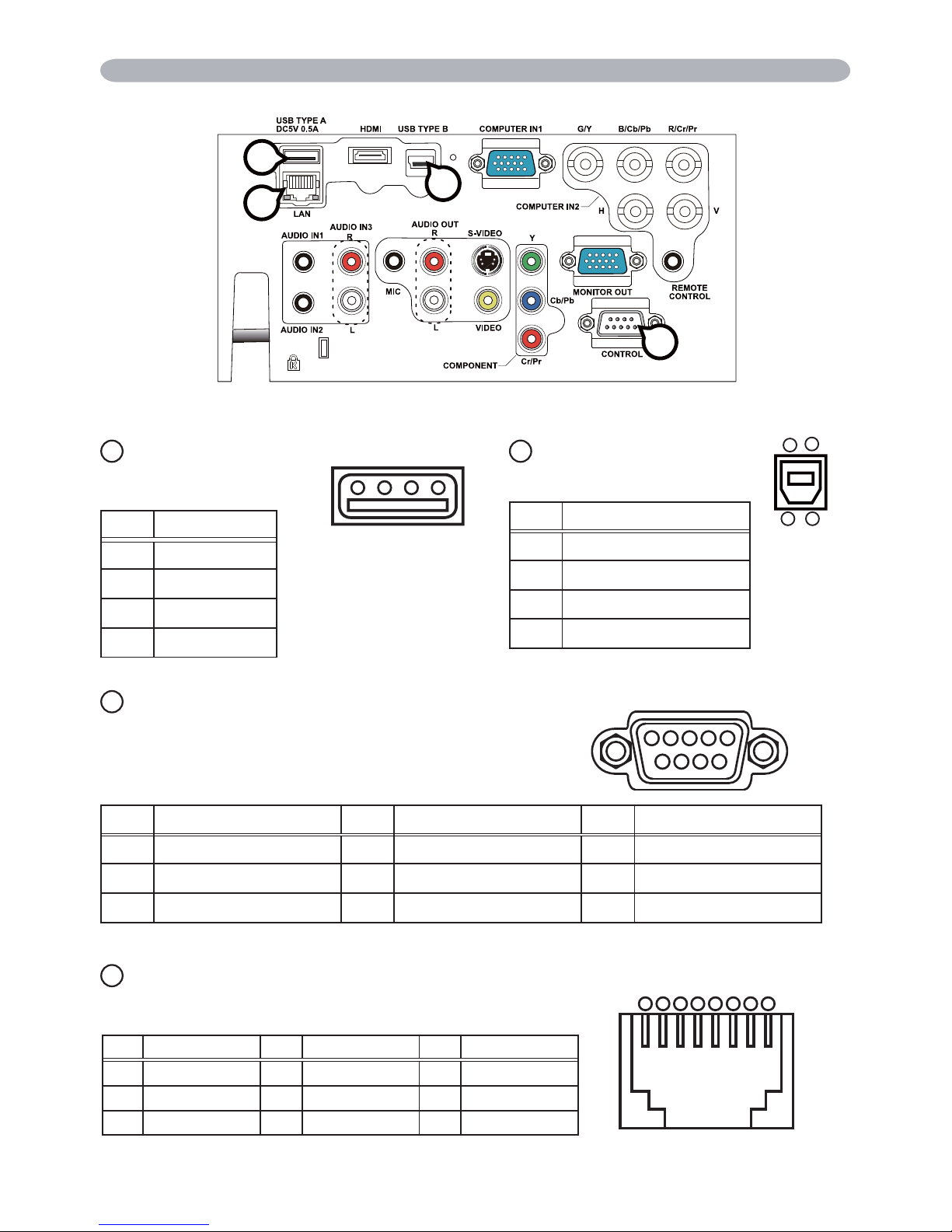

USB

TYPE B

USB B type jack

Pin Signal

1 +5V

2 - Data

3 + Data

4 Ground

CONTROL

D-sub 9pin plug

• About the details of RS-232C communication,

please refer to the section "RS-232C Communication".

Pin Signal Pin Signal Pin Signal

1 (No connection) 4 (No connection) 7 RTS

2 RD 5 Ground 8 CTS

3 TD 6 (No connection) 9 (No connection)

LAN

RJ-45 jack 87654

Pin Signal Pin Signal Pin Signal

1TX+ 4- 7-

2TX- 5- 8-

3 RX+ 6 RX-

54321

678

NUSB TYPE A

USB A type jack 432 1

Pin Signal

1 +5V

2 - Data

3 + Data

4 Ground

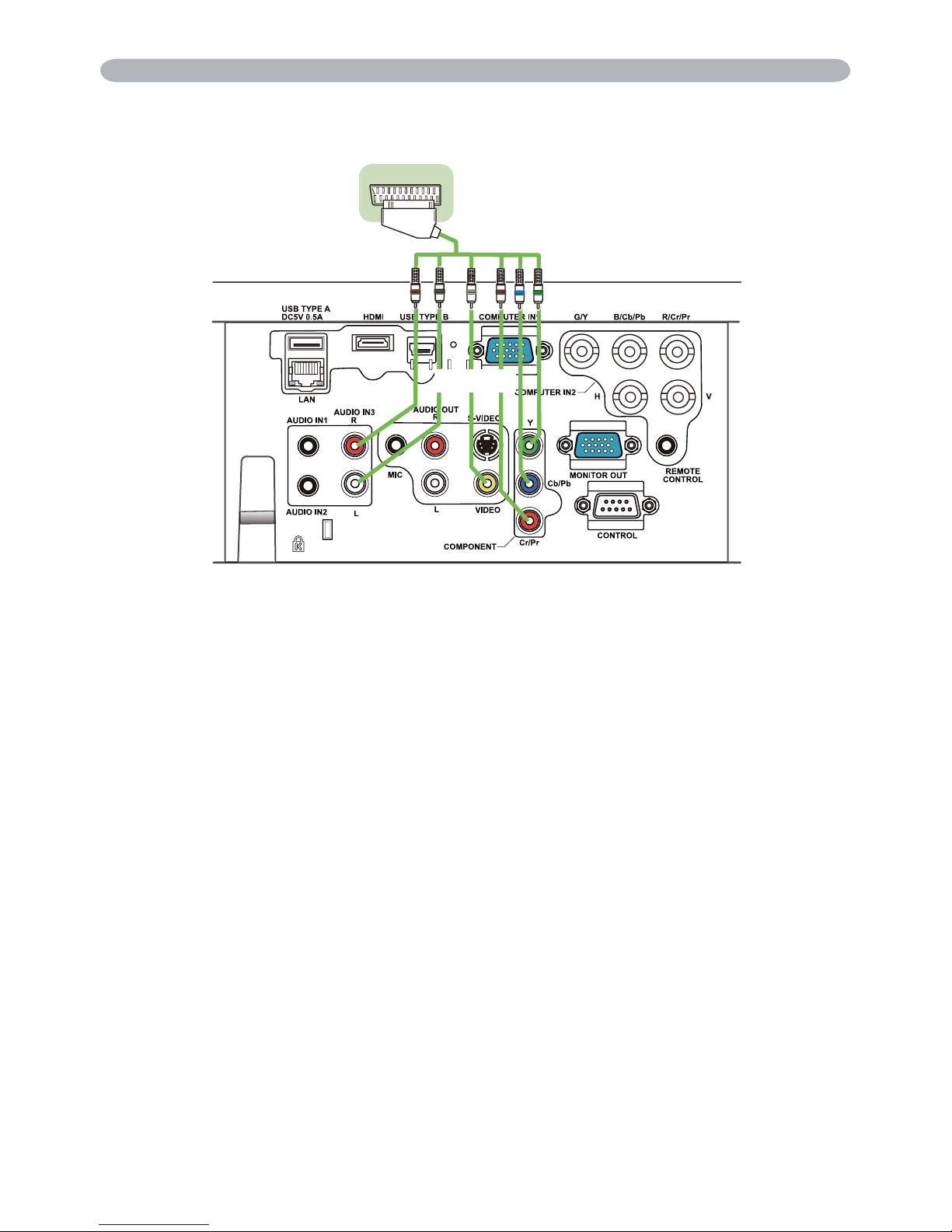

SCART

To input SCART RGB signal;

ex.

Connection to the ports (continued)

To input SCART RGB signal to the projector, use a SCART to RCA cable.

Connect the plugs refer to above ex.. For more reference, please consult your

dealer.

SCART

connector

(jack) SCART cable

(plug)

RCA plugs

CD (1) (1) −

RD(2) (2) RD

TD (3) (3) TD

DTR (4) (4)

−

GND (5) (5) GND

DSR (6) (6)

−

RTS (7) (7) RTS

DTS (8) (8) CTS

RI (9) (9)

−

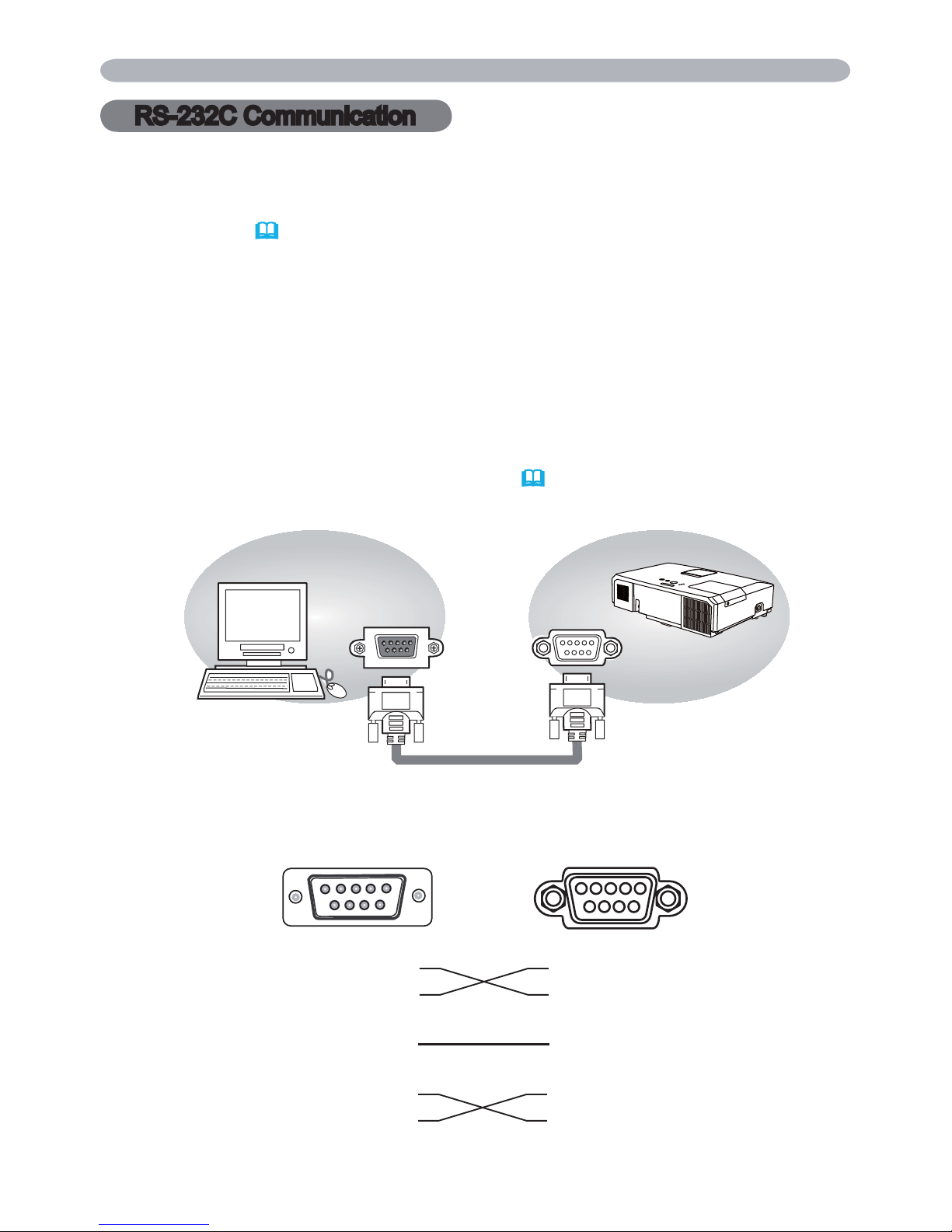

RS-232C Communication

When the projector connects to the computer by RS-232C communication, the

projector can be controlled with RS-232C commands from the computer.

For details of RS-232C commands, refer to RS-232C Communication / Network

command table (17).

Connection

1. Turn off the projector and the computer.

2. Connect the projector's CONTROL port and the computer's RS-232C port

with a RS-232C cable (cross). Use the cable that fulﬁlls the speciﬁcation

shown in ﬁgure

3. Turn the computer on, and after the computer has started up turn the projector

on.

4. Set the COMMUNICATION TYPE to OFF. (OPTION menu - SERVICE -

COMMUNICATION in the User's Manual - Operating Guide)



124

CONTROL port

of the projector

RS-232C port

of the computer

CONTROL

RS-232C

RS-232C Cable

(cross)

54321

678

RS-232C Communication (continued)

Communicaion settings

1. Protocol

19200bps,8N1

2. Command format ("h" shows hexadecimal)

Byte Number 01 2 3456

789101112

Command

Action

Header Data

Header

code

Packet

Data

size

CRC

ﬂag Action Type Setting

code

LH LHLHLHLHLH

<SET>

Change setting to

desired value [(cL)(cH)]

by [(eL)(eH)].

BEh EFh 03h 06h 00h

(aL) (aH) 01h 00h (bL) (bH) (cL) (cH)

<GET>

Read projector

internal setup value [(bL)

(bH)] .

(aL) (aH) 02h 00h (bL) (bH) 00h 00h

Increment setup value

[(bL)(bH)] by 1.

(aL) (aH) 04h 00h (bL) (bH) 00h 00h

Decrement setup value

[(bL)(bH)] by 1.

(aL) (aH) 05h 00h (bL) (bH) 00h 00h

<EXECUTE> Run a

command [(bL)(bH)].

(aL) (aH) 06h 00h (bL) (bH) 00h 00h

[Header code] [Packet] [Data size]

Set [BEh, EFh, 03h, 06h, 00h] to byte number 0

[CRC ﬂag]

For byte number

5, 6,

refer to

RS-232C Communication / Network command

table

(17).

[Action]

Set functional code to byte number 7, 8.

<SET> = [01h, 00h], <GET> = [02h, 00h], <INCREMENT> =[04h, 00h]

<DECREMENT> = [05h, 00h], <EXECUTE> = [06h, 00h]

Refer to the Communication command table (above).

[Type] [Setting code]

For byte number

〜

, refer to

RS-232C Communication / Network command

table

(17).

RS-232C Communication (continued)

3. Response code / Error code ("h" shows hexadecimal)

(1) ACK reply : 06h

When the projector receives the Set, Increment, Decrement or Execute

command correctly, the projector changes the setting data for the speciﬁed

item by [Type], and it returns the code.

(2) NAK reply : 15h

When the projector cannot understand the received command, the projector

returns the error code.

In such a case, check the sending code and send the same command again.

(3) Error reply : 1Ch + 0000h

When the projector cannot execute the received command for any reasons,

the projector returns the error code.

In such a case, check the sending code and the setting status of the projector.

(4) Data reply : 1Dh + xxxxh

When the projector receives the GET command correctly, the projector returns

the responce code and 2 bytes of data.

NOTE • For connecting the projector to your devices, please read the

manual for each devices, and connect them correctly with suitable cables.

• Operation cannot be guaranteed when the projector receives an undeﬁned

command or data.

• Provide an interval of at least 40ms between the response code and any other

code.

• The projector outputs test data when the power supply is switched ON, and

when the lamp is lit. Ignore this data.

• Commands are not accepted during warm-up.

• When the data length is greater than indicated by the data length code, the

projector ignore the excess data code. Conversely when the data length is

shorter than indicated by the data length code, the projector returns the error

code to the computer.

Altri manuali per CP-X4021N

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Hitachi Proiettore

Hitachi

Hitachi CP-SX635 - SXGA+ LCD Projector Manuale utente

Hitachi

Hitachi CP-X608 Manuale utente

Hitachi

Hitachi CP-EX401 Manuale utente

Hitachi

Hitachi CP-S335 series Manuale utente

Hitachi

Hitachi CP-X3010N Series Documento tecnico

Hitachi

Hitachi CP-X2010N Manuale utente

Hitachi

Hitachi CP-X2011 Manuale utente

Hitachi

Hitachi ED-A100 Manuale di installazione e funzionamento

Hitachi

Hitachi Innovate CP-X2021WN Manuale utente

Hitachi

Hitachi CPX6 Manuale utente

Hitachi

Hitachi CP-X430W Manuale utente

Hitachi

Hitachi CP-A100 Series Manuale utente

Hitachi

Hitachi CP-TW2503 Manuale utente

Hitachi

Hitachi CP-X505W and Manuale utente

Hitachi

Hitachi CP-DX250 guide Manuale utente

Hitachi

Hitachi CP-X2510N Series Manuale utente

Hitachi

Hitachi CP-EW300 Manuale utente

Hitachi

Hitachi CP-X2 series Documento tecnico

Hitachi

Hitachi CP-A220N Manuale utente

Hitachi

Hitachi CP-X809 Manuale utente

Hitachi

Hitachi Performa CP-RS55 Manuale utente

Hitachi

Hitachi CP-TW3003 Manuale utente

Hitachi

Hitachi CP-WU9100 Manuale utente

Hitachi

Hitachi CP-RX70 Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente
