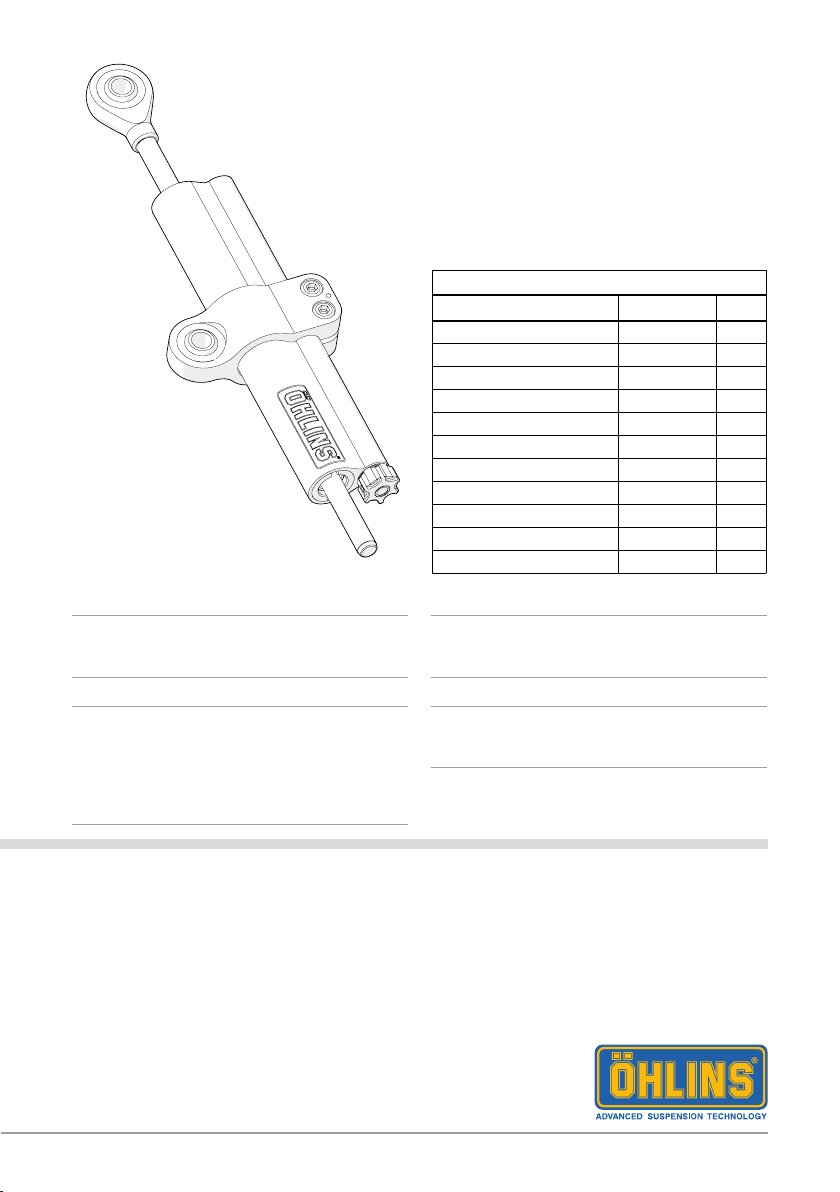

Ohlins SD 064 Manuale utente
Steering damper for BMW S1000RR
SD 064
Mounting Instructions
Note!1
Please note that there can be small differences
between your product and the images in
these instructions.
Note!1
Please note that during storage and transport,
especially at high ambient temperature, some
of the oil and grease used for assembly may
leak and stain the packaging. This will not cause
damage to the product, wipe off the excessive
oil or grease with a cloth.
Note!1
Before you install this product, check the kit
contents. If anything is missing, please contact
an Öhlins dealer.
Warning!⚠
Before you install this product, read the Öhlins
Owner’s manual. This product is an important
part of the vehicle and the vehicle stability.
Kit Contents
Description Part No Pcs
Steering damper strl 63 02262-10 1
Washer 8.4/24/2 00426-03 1
Sleeve 02238-18 1
Spacer PA 02259-01 1
Screw M8x60 01046-53 1
Bracket assy 02205-11 02230-09 1
Sleeve 02238-10 1
Sleeve 02238-16 1
Screw M8x35 05404-05 1
Owner´s Manual 07261-02 1
Sticker “ÖHLINS” 10207-01 1
2
1
Remove the plastic cover below original
steering damper.
2
Remove the original steering damper.
3
Mount the Öhlins steering damper to Bracket
assembly (02230-09). Mount according to
gure.
4
Mount the Öhlins steering damper to the frame.
Use Sleeve 02238-18
Spacer PA 02259-01
Screw M8x60 01046-53
Sleeve 02238-10
5
Fasten the end eye to the triple clamp, from
below.
Use Screw M8x35 05404-05
Washer 8.4/24/2 00426-03
Sleeve 02238-16
MOUNTING INSTRUCTIONS
Warning!⚠
We strongly recommend to let an Öhlins dealer
install this product.
Warning!⚠
If you work with a lifted vehicle, make sure that it
is safely supported to prevent it from tipping over.
Note!1
When you work with this product, see the
vehicle service manual for vehicle specic
procedures and important data.
Note!1
Before you install this product clean the vehicle.
6
Loosen the screws to Bracket assembly
(02230-09) in step 4. Adjust the steering
damper by letting it slide in its bracket
assembly so that the steering damper uses
similar stroke both ways.
Note!1
Make sure that the steering has clearance
for turning both to the left and to the right end
positions, and that the damper is not used as a
stop.
7
Mount the plastic cover back.
Caution!✋
Make sure that you tighten all screws to the
correct torque and that nothing fouls or restricts
movement of the shock absorber/front fork/
steering damper when the suspension is fully
compressed or extended.

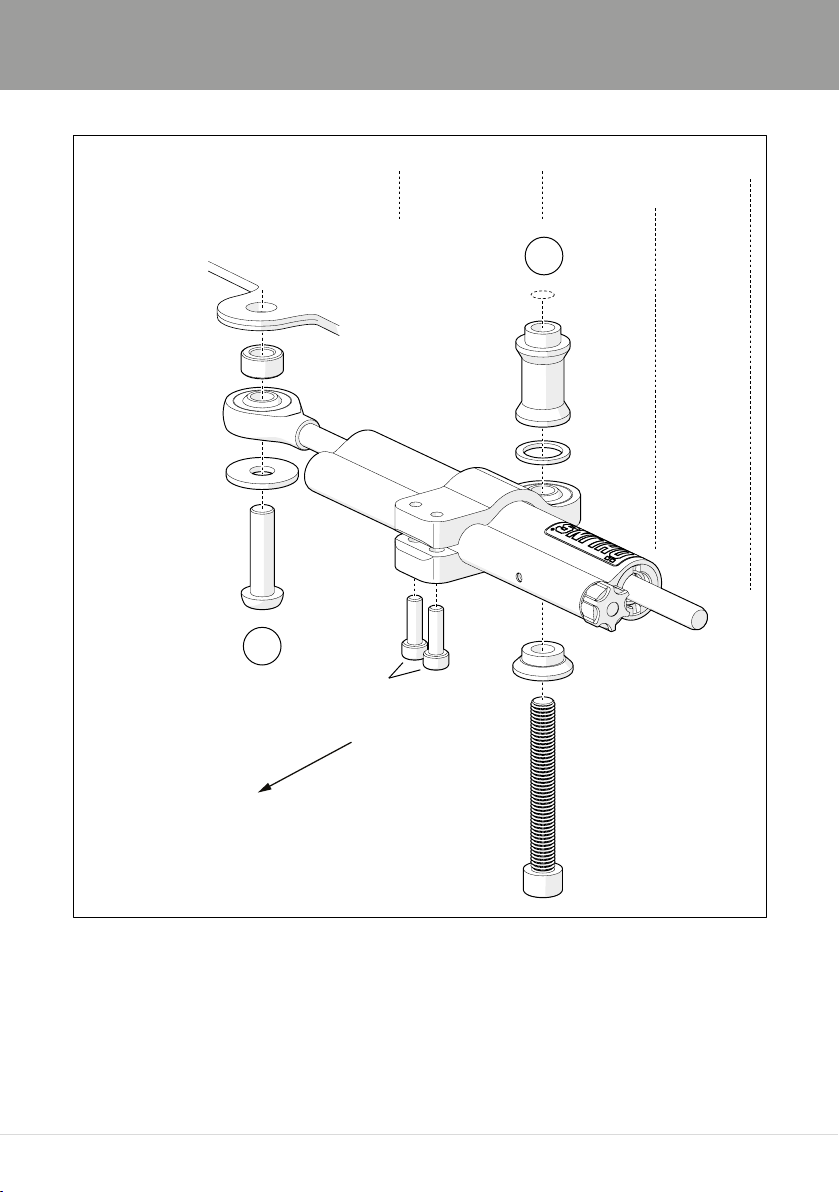

3
- right side
Front fork leg
- left side
Front fork leg
Front of the
vehicle
Frame
MOUNTING INSTRUCTIONS
3
4
Sleeve
02238-18
Screw 01046-53
Screw 05404-05
Sleeve 02238-16
Triple clamp
Spacer PA
02259-01
Washer 00426-03
Sleeve 02238-10
Tightening
torque 6Nm
Tightening
torque
according to
vehicle manual
Öhlins Racing AB
Box 722
S-194 27 Upplands Väsby, Sweden
Phone +46 8 590 025 00
fax +46 8 590 025 80
© Öhlins Racing AB. All rights
reserved. Any reprinting or
unauthorized use without the written
permission of Öhlins Racing AB
is prohibited.
Öhlins products are subject to
continuous improvement and
development, therefore, although
these instructions include the most
up-to-date information available at
the time of printing, minor updates
may occur.
To nd the latest information
contact an Öhlins distributor.
Please contact Öhlins if you have
any questions regarding the
contents in this document.

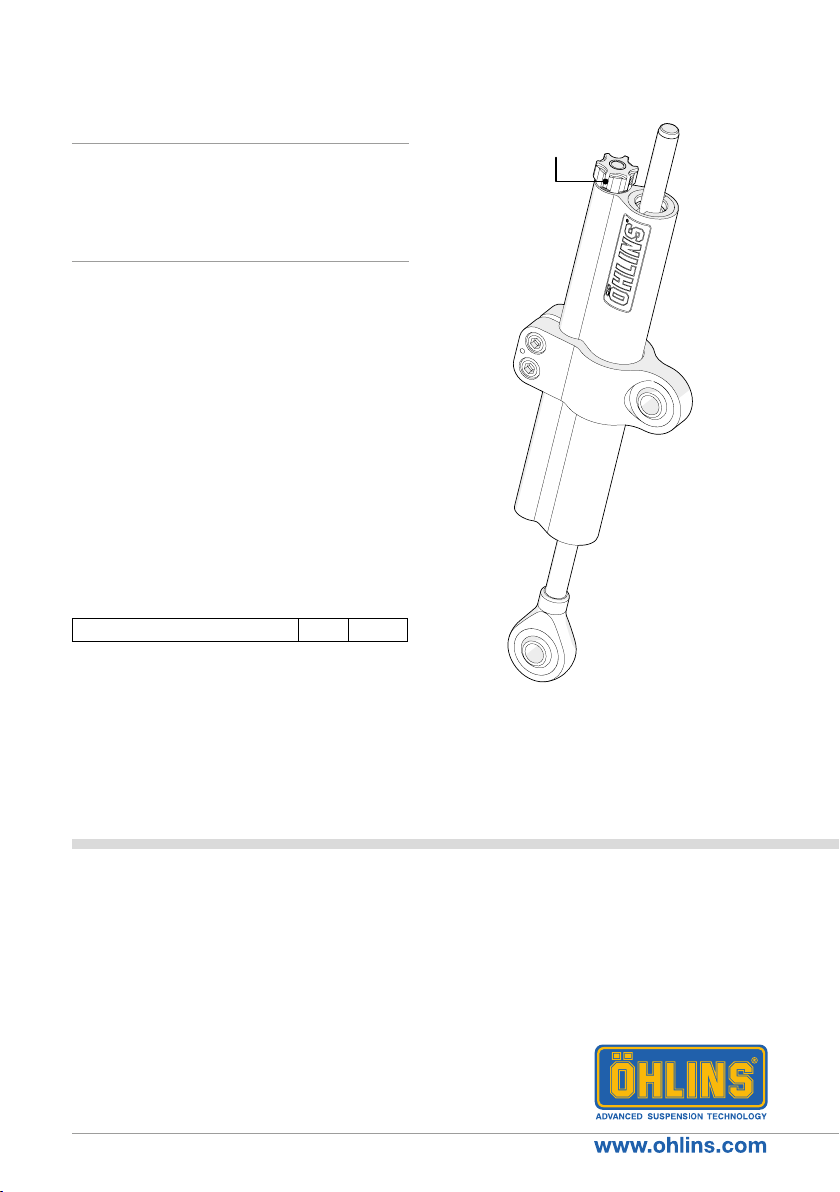

SETUP DATA
Adjuster
knob
Warning!⚠
Before you ride/drive, always make sure that the
setup is according to the recommended setup
data. Read about adjustments and setting up
in the Öhlins Owner’s Manual before you make
any adjustments. Contact an Öhlins dealer if you
have any questions about setting up.
ADJUSTMENTS
Part no. MI_SD064_0
Issued 2019-04-11
Recommended set-up 10 clicks
