Ohlins YA 559 Manuale utente
Shock Absorber for YAMAHA Mslaz
YA 559
Mounting Instructions
Note!
Please note that this image is a general representation
of the product and may differ slightly from your product.
Note!
Please note that during storage and transportation,
especially at high ambient temperature, some of the oil
and grease used for assembling may leak and stain the
packaging. This is in no way detrimental to the product,
wipe off the excessive oil/grease with a cloth.
Note!
Before installing this product, check the contents of the
kit. If anything is missing, please contact an Öhlins dealer
.
Warning!
Before installing this product, read the Öhlins Owner’s
Manual. The shock absorber is an important part of your
vehicle and will affect the stability.
Kit Contents
Description Part No Pcs
Shock absorber YA 559 1
Bracket, reservoir 60006-12 1
Clamp bracket 03102-15 1
Screw M6x12 01046-36 2
Screw M6x14 00382-16 1
Screw M8x20 00432-02 2
C-spanner 60710-01 2
Sticker Öhlins 01185-01 2
Sticker Öhlins 01185-04 2
Sticker Öhlins 00192-01 2
Owner's Manual 07241-02 1
Note!
Before installing this product, check the contents of
the kit. If anything is missing, please check an Öhlins
dealer.
2
MOUNTING INSTRUCTIONS
1

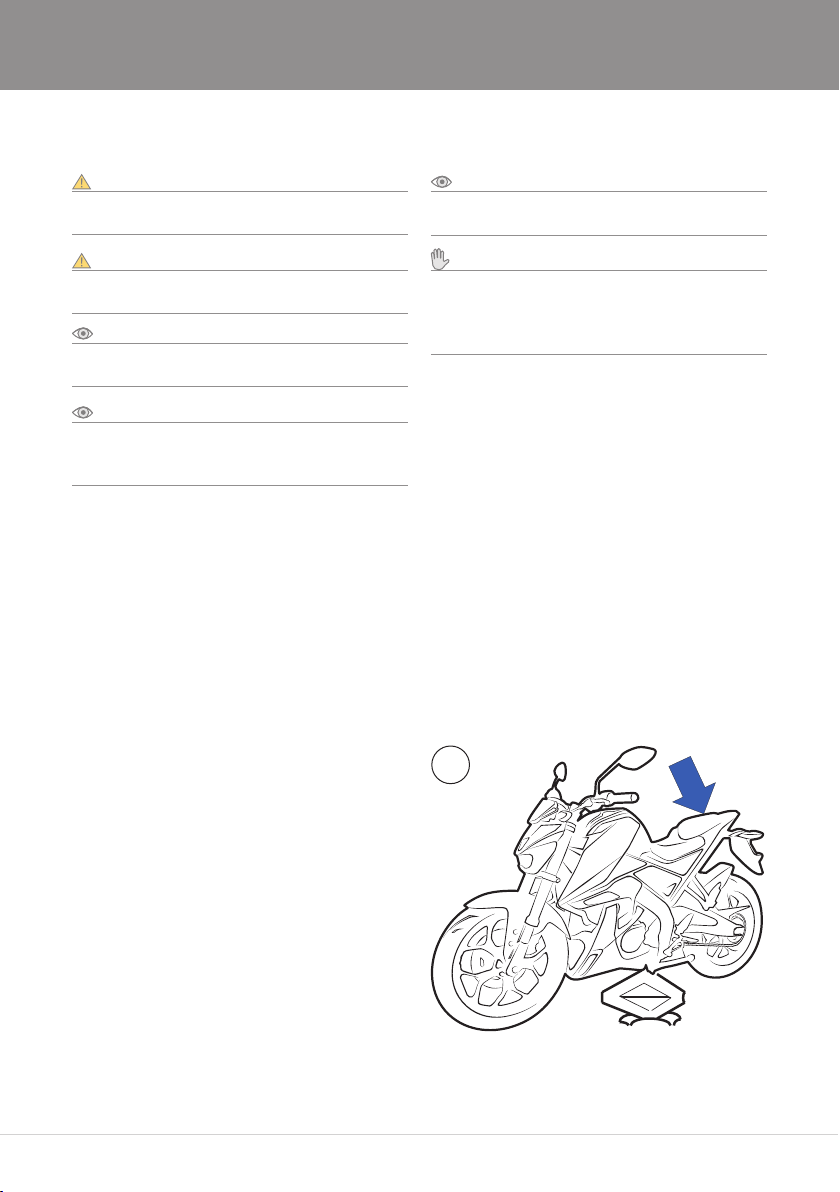

Put the motorcycle on a work stand so that the
rear wheel barely touch the ground.
Remove the rear seat by using the ignition key.
Make sure that the motorbike is in a stable
position.
Warning!
It is advisable to have an Öhlins dealer install the shock
absorber.
Warning!
If working on a raised vehicle, ensure it is securely
supported so that it will not tip over.
Note!
Before mounting this product clean the vehicle
thoroughly.
Note!
When working on this product, always see the Vehicle
Service Manual for vehicle specic procedures and
important data.
Note!
Lower the vehicle so that the suspension is slightly
compressed before tightening the screws.
Caution!
Ensure that all screws are tightened to the correct
torque and that nothing fouls or restricts movement
of the shock absorber when the suspension is fully
compressed or extended.
1
3
MOUNTING INSTRUCTIONS
2

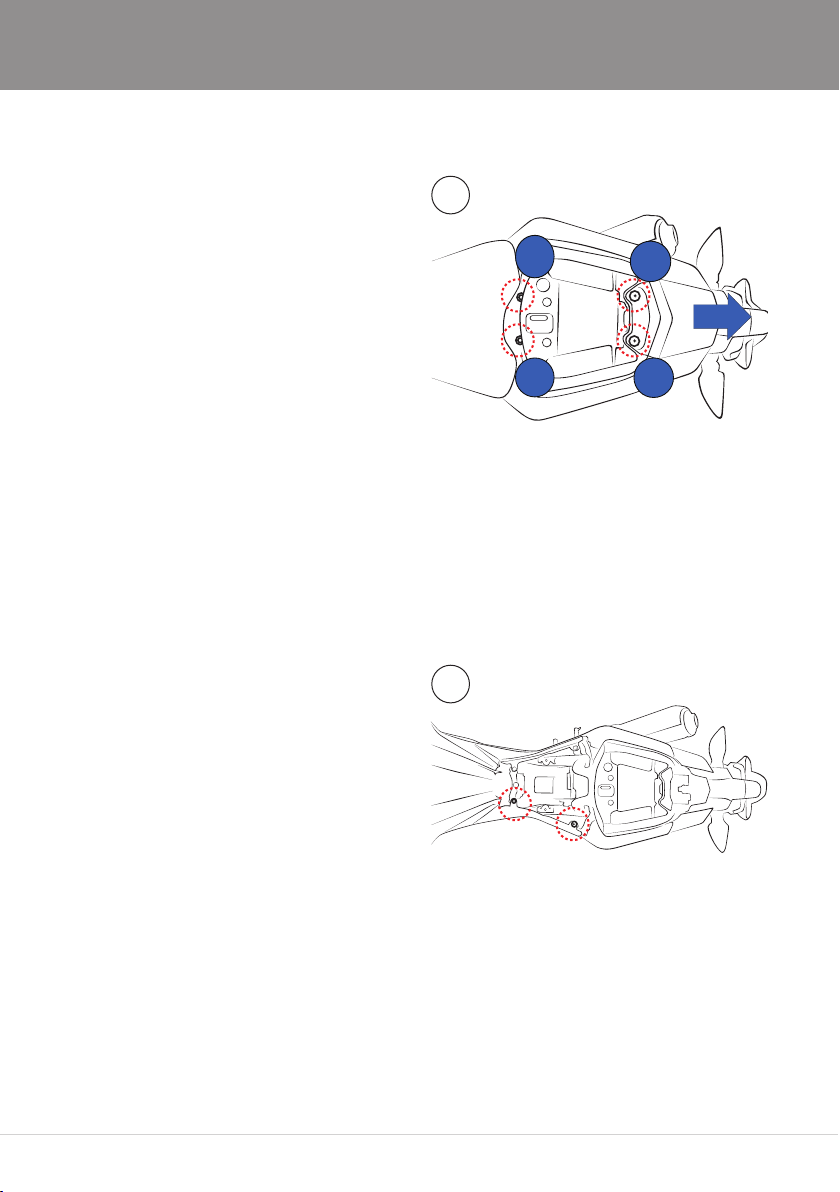

Remove the 2 screws (1,2) and slide backward
the rear cowling. Take off the center seat by
removing the 2 screws (3,4).
3
1
2
2
3
Take off the LH lateral fearing by removing 2
screws.
3
4
4
MOUNTING INSTRUCTIONS
4
4
Take off the LH lateral fearing by removing 2
screws.
5
MOUNTING INSTRUCTIONS
5
Take off the LH lateral fearing by removing 2
screws on the top and 4 screws on the bottom.
5
5
6
MOUNTING INSTRUCTIONS
6

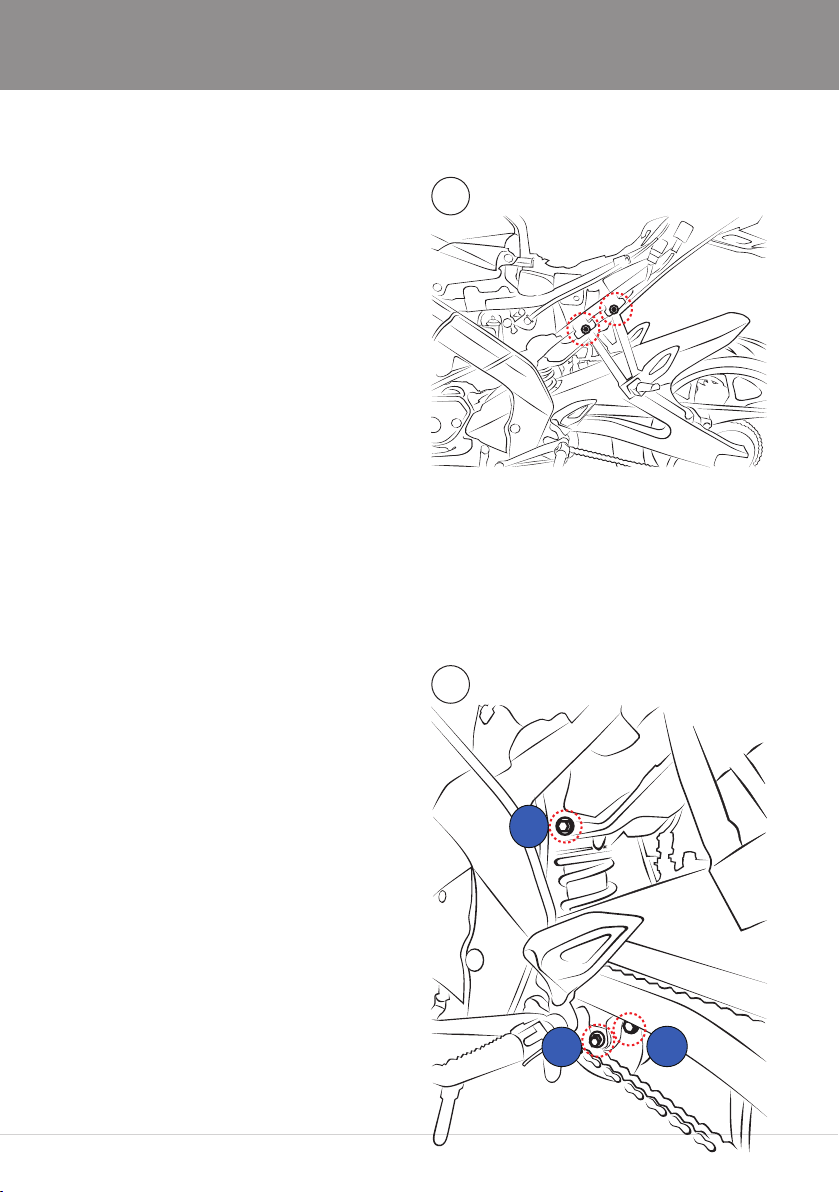

Take off the footpeg by removing 2 screws.
6
7
7
Take off the linkage by removing 1 screw (1).
Remove the shock absorber by removing the
upper and lower bolt (2,3).
1
2
3
7
MOUNTING INSTRUCTIONS
8
Install the steel plate bracket between the
footpeg and the frame by the 2 screws 00432-
02. Tighten as specied in the vehicle service
manual.
8
9
9
Install the Öhlins shock absorber by tightening
the lower and upper mounting screw at a
torque value as specied in the vehicle service
manual.
Fix the clamp bracket to the steel plate bracket
by the 2 screws 01046-36.
Slide the reservoir into the clamp bracket, then
tighten it.
Reverse all procedures.
Öhlins products are subject to
continuous improvement and
development, therefore, although
these instructions include the most
up-to-date information available at
the time of printing, minor updates
may occur.
To nd the latest information
contact an Öhlins distributor.
Please contact Öhlins if you have
any questions regarding the
contents in this document.

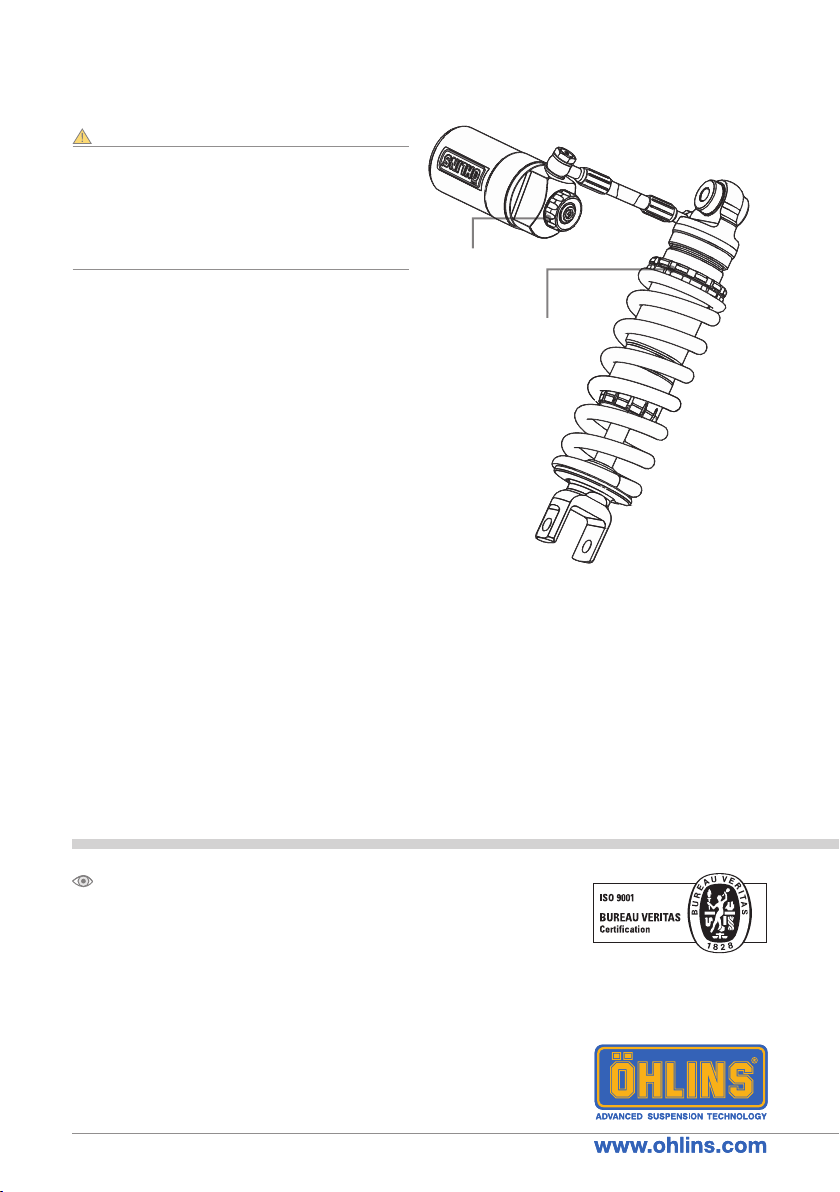

SET-UP DATA
Warning!
Before riding, always make sure that the basic settings
made by Öhlins are according to recommended
Set-up Data. Read about adjustments and setting up
in the Öhlins Owner’s Manual before you make any
adjustments. Contact an Öhlins dealer if you have any
questions about setting up.
ADJUSTMENTS
Part no. MI_YA559_EN_1
Issued 2016-04-26
Recommended set-up
Spring Preload...................... 9 mm
Compression adjuster.......... 12 Clicks
Spring
Part No ................................ 60281-11
Free spring length................ 165 mm
Spring rate........................... 100 N/mm
Preload adjustment range.... 0mm-14mm
Shock absorber data
Length ......................................... 264 mm
Stroke ......................................... 52 mm
Spring Preload
Adjuster
Öhlins Racing AB
Box 722
SE-194 27 Upplands Väsby,
Sweden Phone +46 8 590 025 00
fax +46 8 590 025 80
© Öhlins Racing AB. All rights
reserved. Any reprinting or
unauthorized use without the
written permission of Öhlins
Racing AB
Compression
adjuster
