Honeywell 1400gPDF Manuale utente

Voyager™ 1400g Series
Corded Area-Imaging Scanner
Quick Start Guide
VG1400-QS Rev A
6/12
Aller à www.honeywellaidc.com pour le français.
Vai a www.honeywellaidc.com per l'italiano.
Gehe zu www.honeywellaidc.com für Deutsch.
Ir a www.honeywellaidc.com para español.
Para Português, acesse www.honeywellaidc.com.br.
Перейти на русскоязычный сайт www.honeywellaidc.com.
Pro češtinu jdi na www.honeywellaidc.com.
Pre slovenčinu choď na www.honeywellaidc.com
日本語 :  www.honeywellaidc.com をご覧ください。
如要到中国 www.honeywellaidc.com（简体）。
한글 www.honeywellaidc.com 로이동합니다 .

Note: Refer to your user’s guide for information about cleaning your

device.

For localized language versions of this document, go to

www.honeywellaidc.com.

Getting Started

Turn off computer’s power before connecting the scanner, then

power up the computer once the scanner is fully connected.

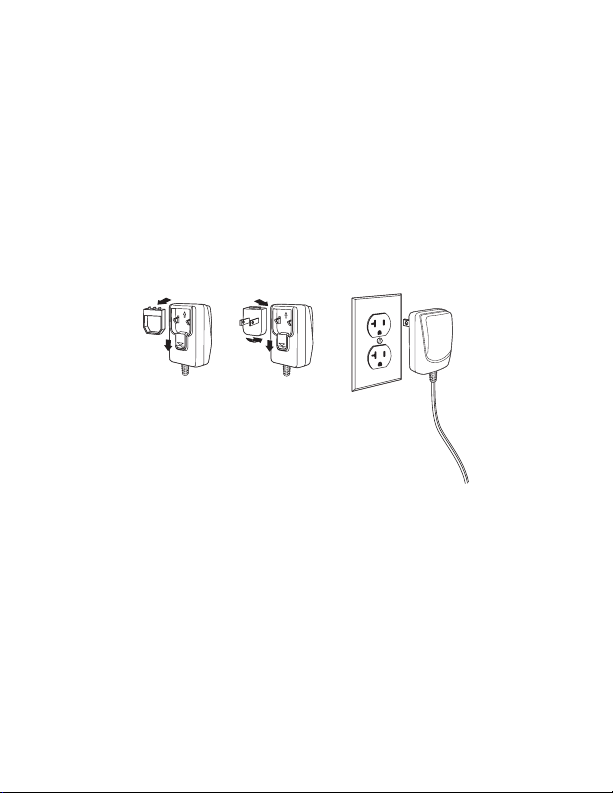

Power Supply Assembly (if included)

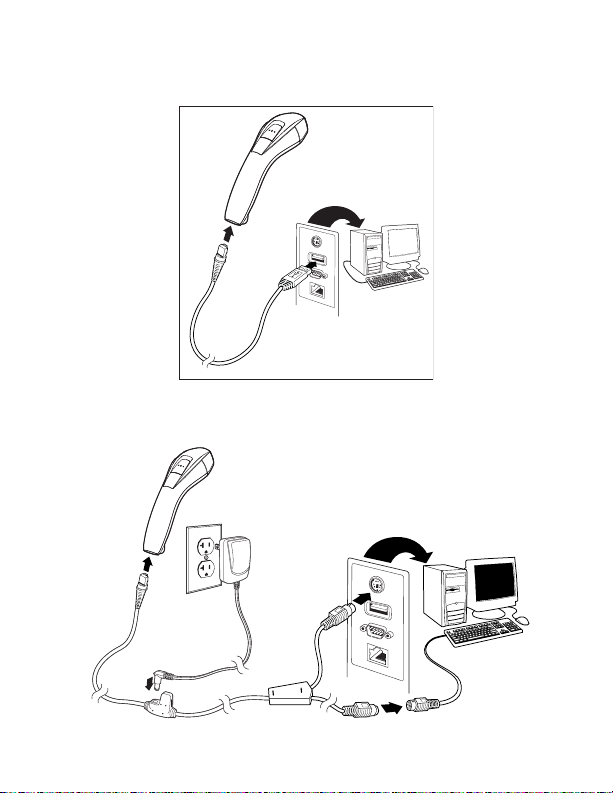

Connecting the Scanner

USB:

Keyboard Wedge:

RS232 Serial Port:

RS485:

Reading Techniques

The view finder projects an aiming

beam that should be centered over the

bar code, but it can be positioned in any

direction for a good read.

Hold the scanner over the bar code,

press the button, and center the aiming

beam on the bar code.

The aiming beam is smaller when the

scanner is closer to the code and larger

when it is farther from the code. Hold

the scanner close to smaller bar codes,

and farther away from large bar codes

to get a proper read.

If the bar code is highly reflective (e.g., laminated), you may need to

tilt the scanner at an angle so the bar code can be scanned.

Note: PDF bar codes can only be read by Voyager models

1400gPDF or 1400g2D and cannot be read by model

1400g1D. 2D bar codes can only be read by Voyager model

1400g2D and cannot be read by models 1400g1D or

1400gPDF.

Standard Product Defaults

The following bar code resets all standard product default settings.

RS485 Interface

The RS485 interface defaults to port 5B. If you have an IBM POS

terminal using port 9B, scan the appropriate code below to program

the terminal, then power cycle the cash register.

Note: For additional RS485 interface selections, see the User’s

Guide for your product at our website,

www.honeywellaidc.com.

Standard Product Defaults

IBM Port 9B HHBCR-1

Interface

IBM Port 9B HHBCR-2

Interface

Keyboard Country

Scan the Program Keyboard Country bar code below, then scan

the numeric bar code(s) from page 11, then the Save bar code to

program the keyboard for your country. As a general rule, the

following characters are not supported by the scanner for countries

other than the United States:

@ | $ # { } [ ] = / ‘ \ < > ~.

Note: For a complete list of country codes, see the User’s Guide for

your product at our website, www.honeywellaidc.com.

Country Code Scan Country Code Scan

Belgium 1Italy 5

Denmark 8Norway 9

Finland 2Spain 10

France 3Switzerland 6

Germany/Austria 4USA (Default) 0

Great Britain 7

Program Keyboard Country

Save

Trigger

The following bar codes will allow you to use the scanner in Manual

Trigger - Normal Mode (need to press the button to read) or

Presentation mode (the scanner is activated when it “sees” a bar

code).

Suffix

If you want a carriage return after the bar code, scan the Add CR

Suffix bar code. To add a tab after the bar code, scan the Add Tab

Suffix bar code. Otherwise, scan the Remove Suffix bar code to

remove the suffixes.

Manual Trigger - Normal

(Default)

Presentation Mode

Add CR Suffix

Remove Suffix

Add Tab Suffix

Add Code ID Prefix to all Symbologies

Scan the following bar code if you wish to add a Code ID prefix to all

symbologies at once.

Note: For a complete list of Code IDs, see the User’s Guide for your

product at our website, www.honeywellaidc.com.

Function Code Transmit

When this selection is enabled and function codes are contained

within the scanned data, the scanner transmits the function code to

the terminal. Charts of these function codes are provided in your

User’s Guide. When the scanner is in keyboard wedge mode, the

scan code is converted to a key code before it is transmitted.

Add Code ID Prefix To All Symbologies

(Temporary)

Enable

(Default)

Disable

Data Format Editor Instructions

The following are abbreviated instructions for entering a data format.

For complete instructions refer to your User’s Guide, available at our

website, www.honeywellaidc.com.

1. Scan the Enter Data Format symbol.

2. Primary/Alternate Format: scan 0for Primary Format

3. Terminal Type: scan 099 for any terminal type

4. Code I.D.: scan 99 for any bar code type

5. Length: scan 9999 for any length bar code.

6. Editor commands: use the Programming Chart that follows.

7. Scan Save to save your entries.

Enter Data Format

Clear All Data Formats

Save
