Honeywell Genesis 7580G Manuale utente

Genesis 7580g

Presentation Area Imager

Quick Start Guide

7580-QS Rev B

8/13

Aller à www.honeywellaidc.com pour le français.

Gehe zu www.honeywellaidc.com für Deutsch.

日本語 : www.honeywellaidc.com をご覧ください。

如要到中国 www.honeywellaidc.com（简体）。

查看繁体版请登陆 www.honeywellaidc.com

한글 www.honeywellaidc.com 로이동합니다 .

Note: Refer to your user’s guide for information about cleaning your

device.

For localized language versions of this document, go to

www.honeywellaidc.com.

Getting Started

Turn off computer’s power before connecting the scanner, then

power up the computer once the scanner is fully connected.

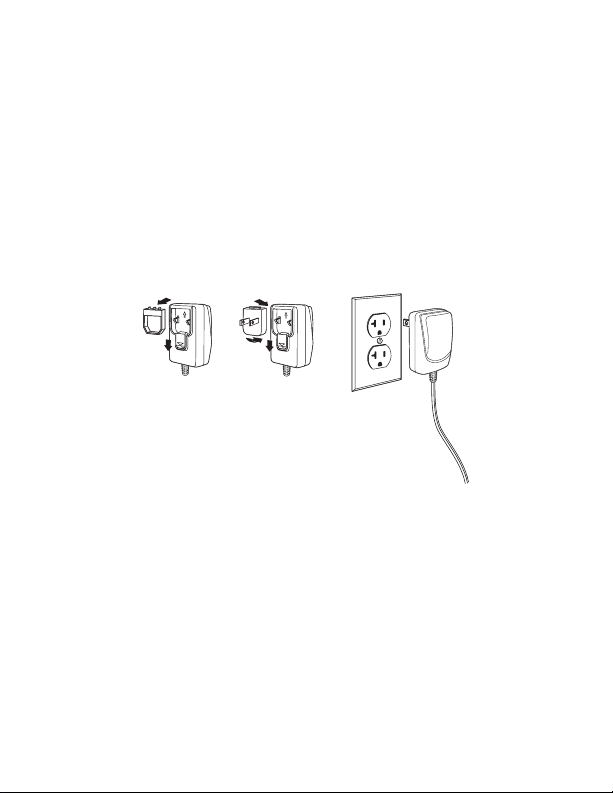

Power Supply Assembly (if included)

Note: The power supply must be ordered separately, if needed.

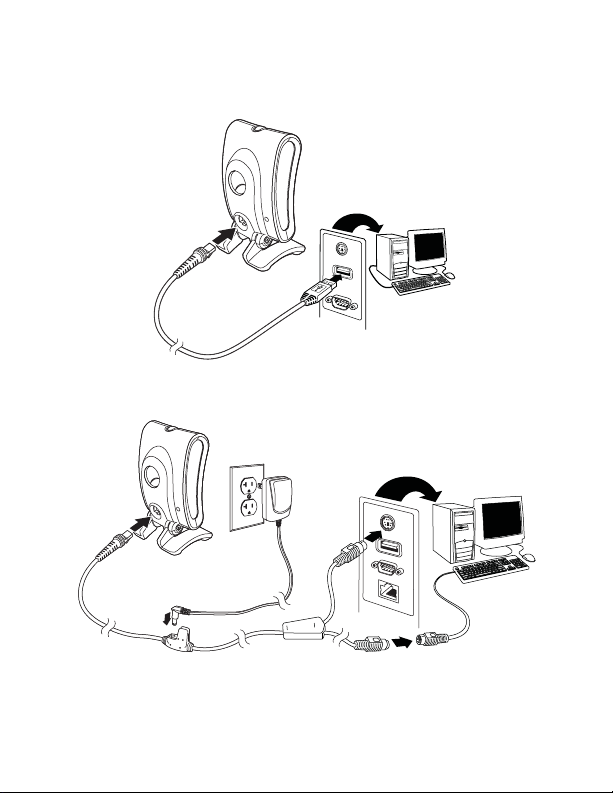

Connecting the Scanner

USB:

Keyboard Wedge:

Note: For Keyboard Wedge, only use the power supply if required.

RS232 Serial Port:

RS485:

EAS

USB:

RS232:

Reading Techniques

Present the bar code to the scanner. The aimer turns on and the

LEDs turn up to read the code. If the light level in the room is not high

enough, the code may not be read.

Standard Product Defaults

The following bar code resets all standard product default settings.

RS485 Interface

The RS485 interface defaults to port 5B. If you have an IBM POS

terminal using port 9B, scan the appropriate code below to program

the terminal, then power cycle the cash register. If you have an IBM

POS terminal using port 17, scan IBM Port 17 Interface bar code

below.

Note: For additional RS485 interface selections, see the User’s

Guide for your product at our website,

www.honeywellaidc.com.

Standard Product Defaults

IBM Port 9B HHBCR-1

Interface

IBM Port 9B HHBCR-2

Interface

IBM Port 17 Interface

USB PC Keyboard

Scan the following code to program the scanner for a USB PC

Keyboard.

USB Serial

Scan the following code to program the scanner to emulate a regular

RS232-based COM Port. Apple® Macintosh computers recognize

the scanner as a USB CDC class device and automatically use a

class driver.

Note: No extra configuration (e.g., baud rate) is necessary.

If you are using a Microsoft® Windows® PC, you must down-

load a driver from the Honeywell website

(www.honeywellaidc.com). The driver will use the next avail-

able COM Port number.

USB PC Keyboard

USB Serial

Keyboard Country

Scan the Program Keyboard Country bar code below, then scan

the numeric bar code(s) from page 13, then the Save bar code to

program the keyboard for your country. As a general rule, the

following characters are not supported by the scanner for countries

other than the United States:

@ | $ # { } [ ] = / ‘ \ < > ~

Note: For a complete list of country codes, see the User’s Guide for

your product at our website, www.honeywellaidc.com.

Country Code Scan Country Code Scan

Belgium 1 Italy 5

Denmark 8 Norway 9

Finland 2 Spain 10

France 3 Switzerland 6

Germany/Austria 4 USA (Default) 0

Great Britain 7

Program Keyboard Country

Save

Scan Modes

When in Presentation mode, the scanner is activated when it “sees”

a bar code.

When in Streaming Presentation mode, the scanner leaves the

scan illumination on all the time and continuously searches for bar

codes.

When in Presentation - Mobile Phone mode, your scanner is

optimized to read bar codes from mobile phone or other LED

displays.

Note: For additional scan modes, see the User’s Guide for your

product at our website, www.honeywellaidc.com.

Presentation Mode

Streaming Presentation Mode

Presentation - Mobile Phone

Suffix

If you want a carriage return after the bar code, scan the Add CR

Suffix bar code. To add a tab after the bar code, scan the Add Tab

Suffix bar code. Otherwise, scan the Remove Suffix bar code to

remove the suffixes.

Add Code ID Prefix to all Symbologies

Scan the following bar code if you wish to add a Code ID prefix to all

symbologies at once.

Note: For a complete list of Code IDs, see the User’s Guide for your

product at our website, www.honeywellaidc.com.

Add CR Suffix

Remove Suffix

Add Tab Suffix

Add Code ID Prefix To All Symbologies

(Temporary)
