Honeywell Xenon CCB01-010BT-BF Manuale utente

Xenon™ XP 1952h/1952h-BF

CCB01-010BT/CCB01-010BT-BF

CCB-H-010BT/CCB-H-010BT-BF

Cordless Area-Imaging Scanner for Healthcare and Charge Bases

Quick Start Guide

1952HC-HCBF-EN-QS-01 Rev A

04/19

Agency Model: 1952, 1952-BF, CCB01-010BT, CCB01-010BT-BF,

CCB-H-010BT, CCB-H-010BT-BF

Note: Refer to your User Guide for information about cleaning

your device.

Get Started

Turn off computer’s power before connecting the scanner, then

power up the computer once the scanner is fully connected.

Once the base is connected and powered up, follow the Link the

Scanner (page 5) instructions to link the scanner to the base.

Power Supply Assembly (if included)

Note: The power supply must be ordered separately, if needed.

Connect the Scanner

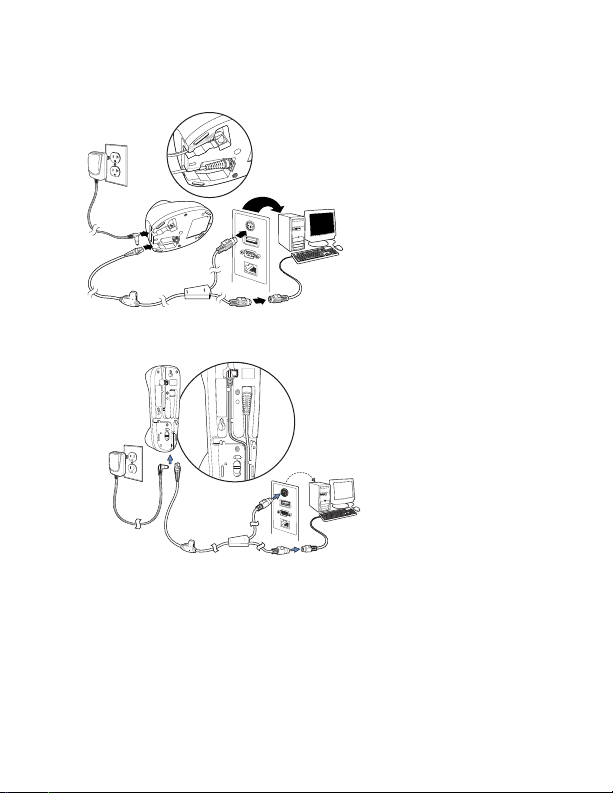

USB:

Note: If you are charging the scanner using the USB cable, the

current available for charging is reduced and charge times

are increased. Charging via the power supply is faster.

CCB-H-010BT or CCB-H-010BT-BF Base:

CCB01-010BT or CCB01-010BT-BF Base:

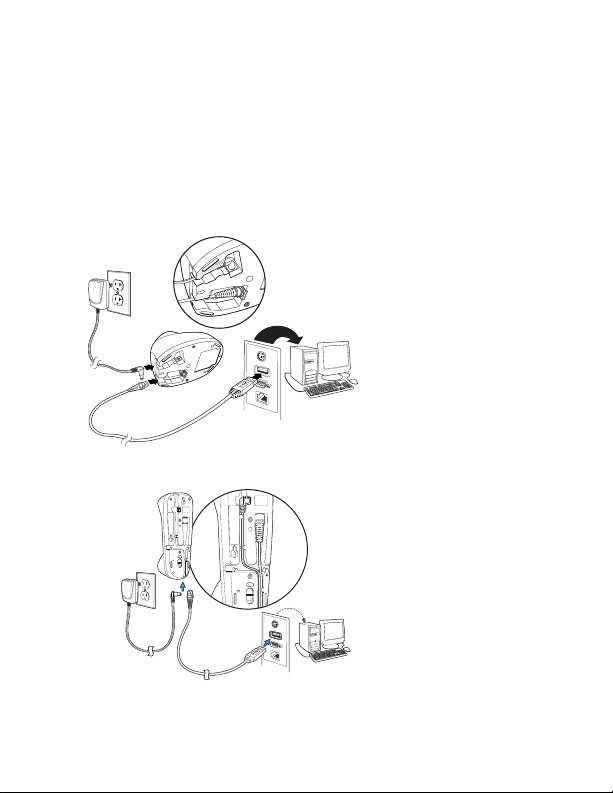

Keyboard Wedge:

CCB-H-010BT or CCB-H-010BT-BF Base:

CCB01-010BT or CCB01-010BT-BF Base:

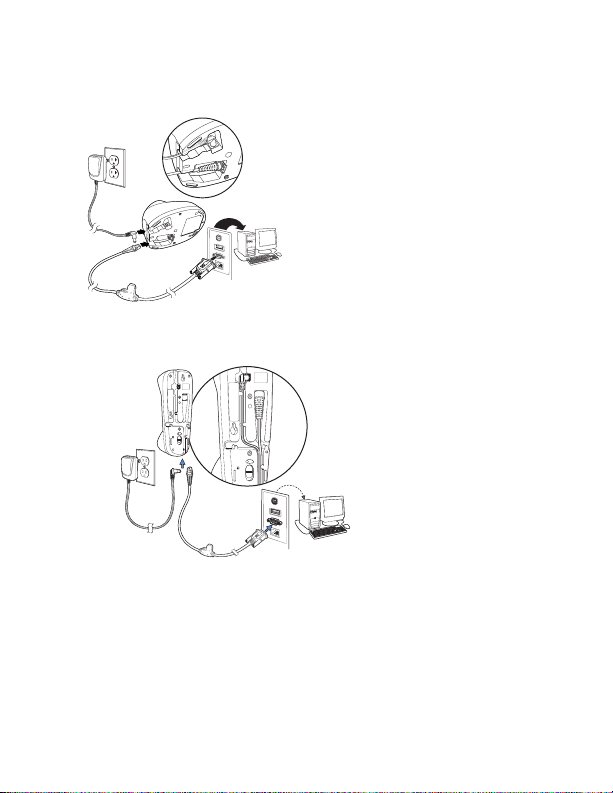

RS232 Serial Port:

CCB-H-010BT or CCB-H-010BT-BF Base:

CCB01-010BT or CCB01-010BT-BF Base:

Link the Scanner

Use the following procedure to configure all scanners so they

automatically connect to the base.

1. Scan the bar code on the base.

2. Place the scanner into the base.

3. Power cycle the base to complete the link and establish

communication between the base and scanner.

When the scanner is in the base, the green LED on the base

flashes to indicate the scanner’s battery is charging.

Unlink the Scanner

If the base has a scanner linked to it, that scanner must be

unlinked before a new scanner can be linked. Once the previous

scanner is unlinked, it will no longer communicate with the

base. Scan the Unlink Scanner bar code to unlink a scanner.

Unlink Scanner

Reading Techniques

The view finder projects an aiming beam that

should be centered over the bar code, but it

can be positioned in any direction for a good

read.

Standard Product Defaults

The following bar code resets all standard

product default settings.

USB Serial

Scan the following code to program the scanner to emulate a

regular RS232-based COM Port. Apple® Macintosh computers

recognize the scanner as a USB CDC class device and automati-

cally use a class driver.

Note: No extra configuration (e.g., baud rate) is necessary.

If you are using a Microsoft® Windows® PC, you must

download a driver from the Honeywell website. The

driver will use the next available COM Port number.

Standard Product Defaults

USB Serial

USB PC Keyboard

Scan the following code to program the scanner for a USB PC

Keyboard.

Epic

Scan the following bar code to configure your device to commu-

nicate with an Epic software application.

After scanning this code, you must put the scanner into the base

or scan the linking bar code on the base or Access Point to relink

your scanner.

USB PC Keyboard

EMR Application

Meditech®

Scan the following bar code to configure your device to commu-

nicate with a Meditech software application.

After scanning this code, you must put the scanner into the base

or scan the linking bar code on the base or Access Point to relink

your scanner.

Quiet Operations

The following codes configure the scanner and base to quiet

modes for scanning that does not disturb resting patients.

Meditech Application

Silent Mode with Flashing LED

Scan the following bar code to completely silence the base and

scanner. When a bar code is scanned, the LED and aimer flash 5

times. Green indicates a good scan, red indicates a bad scan.

Silent Mode with Long LED

Scan the following bar code to completely silence the base and

scanner. When a bar code is scanned, the LED and aimer remain

solidly lit for 1 second. Green indicates a good scan, red indi-

cates a bad scan.

Silent Mode with Flashing LED

Silent Mode with Long LED
