Honeywell Quick Start

Guide - Xenon 1902

THIS DOWNLOAD APPLIES TO THE FOLLOWING

Xenon 1902

Xenon 1902 Color

Xenon™ 1902

Cordless Area-Imaging Scanner

Quick Start Guide

Crdlss-NG2D-QS Rev B

5/11

Aller à www.honeywellaidc.com pour le français.

Vai a www.honeywellaidc.com per l'italiano.

Für Deutsch gehe zu www.honeywellaidc.com.

Ir a www.honeywellaidc.com para español.

Para Português, acesse www.honeywellaidc.com.br.

Перейти на русскоязычный сайт www.honeywellaidc.com.

日本語 : www.honeywellaidc.com をご覧ください。

如要到中国 www.honeywellaidc.com（简体）。

查看繁体版请登陆 www.honeywellaidc.com

한글 www.honeywellaidc.com 로이동합니다 .

Note: Refer to your user’s guide for information about cleaning your

device.

For localized language versions of this document, go to

www.honeywellaidc.com.

Getting Started

Turn off the computer’s power before connecting the base, then

power up the computer once the base is fully connected. When the

base is connected and powered up, put the scanner in the base to

establish a link. The green LED on the base flashes to indicate the

scanner’s battery is charging.

Power Supply Assembly (if included)

Connecting the Scanner

USB:

Keyboard Wedge:

RS232 Serial Port:

RS485:

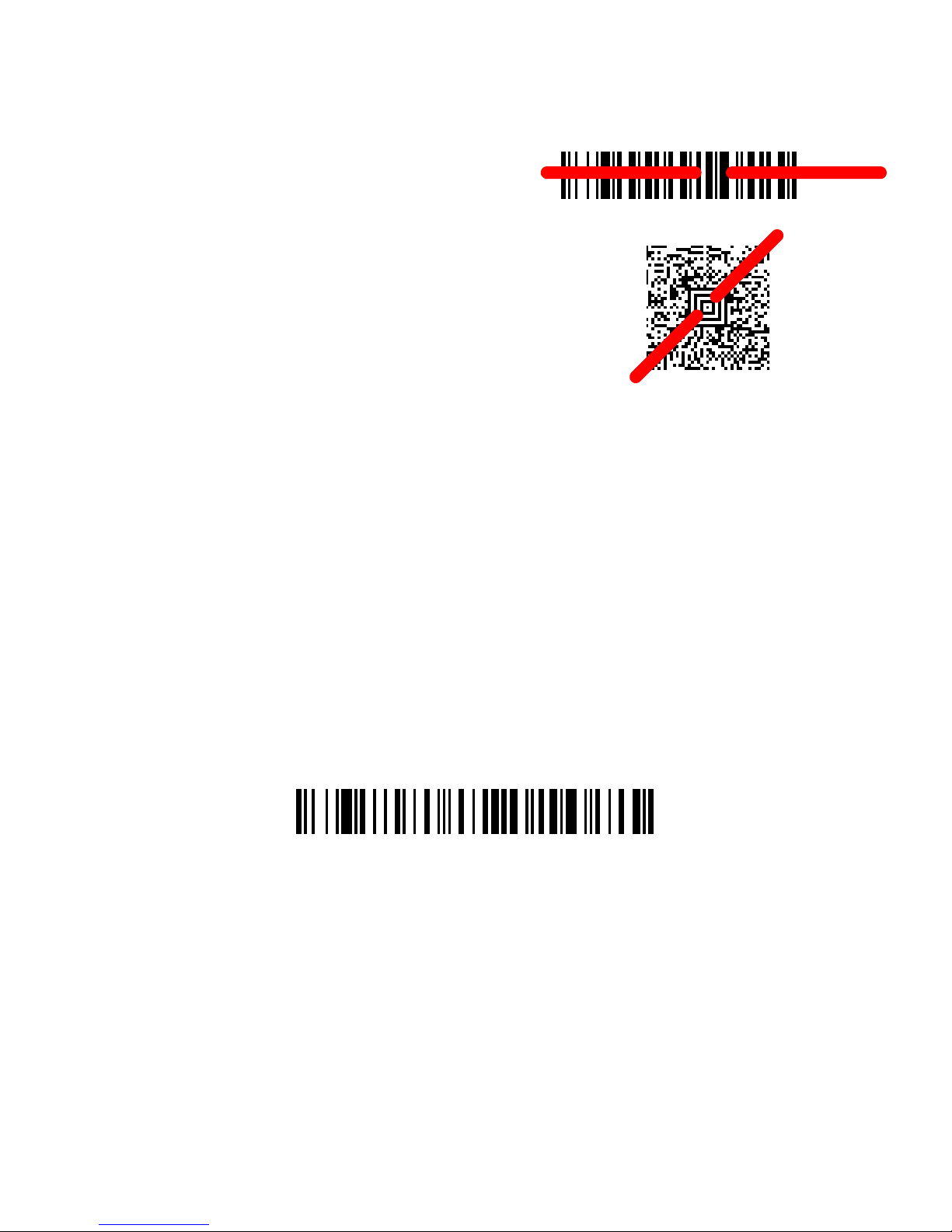

Reading Techniques

The view finder projects an aiming

beam that should be centered over

the bar code, but it can be

positioned in any direction for a

good read.

Hold the scanner over the bar code,

pull the trigger, and center the

aiming beam on the bar code.

The aiming beam is smaller when

the scanner is closer to the code and larger when it is farther from the

code. Hold the scanner close to smaller bar codes, and farther away

from large bar codes to get a proper read.

If the bar code is highly reflective (e.g., laminated), you may need to

tilt the scanner at an angle so the bar code can be scanned.

Note: If the scanner beeps 3 times when scanning a bar code, the

link has not been established. If the scanner beeps once, the

link has been established.

Standard Product Defaults

The following bar code resets all standard product default settings.

Standard Product Defaults

RS485 Interface

The RS485 interface defaults to port 5B. If you have an IBM POS

terminal using port 9B, scan the appropriate code below to program

the terminal, then power cycle the cash register.

Note: For additional RS485 interface selections, see the User’s

Guide for your product at our website,

www.honeywellaidc.com.

Keyboard Country

Scan the Program Keyboard Country bar code below, then scan

the numeric bar code(s) from page 2, then the Save bar code to

program the keyboard for your country. As a general rule, the

following characters are not supported by the scanner for countries

other than the United States:

@ | $ # { } [ ] = / ‘ \ < > ~.

Country Code Scan Country Code Scan

Belgium 1Italy 5

Denmark 8Norway 9

IBM Port 9B HHBCR-1

Interface

IBM Port 9B HHBCR-2

Interface

Program Keyboard Country

Note: For a complete list of country codes, see the User’s Guide for

your product at our website, www.honeywellaidc.com.

Locked Link

If you link a scanner to a base using the Locked Link Mode, other

scanners are blocked from being linked if they are inadvertently

placed into the base. If you do place a different scanner into the

base, it will charge the scanner, but the scanner will not be linked.

To use a different scanner, you need to unlink the original scanner by

scanning the Unlink Scanner bar code.

Finland 2Spain 10

France 3Switzerland 6

Germany/Austria 4USA (Default) 0

Great Britain 7

Country Code Scan Country Code Scan

Save

Locked Link Mode

(Single Scanner)

Override Locked Scanner

If you need to replace a broken or lost scanner that is linked to a

base, scan the Override Locked Scanner bar code with a new

scanner, and place that scanner in the base. The locked link will be

overridden; the broken or lost scanner’s link with the base will be

removed, and the new scanner will be linked.

Unlinking the Scanner

If the base has a scanner linked to it, that scanner must be unlinked

before a new scanner can be linked. Once the previous scanner is

unlinked, it will no longer communicate with the base. Scan the

Unlink Scanner bar code to unlink a scanner.

Override Locked Scanner

Unlink Scanner

Trigger

The following bar codes will allow you to use the scanner in Manual

Trigger - Normal Mode (need to press the trigger to read) or

Presentation mode (the scanner is activated when it “sees” a bar

code).

Streaming Presentation™

When in Streaming Presentation mode, the scanner leaves the scan

illumination on all the time and continuously searches for bar codes.

Manual Trigger - Normal

(Default)

Presentation Mode

Streaming Presentation Mode
