Honeywell Voyager 1602g Manuale utente

Voyager 1602g

Wireless Area-Imaging Pocket Scanner

Quick Start Guide

Rev C

3/16

ʤʱʸʢʬʺʩʸʡʲʡʺʡʥʺʫʡʨʰʸʨʰʩʠʤʸʺʠʬʸʥʡʲwww.honeywellaidc.com.

ǀƸŮǍƯŽȚǀưƴŽwww.honeywellaidc.com ǟŽȘǚƲƄſȚ

Aller à www.honeywellaidc.com pour le français.

Vai a www.honeywellaidc.com per l'italiano.

Gehe zu www.honeywellaidc.com für Deutsch.

Ir a www.honeywellaidc.com para español.

Para Português, acesse www.honeywellaidc.com.br.

Перейти на русскоязычный сайт www.honeywellaidc.com.

Pro češtinu jdi na www.honeywellaidc.com.

Pre slovenčinu choďna www.honeywellaidc.com

日本語 : www.honeywellaidc.com をご覧ください。

查看中文简体版请登陆 www.honeywellaidc.com。

查看繁体版请登陆 www.honeywellaidc.com

한글 www.honeywellaidc.com 로이동합니다 .

Note: Refer to your User’s Guide for information about cleaning your

device.

Getting Started

The scanner’s battery must be fully charged before the first use. It

can be charged using a power supply or by connecting the USB

cable to a computer.

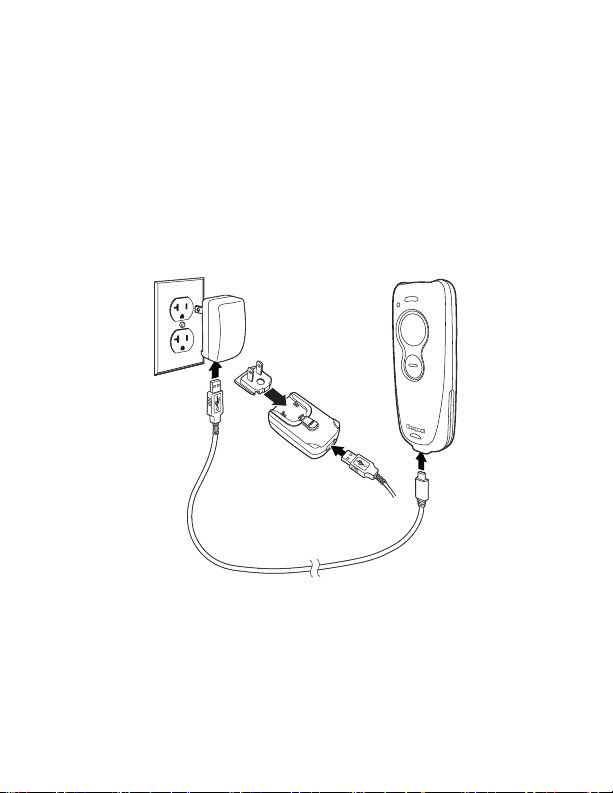

Charging via Power Supply:

Note: The power supply must be ordered separately, if needed.

Connecting the Scanner to a USB Port:

Turn off the computer’s power before connecting the scanner, then

power up the computer once the scanner is fully connected.

Note: If you are charging the scanner using the USB cable, the

current available for charging is reduced and charge times are

increased. Charging via the power supply is faster.

Battery Charge Indicator

When the battery is charging, the small LED at the top left of the

scanner flashes orange. When the battery is fully charged, this LED

is solid green.

Reading Techniques

The scanner projects an aiming

beam that should be centered over

the bar code, but it can be posi-

tioned in any direction for a good

read.

Hold the scanner over the bar code,

press the button, and center the

aiming beam on the bar code.

The aiming beam is smaller when

the scanner is closer to the code and larger when it is farther from

the code. Hold the scanner close to smaller bar codes, and farther

away from large bar codes to get a proper read.

If the bar code is highly reflective (e.g., laminated), you may need to

tilt the scanner at an angle so the bar code can be scanned.

Note: The scanner clicks while attempting to connect to the host. If

three beeps sound after the clicks, the link has not been

established. If the scanner beeps once, the link has been

established.

Standard Product Defaults



Scan the following bar code to reset the scanner to all standard

product default settings.

Note: PDF and 2D bar codes can only be read by Voyager model

1602g2D and cannot be read by model 1602g1D.

Pairing the Scanner

with Bluetooth Devices

The scanner can be used either with a Honeywell Access Point

(AP01-XXXBT) or with other Bluetooth devices. Those devices

include personal computers, laptops, tablets, and Apple®devices.

1. Scan the Bluetooth HID Keyboard Connect bar code below.

2. Set your personal computer, laptop, tablet, or Apple device so it

searches for other Bluetooth devices. (Refer to your device’s

User’s Guide for pairing instructions.)

Standard Product Defaults

Bluetooth HID Keyboard Connect

3. Once your personal computer, laptop, tablet, or Apple device has

located the scanner, select the Voyager 1602g scanner name

from the list displayed. Some personal computers, laptops, or

tablets will automatically pair with the scanner. If your device

automatically pairs with the scanner, it displays a successful

pairing message and you do not need to continue to the next

step.

4. If your personal computer, laptop, or tablet does not

automatically pair with the scanner, a PIN is displayed. This PIN

must be scanned within 60 seconds. You must quickly scan

Bluetooth PIN Code below, then scan the numeric bar code(s) for

the PIN code from the Programming Chart, then scan the Save

bar code.

Your personal computer, laptop, tablet, or Apple device should now

be paired with the scanner and be able to accept incoming data from

the Voyager 1602g. If you are using an Apple app to communicate

with the scanner using serial port protocol (SPP), refer to the Voy-

ager 1602g User’s Guide on our website, www.honeywellaidc.com.

Disconnect from Host and Connect to an

Access Point

If your scanner has been connected directly to an iPad, smart

phone, or laptop, you must disconnect it in order to communicate

with an Access Point. Scan the Bluetooth HID Keyboard Discon-

nect bar code to unlink the scanner from the currently linked host.

Scan the linking bar code on the Access Point to relink the scanner.

Bluetooth PIN Code

Bluetooth HID Keyboard Disconnect

Keyboard Country

Your keyboard layout default is a US keyboard. To change this lay-

out, scan the appropriate keyboard country code.

Belgium

Denmark

Finland

France

Germany/Austria

Great Britain

Italy

Norway

Spain

By default, national character replacements are used for the follow-

ing characters: #$@[\]^‘{|}~ Refer to the ISO 646 Character

Replacements chart in your User’s Guide to view the character

replacements for each country.

Note: For a complete list of country codes, see the User’s Guide for

your product at our website, www.honeywellaidc.com.

Suffix

If you want a carriage return after the bar code, scan the Add CR

Suffix bar code. To add a tab after the bar code, scan the Add Tab

Suffix bar code. Otherwise, scan the Remove Suffix bar code to

remove the suffixes.

Switzerland

USA

(Default)

Add CR Suffix

Add Tab Suffix

Remove Suffix

For additional prefix and suffix settings, see the User’s Guide for

your product at our website, www.honeywellaidc.com.

Add Code ID Prefix to all Symbologies

Scan the following bar code if you wish to add a Code ID prefix to all

symbologies at once.

Note: For a complete list of Code IDs, see the User’s Guide for your

product at our website, www.honeywellaidc.com.

Poor Quality 1D Bar Codes

This setting improves the scanner’s ability to read damaged or badly

printed linear bar codes. When Poor Quality 1D Reading On is

scanned, poor quality linear bar code reading is improved, but the

scanner’s snappiness is decreased, making it less aggressive when

reading good quality bar codes. This setting does not affect 2D bar

code reading.

Add Code ID Prefix To All Symbologies

(Temporary)

Poor Quality 1D Reading On

Poor Quality 1D Reading Off

(Default)

Beeper Volume - Good Read

The beeper volume codes modify the volume of the beep the scan-

ner emits on a good read.

Low

Medium

High

(Default)

Off
