Honeywell 4800i Quick

Start

More information available at POSMicro.com

4600g, 4600r, 4600rp, 4800i

Quick Start Guide

2D-02-QS Rev E

1/12

Aller à www.honeywellaidc.com pour le français.

Vai a www.honeywellaidc.com per l'italiano.

Gehe zu www.honeywellaidc.com für Deutsch.

Ir a www.honeywellaidc.com para español.

日本語 : www.honeywellaidc.com をご覧ください。

如要到中国 www.honeywellaidc.com（简体）。

查看繁体版请登陆 www.honeywellaidc.com

한글 www.honeywellaidc.com 로이동합니다 .

Note: Refer to your user’s guide for information about cleaning your

device.

For localized language versions of this document, go to

www.honeywellaidc.com.

Getting Started

Turn off computer’s power before connecting the scanner, then

power up the computer once the scanner is fully connected.

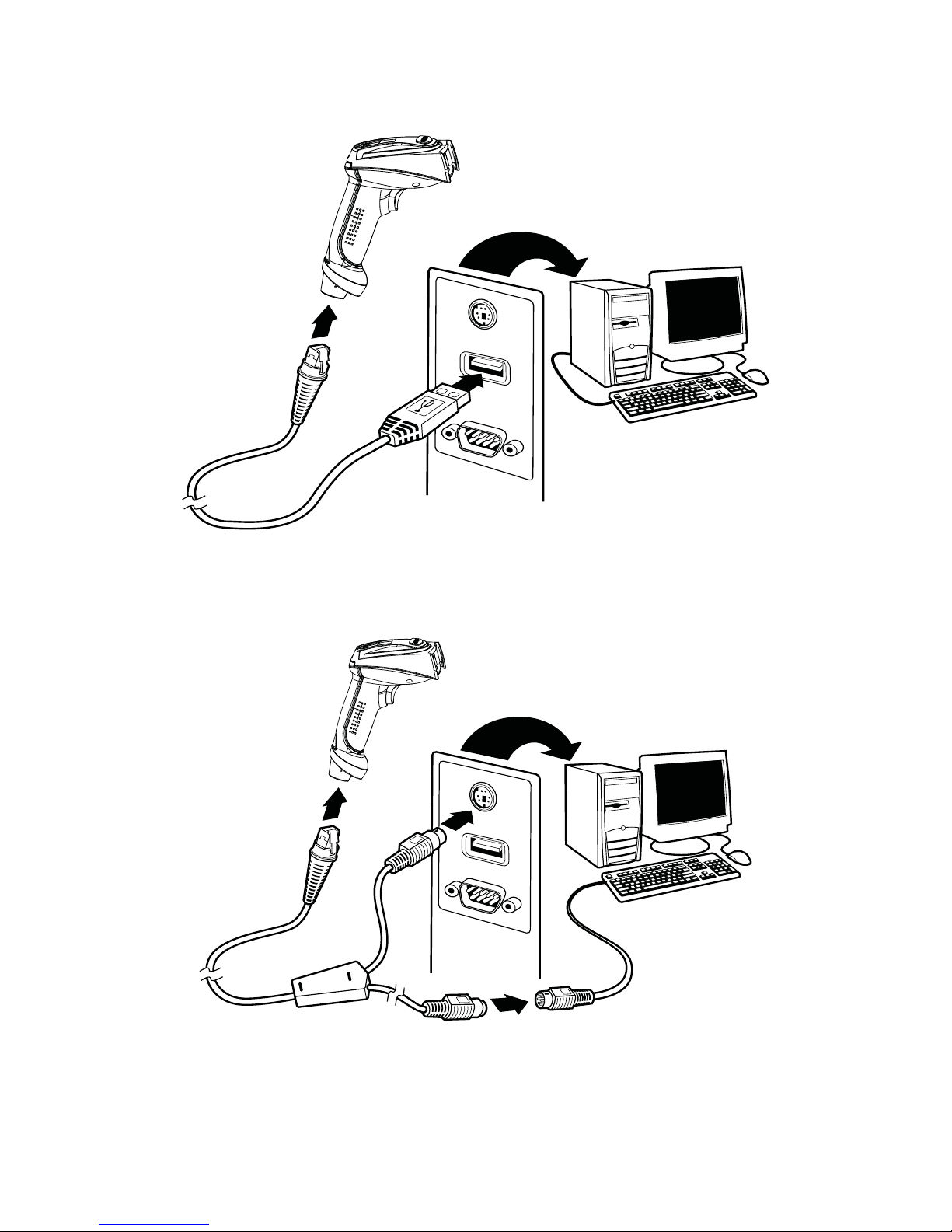

USB Connection

Keyboard Wedge Connection

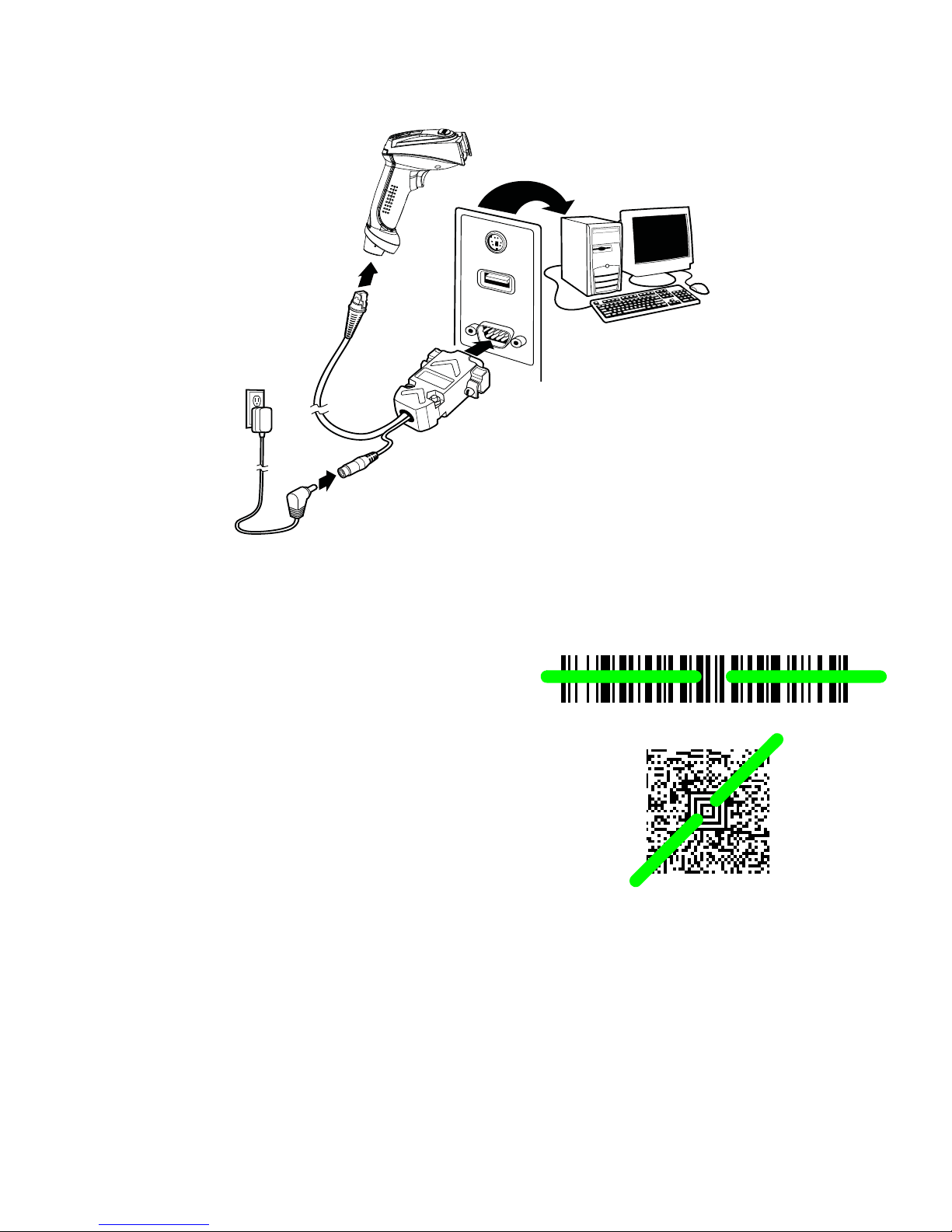

Serial (RS-232) Connection

Reading Techniques

The view finder projects an aiming

beam that should be centered over

the bar code, but it can be

positioned in any direction for a

good read.

Hold the scanner over the bar code,

pull the trigger, and center the

aiming beam on the bar code.

The aiming beam is smaller when

the scanner is closer to the code and larger when it is farther from the

code. Hold the scanner close to smaller bar codes, and farther away

from large bar codes to get a proper read.

If the bar code is highly reflective (e.g., laminated), you may need to

tilt the scanner at an angle so the bar code can be scanned.

Standard Product Defaults

The following bar code resets all standard product default settings.

Standard Product Defaults

Interface

Scan the bar code that describes the PC or interface you are using.

AT/PS2 Keyboard Wedge

(Default)

RS-232

USB Keyboard (PC)

Emulate External Keyboard

Japan DOS/V

USB Japanese Keyboard (PC)

Keyboard Country

Scan the Program Keyboard Country bar code below, then scan

the numeric bar code(s) from the back of this sheet, then the Save

bar code to program the keyboard for your country. As a general

rule, the following characters are not supported by the scanner for

countries other than the United States:

@ | $ # { } [ ] = / ‘ \ < > ~.

Note: For a complete list of country codes, see the User’s Guide for

your product at our website, www.honeywellaidc.com.

Country Code Scan Country Code Scan

Belgium 1Italy 5

Denmark 8Norway 9

Finland 2Spain 10

France 3Switzerland 6

Germany/Austria 4USA (Default) 0

Great Britain 7

Program Keyboard Country

Save

Trigger

The following bar codes will allow you to use the reader in Manual

Trigger mode (need to press the trigger to read) or Presentation

mode (the reader is activated when it “sees” a bar code).

Streaming Presentation™

Note: Streaming Presentation Mode applies only to units with the

Advanced Illumination feature. Units with the advanced

illumination feature have a software revision of 31205480-118

or newer.

When in Streaming Presentation mode, the imager leaves the scan

illumination on all the time and continuously searches for bar codes.

Manual Trigger

(Default)

Presentation Mode

Streaming Presentation Mode

Reread Delay

This sets the time period before the scanner can read the

same

bar

code a second time. Setting a reread delay protects against

accidental rereads of the same bar code.

Suffix

If you want a carriage return after the bar code, scan the Add CR

Suffix bar code. To add a tab after the bar code, scan the Add Tab

Suffix bar code. Otherwise, scan the Remove Suffix bar code to

remove the suffixes.

Medium Reread Delay

Add CR Suffix

Remove Suffix

Add Tab Suffix
