S4965 SERIES

COMBINED VALVE AND BOILER CONTROL SYSTEMS

APPLICATION

The S4965 boiler controls have been developed for application

in gas fired domestic appliances.

The S4965 boiler controls are used in conjuction with the

VK41.. series modulating or non modulating gas controls. (see

Product Handbook EN2R-9025 and EN2R-9004) They provide

both an optimised safety sub-system for programmed safe

light-up and flame supervision of the main burner of the

appliance and a boiler comfort control sub system for

temperature, pump, and 3-way valve control

Bi-directional communication with a MMI enables

comprehensive diagnostics and operation.

For glossary of terms, abbrevations and symbols see

document EN2R-9039

Contents

General

Description ......................................................................... 2

Features ............................................................................ 3

Dimensional drawing S4965 boiler control ........................ 4

Technical

Specifications .................................................................... 5

Connection diagram .......................................................... 7

Timing diagram ................................................................ 8

Description of LOCON ...................................................... 9

Description of SQUARE ................................................... 10

General considerations ................................................... 11

Electrical connections and wiring .................................... 12

Adjustments and final checkout ...................................... 13

Various

EMC guidelines ............................................................... 14

Quality assurance statement ........................................... 15

Standards and approvals ................................................ 15

Ordering information ....................................................... 16

EN2R-9053 0408R11-NE 2

DESCRIPTION

The Combined Valve Boiler Control (CVBC) is the

combination of a VK41.. modulating or non-modulating gas

control with an electronic boiler control.

The boiler control consists of an automatic ignition control and

a comfort boiler control.

Most of the standard control functions of a gas fired boiler can

be performed within one single control box which can easily be

clicked on the gas control.

Possible applications are:

•Instantaneous water heaters.

•Floor standing boilers.

•Combi boilers.

•Low Nox boilers.

•Condensing boilers.

•See chapter Features for the standard features which can

be implemented in this control box.

ALARM

RESET

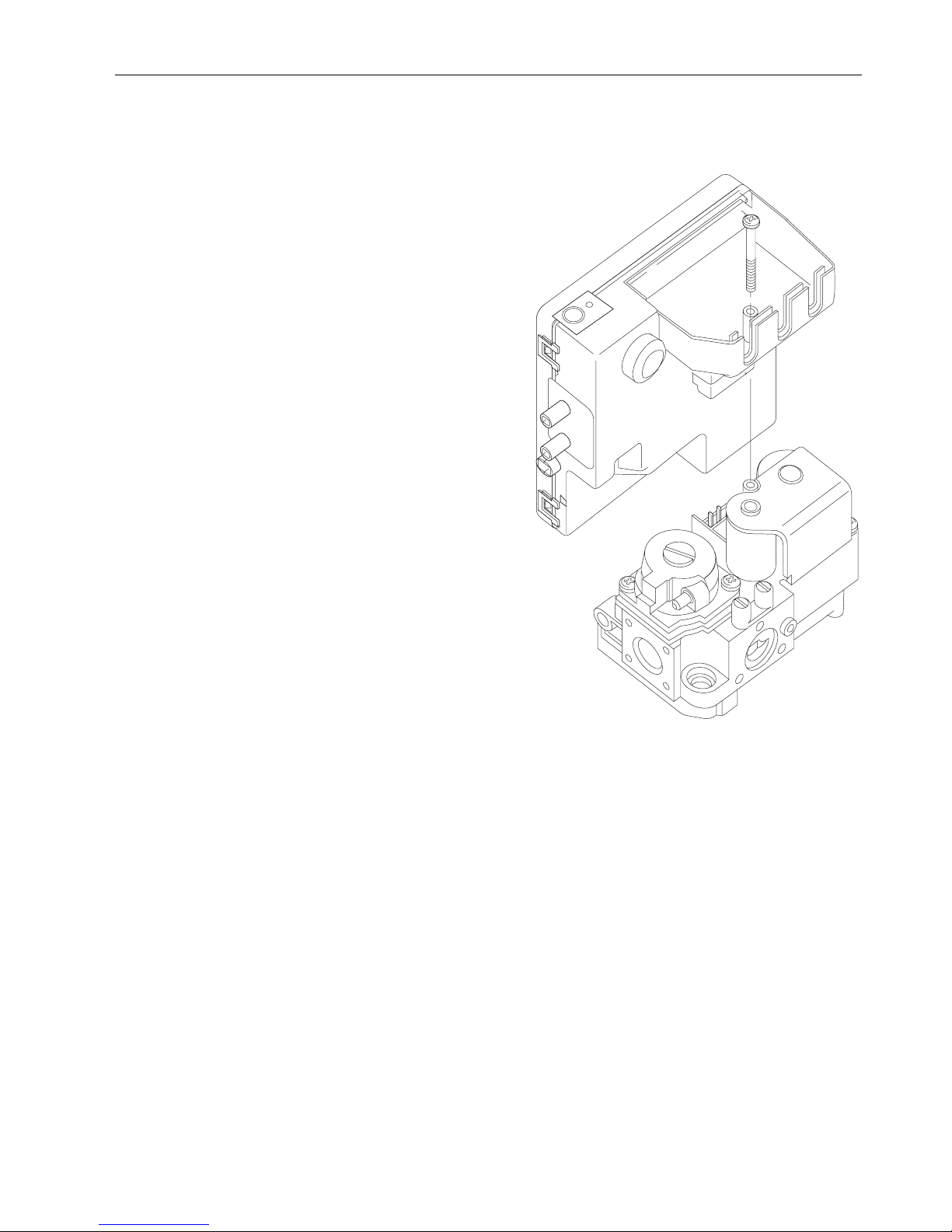

3 EN2R-9053 0408R11-NE

FEATURES

•Multi trial full sequence ignition control.

•Permanent operation in accordance with EN 298 (2003).

•Non volatile lock-out.

•Self learning ignition sequence; no minimum adjustment,

using LOCON.

•Direct Burner- or Intermittent Pilot operation.

•Integral ignition including emission filter.

•Combined ignition and flame sensing option.

•Phase insensitive flame detection.

•Lock-out at flame simulation.

•Restart after flame loss.

•AC or DC fan control (24 VDC fan needs external trafo).

•Dynamic airflow check.

•Lock-out on no air.

•Automatic fan assisted/atmospheric recognition.

•Integral gas pressure modulation circuitry.

•Pump control.

•3-way valve control.

•Multi temperature CH and DHW control with DHW priority

setting.

•∆T control in CH mode

•Flow sensor input for DHW detection and control

•Sensor- or contact switch high limit at control.

•Communication to MMI enabling comprehensive

diagnostics and operation.

•Factory safety parameter settings.

•Installer and OEM comfort boiler control parameter

settings.

•On board transformer and wiring center.

•Integral and/or remote reset and alarm indicator.

•Electrical safety in accordance with EN 60730-1 (2000).

•Replacable fuse

•OpenTherm communication

EN2R-9053 0408R11-NE 4

DIMENSIONAL DRAWING S4965 BOILER CONTROL

Molex Minifit (for X1) and Microfit (for X11 and X12) can be

used as alternatives

Dimension cover

110

115

120 117

X11X12X1

Material : ABS - V0

Tolerances ± 1 mm

unless noted

FOR CONNECTORS, USE FEMALE PARTS

Plastic part Pins Terminal

X1 TYCO 1-106527-0 10 TYCO 106528-2 (reel)

(for AWG 22-26, insulation

diameter 1,20 - 1,75 mm)

X11 TYCO 794617-6 6

TYCO 794607 (reel)

TYCO 794611

(for AWG 26-30)

X12 TYCO 1-794617-6 16

X12 TYCO 1-794617-8 18

6,6 ± 0,4

3,3 ± 0,3

68,1 ±0,3

33,4

74,65

48,2

Material : ABS - V0

Tolerances ± 1 mm

unless noted

5 EN2R-9053 0408R11-NE

SPECIFICATIONS

Models

Basically there is one PCB for a number of applications.

Depending on which components are mounted different

applications can be covered.

Supply voltage

230 Vac -15% +10%

50Hz ± 2%

Power consumption

5 VA

Humidity

90% RH max. at 40°C (non condensing)

Ambient temperature

-20 ... 60°C

Electrical rating

fusing: external: 2 A slow, sand filled

optional integral: 2A slow, sand filled

230V output 1 (ac fan or lpg valve):

230 Vac, 0.8 A max, cos ϕ≤0.6

230V output 2 (pump or aux):

230 Vac, 0.8 A max, cos ϕ≤0.6

230V output 3 (3 way or aux):

230 Vac, 0.8 A max, cos ϕ≤0.6

230V output 4 (3 way or aux):

230 Vac, 0.8 A max, cos ϕ≤0.6

Total output (1..4) : 2A

Room thermostat input:

230 Vac, 1 mA or by communication

Gas valve output: :

230Vrac, 50mA

Auxilary input:

12 Vdc, 100 kOhm

Air pressure switch input:

12 Vdc, 100 kOhm

DC fan control output:

5 V 10 mA

High limit switch input:

5 Vdc, 100 kOhm

Water pressure switch input:

12 Vdc, 100 kOhm

Flow sensor input and output:

12 ± 4Vdc, 10 mA max supply open collector input

Alarm output:

12 Vdc, 5 mA or by communication

OpenTherm output and communication:

In accordance with OpenTherm standard

Sensors inputs (total maximum 6):

Standard NTC T7335 10k-A material

(see survey S-T7335)

High limit dual sensor 10 kOhm NTC *

(Sensor type : T7336B 1001)

* this sensor needs special input

MicroCom Communication input and output:

input: logic “0” < 0.8 Vdc

logic “1” > 2 , < 24 Vdc (10 kOhm)

output: open collector 24 V and 10 mA max

DC output: depending on OS number:

9Vrac, 5mA max

or 24Vdc, 50mA and 7V, 250mA

Electrical PCB connectors

High voltage spark: 2.8 x 0.5 mm faston

or 4 mm round.

Flame sensing: 4.8 x 0.8 mm faston

Mains connector: 10 pole TYCO, AMP-duac

Low voltage connectors: 16 or 18 and 6 pole TYCO,

MATE-N-LOCK

Flame sensing

Factory parameter setting:

minimum flame current settable between 0.5 and 5 µA

Response time ON: < 0.2 s

Response time OFF: < 1 s

Ignition

Spark voltage: 15 or 20 kV @ 30pF

Spark frequency: 15 Hz

Spark pulse energy: 4 or 15 µAs

Timing

Pre purge time: 0 ... 51 s

Waiting time (Tw): 0 ... 51 s

Pre ignition time: 0 ... 51 s

Safety time (Ts): 0 ... 51 s

Number of retrials: 0 ... 255

Flame failure response time: 1 s

Stabilisation time: 0 ... 51 s

Post ignition/stabilisation time: 0 ... 51 s

Post purge time: 0 ... 51 s

Pump over run time: 0 ... 600 s

Anti cycling time: 0 ... 255 s

Timing tolerance ± 5%

Application

Atmospheric combustion Premix combustion

Normal Combustion feedback

(LoCon)

Normal

(Pneumatic

gas/air)

SQUARE

(Electronic gas/air

or Gas addaptive)

Open flue Fan assistant Open flue Fan assistant

On /Off Electronics S4965A S4965C ------------- ------------- S4965V -------------

Gasvalve VK4105A2/C2 VK4105A2/C2 ------------- ------------- VK4115V2 -------------

Modulation Electronics S4965AM S4965CM S4965AL S4965CL S4965V S4965S

Gasvalve VK4105G1 VK4105G1 VK4105G2 VK4105G2 VK4115V2 VK4105G3

EN2R-9053 0408R11-NE 6

Communication

Bit rate: 2400 baud

Byte format: 1 start, 8 data, 1 stop,

no parity

Bit value “1“: low line level at connector

Bit value “0“: high line level at connector

RS232 with additional PC cable (nr. 45.900.419-038).

(see document EN2R-9066)

Cable and wiring length

flame sensing cable and spark cable 0.5 m max.

for external components 0.5 m max., except heat demand

Remote reset

Maximum of 5 resets in 15 minutes

Tolerances and product life

Spark frequency at 230 V line voltage

0.7 fspark ≤fspark ≤ 1.4 fspark

Spark energy

>0.6 * specified spark energy

Product life

500.000 cycles for safety and main valve operator of gas valve

250.000 cycles at rated loads

6.000 lock out operations with rated loads

7 EN2R-9053 0408R11-NE

CONNECTION DIAGRAM

Fig. 1. General connection diagram CVBC

Due to software parameters and hardware jumpers,

specific configurations can be made.

See OS# specific connection diagram !

Connection diagram is mounted on the back of the

housing

IN/OUT can only be configured as input or output.

Fig. 2. Side connection CVBC for closed loop sparking

Fig. 3. Side connection CVBC for sparking to ground

Fig. 4. Side connection CVBC for combined ignition and

flame sensing

COM / GND Tx

10*

18*

out

in / out

out out in / N

out out

in / out

COM / GND

Vdc (output)

16* 6

Safety Extra Low Voltage (SELV)

230Vac

* : depending on OS number

EN2R-9053 0408R11-NE 8

TIMING DIAGRAM

Fig. 5. General timing diagram CVBC

TsTpost purge

Tstab

Tpre ignition

Tpre purge Tpre ignition

Tpre purge

Alarm

DBI +

IP pilot

main valve

9 EN2R-9053 0408R11-NE

DESCRIPTION OF LOCON

LOCON means Load Control.

LOCON is able to measure and control the load of a gas fired

heating appliance.

LOCON is suitable for atmospheric (with or without fan)

modulating boilers.

Features are:

No or minimum adjustments of VK4105G2000 valve at the

production of the combiboiler.

Improvement of the DHW temperature control performance.

Easy swap from LPG to natural gas

LOCON is based on the phenomena that the ionisation flame

current in an atmospheric boiler is almost linear with burner

load. (see fig. 7)

Using this property the critical minimum pressure and ignition

pressure adjustment can be avoided.

If a throttle is used for maximum pressure regulation no

adjustment is needed.

Only injectors have to be changed if LPG is needed.

( see fig. 6.for the control flow diagram )

Fig. 6. LOCON control flow diagram

Fig. 7. Ionisation flame current versus the boiler load

REMARK: Electrode postition and choice is important.

In cooperation with Polidoro, Honeywell has made

a standard solution.

New applications require Honeywell approval.

PI control Valve current control

temp.

setpoint

ionisation current

+Burner

LOCON loop

Heat exchange

NTC temperature sensor information

temp.

control

B min Bign B max

I flame-max

P0 max

I flame (P0) ign

I flame (P0) max

Boilerload

flame

)

throttle-adjustment

at Pi-nom

EN2R-9053 0408R11-NE 10

DESCRIPTION OF SQUARE TECHNOLOGY

SQUARE is the abbreviation of Self adaptive, Quality, User

friendly, Adjustment free, Reliable, Environmental friendly.

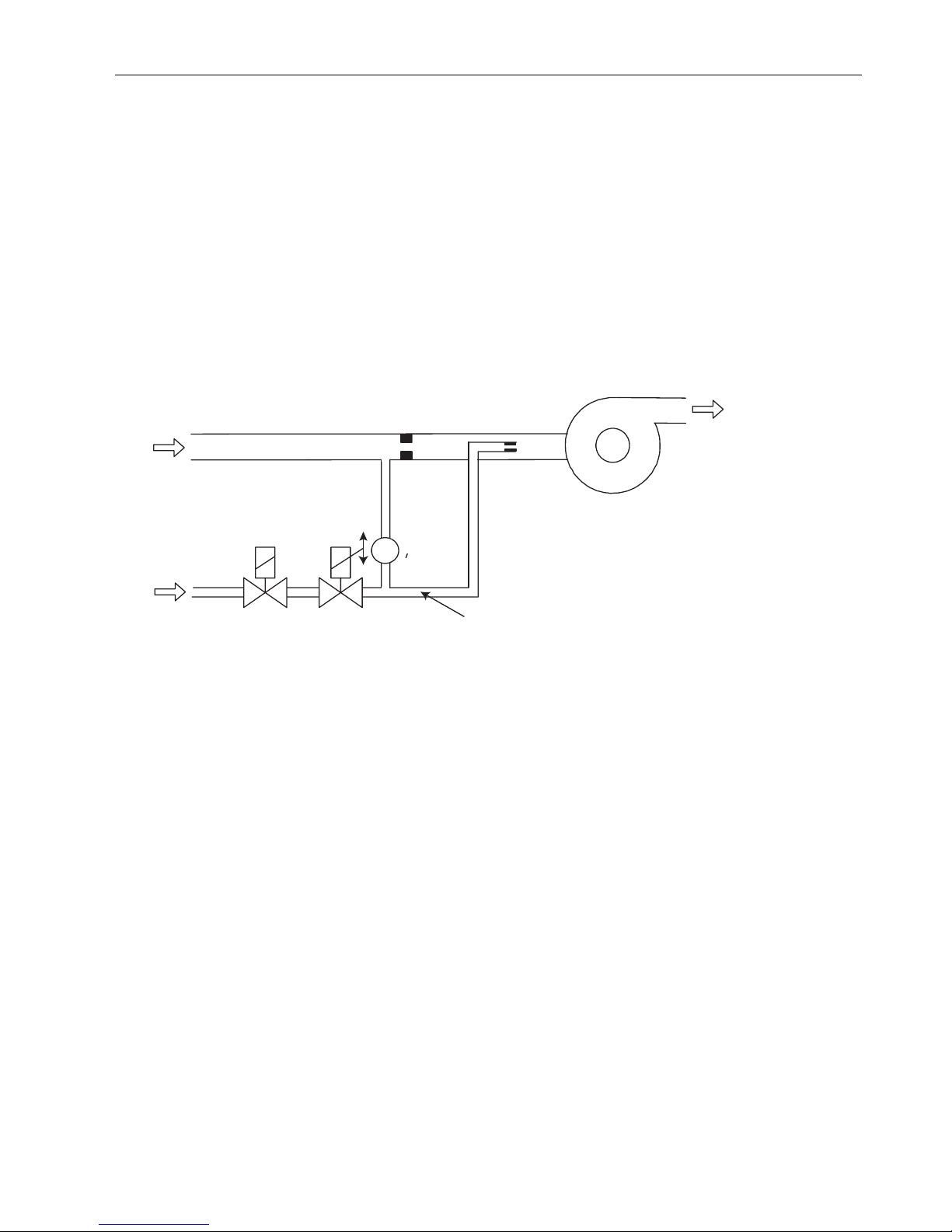

SQUARE is able to control the load and burning process of a

fully premix heating appliance under varying gas quality

conditions. See fig. 8.

Features are :

•Gas adaptive control over the full natural gas band, with a

modulation range of 1:5

•Electronic gas-air at a constant gas quality with a

modulation range of 1:10

•Automatic chimney lenth compensation

SQUARE is based on the phenomena that the ionisation

current is a measure of the gas quality at a specific range of

the burner load in a fully premix burner.

After calibration based on this phenomena, the burner can be

influenced by means of a micro bridge flow sensor. see fig. 8.

If the gasvalve is closed, the micro bridge acts as an airflow

meter in order to measure the chimney resistance.

Fig. 8. schematic SQUARE system

Pmix

u-bridge

CVI-M

FAN

GAS

AIR

Pair=1013hPa

Indice

Altri manuali Honeywell Unità di controllo

Honeywell

Honeywell SLATE R8001S9001 Manuale utente

Honeywell

Honeywell TR80 Guida all'installazione

Honeywell

Honeywell ADEMCO 4229 Istruzioni per il montaggio

Honeywell

Honeywell FALCON MJ Pulse/M-Bus Manuale utente

Honeywell

Honeywell V4043A Manuale utente

Honeywell

Honeywell NOTIFIER FW-MM Manuale utente

Honeywell

Honeywell SUPER TRADELINE VR8300A Manuale utente

Honeywell

Honeywell Esser 8044 Series Manuale utente

Honeywell

Honeywell FV300 Specifiche tecniche

Honeywell

Honeywell DS05 Manuale utente

Honeywell

Honeywell EXCEL 5000 OPEN ZAPP Manuale utente

Honeywell

Honeywell Notifier DVC-AO Manuale utente

Honeywell

Honeywell BA295I Manuale utente

Honeywell

Honeywell S7800A1142 Manuale utente

Honeywell

Honeywell RMG 213 Guida

Honeywell

Honeywell FF-SRE6029 Manuale utente

Honeywell

Honeywell Silent Knight IDP-Monitor Manuale utente

Honeywell

Honeywell Hometronic HB 05 Manuale utente

Honeywell

Honeywell THP9045 Manuale utente

Honeywell

Honeywell T7560A Manuale utente

Honeywell

Honeywell VR4920Z 1000 Manuale utente

Honeywell

Honeywell VP527A Manuale utente

Honeywell

Honeywell ModBus S7810M Manuale utente

Honeywell

Honeywell EXCEL 5000 OPEN T7460A Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
