Honeywell XLS-REL Manuale del prodotto

® U.S. Registered Trademark

74-3338

XLS-REL

Technical Reference Manual

P/N 3100321 • Rev 2.0 • 01SEP01

This manual is copyrighted by Honeywell Intl. You may not

reproduce, translate, transcribe, or transmit any part of this

manual without express, written permission from Honeywell.

This manual contains proprietary information intended for

distribution to authorized persons or companies for the sole

purpose of conducting business with Honeywell. If you

distribute any information contained in this manual to

unauthorized persons, you have violated all distributor

agreements and may be subject to legal action.

DOCUMENT HISTORY

Date Revision Reason for change

14FEB01 1.0 Initial release

01SEP01 2.0 Added: testing information; FMRC agency information; drawing

for preaction/deluge sprinkler systems; compatibility information

for releasing solenoid valves; programming statements

Deleted: Halon as a listed agent

Edited: compatible panel information; specification values for

consistency; drawings for nongeneric captions and missing

information; programming rules; cautions on accepting actual

devices; drawings in operational description

XLS-REL Technical Reference Manual i

Content

Important information • ii

Locating related documents • iii

Installation codes and standards • iv

Documentation conventions • vi

Chapter 1 Installing the XLS-REL •1.1

Introducing the XLS-REL • 1.2

Fire suppression systems • 1.3

Compatible panels and devices • 1.5

Specifications • 1.7

Mounting the XLS-REL • 1.9

Setting abort mode and delay times • 1.11

Reading LEDs • 1.13

Wiring the XLS-REL • 1.14

Chapter 2 Programming the XLS-REL •2.1

Programming the XLS-REL in the XLS100-SDU • 2.2

Programming the XLS-REL in the XLS1000-SDU (Revision 1.5) •

2.6

Programming the XLS-REL in the XLS1000-SDU (Revision 2.0) •

2.10

System testing • 2.14

Chapter 3 Operational description •3.1

Integrating the Releasing Module with fire alarm systems • 3.2

Developing a fire suppression plan • 3.4

Releasing fire suppression agents • 3.5

Chapter 4 XLS-REL trouble indications •4.1

XLS-REL indications on XLS100 panels • 4.2

XLS-REL indications on XLS1000 panels • 4.4

Index • Z.1

Content

ii XLS-REL Technical Reference Manual

Important information

Limitation of liability

This product has been designed to meet the requirements of

NFPA Standard 72, 1999 Edition; Underwriters Laboratories,

Inc., Standard 864, 8th Edition; and Underwriters Laboratories of

Canada, Inc., Standard ULC S527. Installation in accordance

with this manual, applicable codes, and the instructions of the

authority having jurisdiction (AHJ) is mandatory. Honeywell

shall not under any circumstances be liable for any incidental or

consequential damages arising from loss of property or other

damages or losses owing to the failure of Honeywell products

beyond the cost of repair or replacement of any defective

products. Honeywell reserves the right to make product

improvements and change product specifications at any time.

While every precaution has been taken during the preparation of

this manual to ensure the accuracy of its contents, Honeywell

assumes no responsibility for errors or omissions.

FCC warning

This equipment can generate and radiate radio frequency energy.

If this equipment is not installed in accordance with this manual,

it may cause interference to radio communications. This

equipment has been tested and found to comply within the limits

for Class B computing devices pursuant to Subpart B of Part 15

of the FCC Rules. These rules are designed to provide reasonable

protection against such interference when this equipment is

operated in a commercial environment. Operation of this

equipment is likely to cause interference, in which case the user

at his own expense, will be required to take whatever measures

may be required to correct the interference.

XLS-REL Technical Reference Manual iii

Content

Locating related documents

XLS100 documentation

A library of related documents supports the XLS100 product line.

Here is a complete list of the XLS100 library:

•XLS100 Installation and Service Manual (P/N 95-7587)

•XLS100 Network Supplement Manual (P/N 95-7585)

•XLS100 System Operations Manual (P/N 74-3056)

•XLS100 System Programming Manual (P/N 74-3057)

•XLS100 Installation Sheets (P/N 74-3474)

•XLS100-SDU Help

XLS1000 documentation

A library of related documents supports the XLS1000 product

line. Here is a complete list of the XLS1000 library:

•XLS1000 Installation and Service Manual (P/N 95-7545)

•XLS1000 System Operations Manual (P/N 74-2087)

•XLS1000 System Programming Manual (P/N 74-2089)

•XLS1000 Installation Sheets (P/N 74-3441)

•XLS1000 International Supplement Manual (P/N 74-3117)

•XLS1000-SDU Help

Signature Series documentation

The Signature Series Intelligent Smoke and Heat Detectors

Applications Bulletin (P/N 74-3065) provides instructions and

illustrations for various arrays of smoke and heat detectors.

The Signature Series Component Installation Manual (P/N 74-

3066) supports the installation of the Signature Series detectors

and modules.

The Serial Number Log Book (P/N 95-7586) provides a

convenient means for recording the serial number of each

Signature device installed in the fire alarm system.

Speaker and strobe documentation

The Speaker Application Guide (P/N 85000-0033) provides

information about the placement and layout of speakers for fire

alarm signaling and emergency voice communications.

The Strobe Applications Guide (P/N 85000-0049) provides

information for the placement and layout of strobes for fire alarm

signaling.

Content

iv XLS-REL Technical Reference Manual

Installation codes and standards

The Signature Series fire detection devices are designed to meet

the requirements of NFPA Standard 72, 1999 Edition;

Underwriters Laboratories, Inc. Standard 864, 8th Edition and

Underwriters Laboratories of Canada, Inc. Standard ULC S527.

Other related codes and standards are listed below. Information

contained in this document is intended to serve as a guide.

Installation in accordance with the instruction sheets (provided

with Signature Series devices), applicable codes, and the

instructions of the AHJ is mandatory.

National Fire Protection Agency

National Fire Protection Agency (NFPA)

1 Batterymarch Park PO Box 9101

Quincy, MA 02269-9101

NFPA 11 Low-Expansion Foam

NFPA 11A Medium- and High-Expansion Foam Systems

NFPA 13 Sprinkler Systems

NFPA 15 Water Spray Fixed Systems for Fire Protection

NFPA 16 Deluge Foam-Water Sprinkler and Foam-Water

Spray systems

NFPA 17 Dry Chemical Extinguishing Systems

NFPA 70 National Electric Code

NFPA 72 National Fire Alarm Code

Underwriters Laboratories, Inc.

Underwriters Laboratories, Inc. (ULI)

333 Pfingsten Road

Northbrook, IL 60062-2096

UL 864 Standard for Control Units for Fire Protective

Signaling Systems

Underwriters Laboratories of Canada

Underwriters Laboratories of Canada (ULC)

7 Crouse Road

Scarborough, Ontario M1R 3A9

ULC S527 Standard for Control Units for Fire Alarm

Systems

NFP

XLS-REL Technical Reference Manual v

Content

Other requirements

Other requirements that affect the installation of this system

include:

• State and local building codes

• AHJ

Factory Mutual Research Corporation

Factory Mutual Research

Corporation

1151 Boston Providence Turnpike

PO Box 9102

Norwood, MA 02062

1011-1012 Deluge and Preaction Systems

European standards

73/23/EEC Low Voltage Directive

89/336/EEC

as amended by 9/31/EEC

Electromagnetic Compatibility

Directive

EN50130-4; 1995 Immunity requirements for

Components of Fire, Intruder, and

Social Alarm Systems

EN55022:1995 Limits and Methods of

Measurement of Radio

Disturbance Characteristics of

Information Technology

Components

Content

vi XLS-REL Technical Reference Manual

Documentation conventions

Notices throughout this manual inform the reader of practices and

conditions, which will affect physical safety, occupant safety,

equipment performance, and efficiency. Notices appear as

warnings, cautions, and notes.

Warnings

Warnings appear whenever property damage, injury, or loss of

life may occur through the neglect of safe practices and

conditions. You will see warnings in the following format:

Warning! Disconnect all wiring on TB4 of the XLS-REL

(release circuits 1 and 2) during system service. Disabled points

will not prevent activation of the release circuits. Failure to

follow these instructions may result in loss of life, serious injury,

or property damage.

Cautions

Cautions alert you to practices that may damage equipment,

software, or project databases. For example, the manual provides

a caution against corrupting the database.

Caution! Do not use the Accept Actual function in the Signature

Mapping tool. Accepting actual data may corrupt the database by

causing it to see every accepted device as two devices.

Notes

Notes provide instructions to help you save time or avoid wasting

it. For example, a note may inform you that a system does not

support a function so you will not waste time looking for it.

Note: XLS100 systems do not support matrix groups.

XLS-REL Technical Reference Manual 1.1

Chapter 1

Installing the XLS-REL

Summary

The XLS-REL supports a variety of fire suppression applications.

These applications include sprinkler systems and automatic fire

extinguishing systems. When you install the XLS-REL, follow

agency and local requirements along with the instructions in this

manual.

Content

Introducing the XLS-REL • 1.2

Description • 1.2

Features • 1.2

Fire suppression systems • 1.3

Sprinkler systems • 1.3

Automatic fire extinguishing systems • 1.4

Compatible panels and devices • 1.5

Panels • 1.5

Power supplies • 1.5

Solenoid polarizing relays • 1.5

Abort stations • 1.5

Service disconnect stations • 1.5

Releasing solenoid valves • 1.6

Listing agencies • 1.6

Specifications • 1.7

Mounting the XLS-REL • 1.9

Setting abort mode and delay times • 1.11

Choosing the abort mode • 1.11

Setting the DIP switches • 1.11

Reading LEDs • 1.13

Wiring the XLS-REL • 1.14

Observing equipment and personal safety • 1.14

Running the wires • 1.14

Installing the XLS-REL

1.2 XLS-REL Technical Reference Manual

Introducing the XLS-REL

Description

The XLS-REL Releasing Module (Figure 1-1) is a Signature

Series component consisting of:

• Two supervised release circuits

• Two supervised prerelease circuits

• One supervised manual release input circuit

• One supervised abort circuit for a normally-open abort switch

• One first alarm output relay (Form C contact)

The XLS-REL controls operations for deluge, preaction, and

automatic fire extinguishing systems. The module controls the

release of gas and other fire suppression agents through release

solenoids.

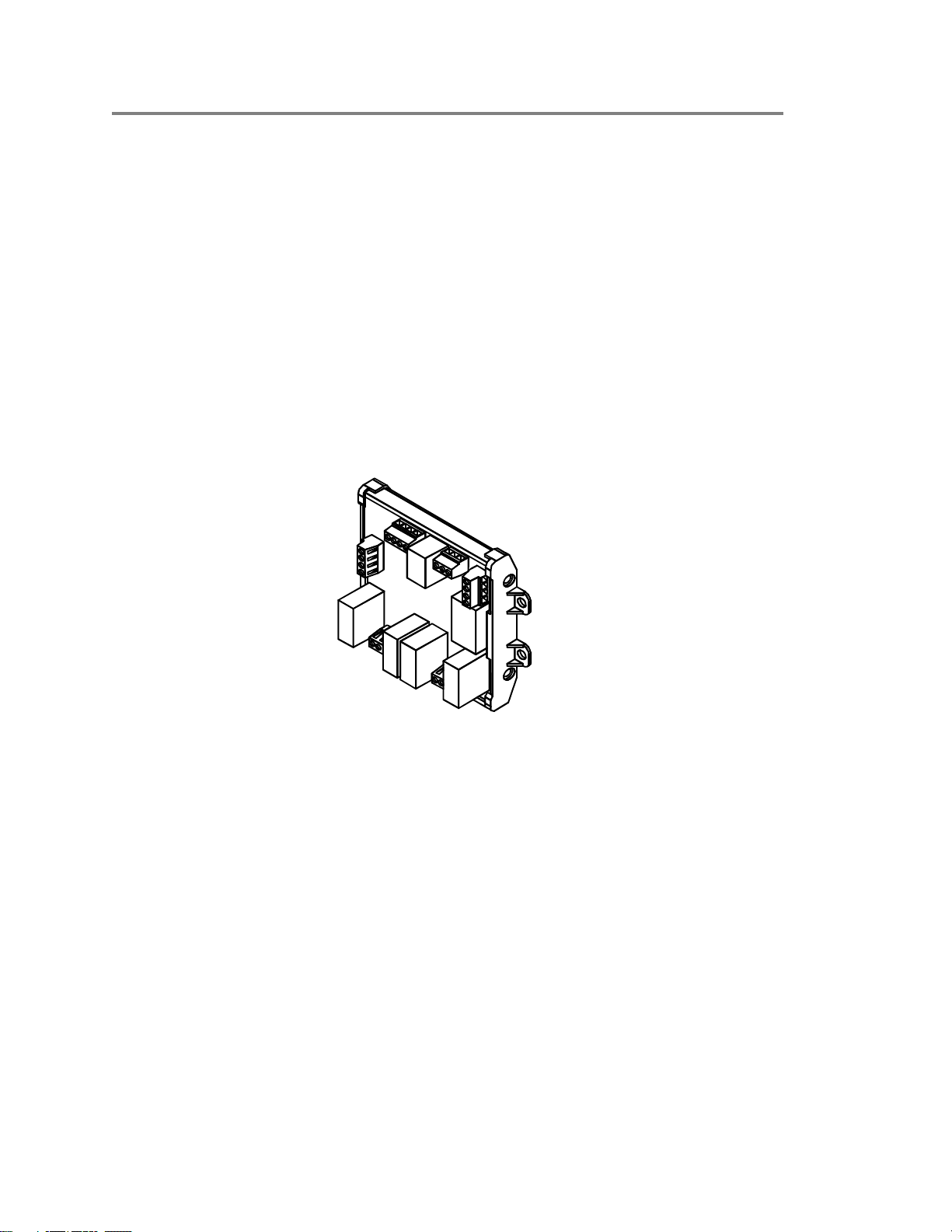

Figure 1-1: XLS-REL Releasing Module

Features

The XLS-REL includes:

• Deluge sprinkler operation

• Preaction sprinkler operation

• Automatic fire extinguishing operation

• Selectable abort modes

• Intelligent microprocessor

RELEASE028.CDR

Indice

Altri manuali Honeywell Unità di controllo

Honeywell

Honeywell GSMVLP5-4G Istruzioni per il montaggio

Honeywell

Honeywell V4730B Manuale utente

Honeywell

Honeywell S4560B1006 Manuale utente

Honeywell

Honeywell Velociti Series Manuale utente

Honeywell

Honeywell S7800A1167 Manuale utente

Honeywell

Honeywell Alwa-Kombi-4 Manuale utente

Honeywell

Honeywell Kromschroder GIK Series Manuale utente

Honeywell

Honeywell VR8405 Manuale utente

Honeywell

Honeywell S89C Manuale utente

Honeywell

Honeywell NetAXS-123 Manuale utente

Honeywell

Honeywell RV280 Manuale utente

Honeywell

Honeywell ADEMCO 4190SN Istruzioni per il montaggio

Honeywell

Honeywell V-Plex ADEMCO 4297 Istruzioni per il montaggio

Honeywell

Honeywell SmartValve SV9401 Manuale utente

Honeywell

Honeywell FF-SRM200P2 Manuale utente

Honeywell

Honeywell 5496 Manuale utente

Honeywell

Honeywell krom schroder BCU 440 Manuale utente

Honeywell

Honeywell RA890F Protectorelay Primary Control Guida all'installazione

Honeywell

Honeywell RV181 Manuale utente

Honeywell

Honeywell Fire-Lite ANN-LC Manuale utente

Honeywell

Honeywell S7800A1142 Manuale utente

Honeywell

Honeywell NOTIFIER SCS Series Scheda tecnica

Honeywell

Honeywell TRADELINE VR8345M Manuale utente

Honeywell

Honeywell Silent Knight SK-Monitor Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
