Honeywell Wireless Network Master ETH/WIFI T2 Manuale utente

Wireless

Network Master ETH/WiFi T2

Honeywell Life Safety AS, Postboks 263, 1372 Asker http://www.hls-nordic.com

Dimensional drawings:

The 138091 Wireless Network Master ETH/WiFi T2 is a master device (Gateway) with

Ethernet & Wi-Fi connectivity, for TELA2 Wireless Lighting system.

ŸWi-Fi - WPA2/PSK

Use the mounting holes to install the device to a wall surface. Avoid metallic surfaces or glass.

Use the spirit level (bubble) for horizontal alignment.

If Ethernet connectivity is going to be used, the device must be placed close to an Ethernet

network source (socket/switch/router).

If Wi-Fi connectivity is going to be used, the device must be placed within range of a present

Wi-Fi network. Use a laptop or a smartphone to ensure signal level before installing.

ŸWi-Fi - WPS

The device supports both Dynamic (DHCP) and Static IPv4 addressing options. The

communication protocol is TCP with TLS/SSL security layer.

ŸEthernet (wired)

The 138091 must be placed in a central point of the entire Wireless Lighting installation area

in order to achieve multiple available routes for the data transmitted (star connection). The

wireless network is “mesh” type, meaning that each wireless device is also a repeater. The

recommended number of wireless devices directly connected into the Gateway is 5 to 10.

Direct connection is achieved when a wireless device is located within Gateway wireless range

(20 to 25 meters – building interior).

Installation:

The 138091 must be supplied with a permanent 220-240V AC/50-60Hz power supply

through a circuit breaker equivalent to the total load of the emergency lighting equipment.

The device does not implement backup power supply in mains interruption; therefore, if the

monitoring system is required to be active during mains interruption (emergency), the device

must be supplied via a UPS power line.

The available connection methods to the local network are:

The 138091 is capable of monitoring up to 250 wireless devices (consisted of emergency

luminaires, extenders, I/O units, other), forming a wireless network.

80mm

19mm

120mm 104mm

34mm

While the device is activated, open the front cover and press the “BT3” button located in the left part,

inside of the device, for 3 seconds. Avoid touching other areas of the device electronics. The “LD7” green

LED will start blinking 2 times per second, indicating the Wi-Fi Access Point ready.

To proceed with configurations, a device with Wi-Fi connectivity and DHCP (i.e. a laptop PC, a smartphone

or tablet) is required.

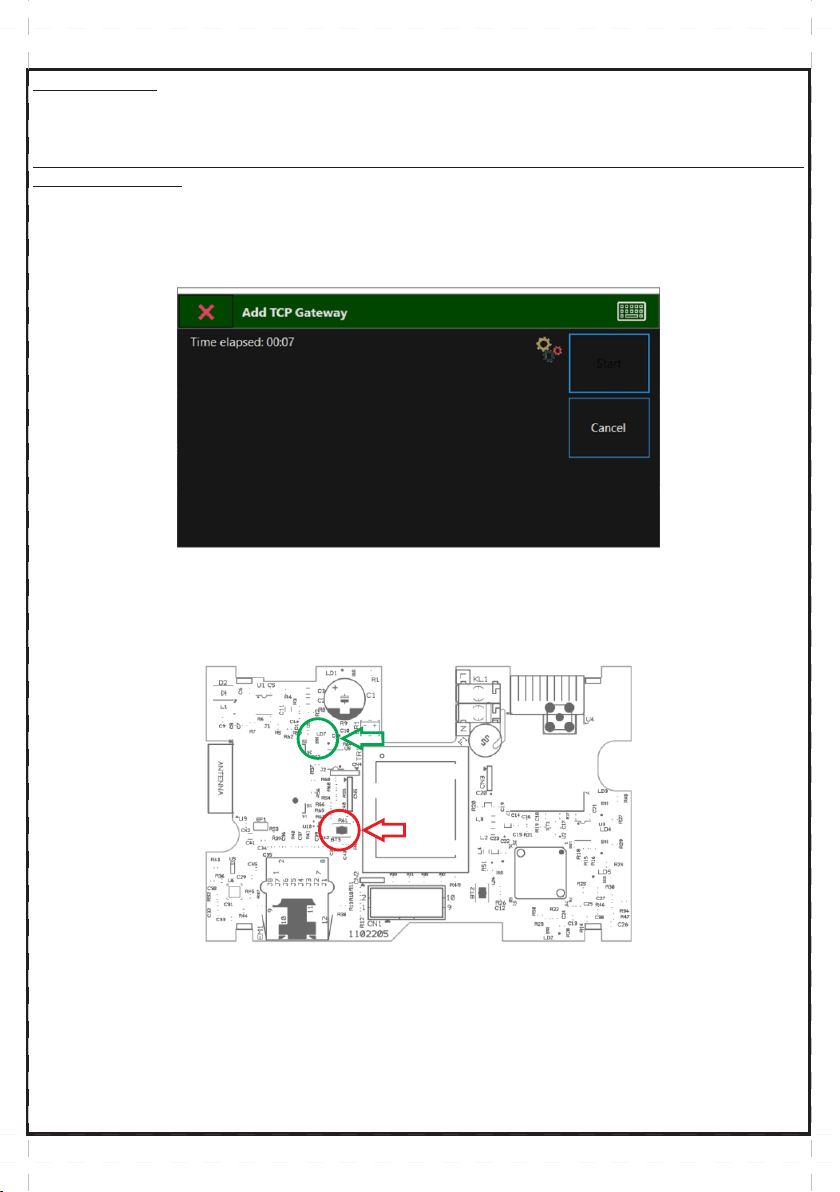

STEP 1 – Enable Gateway invitation via TELA2 software.

Use one of the available connection methods in order to establish communication between the 138091

and the TELA2 software, depending to your application.

Commissioning:

First, via the TELA2 software user interface, go to “Installation > Add Gateway” and click “Start”. The

software will enter a mode to accept new Gateway devices (138091).

STEP 2 – Configure the Gateway to connect to local network and TELA2.

Use your Wi-Fi device (laptop, smartphone) in order to connect to the Wi-Fi Access Point with the SSID

(name):

“WIRELESS_LIGHTING_GATEWAY”

Use the following password when asked:

“WIRELESSGW”

LD7

BT3

“BT3” button and “LD7” LED position

Honeywell Life Safety AS, Postboks 263, 1372 Asker http://www.hls-nordic.com

Next, write the IPv4 address of the Master PC (that is hosting the TELA2 “WelReceiver” service), in the “IP Master” field.

This field is required. Leave the rest of the fields empty.

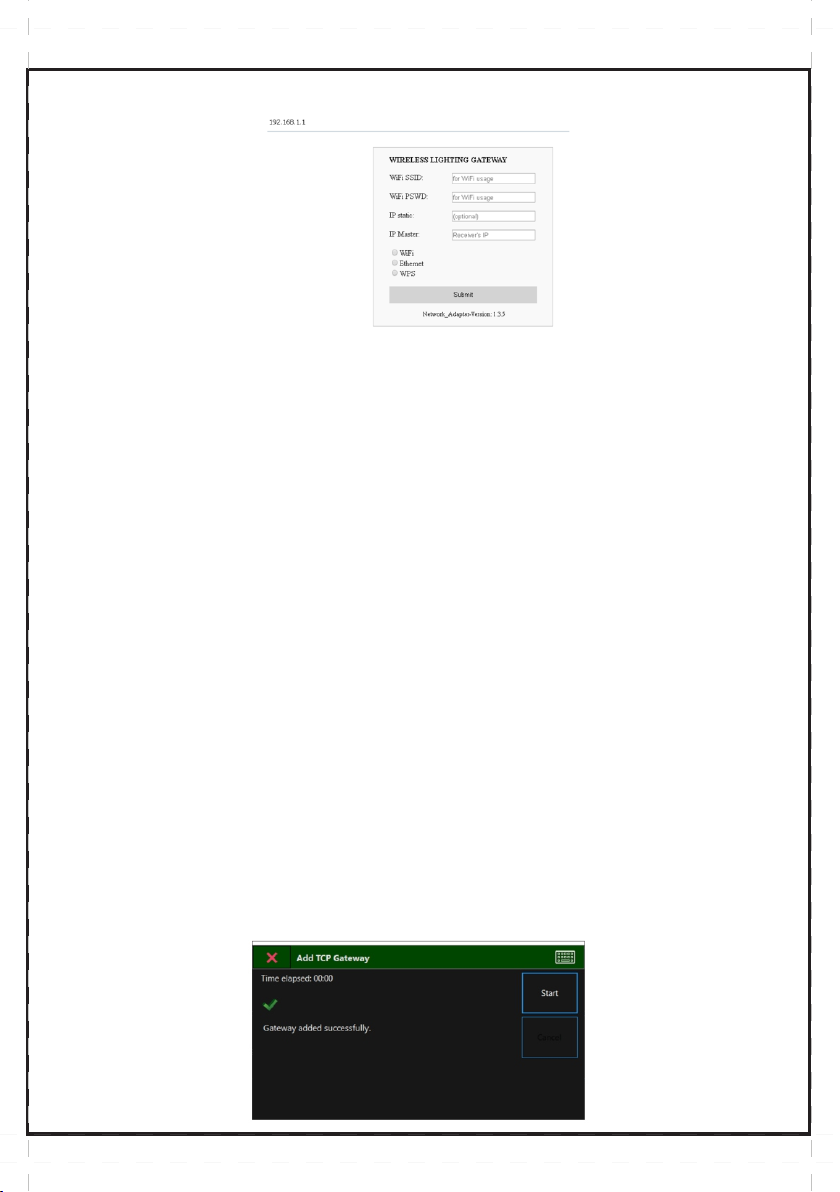

Open a web browser via your Wi-Fi device and in the browser's URL area type the address “192.168.1.1” and then press

Enter. The following webpage appears:

Use your preferred connection method:

1 – For Ethernet connectivity:

In order to connect the 138091 Wireless Network Master /WiFi T2 with the local network, using Ethernet

connectivity, the device must be connected to the local network using a network cable with RJ45 male connector, to the

corresponding RJ45 port on the bottom of the device.

In the “IP static” field write the static IPv4 address for this Gateway device, or leave empty for dynamic addressing

(DHCP option).

2 – For Wi-Fi (WPA2/PSK) connectivity:

In order to connect the 138091 Wireless Network Master ETH/WiFi T2 with the local network, using Wi-Fi connectivity, a

Wi-Fi network with 802.11 b/g/n protocols and WPS must be active and within range (use your laptop or smartphone to

ensure signal level). The Gateway will join the Wi-Fi network as a client.

In the “WiFi SSID” field write the SSID (name) of the Wi-Fi network that the Gateway will join. The name is case sensitive.

In the “WiFi PSWD” field write the WPA2/PSK password of the Wi-Fi network.

In the “IP static” field write the static IPv4 address for this Gateway device, or leave empty for dynamic addressing

(DHCP option).

On the TELA2 software “Add Gateway” window, you will see a confirmation message “Gateway added successfully”.

Close the window and proceed into auto-detecting or easy-commissioning procedure.

Then, select the “Ethernet” option below and click “Submit” to apply changes.

Then, select the “WiFi” option below and click “Submit” to apply changes.

3 – For Wi-Fi (WPS) connectivity:

Next, write the IPv4 address of the Master PC (that is hosting the TELA2 “WelReceiver” service), in the “IP Master” field.

This field is required. Leave the rest empty.

In order to connect the 138091 Wireless Network Master ETH/WiFi T2 with the local network, using Wi-Fi connectivity, a

Wi-Fi network with 802.11 b/g/n protocols and WPA2/PSK security must be active and within range. The Gateway will

join the Wi-Fi network as a client.

If your connection method succeeds, the “LD7” green LED will start blinking 1 time per second, indicating successful

connection.

Next, write the IPv4 address of the Master PC (that is hosting the TELA2 “WelReceiver” service), in the “IP Master” field.

This field is required.

Then, select the “WPS” option below and click “Submit” to apply changes. Now, on your Wi-Fi router, click the “WPS”

button to enable WPS connection.

Honeywell Life Safety AS, Postboks 263, 1372 Asker http://www.hls-nordic.com

LED indications

Button functionality

LD1 (Green)

BT2 (Right)

BT3 (Left)

Short press (less than 2 seconds) Send Gateway status to TELA2

Initiate Wi-Fi Access Point for

configuration (via webpage)

Reset Device

Reset Wireless parameters to factory

defaults (SID, RF Channel, Nkey)

Long press (from 2 to 10 seconds)

Long press (more than 2 seconds)

Prolonged press (10 seconds or more)

Interior Power supply active

Data buffer traffic

Power ON - running state

Wireless Lighting - Data Rx

Wireless Lighting - Data Tx (beacon)

WiFi / Ethernet connection indicator

Interior

Front

LD2 (Green)

LD3 (Green)

LD7 (Green)

LD4 (Yellow)

LD5 (Yellow)

Technical description

Operating voltage 220 - 240V AC / 50-60Hz

2VA

IP20

802.11 b/g/n

WPA2/PSK or WPS

10/100 Base-T Ethernet

RJ45 (socket)

250

192.168.1.1

WIRELESS_LIGHTING_GATEWAY

WIRELESSGW

868,150 - 868,450MHz

11dBm

2 (868,150MHz)

00000001

00000000

5 to 40 C

Power consumption

IP Rating

Ambient temperature range

Wi-Fi protocol

Ethernet connectivity

Ethernet port

Max. wireless device capacity

Webpage address

Wi-Fi Access point SSID

Wi-Fi Access point password

Wireless Frequency range (868MHz)

Wireless Tx power (868MHz)

Default RF Channel

Default SID (hexadecimal)

Default NKey (hexadecimal)

Wi-Fi security

138091 Wireless Network Master ETH/WIFI T2

Ÿ1 flash / second - Connected

Ÿ2 flash / second - Access Point Active

Ÿ ON - Disconnected

At the end of their useful life the packaging and product

should be disposed of via a suitable recycling centre.

Do not dispose of with your normal household waste.

Do not burn.

Honeywell Life Safety AS, Postboks 263, 1372 Asker http://www.hls-nordic.com
