MDDS8202/HBDS8202

SATELLITE DISTRIBUTION

INSTALLATION INSTRUCTIONS

Honeywell FutureSmart Products Satellite Installation Guide

Pg 2 Honeywell FutureSmart Products

The DBS Distribution Hub provides signal distribution to up to 8 receivers or DVR’s from a dual LNB system or from a

Multi-Satellite System.

The HBDS8202 occupies one expansion slot in any SuperPro Series Panel.

The MDDS8202 occupies 12” of both sides of a QuickNetwork install can.

Features

• Distribute a dual feed satellite system to 8

receivers

• Distribute a four feed satellite system (Multi-

Satellite System) to 8 receivers

• Will distribute (diplex) Antenna or Cable TV to all

the 8 outputs

**Multi-Satellite System has either 2-Dual LNB dishes pointed at different

satellites or a single elliptical dish with multiple horns pointed at more than one

satellite.

Specifications

Input Frequency Range: 950-2150 MHz (LNB A / LNB B)

54-806MHz (UHF/VHF)

Output Frequency Range: 54-2150 MHz (Each Output)

Insertion Loss: -5dB 54-806MHz

0dB 950-2150

Noise Figure: 4.8dB min

Cross Polar Isolation 30dB min

Current Consumption: 60mA

Power Adaptor: 120VAC 60Hz Input

24VDC 1000mA Output

22kHz Tone Output: 22 ±4kHz continuous,

650 ±300 mVp-p

Compatibility

Table

DirecTV Dish

Network

Dual LNB Yes Yes

**Multi-Satellite Yes No (Dish 500)

Single LNB No No

Honeywell FutureSmart Products Satellite Installation Guide

Honeywell FutureSmart Products Pg 3

Installation for a standard Dual LNB

system.

1.The dual feeds from the satellite dish need to

hook up to one LNB/A port and one LNB/B port

on the DBS distribution hub.

2. If there is no UHF/VHF antenna present in the

system the diplexers are not needed between the

distribution hub and the receivers.

3. Power is required to make the hub function

properly. Use the transformer with the coax

connector and an RG6 patch cord in hook power

to the DBS distribution hub (use only solid core

copper RG6 for power).

Installation for a Multi Satellite

system.

1.The feeds from the satellite dish need to

hook up to the LNB/A and LNB/B ports.

2. If there is no UHF/VHF antenna present

in the system the diplexers are not needed

between the distribution hub and the

receivers.

3. Power is required to make hub function

properly. Use the transformer with the coax

connector and a RG6 patch cord in hook

power to the DBS distribution hub (use only

solid core copper RG6 for power).

Power

24VDC

LNB/A LNB/A LNB/B LNB/BANT IN

1 2345678

Diplexer

Receiver

Diplexer

Receiver

Diplexer

Receiver

Diplexer

Receiver

Diplexer

Receiver

Diplexer

Receiver

Diplexer

Receiver

Diplexer

Receiver

UHF/VHF

Antenna

Optional

Multi

satellite

dish

Power Supply

120VAC

Power Supply

120VAC

Power

24VDC

LNB/A LNB/A LNB/B LNB/B

ANT IN

1 2345678

Dual LNB

dish

Diplexer

Receiver

Diplexer

Receiver

Diplexer

Receiver

Diplexer

Receiver

Diplexer

Receiver

Diplexer

Receiver

Diplexer

Receiver

Diplexer

Receiver

UHF/VHF

Antenna

Optional

Honeywell FutureSmart Products Satellite Installation Guide

Pg 4 Honeywell FutureSmart Products

IMPORTANT!!

CAUTION: To prevent electric shock, do not use this plug with an extension cord, receptacle or other outlet unless the blades can be

fully inserted to prevent blade exposure.

NOTE TO INSTALLER: This reminder calls the system installer’s attention to Article 820-22 of the NEC that provides guidelines for

proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close

to the point of cable entry as practical.

165 Eileen Way, Syosset, NY 11791

www.honeywell.com/security

View from back side of Modules Front view with modules installed

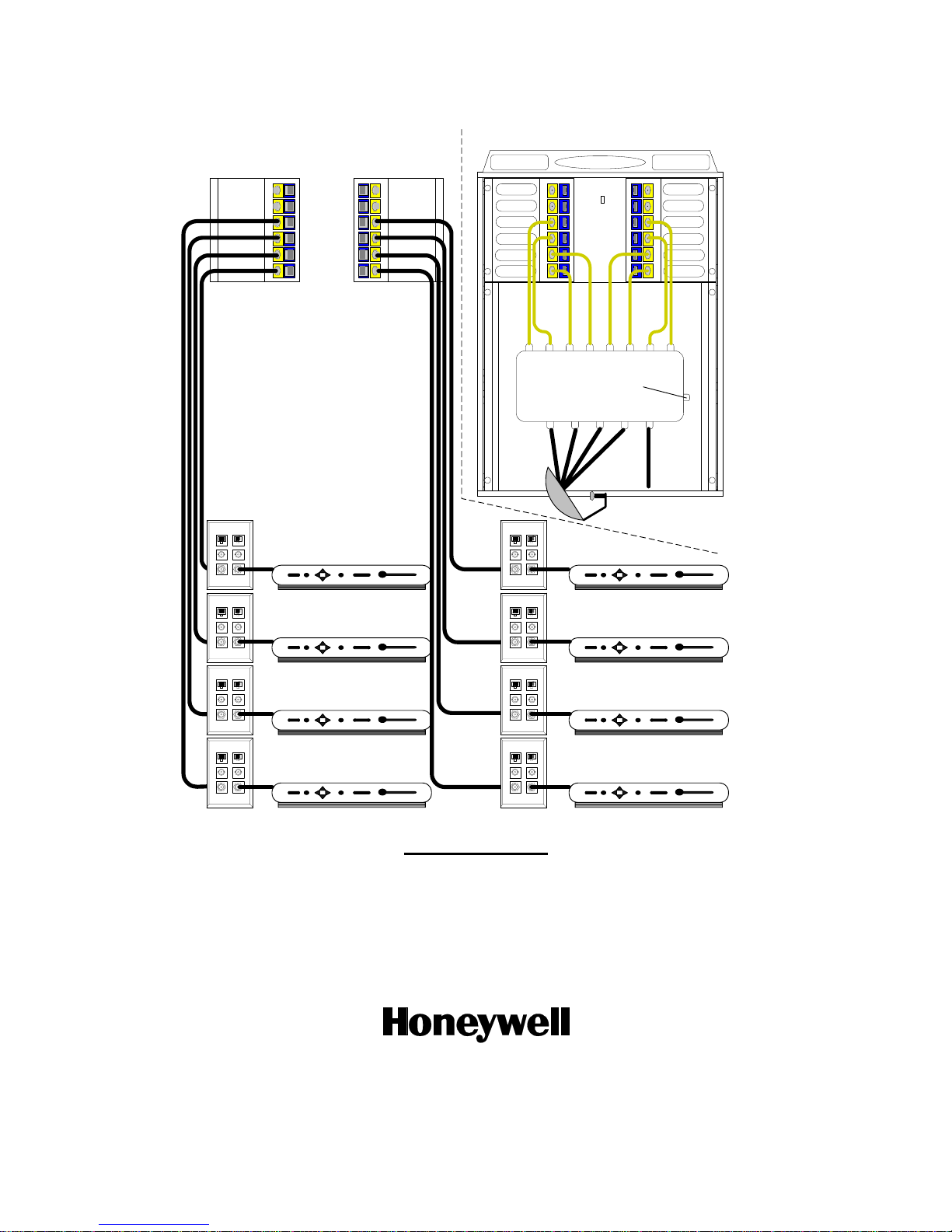

Installing an eight receiver DirectTV

SATV Distribution System in a QNIC

RG6 Coax Cable from/to receivers

Triple LNB

SATV dish

Antennae

Plug transformer into

MDDS8202 and then into 110V

outlet

Mini Digital Coax

Jumpers

The MDC8202 is used to feed between five

and eight receivers. If one to four DirectTV

receivers are used then you can use an MDP-3

and/or the pass through connections on an

MDC4XX module.to feed up to four. For

DishNetworks you will need to use

DishNetworks Proprietary Hardware to expand

beyond four.
