Hoshizaki DCM-500BAH Manuale utente

Hoshizaki

“A Superior Degree

of Reliability”

www.hoshizaki.com

Models

DCM-500BAH

DCM-500BWH

Cubelet Icemaker/Dispenser

Hoshizaki America, Inc.

Number: 71285

Issued: 7-8-2008

Revised: 7-28-2010

PARTS LIST

CONTENTS

Auxiliary Codes ...................................................................................................................... 3

Note About Ordering Parts .................................................................................................... 3

Material Abbreviations ........................................................................................................... 4

A. Ice Dispenser Assembly .................................................................................................... 5

DCM-500BAH .................................................................................................................... 5

DCM-500BWH ................................................................................................................. 10

B. Refrigeration Circuit ......................................................................................................... 14

DCM-500BAH .................................................................................................................. 14

DCM-500BWH ................................................................................................................. 18

C. Icemaking Unit ................................................................................................................ 22

D. Water Circuit .................................................................................................................... 23

E. Control Box Assembly...................................................................................................... 27

F. Front Panel Assembly ....................................................................................................... 32

G. Middle Front Frame Assembly ......................................................................................... 33

H. Shutter Assembly............................................................................................................. 34

J. Gear Motor Assembly (Agitator) ....................................................................................... 36

K. Gear Motor Assembly (Dispense) .................................................................................... 37

L. Bin Assembly ................................................................................................................... 38

M. Frame Assembly ............................................................................................................. 39

N. Label Location ................................................................................................................. 41

P. Evaporator Assembly ...................................................................................................... 43

Q. Bin Top Assembly ............................................................................................................ 45

R. Accessories & Packaging ................................................................................................ 46

Auxiliary Codes

DCM-500BAH T-0 (C) March 2008

T-0 (E) May 2008

T-1 October 2008

U-0 January 2009

U-1 August 2009

V-0 January 2010

V-2 May 2010

V-3 June 2010

V-4 July 2010

DCM-500BWH T-0 (E) May 2008

T-1 October 2008

U-0 April 2009

U-1 September 2009

V-0 February 2010

V-1 April 2010

V-2 May 2010

V-3 June 2010

V-4 July 2010

Auxiliary Code Breakdown

The auxiliary code is the rst two characters in the serial number. The rst character

indicates the year. Years progress or regress in alphabetical order. The series runs from

"A" through "V" and the letters "I" and "O" are skipped. The second character indicates

signicant part changes within a year. Base is "0" and this number advances for each

change. In cases where there is a letter in parentheses, this designates the month. This is

the last character in the serial number. The series runs from "(A)" through "(M)" and the

letter "(I)" is skipped. This designation is only included when identifying a parts change

within an auxiliary code.

Note About Ordering Parts

Most assemblies cannot be ordered as complete units; parts in the assemblies generally

must be ordered separately.

Material Abbreviations

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EPP = Expanded Polypropylene

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrauoroethylene = Teon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

EPDM = EP rubber

EPH = Epichlorohydrin

NBR = Nitrile butadiene rubber

NP = Neoprene

NR = Natural rubber

SI.R = Silicone rubber

SY.R = Synthetic rubber

VN = Vinyl Nitrile

STEEL

GS = Galvanized steel

PAS = Primed steel

PS = Plated steel

SS = Stainless steel

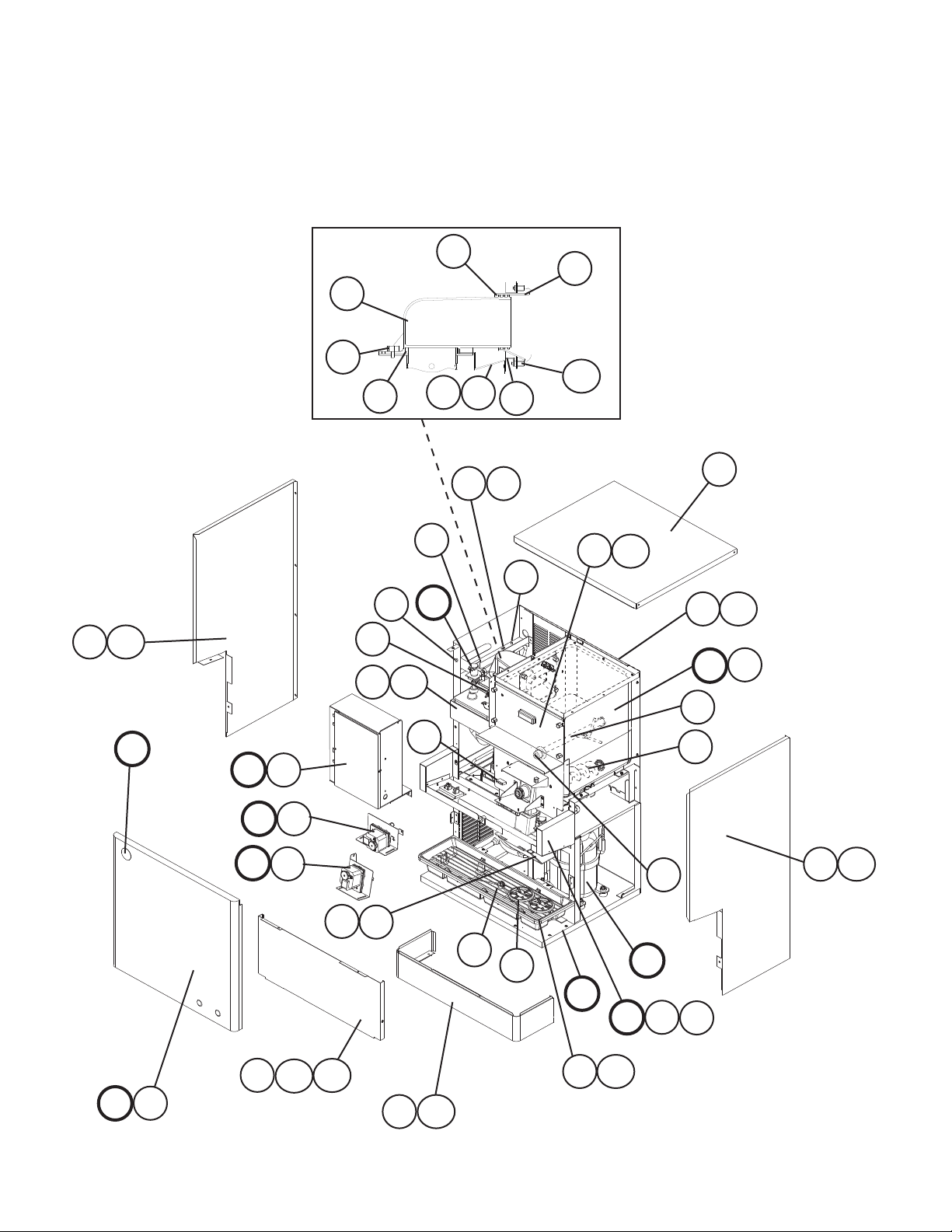

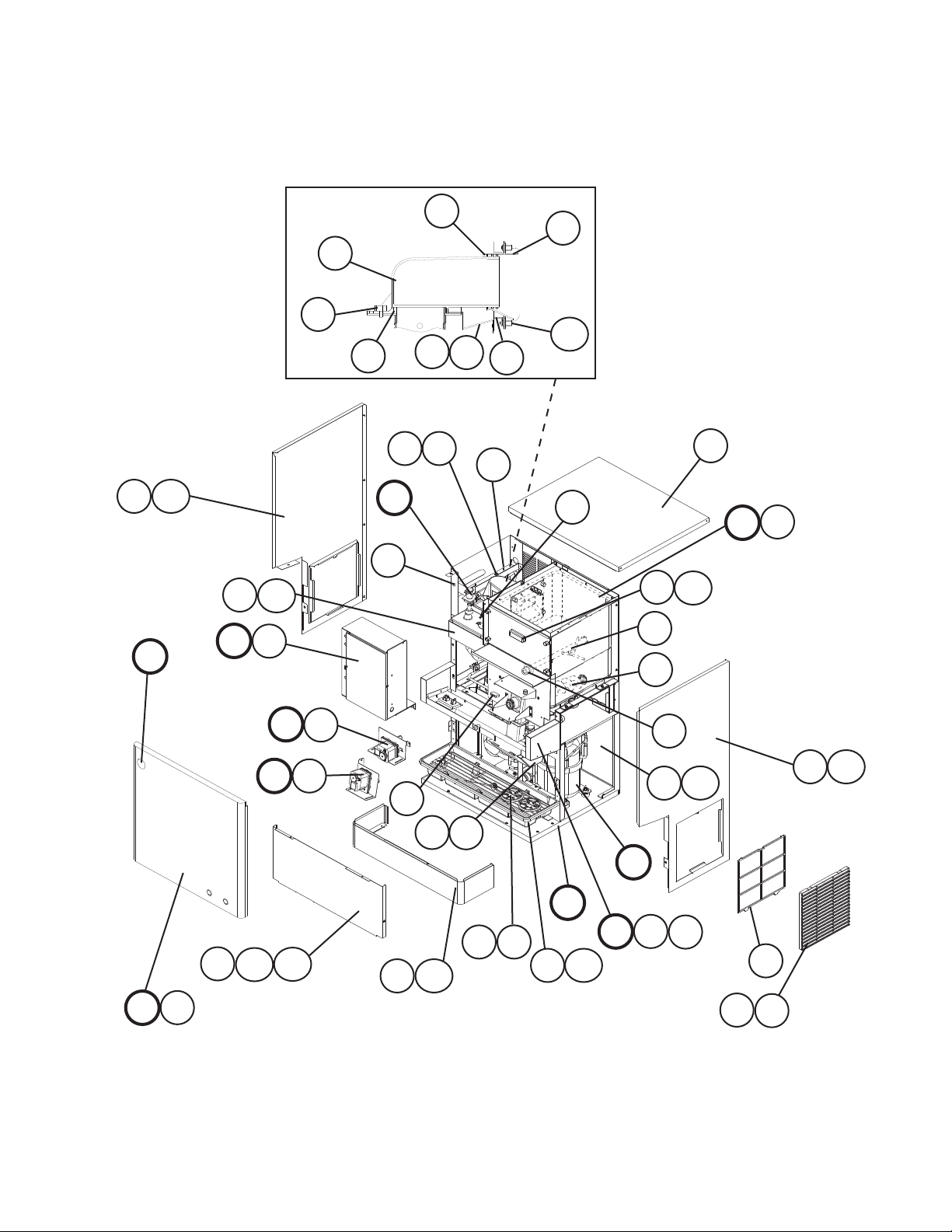

A. Ice Dispenser Assembly

1/2

DCM-500BAH

T-0 to V-4

EE1

14a

15 15a

18 18a

21 21a

20 20a

19 19a

173

12a

GG2

35 35a

16 16a 16b

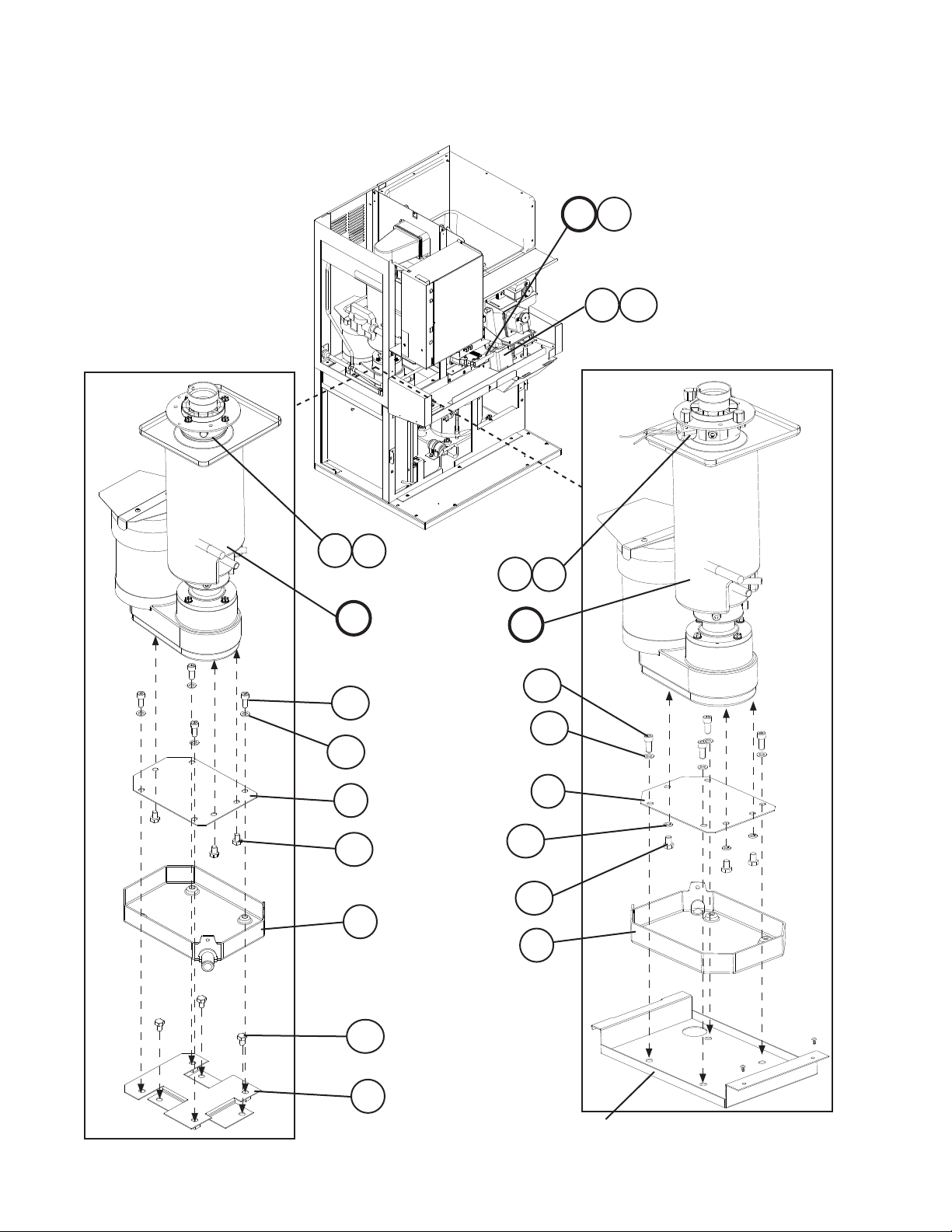

A. Ice Dispenser Assembly

2/2

DCM-500BAH

T-0 to V-4

27a

26a

28b

28a

25 25a

26a

28b

28a

T-0 to V-2 V-3 and later

26b

See "M. Frame Assembly," items 6 and 6a.

Title: A. Ice Dispenser Assembly Model: DCM-500BAH

Index

No. Description

Material or

Model Number Part Number

Required Number

T-0

(C)

T-0

(E)

T-1

U-0

U-1

V-0 V-2 V-3 V-4

B Refrigeration Circuit 227494A02 1 1 1 1 -

2A5916A01 1 1 -

2A5916A02 1

C Icemaking Unit 3A0623A04 1 1 1 1 1 1 1

D Water Circuit 2A0395A03 1 1 1 1 1 -

2A5455A01 1 1

E Control Box Assembly 227498A09 1 1 1 -

227498A11 1 -

227498A13 1 -

2A5460A02 1 1

E1 Truss Head Screw 4×8 7C31-0408 3 3 3 3 3 -

FT Screw 4×8, SS 7F32-0408 3 3

F Front Panel Assembly 3A4999A01 1 1 1 -

3A4999A02 1 1 1 1

F1 Truss Head Screw 4×8, SS 7C32-0408 1 1 1 1 1 -

FT Screw 7F32-0408 1 1

G Middle Front Frame Assembly 2A2603A01 1 -

2A4749A01 1 1 -

2A4749A03 1 1 1 1

G1 Taper Collar SS 4H0171-01 2 2 2 2 2 2 2

G2 Flat Head Screw 4×12, SS 7C22-0412 2 2 2 2 2 2 2

H Shutter Assembly 2A0410A01 1 1 1 1 1 1 1

H1 Truss Head Screw 4×8, SS 7C32-0408 2 2 2 2 2 -

FT Screw 7F32-0408 2 2

J Gear Motor Assembly (Agitator) 4A0620A01 1 1 1 1 1 1 1

J1 Thumbscrew 415949G12 2 2 2 2 2 2 2

K Gear Motor Assembly

(Dispense)

4A0622A01 1 1 1 1 1 1 1

K1 Thumbscrew 415949G12 2 2 2 2 2 2 2

L Bin Assembly 2A0413A01 1 1 1 1 1 -

2A0413A02 1 1

L1 Truss Head Screw 4×12, SS 7C32-0412 2 2 2 2 2 -

FT Screw 4×8, SS 7F32-0408 3 3

M Frame Assembly 2A0388A06 1 1 1 1 1 -

2A5324A02 1 1

N Label Location 2A4366A01 1 1 1 1 1 1 1

1 Louver (B) 103121-03 2 2 2 2 2 2 2

1a Tapping Screw-Black 4×8 433954-01 2 2 2 2 2 2 2

2 Spout Cover 215773-01 1 1 1 1 1 1 1

2a Thumbscrew 415949G08 2 2 2 2 2 2 2

3 Cup Guide 326702-01 2 2 2 2 2 2 2

4 Bushing SR-30-1 420472-03 1 1 1 1 1 -

Cable Tie CV-150 8911-0150 1 1

5 Evaporator Bracket SS 3A0360-01 1 1 1 1 1 1 1

5a Hex Head Bolt w/Washer 5×10, SS 7B0230510 2 2 2 2 2 2 2

6 Packing 427151-02 1 1 1 1 1 1 1

7 Square Washer 433537-02 1 1 1 1 1 1 1

Title: A. Ice Dispenser Assembly Model: DCM-500BAH

Index

No. Description

Material or

Model Number Part Number

Required Number

T-0

(C)

T-0

(E)

T-1

U-0

U-1

V-0 V-2 V-3 V-4

8 Grounding Screw 433304-02 1 1 1 1 1 1 1

9 Spout 103329G01 1 1 1 1 1 1 1

9a Thumbscrew 415949G11 3 3 3 3 3 3 3

10 Packing (A) Spout 427195-01 1 1 1 1 1 1 1

11 Gasket 429758-01 2 2 2 2 2 2 2

12 Spout (B) 208807-01 1 1 1 1 1 1 1

12a Thumbscrew 415949G11 4 4 4 4 4 4 4

13 Packing (B) Spout 427196-01 1 1 1 1 1 1 1

14 Rear Panel GS 2A0405-01 1 1 1 1 1 -

2A5403-01 1 1

14a Truss Head Screw 4×8, SS 7C32-0408 4 4 4 4 4 -

FT Screw 7F32-0408 4 4

15 Panel (Lo) SS 2A0699G01 1 1 1 1 1 1 1

15a FT Screw 4×8, SS 7F32-0408 6 6 6 6 6 6 6

16 Apron Panel (A) SS 2A0720-01 1 1 1 1 1 1 1

16a Truss Head Screw 4×8, SS 7C32-0408 4 4 4 4 4 -

FT Screw 7F32-0408 2 2

16b T2 Screw 4×8, SS 7P32-0408 2 2

17 Grille 2A0827G01 1 1 1 1 1 1 1

18 Bin Cover 2A0880A02 1 1 1 1 1 1 1

18a Thumbscrew 415949G12 4 4 4 4 4 4 4

19 Drip Tray 2A2591G01 1 1 1 1 1 1 1

19a Truss Head Screw 4×8, SS 7C32-0408 4 4 4 4 4 -

FT Screw 7F32-0408 4 4

20 Side Panel (L) SS 2A2616-01 1 1 1 1 1 -

2A6144-01 1 1

20a Truss Head Screw 4×8, SS 7C32-0408 6 6 6 6 6 -

FT Screw 7F32-0408 6 6

21 Side Panel (R) SS 2A2617-01 1 1 1 1 1 -

2A6143-01 1 1

21a Truss Head Screw 4×8, SS 7C32-0408 6 6 6 6 6 -

FT Screw 7F32-0408 6 6

22 Auger (Dispense) SS 339192G01 1 1 1 1 1 1 1

23 Agitator SS 3A0895G01 1 1 1 1 1 1 1

24 Top Panel SS 3A2514G01 1 1 1 1 1 1 1

25 Ice Chute 4A2204-01 1 1 1 1 1 1 1

25a Thumbscrew 415949G08 2 2 2 2 2 2 2

26 Gear Motor Bracket SS 4A4308-01 1 1 1 1 1 1 1

26a Hex Head Bolt 8×12, SS 7B02-0812 3 3 3 3 3 3 3

26b Split Lock Washer M8, SS 7L22-0800 3 3

27 Drain Pan Bracket Assembly SS 4A4315G01 1 1 1 1 1 See "M. Frame

Assembly," items

6 and 6a

27a Hex Head Bolt 8×12, SS 7B02-0812 3 3 3 3 3

28 Drain Pan Assembly 4A4354G01 1 1 1 1 1 -

4A4354G02 1 1

28a Flat Washer M8, SS 7W22-0800 4 4 4 4 4 4 4

28b Allen Head Cap Screw 8×20, SS 7S12-0820 4 4 4 4 4 4 4

29 Heater (includes item 30) 4A2292-01 1 1 1 1 1 1 1

30 Spring 4A2292F01 1 1 1 1 1 1 1

Title: A. Ice Dispenser Assembly Model: DCM-500BAH

Index

No. Description

Material or

Model Number Part Number

Required Number

T-0

(C)

T-0

(E)

T-1

U-0

U-1

V-0 V-2 V-3 V-4

31 Plug Housing 03-09-2021 4A4002-01 2 2 -

3191-4P-201 412832-05 1 1 1 1 1

32 Air Filter 208283G03 1 1 1 1 1 1 1

33 Bushing OCB-500 428394-02 1 1

34 Wire Saddle 4A0338-01 2 2

35 Reservoir Bracket 3A5675-01 1 1

35a FT Screw 7F32-0408 2 2

A. Ice Dispenser Assembly

1/2

DCM-500BWH

T-0 to V-4

EE1

13 13a

GG2

14 14a

17 17a

20 20a

18 18a

8a 11a

19 19a

FF1

32 32a

15 15a 15b
