Hoshizaki F-800MAF Manuale utente

NO.

DEC. 9, 1998

ISSUED:

71139

(FINAL) PARTS LIST

HOSHIZAKI

MODULAR FLAKER

MODEL

F-800MAF(-C)

F-800MWF(-C)

SEPT. 10, 2002

REVISED:

F-800MAF H-0 APRIL 1998

J-0 DEC. 1998

K-0 DEC. 1999

K-1 SEPT. 2000

L-0 DEC. 2000

F-800MAF-C H-0 SEPT. 1998

J-0 SEPT. 1999

K-1 DEC. 1999

K-2 SEPT. 2000

L-0 JAN. 2001

F-800MWF H-0 APR. 1998

J-0 FEB. 1999

K-1 DEC. 1999

K-2 SEPT. 2000

L-0 DEC. 2000

F-800MWF-C H-0 SEP. 1998

J-0 FEB. 1999

K-0 DEC. 1999

K-1 SEPT 2000

HA MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitritrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARYCODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I"

by "o" (interchangeable)

skipped. So, "K" indicates "2000". part.

Ex.2 L-0 o =

New part for "x" in the

"L" is the next in alphabetical

same auxiliary code.

order. So, "L" indicates "2001".

Ex.3 L-1

Each time a part is changed non-interchangeably

in a year, this number advances.

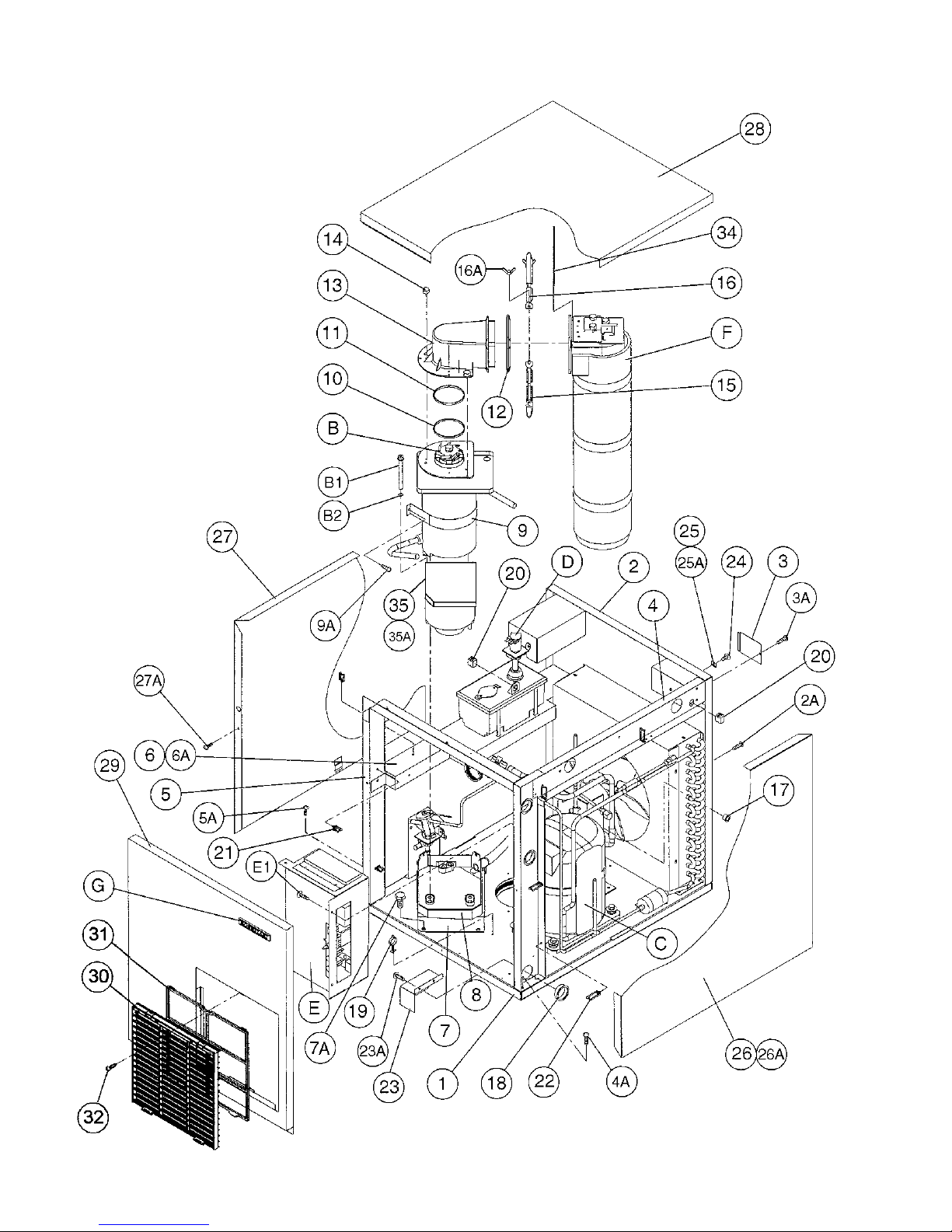

F-800MAF(-C) A. ICE FLAKER ASSEMBLY H0, J-0, K-0, K-1, K-2, L-0

MODEL: F-800MAF TITLE:A. ICE FLAKER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER H-0

J-0

K-0 K-1 L-0

B ICE MAKING UNIT - 3A0962A03 1 1 x1

- 3A0962A01 o1 1

B1 SOCKET HEAD HEX BOLT 8X95, SS 7S12-0895 3 3 3 3

B2 SPRING WASHER 8, SS 7L22-0800 3 3 3 3

C REFRIGERATION UNIT - 2A1000A01 1 x1

- 2A1000A02 o1 1 1

D WATER CIRCUIT - 2A0968A01 1 1 1 1

E CONTROL BOX ASSEMBLY - 2A1045A03 1 x1

2A1045A05 o1 1 1

E1 TRUSS HEAD SCREW 4X8 7C31-0408 3 3 3 3

F CHUTE ASSEMBLY - 2A0941A02 1 -

- 2A1705A02 1 1 1

G LABEL LOCATION - 2A1038A01 1 x1

- 2A1038A05 o1 1 1

MODEL: F-800MAF-C TITLE:A. ICE FLAKER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER H-0

J-0

K-1 K-2 L-0

B ICE MAKING UNIT - 3A0962A04 1 1 x1

- 3A0962A02 o1 1

B1 SOCKET HEAD HEX BOLT 8X95, SS 7S12-0895 3 3 3 3

B2 SPRING WASHER 8, SS 7L22-0800 3 3 3 3

C REFRIGERATION UNIT - 2A1000A01 1 x1

- 2A1000A02 o1 1 1

D WATER CIRCUIT - 2A0968A01 1 1 1 1

E CONTROL BOX ASSEMBLY - 2A1045A03 x1

- 2A1045A05 o1 1 1 1

E1 TRUSS HEAD SCREW 4X8 7C31-0408 3 3 3 3

F CHUTE ASSEMBLY - 2A0941A02 1 -

- 2A1705A02 1 1 1

G LABEL LOCATION - 2A1038A01 x1

- 2A1038A05 o1 1 1 1

MODEL: F-800MAF(-C) TITLE:A. ICE FLAKER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER H-0

J-0

K-0 K-1 K-2 L-0

1 CHASSIS GS 2A1176G01 1 1 1 1 1

2 REAR PANEL GS 2A0322G02 1 1 1 1 1

2A T2 SCREW 4X8 7P31-0408 4 4 4 4 4

3 JUNCTION BOX COVER GS 433410-01 1 1 1 1 1

3A T2 SCREW 4X8 7P31-0408 1 1 1 1 1

4 SIDE FRAME (R) GS 2A1047G01 1 1 1 1 1

4A TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2 2 2

5 FRONT FRAME GS 3A0324G01 1 1 1 1 1

5A TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2 2 2

6 RESERVOIR BRACKET GS 2A1060-01 1 1 1 1 1

6A T2 SCREW 4X8 7P31-0408 4 4 4 4 4

7 BRACKET – GEAR MOTOR GS 3A0396G01 1 1 1 1 1

7A HEX BOLT 8X12, SS 7B02-0812 2 2 2 2 2

8 DRAIN PAN ABS 323765G02 1 1 1 1 1

9 STRAP GS 4A1474-01 1 1 1 1 1

9A T3 SCREW 5X12 7G31-0512 2 2 2 2 2

10 RING PA 432661-02 1 1 1 1 1

11 “O” RING G70 7616-G070 1 1 1 1 1

12 PACKING-SPOUT EPDM 321037-01 1 1 1 1 1

13 SPOUT PC 104797-01 1 1 1 1 1

14 THUMBSCREW SS, ABS 415949G04 3 3 3 3 3

15 STRAP SS 321038G02 1 1 1 1 1

16 STRAP SS 328703-02 1 1 1 1 1

16A WING NUT 6, SS 7E12-0600 2 2 2 2 2

17 BUSHING SB-1500-21 420470-09 1 1 1 1 1

18 BUSHING SB-1500-21 420470-06 3 3 3 3 3

19 CLAMP WS75-75-C 4A0337-12 3 3 3 3 3

20 BUSHING SR-30-1 420472-03 2 2 2 2 2

21 WIRE SADDLE LWS-2NS 4A0338-02 5 5 5 5 5

22 WIRE SADDLE LWS-4NS 4A0338-04 4 4 4 4 4

MODEL: F-800MAF(-C) TITLE:A. ICE FLAKER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER H-0

J-0

K-0 K-1 K-2 L-0

23 BARRIER GS 4A0688-01 1 1 1 1 1

23A TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2 2 2

24 SCREW-GROUNDING BRASS 433304-02 1 1 1 1 1

25 SQUARE WASHER BRASS 433537-02 1 1 1 1 1

25A TRUSS HEAD SCREW 4X8 7C31-0408 1 1 1 1 1

26 SIDE PANEL (RIGHT) SS 2A0324G01 1 1 1 1 1

26A TRUSS HEAD SCREW 4X8, SS 7C32-0408 1 1 1 1 1

27 SIDE PANEL (LEFT) SS 2A1014G01 1 1 1 1 1

27A TRUSS HEAD SCREW 4X8, SS 7C32-0408 1 1 1 1 1

28 TOP PANEL SS 2A1051-02 1 1 1 1 1

29 FRONT PANEL SS 3A0325G01 1 1 1 1 1

30 LOUVER (B) PP 103121-03 1 1 1 1 1

31 AIR FILTER (B) - 208283G03 1 1 1 1 1

32 TAPPING SCREW – BLACK - 433954-01 1 1 1 1 1

33 CABLE TIE CV-150 7920-0003 1 1 1 1 1

34 BRACKET-CHUTE SS 4A1712-01 1 1 1 1 1

35 BARRIER –GEAR MOTOR GS 3A1037-01 1 1 1 1 -

GS 3A1823-01 1

35A FT SCREW 4X8 7F31-0408 2 2 2 2 2

F-800MWF(-C) A. ICE FLAKER ASSEMBLY H-0, J-0, K-0, K-1, K-2, L-0

MODEL: F-800MWF TITLE:A. ICE FLAKER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER H-0

J-0

K-1 K-2 L-0

B ICE MAKING UNIT - 3A0962A03 1 1 x1

- 3A0962A01 o1 1

B1 SOCKET HEAD HEX BOLT 8X95, SS 7S12-0895 3 3 3 3

B2 SPRING WASHER 8, SS 7L22-0800 3 3 3 3

C REFRIGERATION UNIT - 2A1024A01 1 x1

- 2A1024A02 o1 1 1

D WATER CIRCUIT - 2A0968A01 1 1 1 1

E CONTROL BOX ASSEMBLY - 2A1045A04 1 x1

- 2A1045A06 o1 1 1

E1 TRUSS HEAD SCREW 4X8 7C31-0408 3 3 3 3

F CHUTE ASSEMBLY - 2A0941A02 1 -

- 2A1705A02 1 1 1

G LABEL LOCATION - 2A1038A02 1 x1

- 2A1038A06 o1 1 1
