(FINAL) PARTS LIST

HOSHIZAKI

STACKABLE CRESCENT CUBER

MODEL

KM-1600SWF

KM-1600SRF

KM-1600SWF3

KM-1600SRF3

JULY 30, 2002

REVISED:

KM-1600SWF H-1 JULY 1998

H-2 OCT. 1998

J-0 DEC. 1998

K-0 MARCH 2000

L-0 DEC. 2000

KM-1600SRF H-0 MAY 1998

H-1 SEP. 1998

H-2 OCT. 1998

J-1 JAN. 1999

K-0 DEC. 1999

L-0 DEC. 2000

KM-1600SWF3 H-1 JULY 1998

J-1 MARCH 1999

K-0 MARCH 2000

L-0 FEB. 2001

KM-1600SRF3 H-0 MAY 1998

H-1 SEP. 1998

H-2 OCT. 1998

J-0 DEC. 1998

K-0 DEC. 1999

L-0 MARCH 2001

MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PE P = Polyethylene terephthalate = etlon

PP = Polypropylene

PS = Polystyrene

PIFE = Polytetrafluoroethylene = eflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part.

skipped. So, "K" indicates "2000".

o = New part for "x"

Ex.2 L-0 in the same auxiliary code.

"L" is the next in alphabetical

order. So, "L" indicates "2001".

Ex.3 L-1

Each time a part is changed non-interchangeably,

in a year, this number advances.

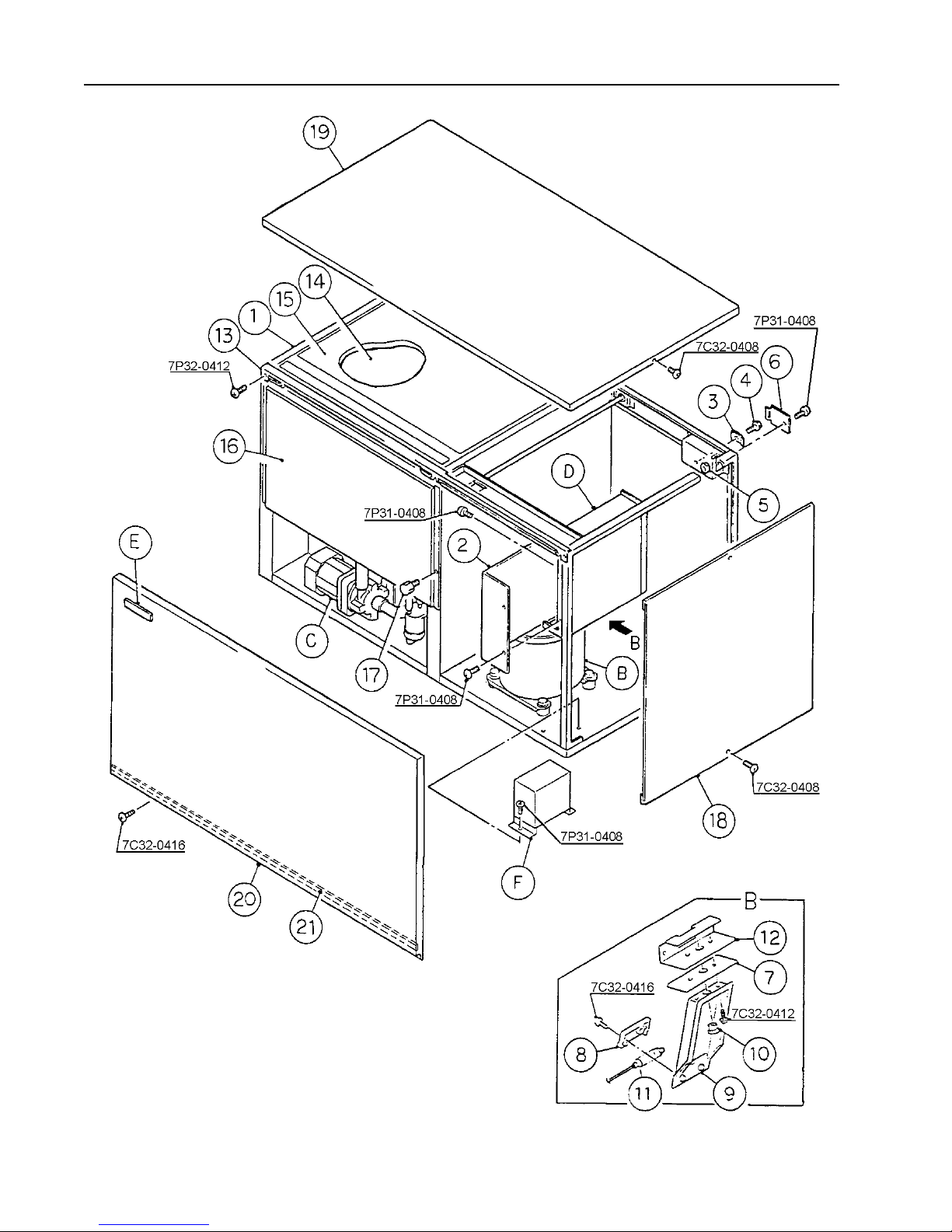

KM-1600SWF A. ICE CUBER ASSEMBLY H-1, H-2, J-0, K-0, L-0

MODEL: KM-1600SWF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER H-1 H-2 J-0 K-0 L-0

B REFRIGERATION CIRCUIT - 1A0294A01 1 1 1 1 1

C WATER CIRCUIT - 105109A04 1 1 1 1 1

D CONTROL BOX ASSEMBLY - 2A1122A03 1 1 1 1 1

T2 SCREW 4X8 7P31-0408 3 3 3 3 3

E LABEL LOCATION - 2A1275A02 1 1 1 1 1

F CAPACITOR BOX ASSEMBLY - 3A1003A01 1 1 1 1 1

T2 SCREW 4X8 7P31-0408 2 2 2 2 2

1 EVAPORATOR CASE - 105860G38 1 1 1 1 1

2 CONTROL BOX COVER GS 3A0174-01 1 1 1 1 1

T2 SCREW 4X8 7P31-0408 3 3 3 3 3

3 SQUARE WASHER BRASS 433537-02 1 1 1 1 1

4 SCREW - GROUNDING BRASS 433304-02 1 1 1 1 1

5 BUSHING SR-34-2 420472-05 1 1 1 1 1

6 JUNCTION BOX COVER GS 433410-01 1 1 1 1 1

T2 SCREW 4X8 7P31-0408 1 1 1 1 1

7 SPACER ABS 439727-01 1 1 1 1 1

8 BULB HOLDER PE 328919-01 1 1 1 1 1

T2 SCREW 4X16, SS 7P32-0416 2 2 2 2 2

9 BULB HOLDER (C) ABS 216340G01 1 1 1 1 1

TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2

10 CAPILLARY RING - 425307-01 1 1 1 1 1

11 SPACER PE 443545-01 1 1 1 1 1

12 BULB HOLDER (D) GS 328742-01 1 1 1 1 1

13 FRONT PANEL - BRACKET SS 323903-01 1 1 1 1 1

T2 SCREW 4X12, SS 7P32-0412 3 3 3 3 3

14 SPACER ABS 324321-01 1 1 1 1 1

15 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1

16 FRONT INSULATION ABS, PE 324215G01 1 1 1 1 1

17 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1

MODEL: KM-1600SWF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER H-1 H-2 J-0 K-0 L-0

18 SIDE PANEL (R) SS 213668G01 1 1 1 1 1

19 TOP PANEL (A) SS 213669-02 1 1 1 1 1

TRUSS HEAD SCREW 4X8, SS 7C32-0408 3 3 3 3 3

20 FRONT PANEL SS 325508G01 1 1 1 1 1

TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2 2 2 2

21 GASKET L=1219 4A0808L02 1

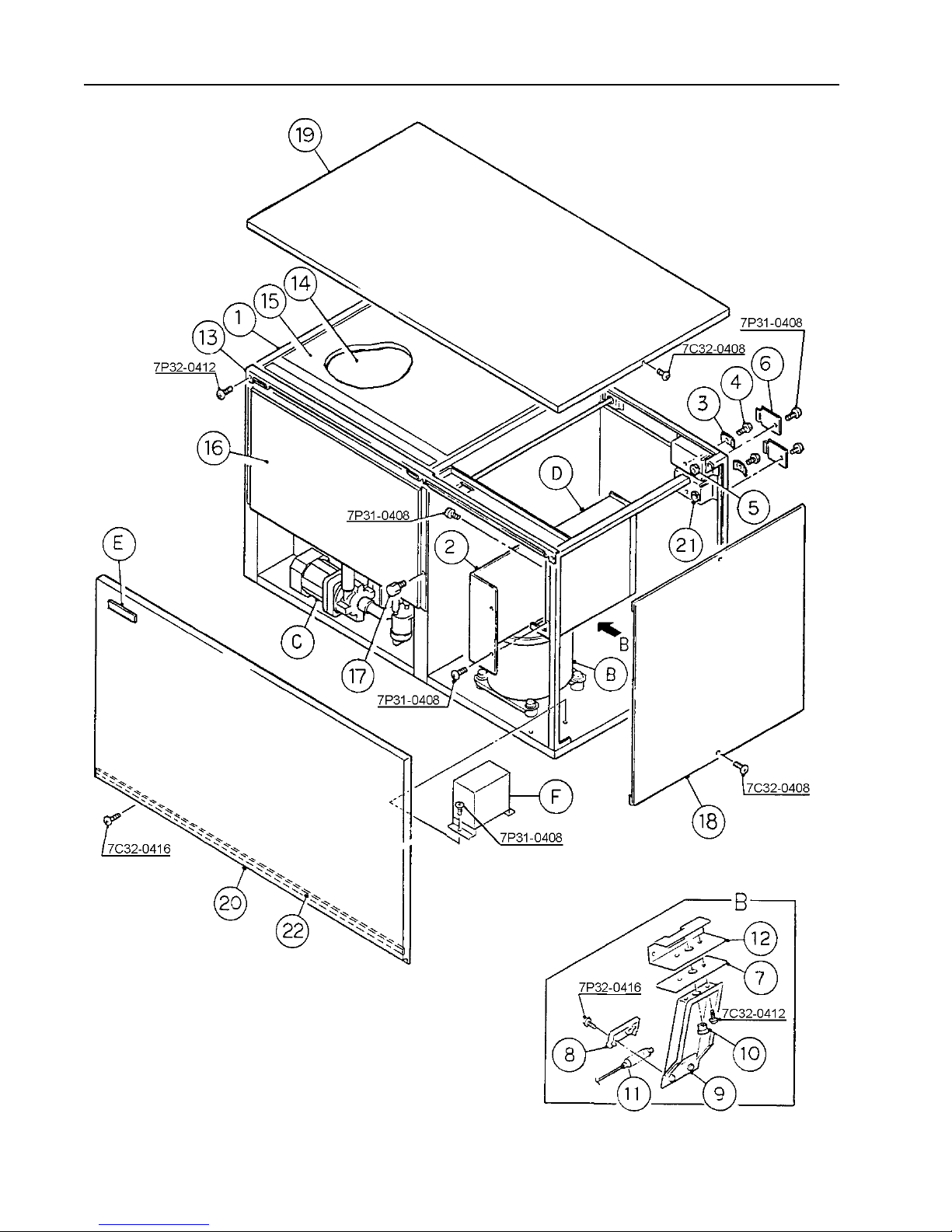

KM-1600SWF3 A. ICE CUBER ASSEMBLY H-1, J-1, K-0, L-0

MODEL: KM-1600SWF3 TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER H-1 J-1 K-0 L-0

B REFRIGERATION CIRCUIT - 1A0294A02 1 1 1 1

C WATER CIRCUIT - 105109A04 1 1 1 1

D CONTROL BOX ASSEMBLY - 2A1122A03 1 1 1 1

T2 SCREW 4X8 7P31-0408 3 3 3 3

E LABEL LOCATION - 2A1275A02 1 1 1 1

F TRANSFORMER BOX

ASSEMBLY

- 3A1102A01 1 1 1 1

HEX HEAD BOLT W/ WASHER

(LF)

5X10 7B0130510 4 4 4 4

1 EVAPORATOR CASE - 105860G38 1 1 1 1

2 CONTROL BOX COVER GS 3A0174-01 1 1 1 1

T2 SCREW 4X8 7P31-0408 3 3 3 3

3 SQUARE WASHER BRASS 433537-02 1 1 1 1

4 SCREW - GROUNDING BRASS 433304-02 1 1 1 1

5 BUSHING SR-34-2 420472-05 1 1 1 1

6 JUNCTION BOX COVER GS 433410-01 1 1 1 1

T2 SCREW 4X8 7P31-0408 1 1 1 1

7 SPACER ABS 439727-01 1 1 1 1

8 BULB HOLDER PE 328919-01 1 1 1 1

T2 SCREW 4X16, SS 7P32-0416 2 2 2 2

9 BULB HOLDER (C) ABS 216340G01 1 1 1 1

TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2

10 CAPILLARY RING - 425307-01 1 1 1 1

11 SPACER PE 443545-01 1 1 1 1

12 BULB HOLDER (D) GS 328742-01 1 1 1 1

13 FRONT PANEL - BRACKET SS 323903-01 1 1 1 1

T2 SCREW 4X12, SS 7P32-0412 3 3 3 3

14 SPACER ABS 324321-01 1 1 1 1

15 TOP INSULATION ABS, PE 324216G01 1 1 1 1

16 FRONT INSULATION ABS, PE 324215G01 1 1 1 1

17 THUMBSCREW ABS, SS 415949G01 1 1 1 1

MODEL: KM-1600SWF3 TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER H-1 J-1 K-0 L-0

18 SIDE PANEL (R) SS 213668G01 1 1 1 1

19 TOP PANEL (A) SS 213669-02 1 1 1 1

TRUSS HEAD SCREW 4X8, SS 7C32-0408 3 3 3 3

20 FRONT PANEL SS 325508G01 1 1 1 1

TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2 2 2

21 GASKET L=1219 4A0808L02 1

KM-1600SRF A. ICE CUBER ASSEMBLY H-0, H-1, H-2, J-1, K-0, L-0
