Hoshizaki KM-280MAE Manuale utente

NO.

ISSUED:

MODEL

HOSHIZAKI

MODULAR CRESCENT CUBER

(FINAL) PARTS LIST

KM-280MAE

KM-280MWE

JAN. 12, 1996

APRIL 18, 2000

71113

REVISED:

F-1 Feb., 1996

G-0 Dec., 1996

G-1 May, 1997

G-2 June,1997

H-0 Jan., 1998

H-1 April, 1998

H-2 July, 1998

H-3 Oct., 1998

H-4 Nov., 1998

J-0 Dec., 1998

KM-280MAE

KM-280MWE F-0 April, 1996

G-0 Dec., 1996

G-2 July, 1997

H-0 Feb., 1998

H-1 May, 1998

H-2 July, 1998

J-0 Feb., 1999

MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide =Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = VinylNitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanizedsteel

SS = Stainless steel

PS = Plated steel

PAS = Primedsteel

AUXILIARYCODE

Ex.1 K-0Parts are the same as in the preceding (Note) - = Part deleted.

year. x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part.

skipped. So, "K" indicates "1990" or "2000". o = New part for "x"

Ex.2 A-1 in the same auxiliary code.

"A" is the first in alphabetical

order. So, "A" indicates "1991".

Ex.3 A-2Each time a part is changed non-interchangeably

in a year, this number advances.

FASTENERABBREVIATIONLIST

ST Phillips Truss Machine Screw

SP Phillips Pan Head Machine Screw

SF Phillips Flat Head Machine Screw

SS Phillips Pan Head Machine Screw with Split Lock Washer

SW Phillips Pan Head Machine Screw with Split Lock Washer

and Flat Washer

T1 Phillips Truss Head Tapping Screw (Correspond to Type A)

T2 Phillips Truss Head Tapping Screw (Correspond to Type B)

T3 Phillips Truss Head Tapping Screw (Correspond to Type C)

FT Phillips Truss Head Tapping Screw (Special)

BH Hexagon Head Bolt

BC Socket Head Cap Screw

BS Hexagon Bolt with Split Washer

BW Hexagon Bolt with Split Washer and Flat Washer

BF Hexagon Flange Bolt

BR Cross-Recessed Hexagon Head Bolt

BRW Cross-Recessed Hexagon Head Bolt with Split Lock Washer

and Flat Washer

WL Split Lock Washer

WT External Tooth Washer

WF Flat Washer

WS Spring Washer

NH Hexagon Nut

NF Hexagon Flange Nut

NC Hexagon Cap Nut

NS Square Nut

NW Wing Nut

Ex. ST0308S (Phillips Truss Head Machine Screw

3x8, made of stainless steel)

Material None: Plated Steel

Length (mm) S: Stainless Steel

Nominal Diameter (mm) B: Brass

Form of Head P: Plastic

Description

(Note) Second character is numerical except toe list.

Ex. S1, S2, B3 etc.

And abbreviations and names are shown under the illustration.

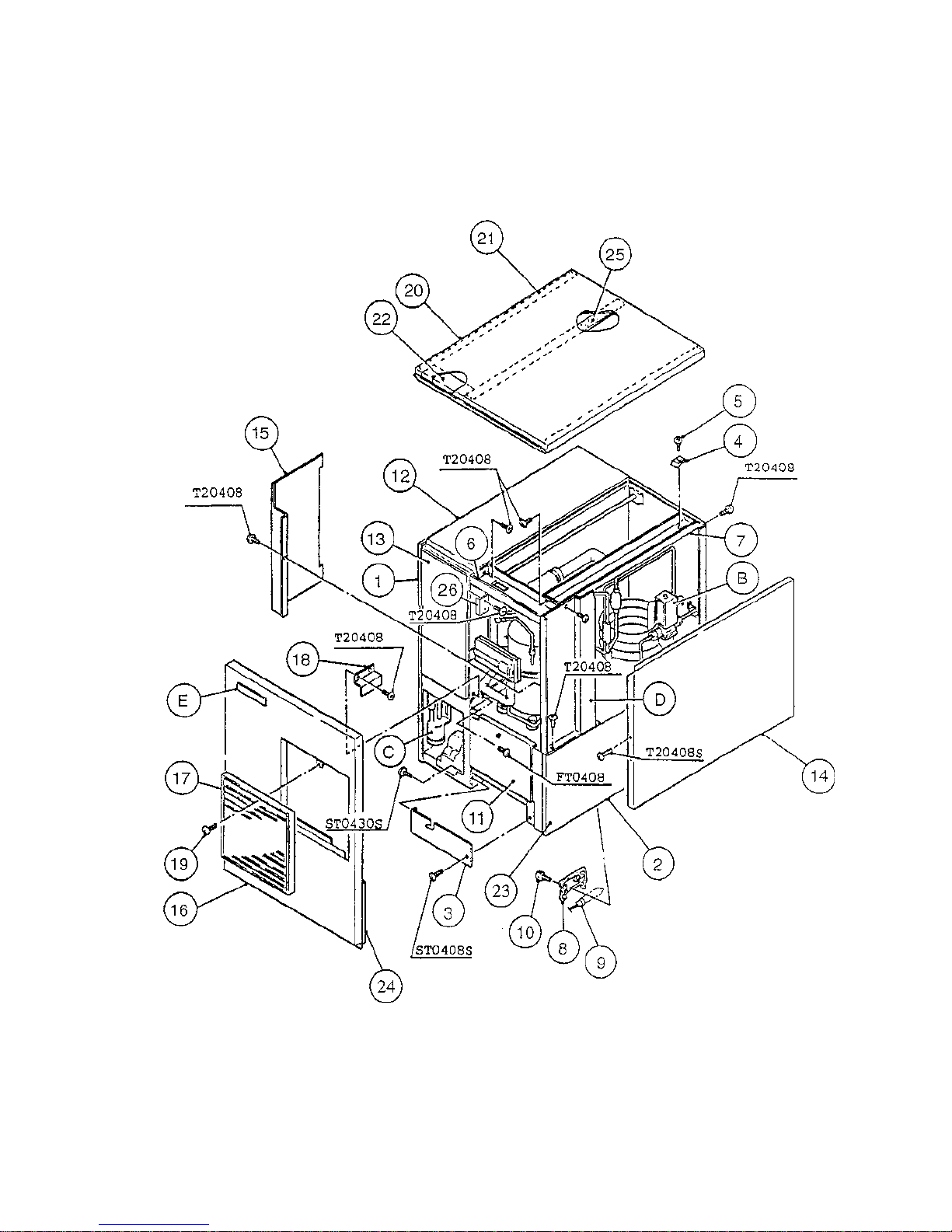

KM-280MAE A. ICE CUBER ASSEMBLY F-1

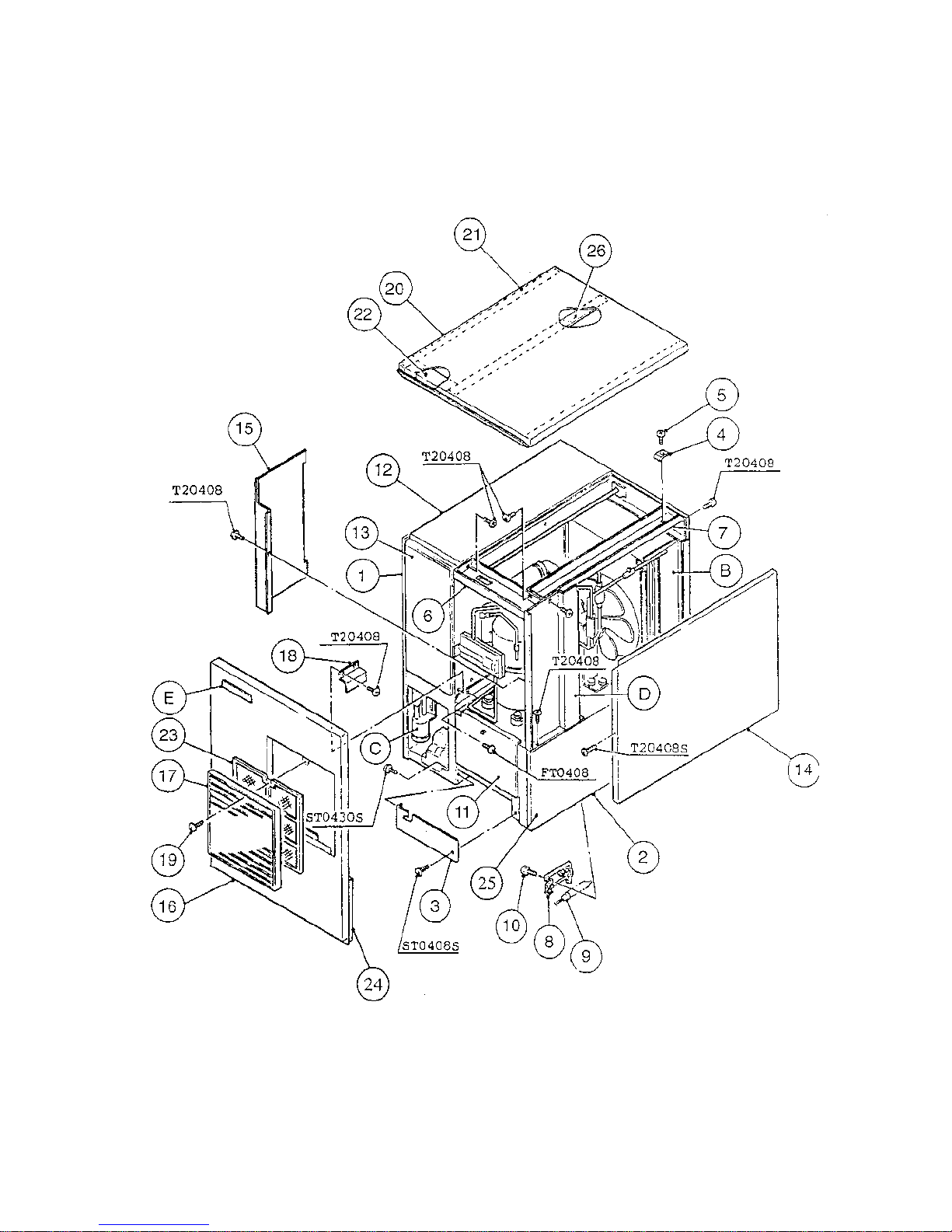

KM-280MAE A. ICE CUBER ASSEMBLY G-0, G-1, G-2, H-0, H-1, H-2, H-3, H-4, J-0

MODEL: KM-280MAE TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER F-1 G-0 G-1 G-2 H-0 H-1 H-2 H-3 H-4

J-0

BREFRIGERATIONCIRCUIT- 1A0136A02111111111

C WATER CIRCUIT - 1A0137A01 1 1 X1

- 1A0137A02 01 1 1 1 -

- 1A0137A03 1 1 1

D CONTROL BOX ASSEMBLY - 220492A03 1 1111-

- 220492A07 1 1 -

- 220492A03 1 -

- 220492A07 1

E LABEL LOCATION - 332453A02 1 1111-

- 332453A04 1 1 1 1

1EVAPORATORCASE - 2A0143G011111111X1

- 1A0276G01 01 1

2BASE - 2A0119G07111111111

3FRAME ABS 3A0217G01111111111

4 SQUARE WASHER BRASS 433537-02 1 11111111

5 SCREW - GROUNDING BRASS 433304-02 1 11111111

6 TOP FRAME GS 332443-01 1 11111111

7 SIDE FRAME GS 332465G01 1 11111111

8 BULB HOLDER PE 328919-01 1 11111111

9 SPACER PE 443545-01 1 11111111

10 THUMBSCREW SS, ABS 415949G03 2 22222222

11 BASE COVER SS 321525G01 1 11111111

12 TOP INSULATION PP 215730G01 1 11111111

13 FRONT INSULATION PP 215731G01 1 11111111

14 SIDE PANEL (R) SS 211811G06 1 11111111

15 CONTROL BOX COVER GS 332466-01 1 11111111

16 FRONT PANEL SS 323004G07 1 11111111

MODEL: KM-280MAE TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER F-1 G-0 G-1 G-2 H-0 H-1 H-2 H-3 H-4

J-0

17 LOUVER (B) ABS 103121-03 111111111

18BARRIER GS 4A0362-01111111111

19 TAPPING SCREW ( BLACK) STEEL, 4x8 433954-01 111111111

20 TOP PANEL SS 220465-01 111111111

21 GASKET PVC 427014-04 222222222

22 INSULATION PE FOAM 438012-01 111111111

23 AIR FILTER (B) ABS 208283G03 111111111

24FRONTCOVER P.S 2A0182-01111111111

25 SIDE PANEL (R) BASE SS 212620-01 111111111

26 GASKET PVC 324859-03 111111111

27BARRIER–INSULATION GS 4A1167-01 11111111

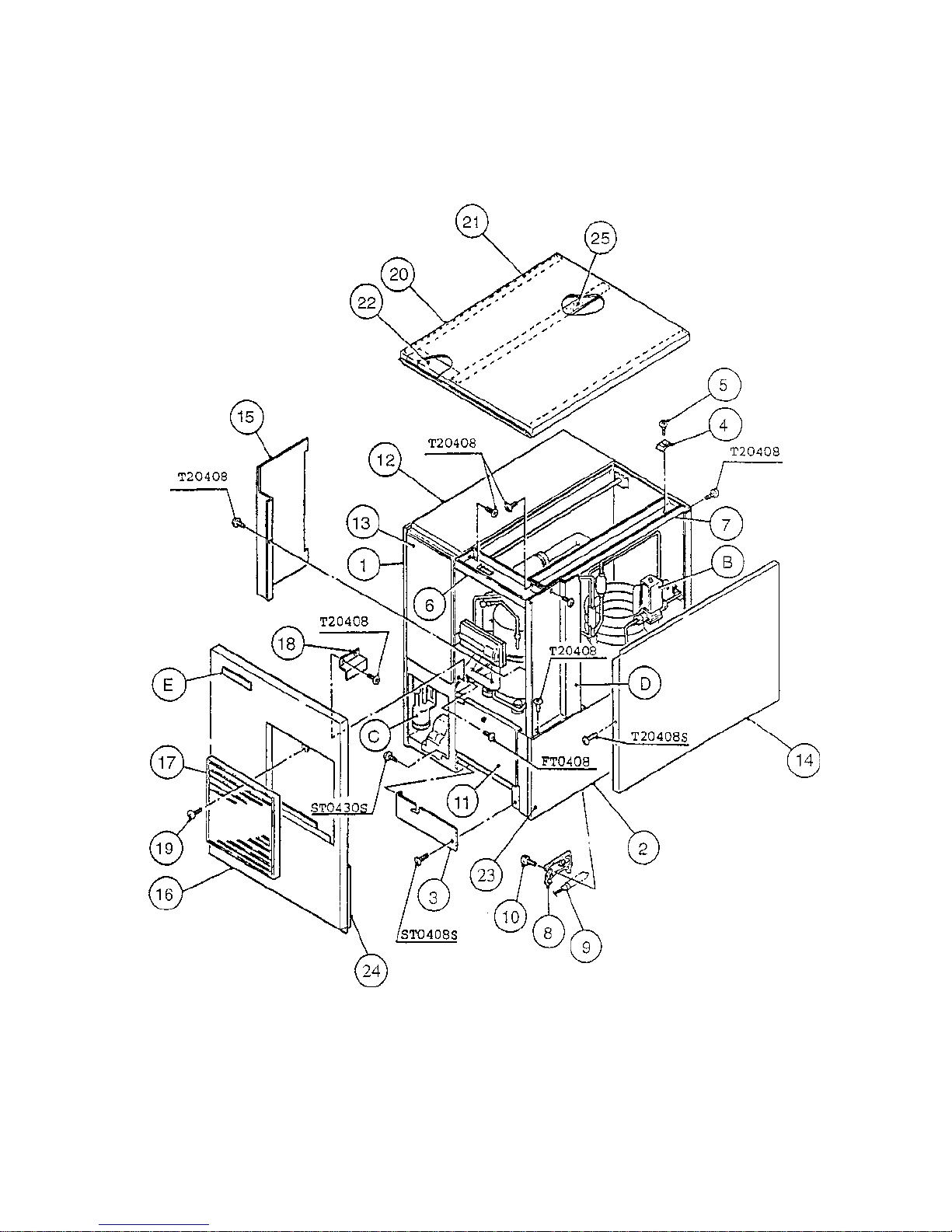

KM-280MWE A. ICE CUBER ASSEMBLY F-0

KM-280MAE A. ICE CUBER ASSEMBLY G-0, G-2, H-0, H-1, H-2, J-0
