Hoshizaki KML-400MAE Manuale utente
NO.
ISSUED:
71121
JAN. 26, 1998
MODEL
KML-400MAE
KML-400MWE
HOSHIZAKI
MODULAR CRESCENT CUBER
(FINAL) PARTS LIST
REVISED: SEPT. 12, 2000
2
HA
KML-400MAE
G-0 MARCH, 1997
H-0 DEC., 1997
H-1 APRIL, 1998
H-2 JUNE, 1998
H-3 OCT., 1998
J-0 DEC., 1998
KML-400MWE
G-0 MARCH, 1997
H-1 JAN., 1998
H-2 MAY, 1998
H-3 JUNE, 1998
H-4 OCT., 1998
J-0 DEC., 1998
3
HA MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARY CODE
Ex.1 K-0
Parts are the same as in the preceding (Note) - = Part deleted.
year.
x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" part.
skipped. So, "K" indicates "1990".
o = New part for "x"
Ex.2 A-1 in the same auxiliary code.
"A" is the first in alphabetical
order. So, "A" indicates "1991".
Ex.3 A-2
Each time a part is changed
in a year, this number advances.
4
HA
FASTENER ABBREVIATION LIST
ST Phillips Truss Machine Screw
SP Phillips Pan Head Machine Screw
SF Phillips Flat Head Machine Screw
SS Phillips Pan Head Machine Screw with Split Lock Washer
SW Phillips Pan Head Machine Screw with Split Lock Washer
and Flat Washer
T1 Phillips Truss Head Tapping Screw (Correspond to Type A)
T2 Phillips Truss Head Tapping Screw (Correspond to Type B)
T3 Phillips Truss Head Tapping Screw (Correspond to Type C)
FT Phillips Truss Head Tapping Screw (Special)
BH Hexagon Head Bolt
BC Socket Head Cap Screw
BS Hexagon Bolt with Split Washer
BW Hexagon Bolt with Split Washer and Flat Washer
BF Hexagon Flange Bolt
BR Cross-Recessed Hexagon Head Bolt
BRW Cross-Recessed Hexagon Head Bolt with Split Lock Washer
and Flat Washer
WL Split Lock Washer
WT External Tooth Washer
WF Flat Washer
WS Spring Washer
NH Hexagon Nut
NF Hexagon Flange Nut
NC Hexagon Cap Nut
NS Square Nut
NW Wing Nut
Ex. ST0308S (Phillips Truss Head Machine Screw
3x8, made of stainless steel)
Material None: Plated Steel
Length (mm) S: Stainless Steel
Nominal Diameter (mm) B: Brass
Form of Head P: Plastic
Description
(Note) Second character is numerical except toe list.
Ex. S1, S2, B3 etc.
And abbreviations and names are shown under the illustration.
5
HA

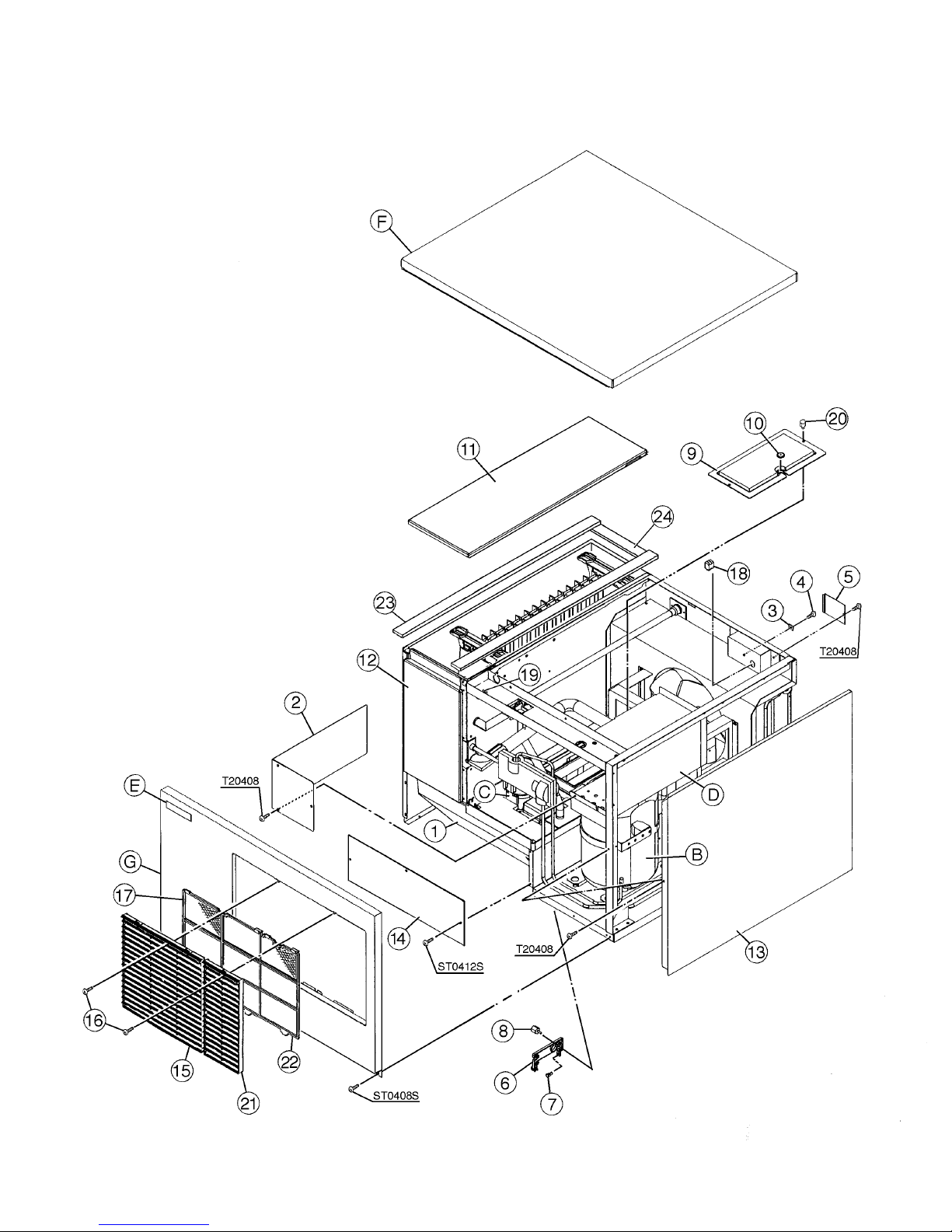

KML-400MAE A. ICE CUBER ASSEMBLY G-0, H-0, H-1, H-2
6
HA

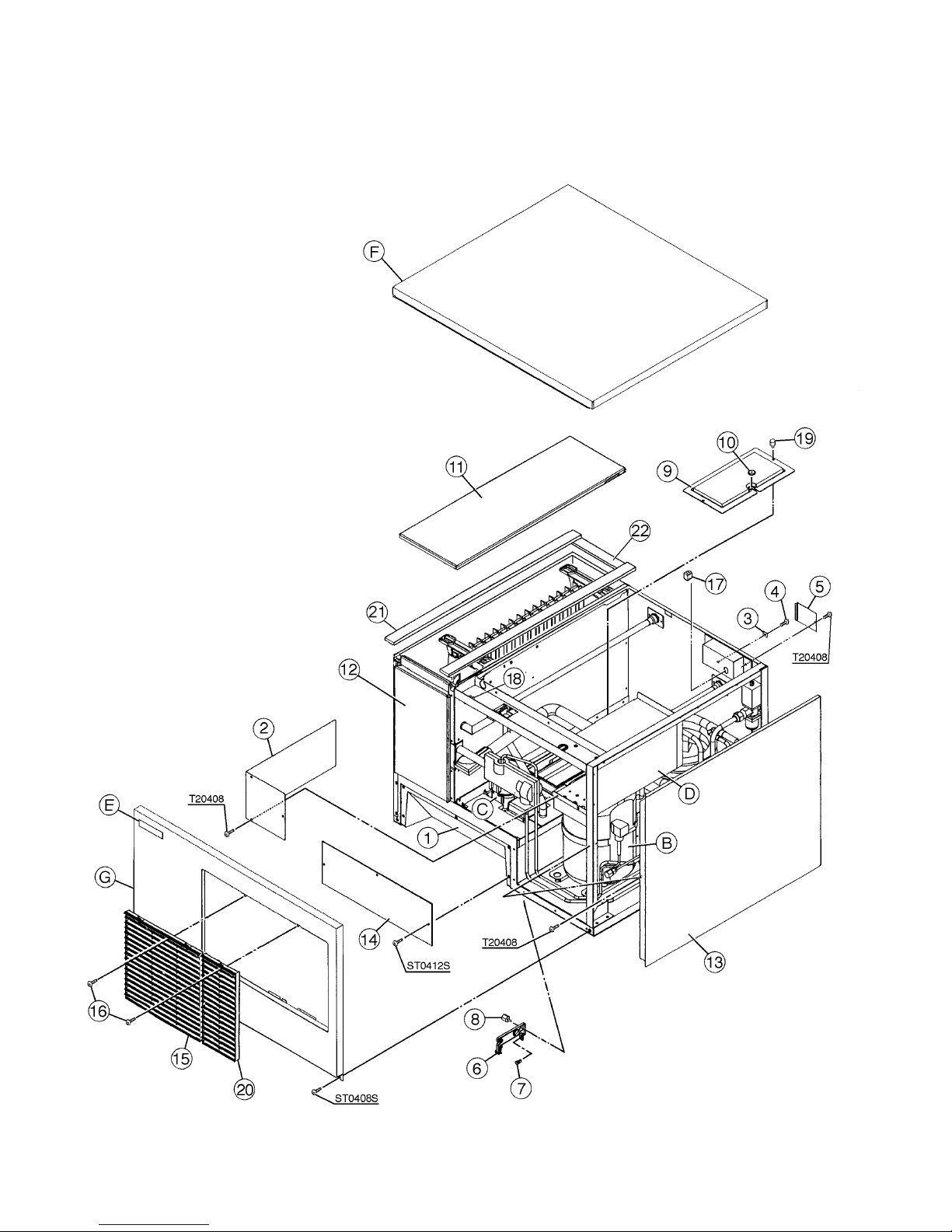

KML-400MAE A. ICE CUBER ASSEMBLY H-3, J02385M-J02784B
7
HA

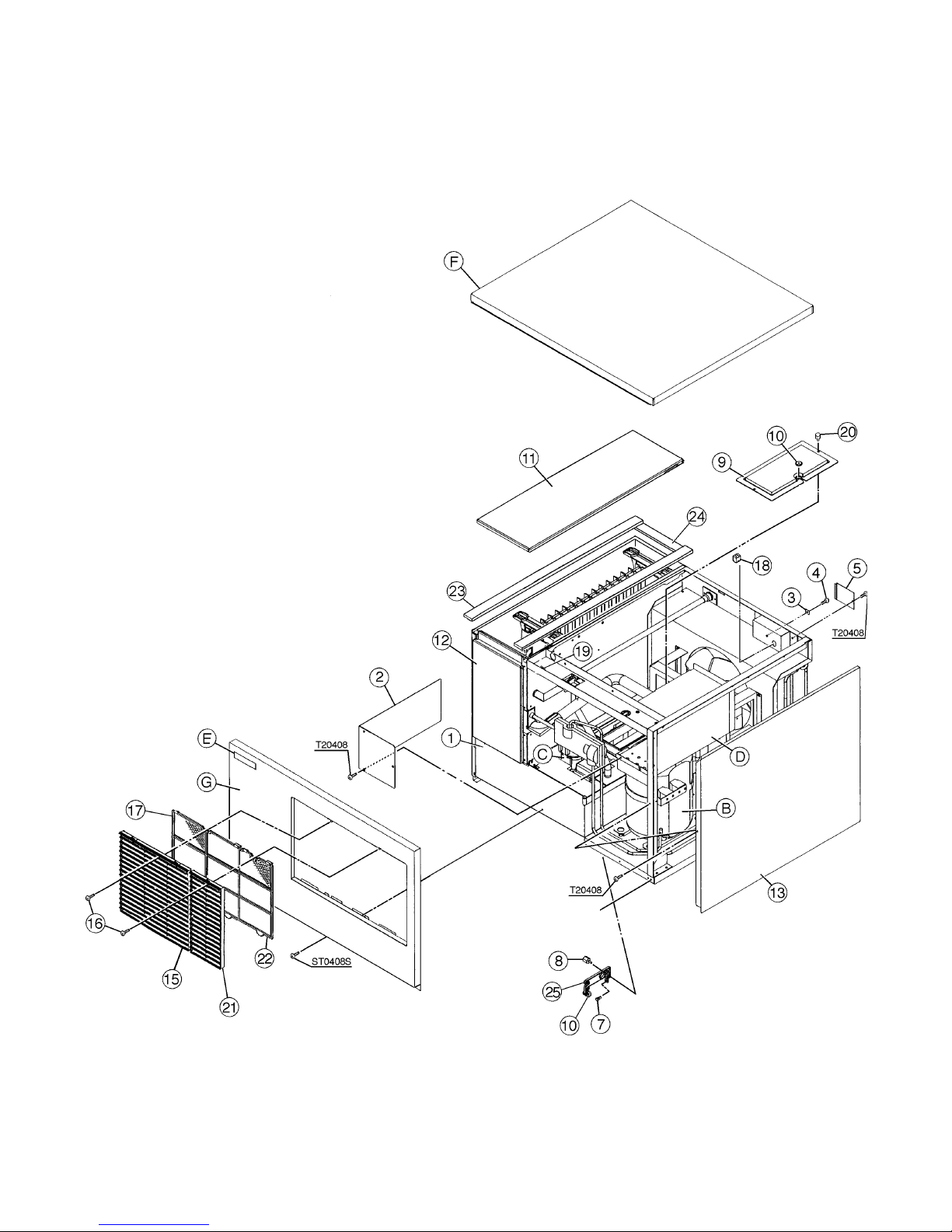

KML-400MAE A. ICE CUBER ASSEMBLY J02785C--
8
HA
MODEL: KML-400MAE TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER G-0
H-0
H-1 H-2 H-3
J02385M-
J02784B
J02785C-
B REFRIGERATION CIRCUIT - 2A0718A01 1 1 1 x1
- 1A0386A01 o1 1
C WATER CIRCUIT - 2A0692A01 1 1 -
- 2A0692A02 1 1 -
- 1A0438A01 1
D CONTROL BOX ASSEMBLY - 2A0657A01 1 -
- 2A0657A05 1 1 1 1
T2 SCREW 4X8 7P31-0408 3 3 3 3 3
E LABEL LOCATION - 3A0676A01 1 -
- 3A0676A02 1 1 1 -
- 3A1372A01 1
F TOP PANEL ASSEMBLY - 3A0674A01 1 1 1 1 1
G FRONT PANEL ASSEMBLY - 3A0905A01 1 1 1 1 -
- 3A1273A01 1
TRUSS HEAD SCREW 4X8, SS 7C32-0408 2 2 2 2 1
1 EVAPORATOR CASE - 2A0687G01 1 1 1 1 -
- 2A1448G01 1
2 CONTROL BOX COVER GS 3A0594-01 1 1 1 1 1
T2 SCREW 4X8 7P31-0408 3 3 3 3 3
3 SQUARE WASHER BRASS 433537-02 1 1 1 1 1
4 SCREW - GROUNDING BRASS 433304-02 1 1 1 1 1
5 JUNCTION BOX COVER GS 433410-01 1 1 1 1 1
T2 SCREW 4X8 7P31-0408 1 1 1 1 1
6 BULB HOLDER PE 328919-01 1 1 1 -
7 SPACER PE 443545-01 1 1 1 1 1
8 THUMBSCREW SS, ABS 415949G03 2 2 2 2 2
9 BIN CONTROL COVER GS 3A0664G01 1 1 1 1 1
9
HA
MODEL: KML-400MAE TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER G-0
H-0
H-1 H-2 H-3
J02385M-
J02784B
J02785C-
10 CAPILLARY RING EP RUBBER 425307-01 1 1 1 1 1
11 TOP INSULATION PP 215730G01 1 1 1 1 1
12 FRONT INSULATION PP 2A0664G01 1 1 1 1 1
13 SIDE PANEL (R) SS 2A0649G01 1 1 1 1 -
SS 2A1456G01 1
T2 SCREW 4X8, SS 7P32-0408 1 1 1
14 COVER - MANUAL FILL ABS, POLYOLEFIN 4A1015G01 1 1 1 1 -
TRUSS HEAD SCREW 4X12, SS 7C32-0412 3 3 3 3 -
15 LOUVER (B) ABS 103121-05 1 1 1 1 1
16 TAPPING SCREW (BLACK) STEEL, 4X8 433954-01 2 2 2 2 2
17 AIR FILTER (B) ABS 208283G03 1 1 1 1 1
18 BUSHING SR-30-1 420472-03 1 1 1 1 1
19 WIRE SADDLE VWS4238-C 4A0338-02 2 2 2 2 2
20 THUMBSCREW SS, ABS 415949G04 2 2 2 2 2
21 LOUVER (C) ABS 103122-03 1 1 1 1 1
22 AIR FILTER (C) ABS 208284G01 1 1 1 1 1
23 GASKET L=655 4A0808L02 2 2 2 2 2
24 GASKET L=190 4A0808L02 1 1 1 1 1
25 THERMOSTAT EXTENSION BRACKET - 4A1722-01 1 1
10
HA
KML-400MWE A. ICE CUBER ASSEMBLY G-0, H-1, H-2, H-3
