HP Nc6400 - Compaq Business Notebook Manuale utente
External Media Cards
User Guide
© Copyright 2007 Hewlett-Packard
Development Company, L.P.
SD Logo is a trademark of its proprietor. Java
is a U.S. trademark of Sun Microsystems,
Inc.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: January 2007
Document Part Number: 430282-001
Table of contents
1 Digital Media Slot cards
Inserting a digital card .......................................................................................................................... 2
Stopping or removing a digital card ...................................................................................................... 3
2 PC Cards
Configuring a PC Card ......................................................................................................................... 5
Inserting a PC Card .............................................................................................................................. 6
Stopping or removing a PC Card ......................................................................................................... 8
3 Smart cards
Inserting a smart card ......................................................................................................................... 11
Removing a smart card ...................................................................................................................... 12
Index ................................................................................................................................................................... 13
ENWW iii
iv ENWW
1 Digital Media Slot cards
Optional digital cards provide secure data storage and convenient data sharing. These cards are often
used with digital-media-equipped cameras and PDAs as well as with other computers.
The Digital Media Slot supports Secure Digital (SD) Memory Card formats.
CAUTION To avoid damaging the digital card or the computer, do not insert any type of adapter
into the Digital Media Slot.
ENWW 1
Inserting a digital card
CAUTION To prevent damage to the digital card connectors, use minimal force to insert a digital
card.
To insert a digital card:
1. Hold the digital card label-side up, with the connectors facing the computer.
2. Gently slide the card into the Digital Media Slot until the card is seated.
When you insert a digital card, you will hear a sound when the device has been detected, and a
menu of available options may be displayed.
2 Chapter 1 Digital Media Slot cards ENWW
Stopping or removing a digital card
CAUTION To prevent loss of data or an unresponsive system, stop the digital card before
removing it.
To stop or remove a digital card:
1. Close all files and applications that are associated with the digital card.
NOTE To stop a data transfer, click Cancel in the operating system Copying window.
2. To stop the digital card:
a. Double-click the Safely Remove Hardware icon in the notification area, at the far right of the
taskbar.
NOTE To display the Safely Remove Hardware icon, click the Show Hidden Icons
icon (<or <<) in the notification area.
b. Click the digital card listing.
c. Click Stop, and then click OK.
3. To remove the card:
a. Gently press in on the digital card (1) to unlock it.
b. Pull the digital card (2) out of the slot.
ENWW Stopping or removing a digital card 3
2 PC Cards
4 Chapter 2 PC Cards ENWW
Configuring a PC Card
A PC Card is a credit card-sized accessory designed to conform to the standard specifications of the
Personal Computer Memory Card International Association (PCMCIA). The PC Card slot supports
●32-bit (CardBus) and 16-bit PC Cards.
●Type I and Type II PC Cards.
NOTE Zoomed video PC Cardsand 12–V PC Cards are not supported.
CAUTION To prevent loss of support for other PC Cards, install only the software required for
the device. If you are instructed by the PC Card manufacturer to install device drivers:
Install only the device drivers for your operating system.
Do not install other software, such as card services, socket services, or enablers, supplied by the
PC Card manufacturer.
ENWW Configuring a PC Card 5
Inserting a PC Card
CAUTION To prevent damage to the computer and external media cards, do not insert an
ExpressCard into a PC Card slot.
CAUTION To prevent damage to the connectors:
Use minimal force to insert a PC Card.
Do not move or transport the computer when a PC Card is in use.
The PC Card slot may contain a protective insert. The insert must be released and then removed before
you can insert a PC Card.

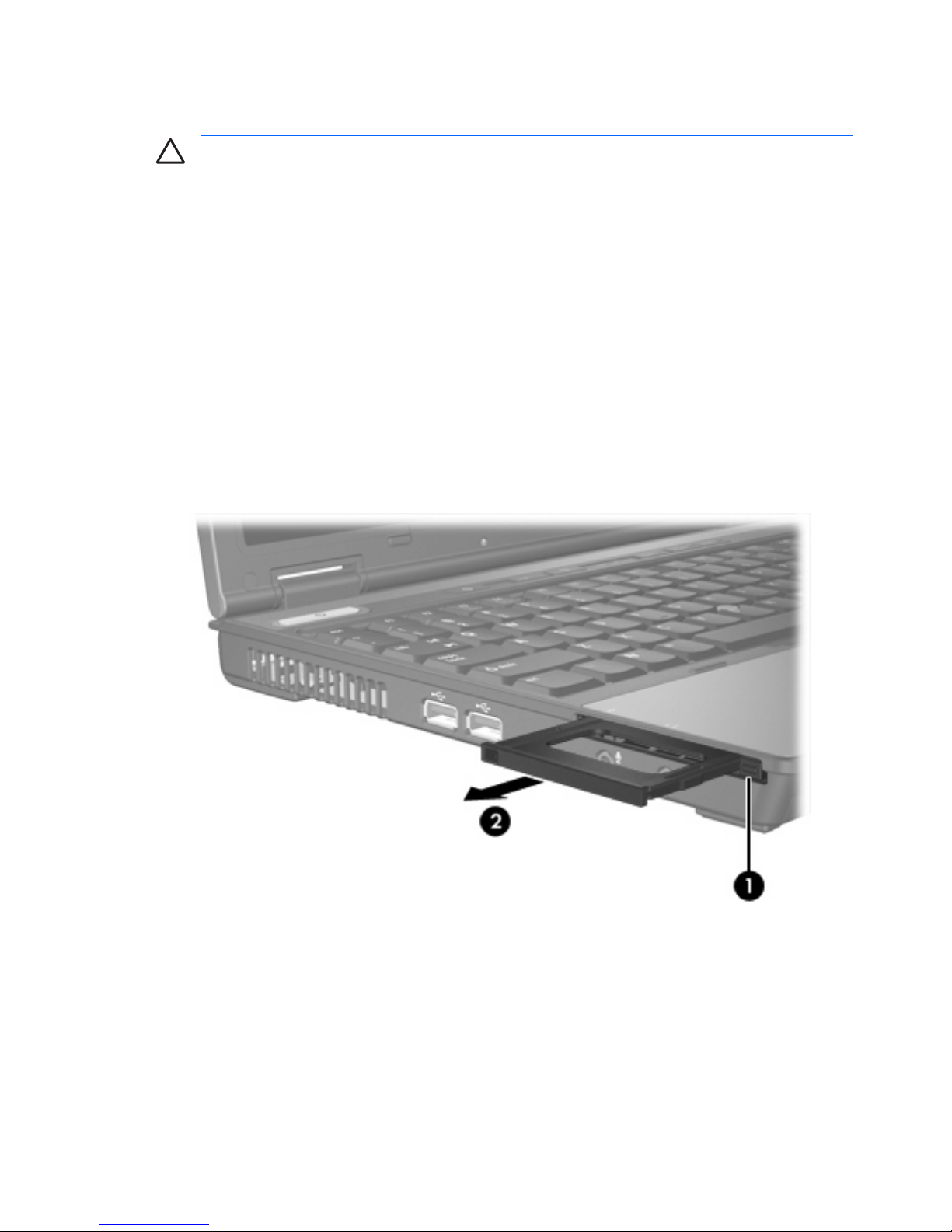

1. To release and remove the PC Card slot insert:
a. Press the PC Card eject button (1).
This action extends the button into position for releasing the insert.
b. Press the eject button again to release the insert.
c. Pull the insert out of the slot (2).
2. To insert a PC Card:
a. Hold the PC Card label-side up, with the connectors facing the computer.
6 Chapter 2 PC Cards ENWW
