Front fan and fan holder installation
Introduction
This document describes how to install a front card guide and front fan in the HP xw and HP
Workstation series.
Kit contents
●Warranty information
●Fan
●Fan holder for HP xw9300 Workstations
●Combination card guide/fan holder for the HP xw6000 Workstation series
●Combination card guide/fan holder for the HP xw4000 Workstation series and HP 400
Workstations
Before you begin
To view QuickSpecs and determine the compatibility of this product with your HP workstation, see
http://www.hp.com/go/productbulletin.
NOTE: Only workstations having non-factory-integrated, high power PCI cards require the additional
cooling provided by the optional front chassis fan included in this kit. The optional front chassis fan is
not recommended for use on workstations that have hard drives mounted in the optical bays because
this might reduce long term reliability of these hard drives. HP recommends that your environmental
temperature not exceed 27°C (80°F) if this fan is installed in your workstation and you have hard drives
installed in the optical bay area.
© 2004–2009 Hewlett-Packard Development Company, L.P. Printed in the U.S.
ENWW Introduction 1
Warnings and cautions
WARNING! Any surface or area of the equipment marked with this symbol indicates the presence
of an electrical shock hazard. To reduce the risk of injury from electrical shock, do not open any enclosed
area marked with this symbol.
WARNING! To reduce the risk of electric shock or damage to your equipment:
— Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
— Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.
— Disconnect power from the equipment by unplugging the power cord from the electrical outlet.
WARNING! Any surface or area of the equipment marked with this symbol indicates the presence
of a hot surface or hot component. If this surface is contacted, the potential for injury exists. To reduce
the risk of injury from a hot component, enable the surface to cool before touching.
WARNING! If a product is shipped in packaging marked with this symbol, , the product must always
be lifted by two persons to avoid personal injury due to product weight.
WARNING! To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper
workstation setup, posture, health, and work habits for computer users, and provides important electrical
and mechanical safety information. This guide is located at http://www.hp.com/ergo and on the
documentation CD (if one is included with the product).
CAUTION: Static electricity can damage the electronic components of the workstation. Before
beginning these procedures, be sure you discharge static electricity by briefly touching a grounded metal
object.
CAUTION: To prevent damage to the workstation, observe the following Electrostatic Discharge
(ESD) precautions while performing the system parts removal and replacement procedures:
— Work on a static-free mat.
— Wear a static strap to ensure that any accumulated electrostatic charge is discharged from your body
to the ground.
— Create a common ground for the equipment you are working on by connecting the static-free mat,
static strap, and peripheral units to that piece of equipment.
NOTE: HP accessories are for use in HP Workstation products. They have been extensively tested
for reliability and are manufactured to high quality standards.
2 Front fan and fan holder installation ENWW
Step 1—Preparing for component installation
NOTE: Workstation models vary. All illustrations are examples only.
Accessing the internal components of the workstation
1. If you need help preparing the workstation for this installation, consult the removal and replacement
procedures in the service guide for your workstation at http://www.hp.com/support/
workstation_manuals.
NOTE: For the HP Workstation series, these procedures are also available in the User
Guide on the Documentation and Diagnostics CD that shipped with your workstation.
2. Power down the workstation, and then disconnect the power cord.
3. Power down all external devices, and then disconnect them from the workstation.
4. Remove the side access panel.
Removing components
▲If present, remove the card support to enable access to the system board connectors.
Step 2—Installing the front fan and fan holder
After preparing the workstation for component installation, perform the following steps to install the front
fan and fan holder.

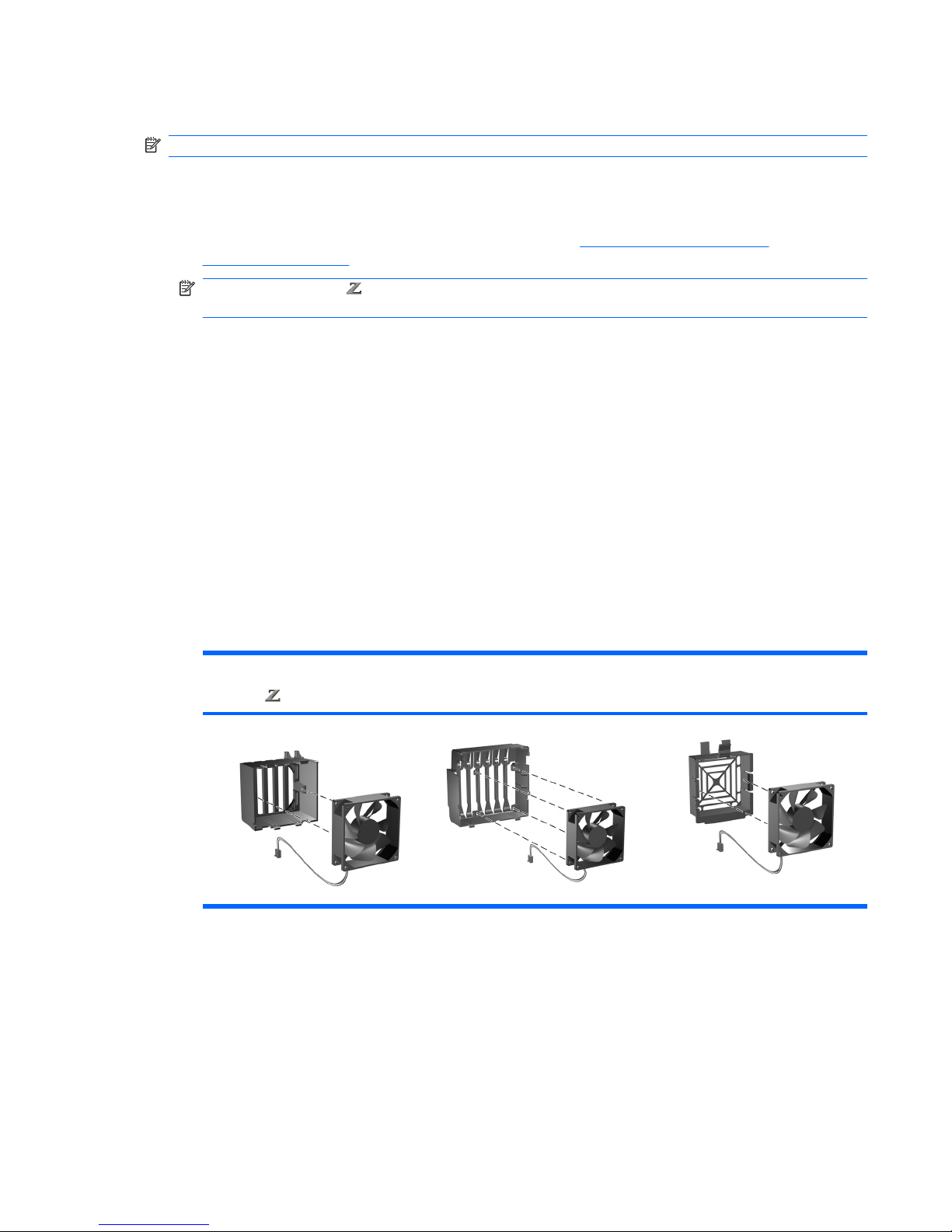

1. Identify the front fan holder specified for your workstation.
Table 1 Identifying the front fan and fan holder
HP xw4000 Workstation series
HP 400 Workstations
HP xw6000 Workstation series HP xw9300 Workstations
2. Align the fan with the label facing inward, toward the holder.
3. Position the wire to enable maximum length to reach the system board.
4. Insert the fan into the holder. If an airflow indicator is present on the fan, make sure it points toward
the holder and the rear of the chassis.
ENWW Step 1—Preparing for component installation 3
5. Lower the front fan holder and fan assembly into the chassis and snap it into place. Ensure cables
are routed properly to avoid damage to the cables.
CAUTION: Clamping a cable between the card guide and the chassis might damage the cable.
Figure 1 Routing the cables
6. Plug the front fan connector into the front chassis fan header on the system board.
NOTE: To locate system board components, see the service label on the side access panel.
Table 2 Installing the front fan and fan holder
HP xw4000 Workstation series
HP 400 Workstations
HP xw6000 Workstation series HP xw9300 Workstations
4 Front fan and fan holder installation ENWW
Step 3—Reassembling the workstation
1. Reinstall the side access panel.
2. Reconnect external devices and power cord.
3. Restore power to the workstation and all external devices.
Japanese 日本語
This document is available in Japanese. See http://www.hp.com/support/workstation_manuals, then
select your workstation product and select Japanese from the drop down Manual Language menu.
このドキュメントは日本語版が用意されています。http://www.hp.com/support/workstation_manuals
にアクセスし、ご使用のワークステーション製品を選択し、Manual Language ドロップダウン メニ
ューから Japanese を選択してください。
ENWW Step 3—Reassembling the workstation 5
