Internal USB port kit installation

Introduction

The internal USB port kit provides a Type A female USB port compatible with Type A USB devices

internal to the computer chassis. This document describes how to install the internal USB port kit on

HP Z and xw series Workstations.

Kit contents

●Internal USB port kit

●Adjustable cable strap

●Warranty information

●Internal USB port kit installation instructions (this document)

Before you begin

To view QuickSpecs and determine the compatibility of this product with your HP computer, see

http://www.hp.com/go/productbulletin.

ENWW Introduction 1

Warnings and cautions

WARNING! Any surface or area of the equipment marked with this symbol indicates the

presence of a hot surface or hot component. If this surface is contacted, the potential for injury exists.

To reduce the risk of injury from a hot component, enable the surface to cool before touching.

WARNING! Any surface or area of the equipment marked with this symbol indicates the

presence of an electrical shock hazard. To reduce the risk of injury from electrical shock, do not open

any enclosed area marked with this symbol.

WARNING! To reduce the risk of electric shock or damage to your equipment:

— Do not disable the power cord grounding plug. The grounding plug is an important safety feature.

— Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.

— Disconnect power from the equipment by unplugging the power cord from the electrical outlet.

WARNING! To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes

proper computer setup, posture, health, and work habits for computer users, and provides important

electrical and mechanical safety information. This guide is located at http://www.hp.com/ergo and on

the documentation CD (if one is included with the product).

WARNING! If a product is shipped in packaging marked with this symbol, , the product must

always be lifted by two persons to avoid personal injury due to product weight.

CAUTION: Static electricity can damage the electronic components of the computer. Before

beginning these procedures, be sure you discharge static electricity by briefly touching a grounded

metal object.

CAUTION: To prevent damage to the computer, observe the following Electrostatic Discharge

(ESD) precautions while performing the system parts removal and replacement procedures:

— Work on a static-free mat.

— Wear a static strap to ensure that any accumulated electrostatic charge is discharged from your

body to the ground.

— Create a common ground for the equipment you are working on by connecting the static-free mat,

static strap, and peripheral units to that piece of equipment.

NOTE: HP accessories are for use in HP computer products. They have been extensively tested for

reliability and are manufactured to high quality standards.

2 Internal USB port kit installation ENWW

Step 1—Preparing for component installation

NOTE: Computer models vary. All illustrations are examples only.

Accessing the internal components of the computer

1. If you need help preparing the computer for this installation, consult the removal and

replacement procedures in the service guide for your computer at http://www.hp.com/support/

manuals.

2. Power down the computer, and then disconnect the power cord.

3. Power down all external devices, and then disconnect them from the computer.

4. Remove the side access panel.

Removing components

▲If present, remove the card support to enable access to the expansion slots and system board

connectors.

Step 2—Identifying the internal USB connector

The Internal USB Cable can be installed in most HP Z and xw series Workstations. The cable

attaches to the internal USB header connector located on the computer system board. Installation of

the kit is slightly different for each computer model within the series due to system board design

differences.

Identify the internal USB header connector on the computer system board as follows:

1. Using the computer service label diagram (affixed to the inside of the side access panel,

removed previously), identify the internal USB header connector location on the system board.

NOTE: Some workstations have a second Internal USB connector (shown on the service label

diagram). The second Internal USB connector may have a Type A USB receptacle permanently

affixed to the header. This is an additional USB connector, located directly on the system board,

and is not used with this option kit.

2. Locate the internal USB header connector on the computer system board. This header has

either a 1x5- or 2x5-pin layout with exposed pins, depending on computer model.

Internal USB 1x5-pin header

Blank key position (pin 5)

Internal USB 2x5-pin header

Blank key position (pin 9)

ENWW Step 1—Preparing for component installation 3

Step 3—Installing the internal USB cable

Complete the following steps to install the internal USB cable, shown in the following figure.

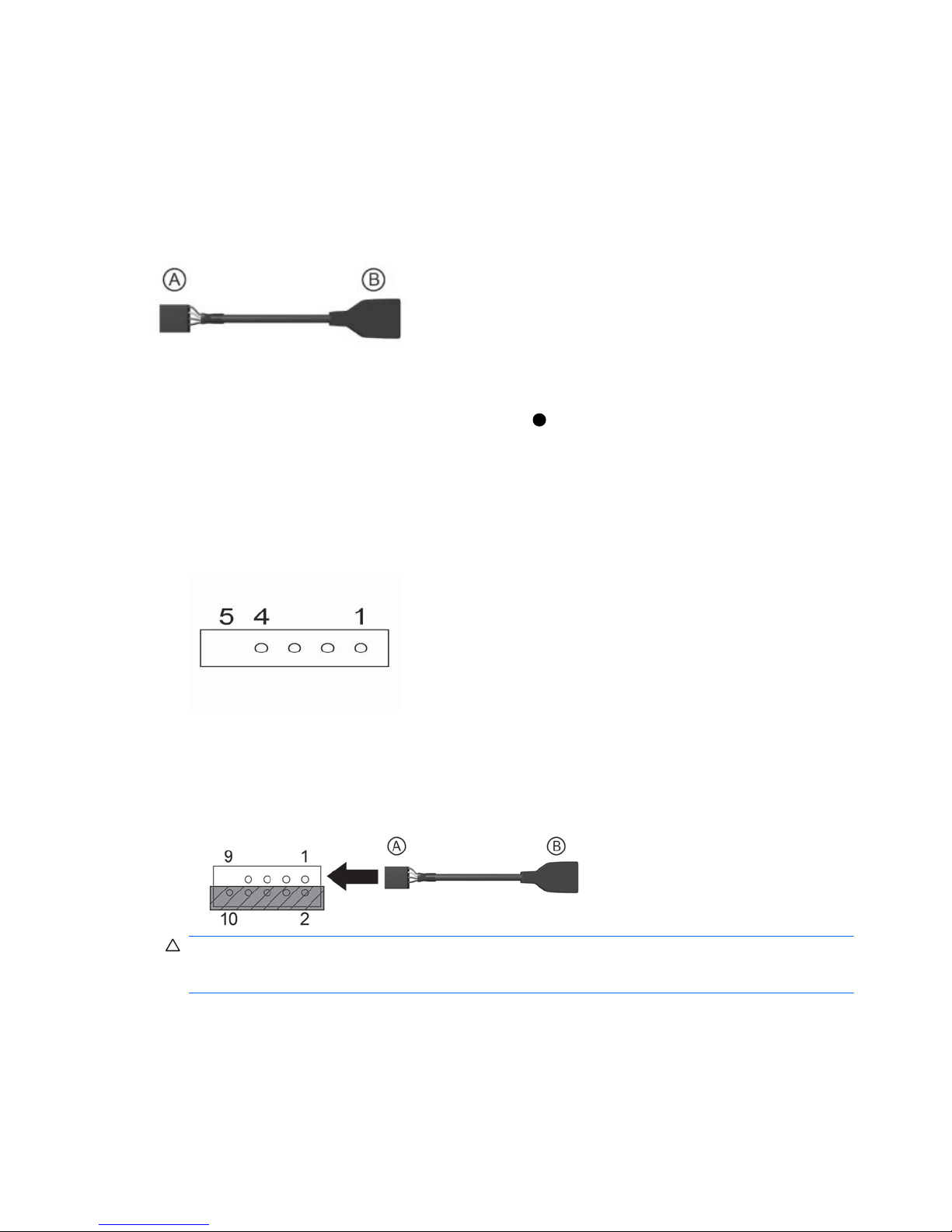

Figure 1 Internal USB cable

1. Attach the internal USB cable 1x5-pin receptacle (

in the preceding figure) to the mating

exposed pins of the available 1x5- or 2x5-pin header connector (which ever is available) on the

system board:

1x5-pin header. When connecting the cable to a 1x5-pin header, carefully match the blank pin

position on the header to the blank pin position on the cable receptacle. The following figure

shows the pin blank pin position (pin 5) on the 1x5-pin header connector.

Figure 2 1x5-pin header showing the blank pin 5 key position

2x5-pin header. When connecting the internal USB cable to a 2x5-pin header connector on the

system board, carefully match the blank pin position on the header to the blank pin position on

the cable receptacle, and connect the cable receptacle to the keyed side only of the header

(containing pin positions 1, 3, 5, 7, and blank pin 9), as shown in the following figure.

Figure 3 2x5-pin header showing the correct alignment and blank pin 9 key position

CAUTION: Do not attempt to connect the internal USB cable receptacle to system board

header pins 2, 4, 6, 8, and 10. Damage might result to the header connector and cable

receptacle.

4 Internal USB port kit installation ENWW

2. Attach a USB key or other USB device to the Type A receptacle on the other end of the internal

USB cable.

NOTE: Although the internal USB cable is intended for use with a USB Key, it can be used

with any USB device that has a compatible USB Type A male connector.

3. Using the adjustable strap with adhesive pad provided in the installation kit, affix the connected

USB key or device to the computer chassis, as desired. The following two figures show example

mounting options for a USB cable and device within the computer chassis.

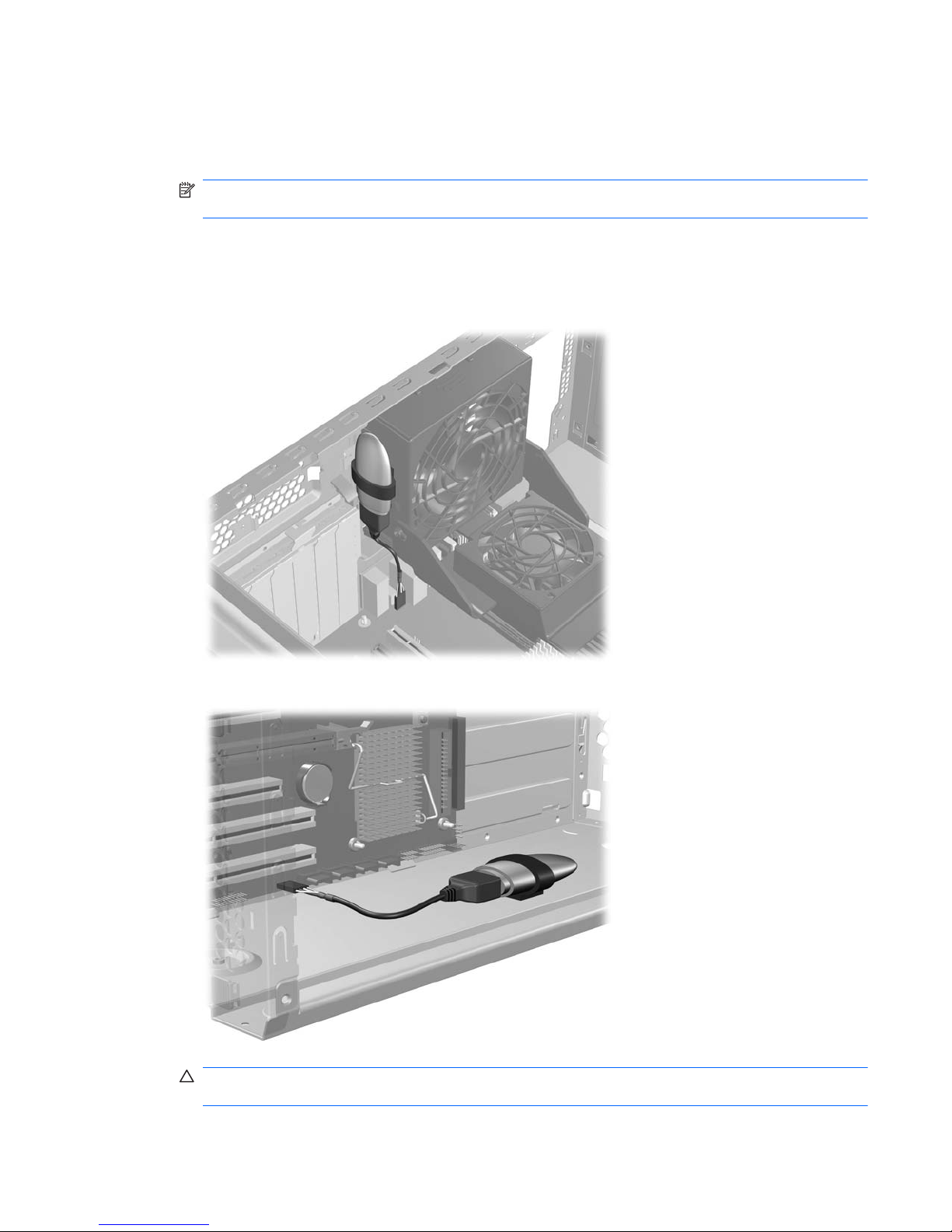

Figure 4 Example 1 of attaching the internal USB cable

Figure 5 Example 2 of attaching the internal USB cable

CAUTION: Ensure that the USB device is not mounted in a location that might obstruct the

flow of cooling air within the chassis plenum.

ENWW Step 3—Installing the internal USB cable 5

Step 4—Reassembling the computer

1. Reinstall the card support, if applicable.

2. Reinstall the side access panel.

3. Reconnect external devices and power cord.

4. Restore power to the computer and all external devices.

Japanese 日本語

This document is available in Japanese. See http://www.hp.com/support/manuals, then select your

product and select Japanese from the drop down Manual Language menu.

このドキュメントは日本語版が用意されています。http://www.hp.com/support/manuals にアクセス

し、ご使用のワークステーション製品を選択し、Manual Language ドロップダウンメニューから

Japanese を選択してください。
